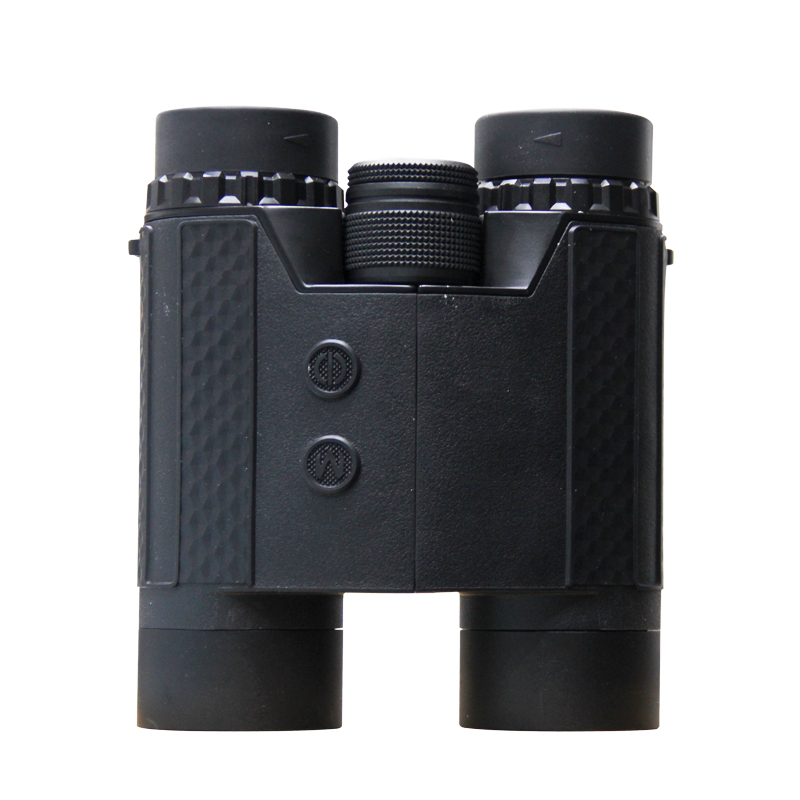

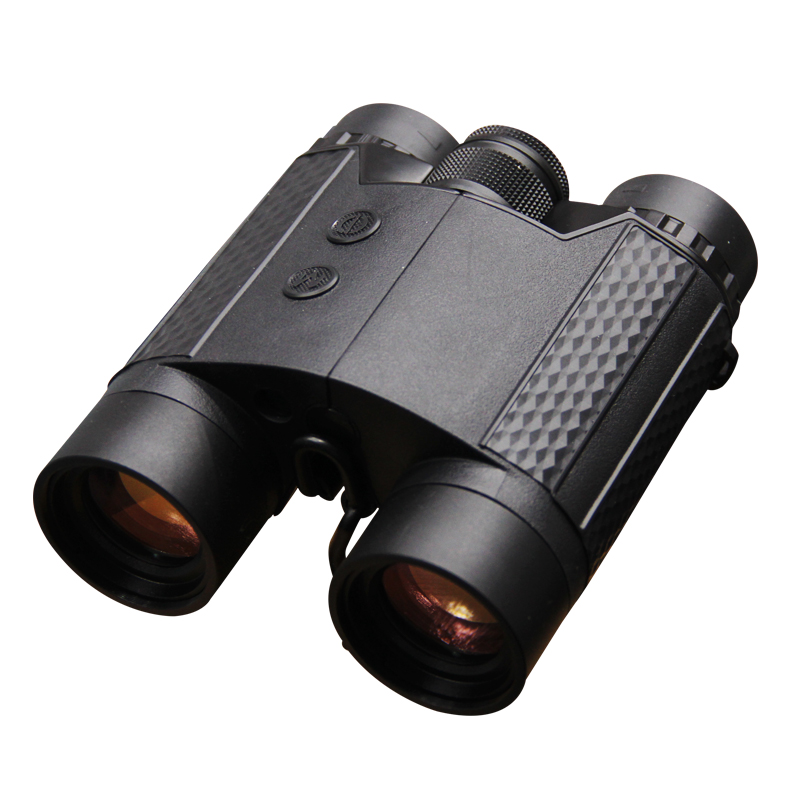

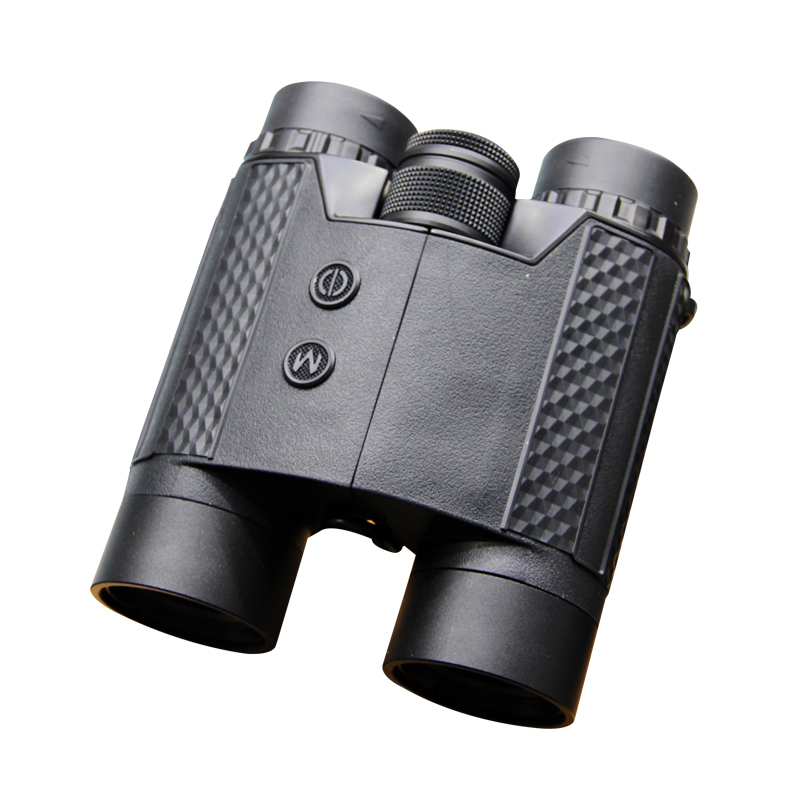

3000ARC binocular laser ranging telescope

3000ARC binocular laser ranging telescope

Onick 3000ARC uses a high-definition optical system and 8x optical magnification, making it easier to observe and lock targets and facilitate measurement. Multiple measurement modes, ranging, angle measurement, horizontal distance, and vertical height modes. Multi-layer full coating and BAK4 prisms ensure that you can easily obtain stable and excellent image performance even in the deepest twilight.
Send Inquiry
Description
Parameter
Products Description

Binoculars for observation, measurement, and high-definition distance

Onick 3000ARC uses a high-definition optical system and 8x optical magnification, making it easier to observe and lock targets and facilitate measurement. Multiple measurement modes, ranging, angle measurement, horizontal distance, and vertical height modes. Multi-layer full coating and BAK4 prisms ensure that you can easily obtain stable and excellent image performance even in the deepest twilight.


Product features:

1. It combines the optical observation effect of a telescope and the function of a laser rangefinder;

2. Multiple measurement modes, including distance measurement, height measurement, and horizontal distance measurement;

3. It can measure the distance of any object up to 3,000 meters without the need for a cooperative target

4. Sensitive distance measurement, intuitive display data, low laser emission power, and safe for human eyes;

5. Multi-layer broadband green film lens, high light transmittance, clear and bright imaging;

6. Solid appearance, comfortable operation;


Application areas:

Electricity, industry, forestry, security, geological exploration, construction, outdoor hunting, camping and mountaineering, etc.


Technical parameter

Distance measurement range10~3000m
Measurement accuracy±1m
Angle range±60°
Angle accuracy±1°
Laser type905nm (Class 1)
Magnification8X
Objective diameter32mm
Effective eyepiece22mm
Exit pupil diameter4mm
Exit pupil distance19.3mm
Field of view
Diopter-5~+5D
Focus modecenter + left and right adjustment
Prism typeBAK4
Screen typereflective OLED
Battery specificationCR2
Product weight945g
Dimensions150*135*65mm
Working temperature-10℃~+60℃

binocular laser ranging telescope

binocular laser ranging telescope

binocular laser ranging telescope


Tags: binocular laser ranging telescope laser rangefinder golf Golf laser Range Finder range finder laser military laser rangefinder Laser rangefinder Laser Rangefinder Telescope
