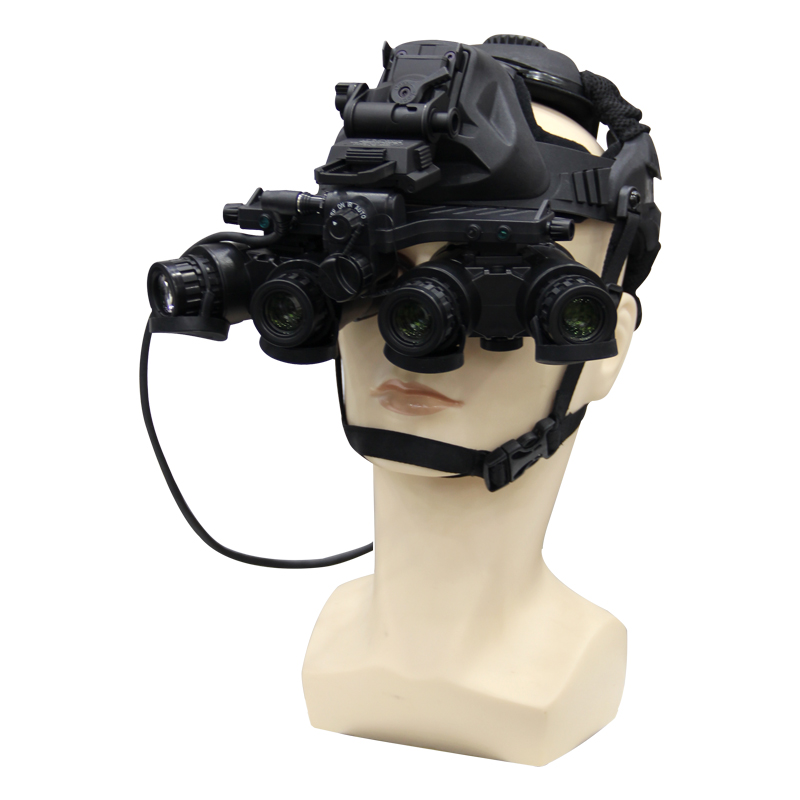

NVG-D4 Helmet-mounted four-eye low-light night vision device

NVG-D4 Helmet-mounted four-eye low-light night vision device

Onick NVG-D4 multi-function low-light night vision device uses a high-performanc
Send Inquiry
Description
Parameter
Products Description

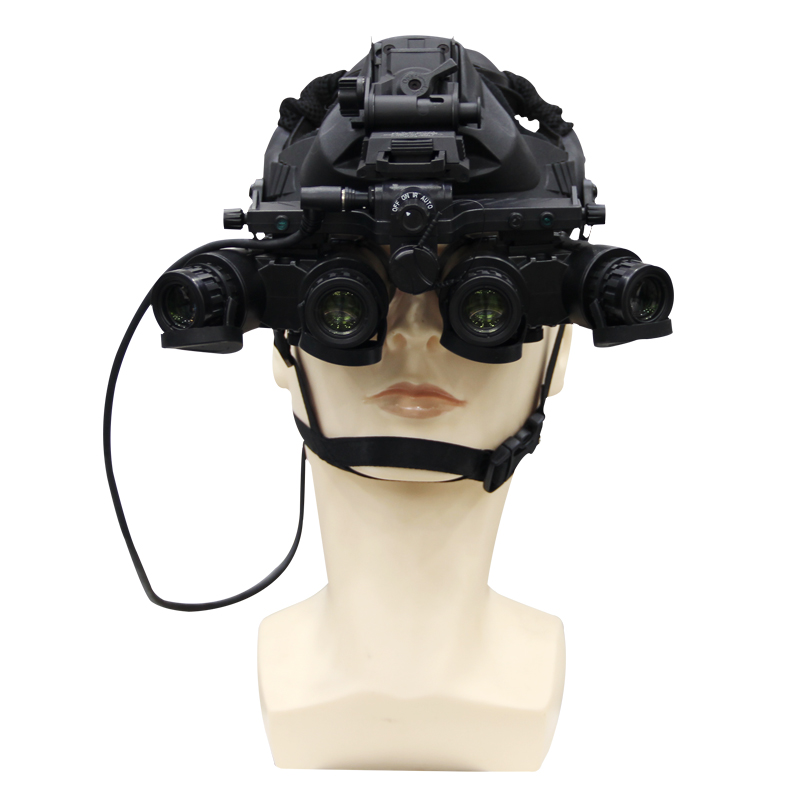

Onick NVG-D4 multi-function low-light night vision device uses a high-performance quasi-third-generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation, and flexible use. There are four independent image intensification tubes, and four independent objective lenses are arranged in a panoramic direction. The two lenses in the middle point forward like traditional double-tube goggles, giving the operator more depth perception, while the other two lenses point slightly outward from the center to increase the peripheral vision. The two tubes on the right and the two tubes on the left are spliced at the eyepiece. The operator sees that the two center tubes overlap with the two outer tubes, resulting in an unprecedented 120° field of view. The night vision device has a built-in infrared auxiliary light source and is highly practical. It can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in night-time unlit environments. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.


Product Features

1. High-performance quasi-third-generation image intensifier is used;

2. Excellent performance, small size, light weight, clear imaging, simple operation;

3. Ultra-large field of view, built-in infrared auxiliary light source, strong practicality;


Application areas:

Border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc., are public security departments, armed police forces, special police forces, and guard patrols and other fields.


Technical parameter

Magnification (X)1X
Optical systemF1.2, 22.5mm
Full field of view (degrees)120x50
Optical axis parallelism<0.1 degrees
Optical MTF120LP/mm
Optical distortion<1%
Relative illumination>0.75
Exit pupil distance (mm)36
Eyepiece exit pupil aperture7mm
Diopter adjustment range (degrees,°)±2/-2
Eye distance adjustment methodarbitrarily continuously adjustable
Eye distance adjustment range58-72mm
Eye distance locking methodmanual locking
Focus range (meters, m)0.25-∞m
Volume (length x width x height mm, mm)200x136x83
Weight (grams, g)780g (without battery) 850g (with battery)
Switch styleknob type
Switch positionOFF/ON/IR/AUTO
Power supply voltage (volts, V)2.8-4.2
Power type1X123A lithium battery/battery box (4X123A lithium battery)
Power consumption (W)<0.2
Battery capacity (maH)800-3200maH
Battery life (H)30-80
Brightness gainautomatic
High light protection functionyes
Direction sensing automatic power on and off functionyes
Automatic infrared auxiliary lightyes
Infrared light wavelength (nanometers, nm)850
Ultra-wideband multi-layer transparent filmyes
Appearance styleGPNVG18+
Image intensifier tube levelQuasi-3rd generation (Gen3)
Resolution (line pair, 1p/mm)64-72
Quality factor (FOM value) 1600-2300
Sensitivity (microampere/lumen, uA/Im)850-1200
Signal-to-noise ratio28-32
Brightness gain (cd/m2/lx)10000-20000
Cathode surface typeoptional
