Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle

Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle

Product OverviewOnick Scout Series 20-60x80ED Monocular Target Scope has a milit
Send Inquiry
Description
Parameter
Products Description

Product Overview

Onick Scout Series 20-60x80ED Monocular Target Scope has a military standard rangefinder graticule, which can calculate the target distance and size using fine-scale positions; and adopts a 27mm large eyepiece design and an 80mm large-aperture objective lens. High-quality BAK4 high-definition prism effectively reduces light leakage, and the objective lens uses ED lenses, full multi-layer broadband anti-reflection coating, sufficient light intake, clear and sharp images, allowing you to enjoy a visual feast more comfortably.


Product Features:

1. With a military standard rangefinder graticule, you can use fine-scale positions to calculate the observed target;

2. Dual-speed focusing wheel for fast observation;

3. BAK4 high-definition prism, full multi-layer broadband anti-reflection coating, clear and sharp images;

4. 45° eyepiece exit angle design for comfortable observation;


Application areas:

Outdoor travel, security and police use, maritime inspections, outdoor adventures, sports events, power safety inspections, concerts, forestry surveys, industrial inspections, archaeological research, railway line selection, land and resources surveys, etc.





Technical parameter
Model Scout 20-60x80ED
Magnification 20X-60X
Objective diameter 80mm
Barrel diameter 100mm
Prism type BAK4
Eyepiece diameter 27mm (7 elements in 4 groups)
Coating FMC
Focus type dual-speed focus
Diopter 2.2°-1.2°
Exit pupil distance 21-16mm
Close distance 8m
Waterproof yes
Shockproof yes
Diopter adjustment -4D~4D
Net weight 1550g
Product size 435x100x170mm
Tripod supported (optional)

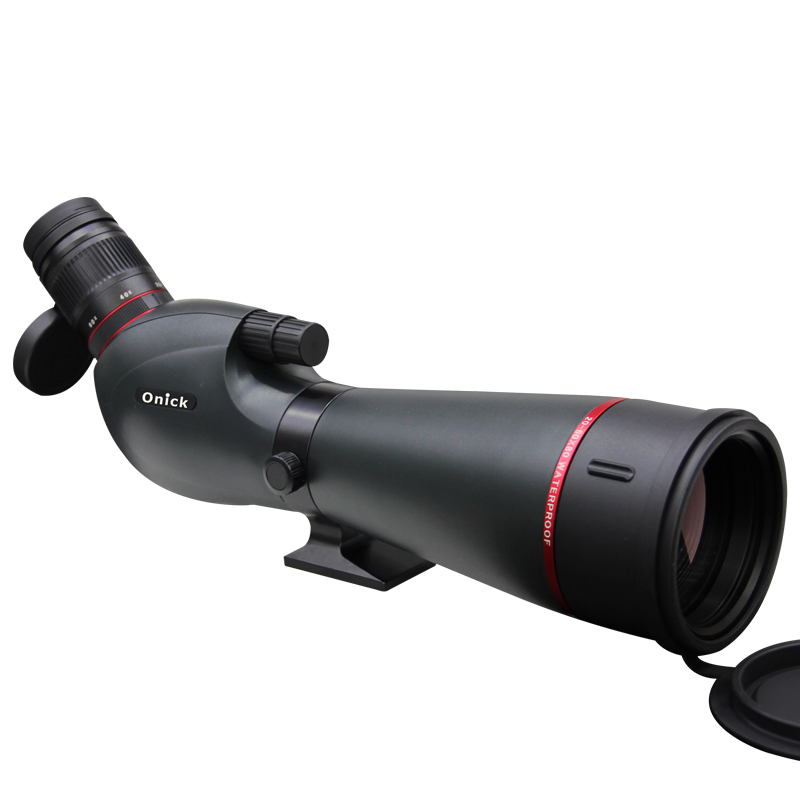

Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle

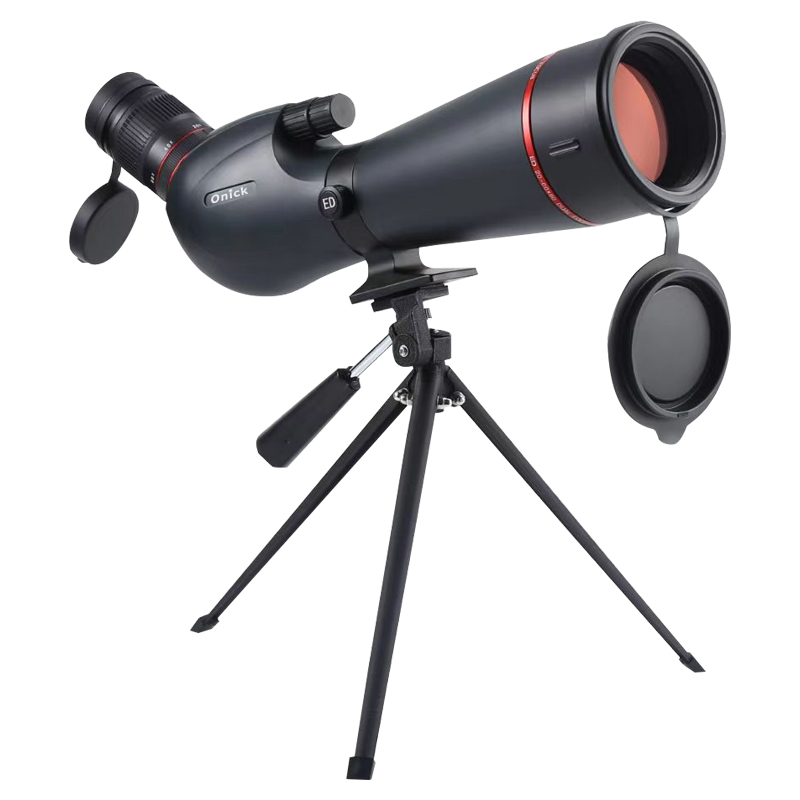

Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle

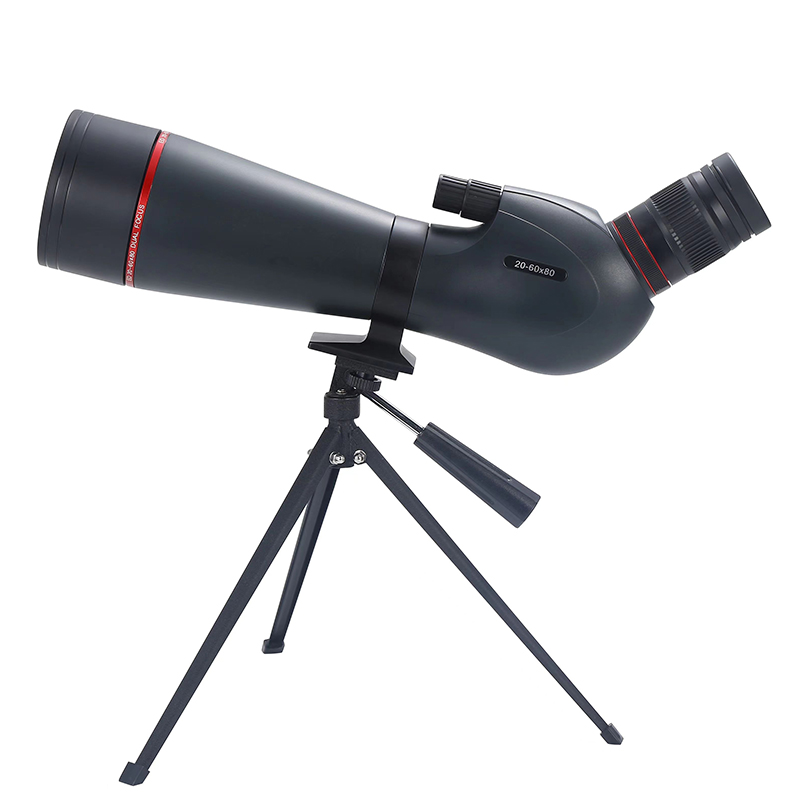

Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle

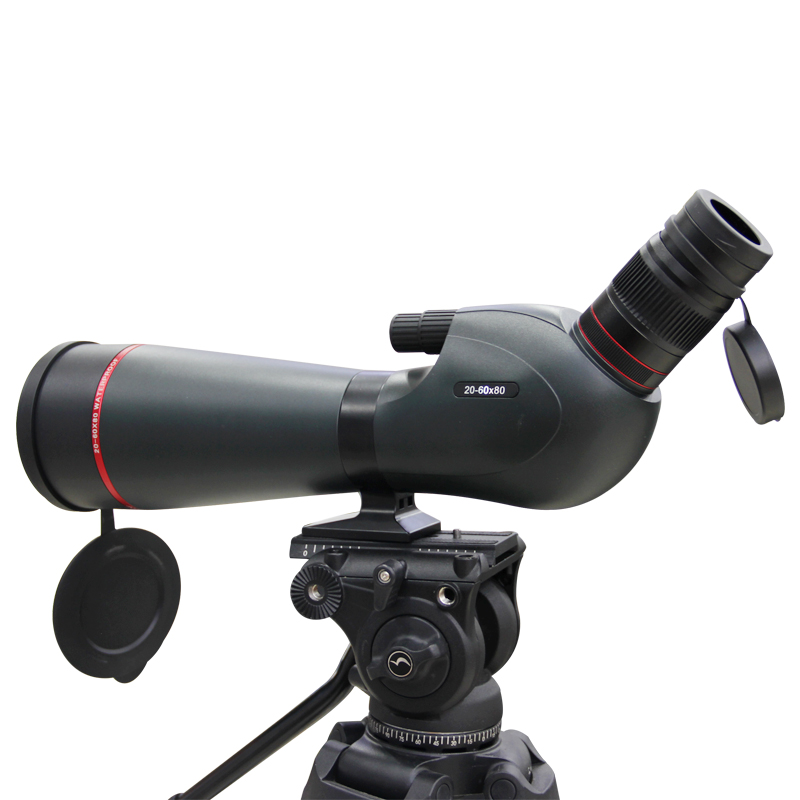

Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle

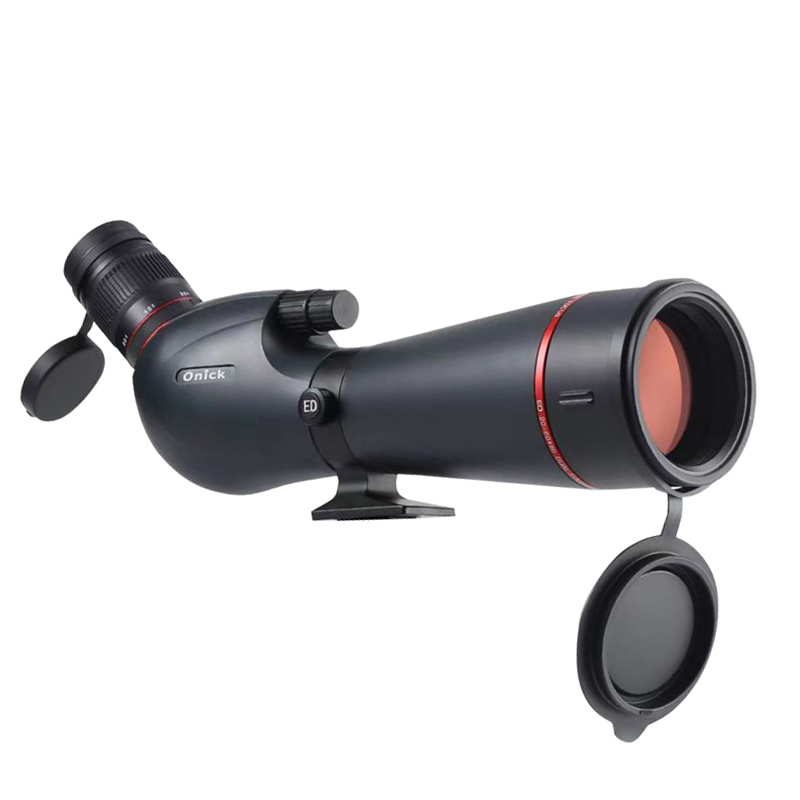

Scout series 20-60x80ED monocular telescope, target scope with rangefinder reticle


Tags: Scout monocular telescope target telescope bird-watching telescope scenic telescope binoculars high-definition telescope
