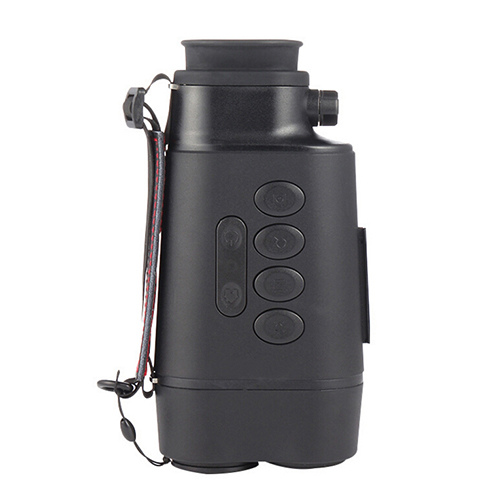

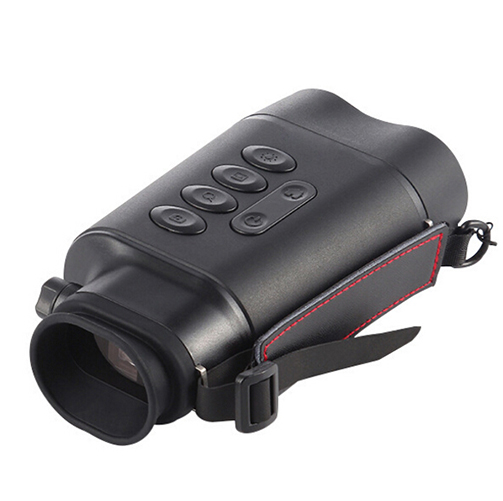

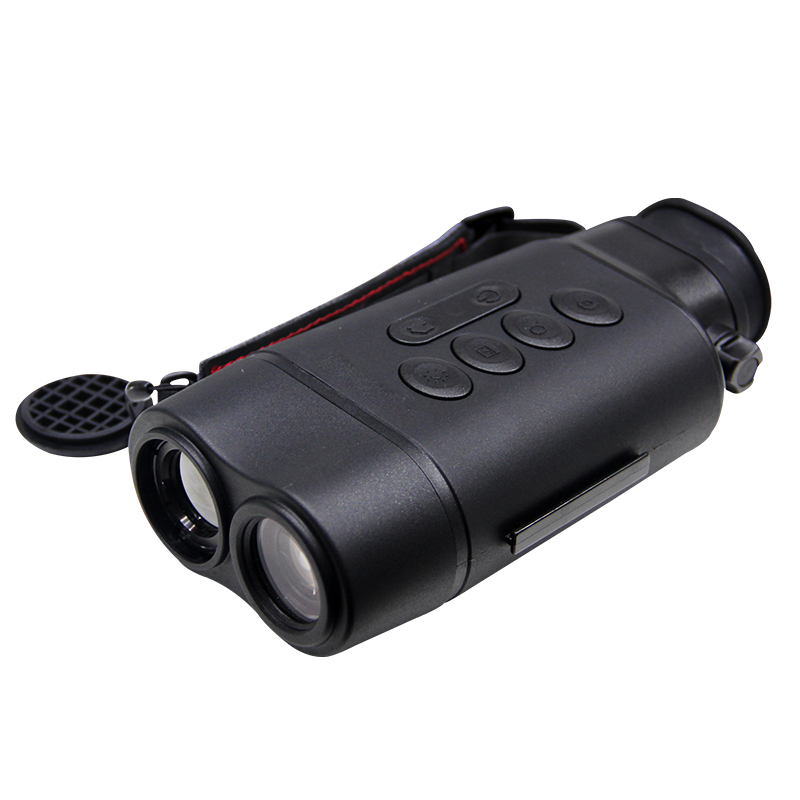

RE45 (with video recording function) dual-light fusion thermal imaging night vision device

Onick RE45 (with video recording function) This is a dual-light fusion thermal imaging night vision device with video recording function. It adopts infrared and low-light fusion, combining the advantages of infrared and low-light, making the imaging resolution higher, the single body easier to be identified, and solving the defect that single infrared cannot pass through glass. At the same time, it has a new fusion focus (picture-in-picture) function, which can magnify a single point and maintain a high clarity.
Send Inquiry
Description
Parameter
Products Description

Dual-light fusion thermal imaging night vision device

Onick RE45 (with video recording function) This is a dual-light fusion thermal imaging night vision device with video recording function. It adopts infrared and low-light fusion, combining the advantages of infrared and low-light, making the imaging resolution higher, the single body easier to be identified, and solving the defect that single infrared cannot pass through glass. At the same time, it has a new fusion focus (picture-in-picture) function, which can magnify a single point and maintain a high clarity.
The main feature of the dual-light fusion thermal imaging night vision device of Onick RE45 (with video recording function) is the face recognition function. Ordinary thermal imagers can only see blurry human figures, while Onick RE45 dual-light fusion thermal imaging night vision device can see the face clearly and know the real face. It is a dual-light fusion product that combines thermal imagers and night vision devices. The ranging function is based on the electronic compass and azimuth ranging inside. And you can know the direction of the target point, which does not refer to laser ranging. Onick RE 45 has a test report issued by the Quality Inspection Center for Security and Police Electronic Products of the Ministry of Public Security, which can be checked and verified on the official website of the Quality Inspection Center of the Ministry of Public Security!


Product features:

1. Switch between multiple high-definition imaging modes at will;

2. Four-fold fusion optical zoom, automatic tracking of infrared hotspot targets;

3. Distance measurement, photo taking, video recording, maximum support for 32G storage;

4. Six cross cursors, compact structure, low energy consumption, and long battery life;

5. 8-14μm high-sensitivity long-wave infrared imaging, 0.4-1.2μm low-light imaging/2k resolution;

6. Infrared and low-light dual-channel fusion, shutter-free thermal imaging, electronic compass, small and flexible, easy to carry.

Inspection report approved by China and internationally recognized: Inspection report of the Quality Inspection Center for Security and Police Electronic Products of the Ministry of Public Security, Beijing Inspection No. 1910270.


Dual-light fusion observation is mainly used in:

Public security, special police, armed police, security, technical investigation, protection, drug control, electricity, procuratorate, forestry, firefighting, maritime, industry, electronics, medical treatment, scientific research, security and anti-smuggling, border defense, reconnaissance, culvert detection, wildlife protection and border and coastal defense and other fields.


Technical parameter

modelOnick RE45 with Video recording
infraredInfrared thermal imaging channelVanadium oxide detector,8 um~14 um ,17um,384×288,<50mK @F/1.0,30Hz
Field Angle17°×13°
shutterShutter-free adaptive scene correction
shimmer
Low-light imaging channel0.4 um~1.2um ,2048x2048,<0.0001Lux,30Hz
Field Angle10°×7°
system performance
Image modeThermal image band/Infrared pseudo-color/low-light band/Fusion thermal image/Fusion Pseudo-color/Fusion focus (picture in picture)
Focus Distance21mm
Optical zoom4x optical zoom picture in picture
Intelligent algorithmFusion hotspot target automatic tracking
Brightness/contrastManual/Fully automatic
Image enhancementFusion through fog enhanced
Image shootingTap to capture an image/Hold down to record an image
Image storageBuilt-in 32GSD card
Image downloadUSB

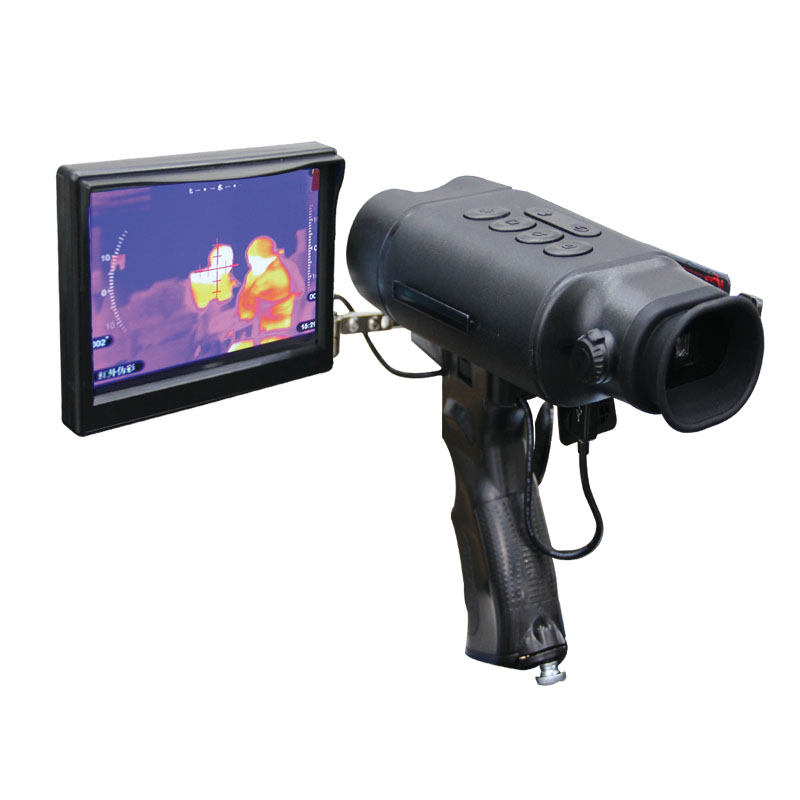

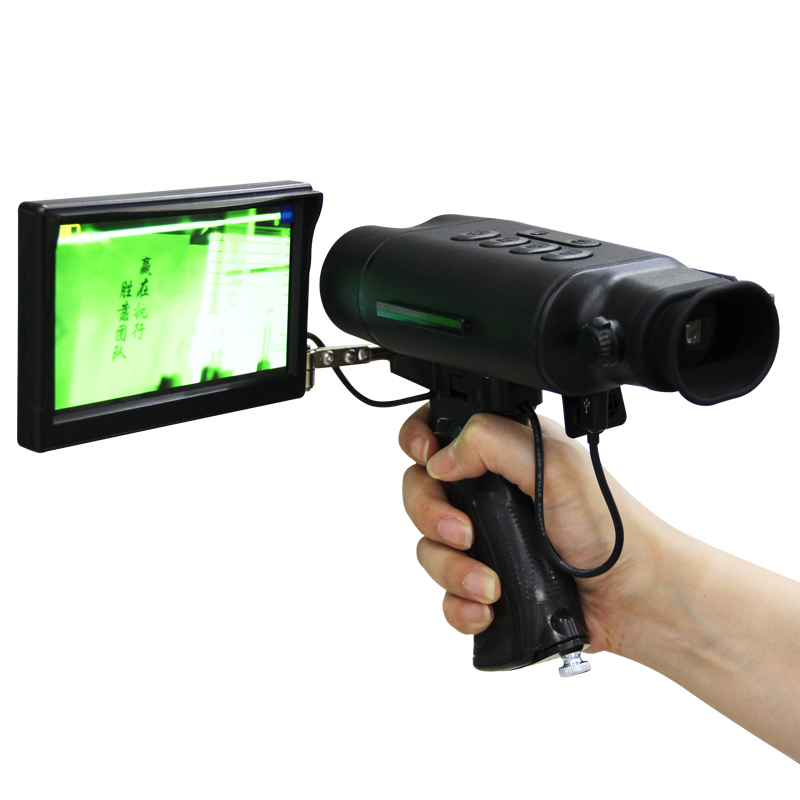

Video displaySupport PAL analog display
Built-in display720x540、LCOS

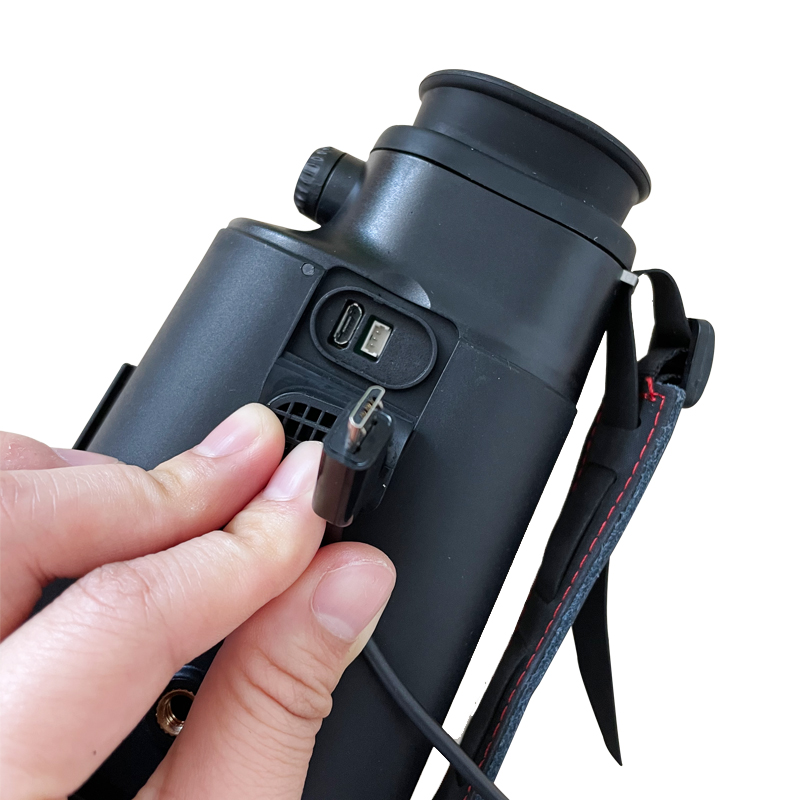

Electrical interfacePower supply, USB, analog video

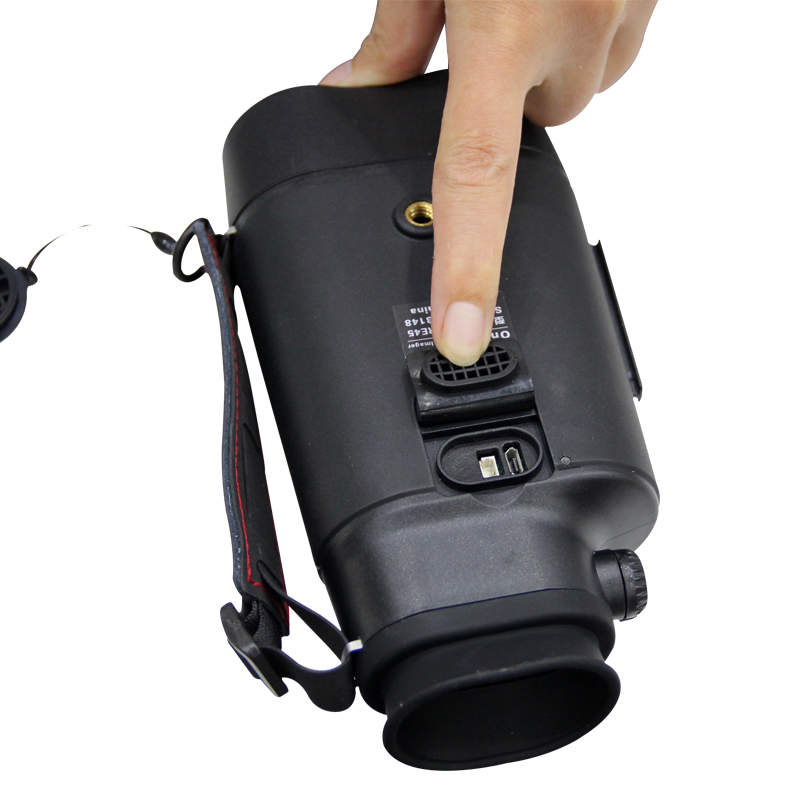

Mechanical interface1/4 inch tripod
chargingUSB power adapter 5VDC
Battery duration≥6h
Fusion imaging rangeFusion imaging: 1.8x0.5m person; Detection ≥4000m, identification ≥1500m
Electronic compasssupport
Three-dimensional attitudesupport
Fusion image rangingsupport
physical propertiesweight≤500 g
dimension≤175mm×88mm×50mm
Operating temperature-20℃~+60℃
Storage temperature-40℃~+60℃
qualification certificateMinistry of Public Security and police electronic product quality testing center inspection report
product featureInfrared and low light dual channel fusion, no shutter thermal image, electronic compass, small and flexible, easy to carry
