NVG-D3 Helmet-mounted binocular night vision device

NVG-D3 Helmet-mounted binocular night vision device

Onick NVG-D2 multi-function low-light night vision device adopts high-performance second-generation image intensifier, with excellent performance, small size, light weight, clear imaging, simple operation, flexible use, and can change the magnification by replacing the objective lens (or connecting the multiplier).
Send Inquiry
Description
Parameter
Products Description

Onick NVG-D3 3rd Generation Helmet-Mounted Binocular Low-Light Night Vision Device

Onick NVG-D3 multi-function low-light night vision device uses the 3rd generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation and flexible use. The magnification can be changed by replacing the objective lens (or connecting the multiplier). The night vision device has built-in infrared auxiliary light source and automatic anti-glare protection system. It is highly practical and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting environment. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.


Product features:

1. High-performance image intensifier, excellent performance, clear imaging, simple operation;

2. Internal infrared auxiliary light source and automatic anti-glare protection system;

3. Automatic anti-glare, high sensitivity, ultra-fast, broadband detection;

4. Small size, light weight, strong practicality, and the magnification can be changed by replacing the objective lens;


Application fields:

Border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. are public security departments, armed police forces, special police forces, and guard patrols.


Technical parameter


Model numberNVG-D3
Image intensifier ratingThree generations
magnification1X
Resolution51 to 57
Cathode surface typeGaAs
Signal-to-noise ratio (dB)18 to 25
Optical sensitivity (microampere/lumen)600-600.
Downtime (hours)10000
Field of view42 + / - 3
Viewing distance (m)250-300.
Eye distance adjustable range65 + / - 5
Eyepiece visual adjustment range+ / - 5 5
Lens systemF1.2, 25mm
Optical coatingMultilayer composite wideband ultra-vacuum ion antireflection film
Objective adjustment range (m)0.25 - up
Automatic anti-glareHigh sensitivity, super fast, broadband detection
Flip detectionAll-solid state non-contact automatic attitude recognition
Supply voltage (V)2.6 4.2 V
Battery type (Volt)2 lithium batteries
Continuous working time (hours)80(Infrared disabled) 40(Infrared enabled)
Operating temperature range (℃)-0.8
Relative humidity5% - 98%.
Dustproof and waterproof classIP65
External dimension115x127x69mm(without eye mask)
Product materialAero aluminium alloy

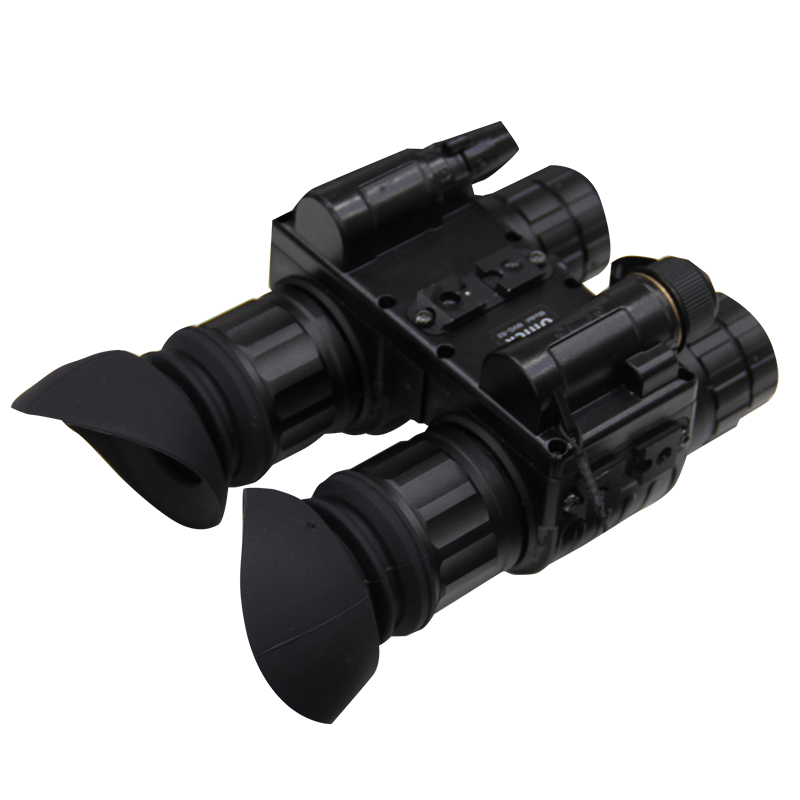

NVG-D3 Helmet-mounted binocular night vision device

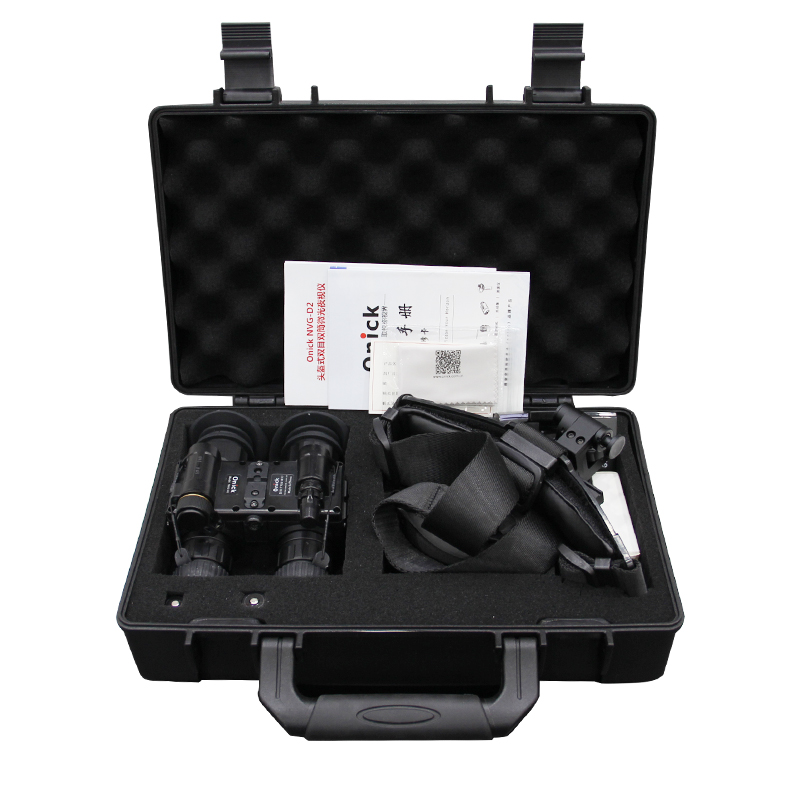

NVG-D3 Helmet-mounted binocular night vision device

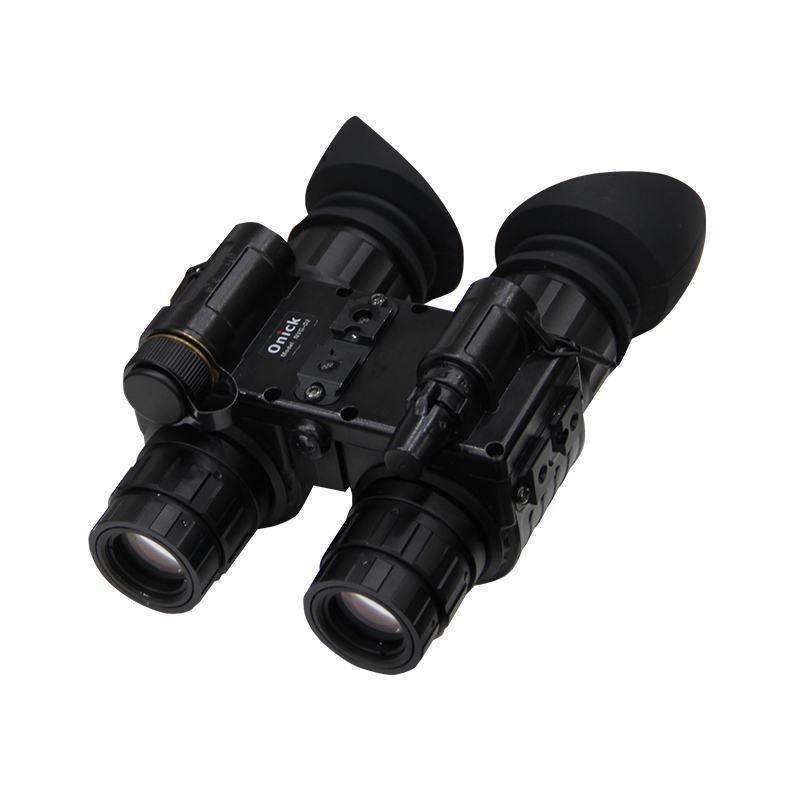

NVG-D3 Helmet-mounted binocular night vision device

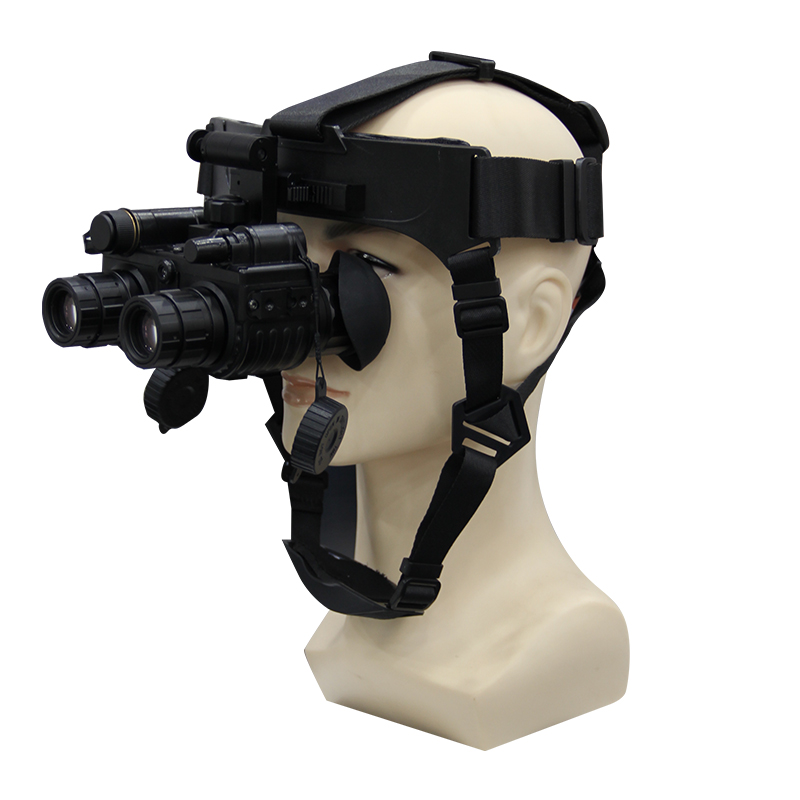

NVG-D3 Helmet-mounted binocular night vision device

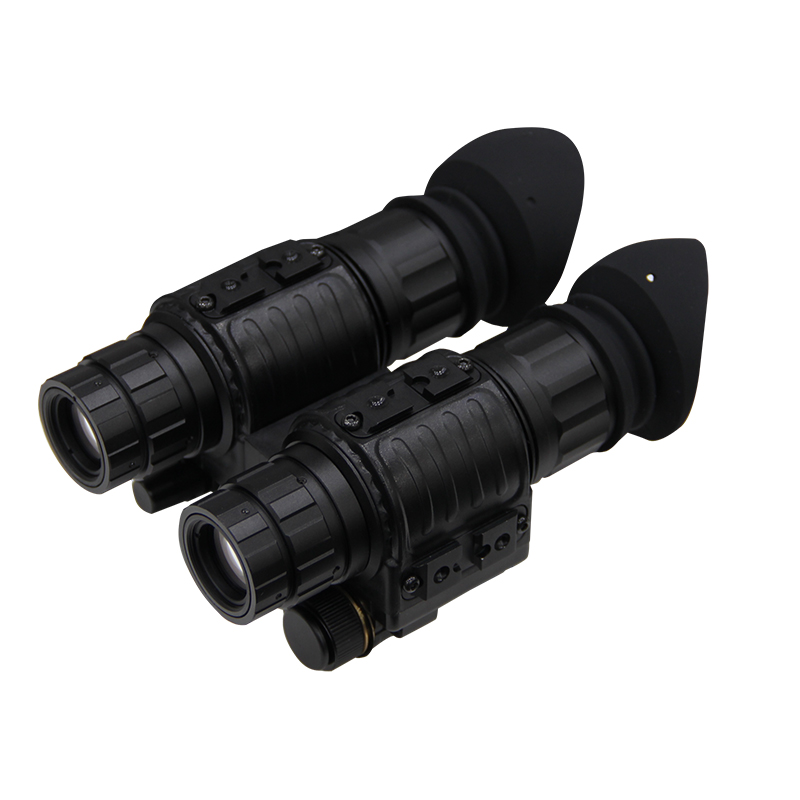

NVG-D3 Helmet-mounted binocular night vision device

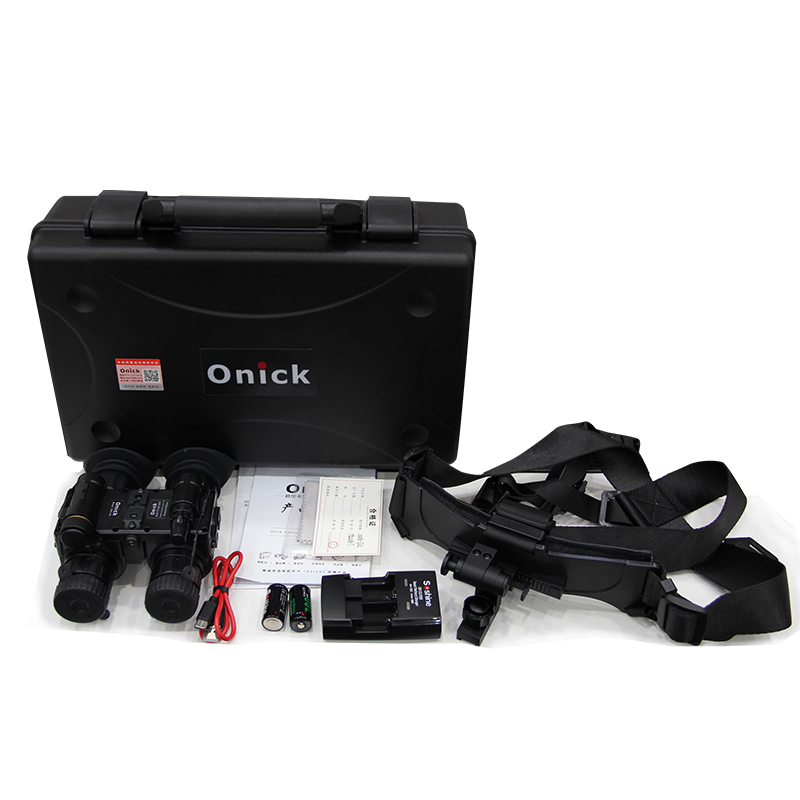

NVG-D3 Helmet-mounted binocular night vision device
