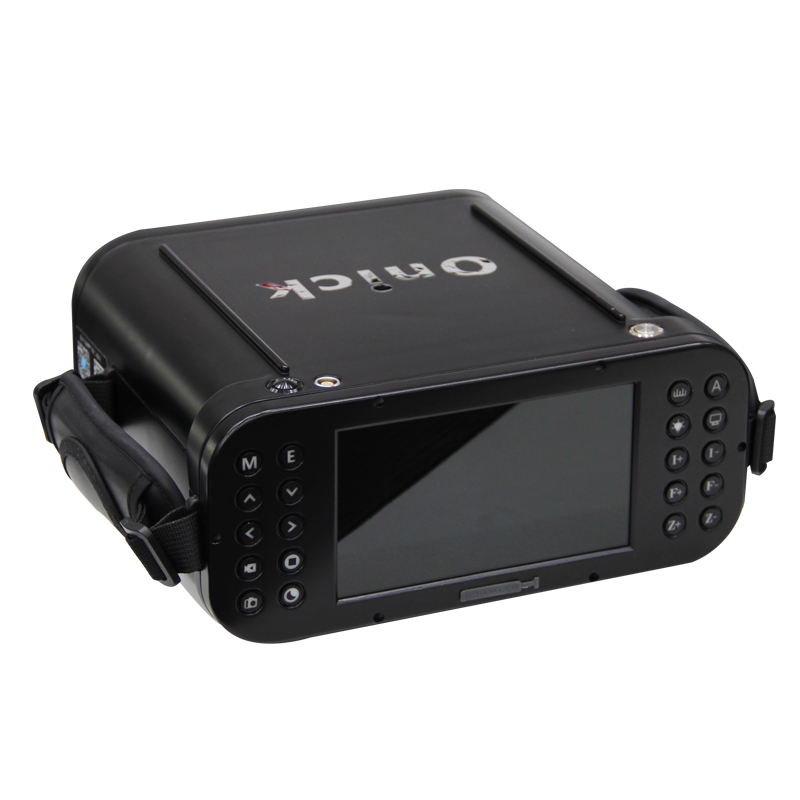

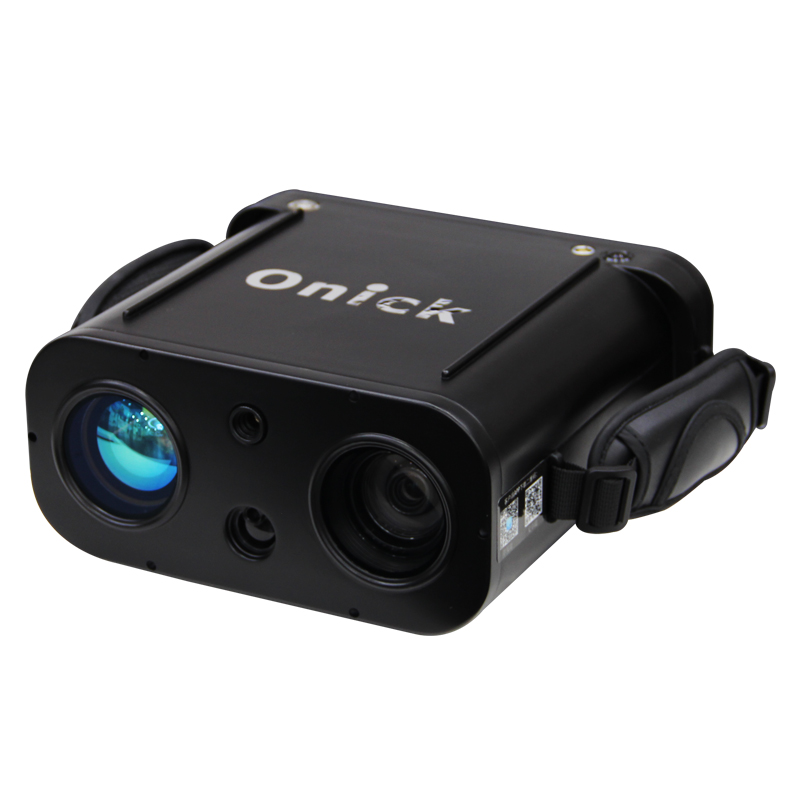

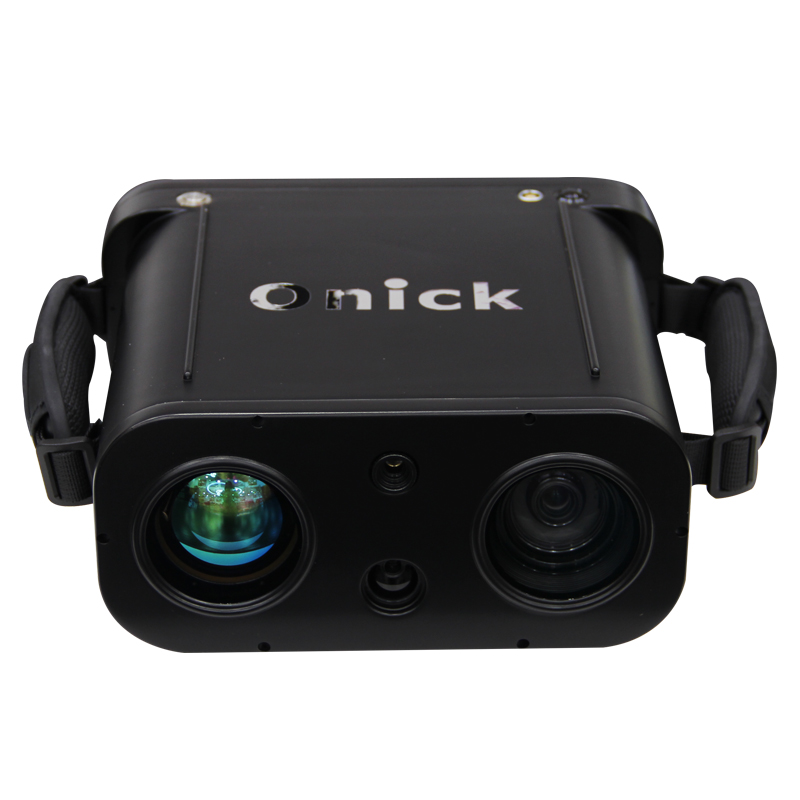

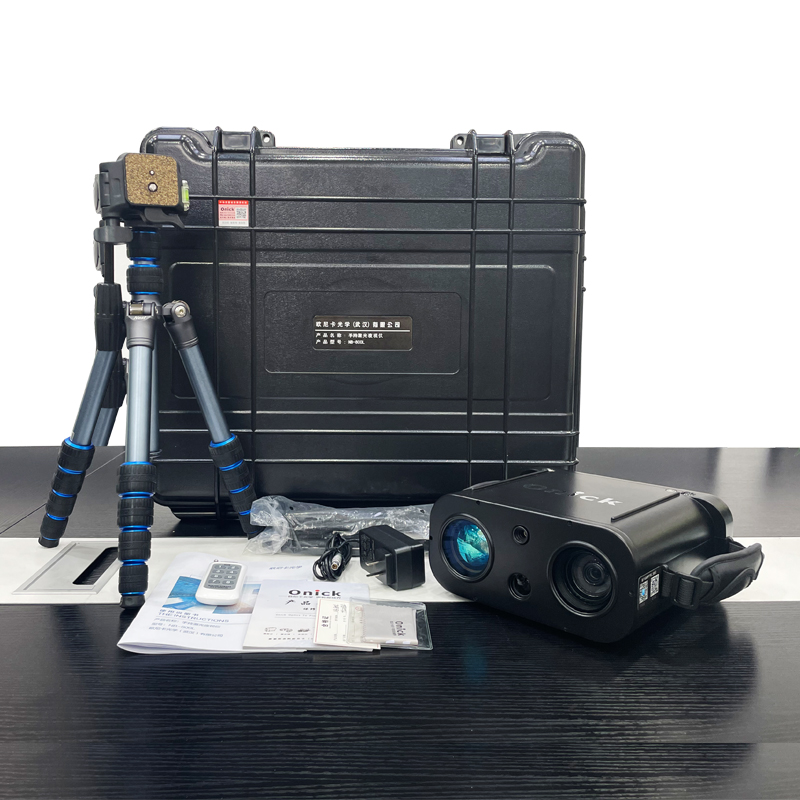

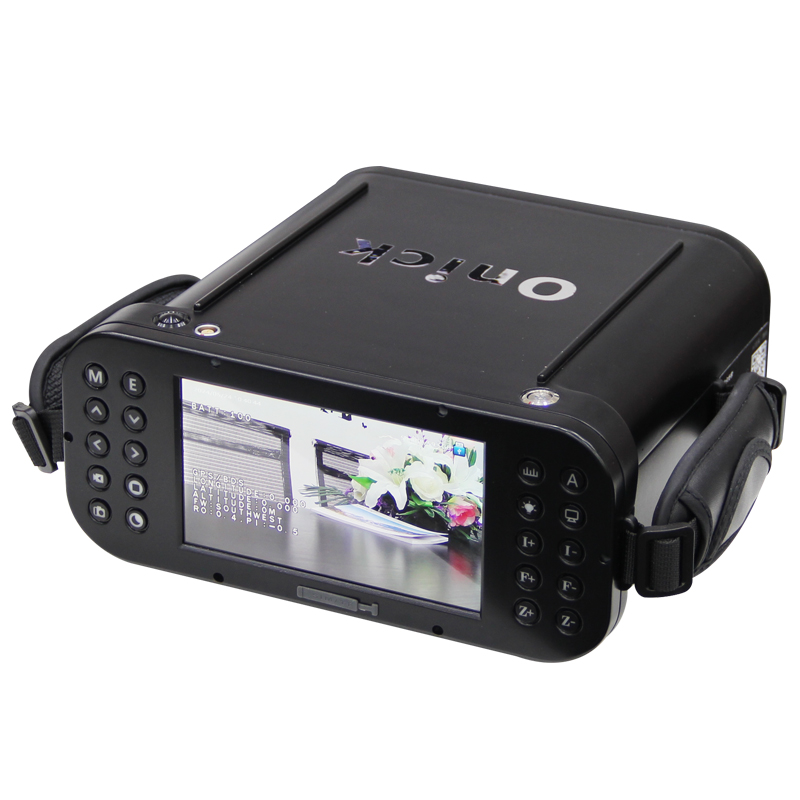

RE800L Multi-function Thermal Imaging Rangefinder

RE800L Multi-function Thermal Imaging Rangefinder

Onick RE800L multi-function thermal imaging rangefinder reconnaissance instrument adds infrared, low light, green laser rejection function, 4G wireless transmission, laser ranging, remote wireless button control function, pitch angle, roll angle, electronic compass azimuth, satellite positioning and other functions on the original basis, 8-36X zoom HD camera, more suitable for close-range day and night all-weather 24-hour evidence collection video. Supports APP remote real-time viewing, photo recording, the product is more practical, with clear imaging during the day and good image effect at night. This series of products has a high degree of integration, small size, and light weight.
Send Inquiry
Description
Parameter
Products Description

Onick RE800L multi-function thermal imaging rangefinder reconnaissance instrument adds infrared, low light, green laser rejection function, 4G wireless transmission, laser ranging, remote wireless button control function, pitch angle, roll angle, electronic compass azimuth, satellite positioning and other functions on the original basis, 8-36X zoom HD camera, more suitable for close-range day and night all-weather 24-hour evidence collection video. Supports APP remote real-time viewing, photo recording, the product is more practical, with clear imaging during the day and good image effect at night. This series of products has a high degree of integration, small size, and light weight. It is specially developed to meet the convenience of users to carry and operate, so as to meet the all-weather automatic evidence collection needs in various fields. Color images (or black and white images) during the day and black and white images at night: the maximum monitoring distance during the day can reach two kilometers. It is an excellent high-tech night vision monitoring product with a high cost-effectiveness after actual application testing among similar products. The equipment has a long life, good stability, good effect and excellent quality.


Product Features:

1、A lightweight intelligent observation device that integrates infrared, low light, laser ranging, and green laser rejection;

2、Supports remote wireless button control function, pitch angle, roll angle, electronic compass azimuth, etc.;

3、Supports 4G wireless transmission, supports APP remote real-time viewing, photo taking and video recording.

4、8-36X zoom HD camera, optical image stabilization, and fog penetration function.


Application areas:

It can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit, reconnaissance, surveillance, outdoor hunting and security protection. It is suitable for special forces such as public security, armed police and the army to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify and track targets of concern; it is also suitable for fire protection, electricity and petroleum industries to achieve day and night monitoring of specific areas or equipment.



Technical parameter
Detector typeVanadium oxide
Sensitivity≤30mk@25℃, F#1.0
Resolution384×288 / 640×512 (17μm / 12μm)
Field of view17.7°×14.2°
Operating band8~14μm
Lens focal length50mm electric focus, electric zoom, 15 pseudo color modes
Sensor type1/1.8" ultra-low illumination CMOS ICR infrared filter automatically switches between day and night modes
Resolution1920*1080
Low illumination0.005Lux (color) 0.0001Lux (black and white)
Focal range5.8~210mm
Optical magnification36x
Electronic zoom8x
Day and night modeAutomatic ICR infrared filter type. When the laser is turned on, it automatically switches from color to black and white. When the laser is turned off, it automatically switches from black and white to color.
PowerRated power 6W
Irradiation angle0.2~40°continuous change
Laser wavelength940nm no red burst invisible to human eyes
Opening methodManual adjustment/APP remote control
Spot sizeManual adjustment/automatic follow
Azimuth sensorStatic accuracy 0.05° Dynamic 0.1°
Roll angle sensorRange ±90° Static accuracy 0.05° Dynamic 0.1°
Pitch angle sensorRange ±180° Static accuracy 0.05° Dynamic 0.1°
Positioning methodBeidou satellite positioning
SensitivityTracking: -162dBm Capture: -148dBm
StorageBuilt-in 64GSD card (supports expansion)
Battery power displaySupports one-key display/hide battery power display
Video recording and photo takingSupports 2-megapixel HD video recording and full HD image taking. Local video playback function
Remote control functionRemote control of zoom, focus, rangefinder on/off, laser on/off, laser aperture adjustment function (test distance 40 meters)
Measuring range5~1200/1500/1800 meters optional
Measuring accuracy± 0.5M (within 400M); ±1M (600M-1000M)
Window functionSupport infrared through-window reconnaissance video performance
Remote control4G wireless image transmission wireless remote control
Display screen5.5-inch high-definition display (visible in sunlight)
Built-in battery≥8 hours (built-in lithium battery)
Product size220mm×205mm×115mm
Protection levelIP66
Host weight<2.6kg
Operating temperature-25℃~+65℃
Storage temperature-40℃~+70℃
Off-screen workOne-click to turn off the display screen, the built-in camera can continue to work and enter energy-saving mode.
Character overlaySupport one-click display/hide character information. Support Beidou positioning latitude and longitude information, electronic compass direction information, azimuth information, battery power information, and distance measurement information real-time display
