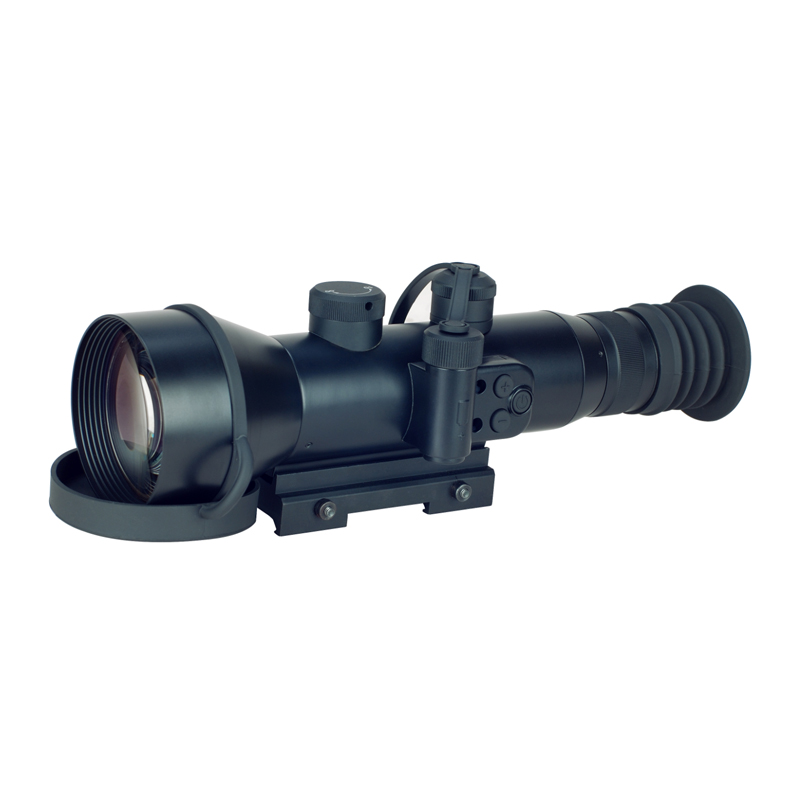

CS-70 Second Generation Plus Low Light Night Vision Goggles

CS-70 Second Generation Plus Low Light Night Vision Goggles

This product uses the second generation plus image intensifier, which greatly improves the clarity of observation. As long as the use conditions of low light illumination of 10-3 lux (with low light surface light) are met, field sniping operations at night can be carried out.
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick CS-70 Second Generation Plus Low Light Night Vision Goggles

This product uses the second generation plus image intensifier, which greatly improves the clarity of observation. As long as the use conditions of low light illumination of 10-3 lux (with low light surface light) are met, field sniping operations at night can be carried out. In addition, the rifle scope has an automatic anti-strong light protection function, which is very suitable for urban operations. The rifle scope is equipped with an independently controllable infrared auxiliary illuminator, so as to meet the different use conditions of combat. The rifle scope is suitable for the international standard Picatinny rail, and with its own connection mechanism, it can be used for my country's 03-type, 85-type 7.62mm and 88-type 5.8mm sniper rifles.


Product Features:

Advanced optical system

High resolution

One-year warranty period, lifelong maintenance

Strong and weak light automatic control function


Application range:

Police, law enforcement, night wireless monitoring, hunting, patrol, rescue, search.



Technical parameter


Image intensifierSecond-generation plus
magnification4.4
Field of view9.3
Effective aperture of objective (mm)75
Focusing range10m-∞
Exit pupil diameter (mm)Ф5
Exit pupil distance (mm)45
Viewing distanceMore than 400 meters.
Wind adjustment range, MOA±70
High and low adjustment range, MOA±70
Length (mm)294X89X81
Cathode type18mmS-25
Cathode sensitivity≥550
Resolution, lp/mm45-53
Gain fl/fcd19000-25000
Sex-to-noise ratio18-20
Sensitivity value≥1150
Like tube life, hours10000
Shelf life, years1

CS-70 Second Generation Plus Low Light Night Vision Goggles


CS-70 Second Generation Plus Low Light Night Vision Goggles
