NVG-S Helmet-mounted Monocular Low-light Night Vision Device

NVG-S Helmet-mounted Monocular Low-light Night Vision Device

Onick Owl Anti-theft hunting professional low-light night vision NVG-S adopts a high-performance second-generation image intensifier with excellent performance, small size, light weight, clear imaging, simple operation and high cost performance. The magnification can be changed by changing the objective lens (or connecting the magnification lens).
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

The best choice for a night hike isn't just smaller and lighter

Onick Owl Anti-theft hunting professional low-light night vision NVG-S adopts a high-performance second-generation image intensifier with excellent performance, small size, light weight, clear imaging, simple operation and high cost performance. The magnification can be changed by changing the objective lens (or connecting the magnification lens). NVG-S can be connected with digital cameras, cameras, camcorders, (built-in division) with gun sight clamp can be used to hang the gun, or can be used alone. The night vision device has built-in infrared auxiliary light source and automatic anti-glare protection system. Practical, suitable for individual combat, helmet can assist night walking, night driving and so on. Monocular design allows users to have a strong global control ability in the dark, and better respond to emergencies. It is widely used in military observation, border and coastal defense investigation, public security inspection, surveillance, customs anti-drug, anti-smuggling, navigation and other dark environments.


First, product features:

1, small size, light weight, high resolution

2, strong light protection, easy operation

3, waterproof, anti-corrosion, dustproof, anti-high and low temperature

4, built-in infrared auxiliary lighting

5, through the connection bridge, two units can be synthesized binocular binocular

6, advanced optical system, remote observation

7, through the audio adapter adapter ring can connect CCD, digital camera, mobile phone, video recorder, camera and so on


Application fields:

Can be used in military observation, border and coastal defense reconnaissance, remote surveillance, customs anti-drug, anti-smuggling, outdoor exploration, wild hunting, investigation and evidence collection, forestry, wild protection and other dark environment widely used.



Technical parameter
Image Intensifier GradeHigh performance second generation
Magnification1X/3X/5X
Field of view (degree) 42°/13°/18° (±3°)
Observation distance (m)180-220m
Resolution57-72
Signal to noise ratio (decibels) 15-21
Eyepiece visual adjustment range (diopter)±5
Objective adjustment range (m)0.25--∞
Lens systemF1.2, 25mm
Cathode surface typeS25
Optical sensitivity (microampere/lumen)450-500
Optical coatingmultilayer composite wideband ultra-vacuum ion anti-reflection film
Downtime (hours)10,000
Automatic anti-glarehigh sensitivity, super fast, broadband detection
Rollover detectionall-solid state non-contact automatic attitude recognition
Dimensions (mm) (without eye mask)115x69x54
MaterialAll aviation aluminum alloy
Weight in grams295
Supply voltage (V)2.6-4.2V
Battery type (V)1 lithium battery
Continuous working time (hours)80(infrared not turned on) 40(infrared turned on)
Operating temperature range (℃)-0.8
Relative humidity5%-98%
Dustproof and waterproof ratingIP65 (IP67 optional)
Target segmentationBuilt-in (optional)

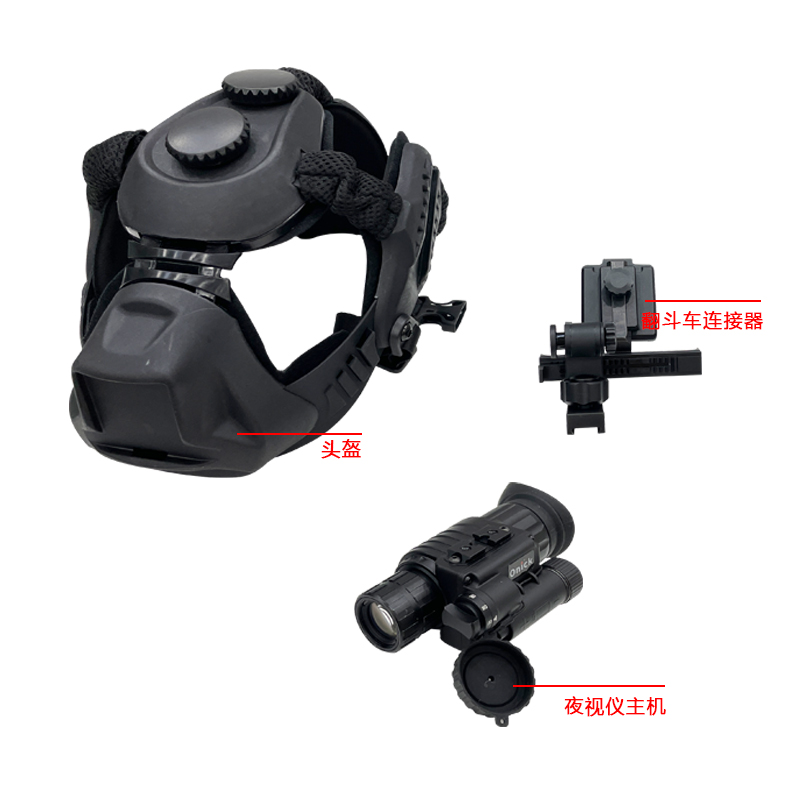

Configuration listnight vision device, magnifier, helmet connection system, helmet, CR123 lithium battery *1, carrying case, lens wipe, manual, product manual warranty card
