Products Description
The best choice for hands-free night hiking Owl NVG-55 single-tube anti-theft hunting professional low-light night vision device

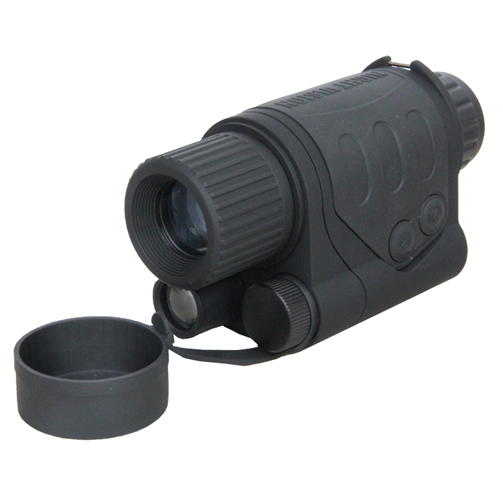

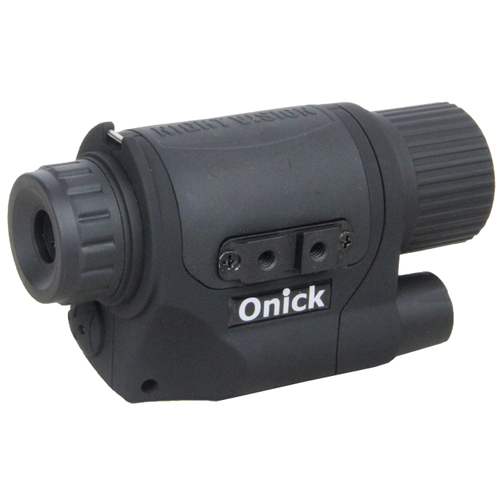

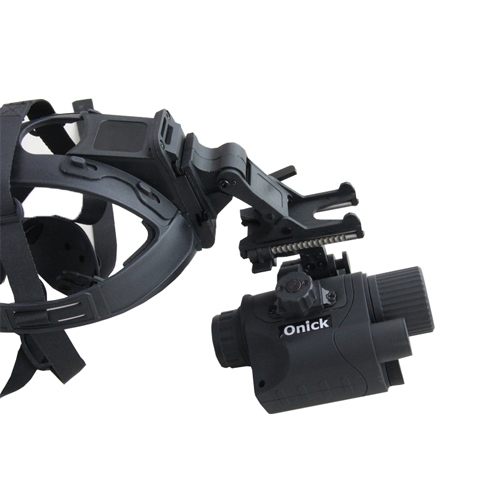

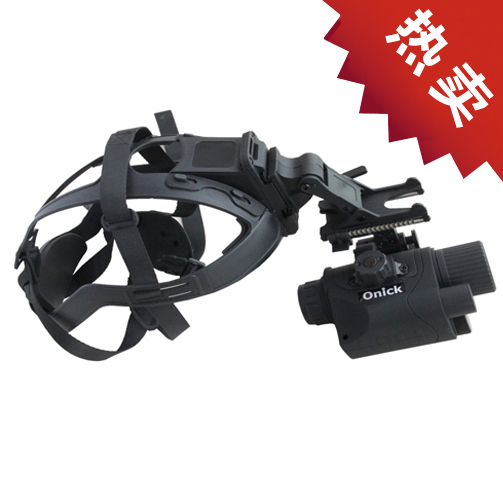

Onick NVG-55 is a portable and multifunctional single-tube anti-theft hunting professional low-light night vision device. It has the advantages of small size, light weight and high resolution. It is equipped with three magnification lenses of 1x, 3x and 5x, as well as different levels of phase-increasing tubes of generation 1+, generation 2, generation 2+ and generation 3 for you to choose. Onick NVG-55 is equipped with a built-in red illuminator, a sturdy and lightweight rubber armor structure to protect its internal components, and is equipped with a qualified helmet. It has long-range observation capabilities, making this easy-to-use night vision device widely used in entertainment and professional fields, including hunting, security, boating, entertainment, astronomy, natural observation and camping. By using the most advanced infrared technology and high-resolution image intensifiers, Onick NVG-55 can bring you the ultimate observation experience in low-light environments and night environments where navigation is not possible.
Product features:
High magnification, long-distance observation
Advanced optical system, high resolution
Reconnaissance distance 150 meters, infrared effective distance 25 meters
Exquisite and durable material, built-in infrared auxiliary illuminator, reliable and easy to operate
Application areas:
Can be used for border and coastal defense reconnaissance, long-distance surveillance, customs drug control, anti-smuggling, outdoor adventure, wild hunting, investigation and evidence collection, forestry, wildlife protection, etc. and other dark and bright environments.
Technical parameter
image intensifier | sensitivity | resolution ratio |
generation+ | 250-500mA/lm | 28-32lp/mm |
the next generation | 500-750mA/lm | 45-55lp/mm |
the next generation + | 650-750mA/lm | 57-64lp/mm |
three generation | 1800-2200mA/lm | 72+lp/mm |
Objective magnification | 1x | 3x | 5x |
Objective system | 30mmF/1.1 | 50mmF/1.2 | 80mmF/1.7 |
Field Angle | 25/60 | 19/63 | 15/62 |
Field of view | 30 | 18 | 12.5 |
Focusing range | 1.0To infinity | 1.5 To infinity | 1.0 To infinity |
Viewing distance (1/4 moon and IR) | 0.25.....100m | ||
Viewing distance (Full moon) | 0.25.....150m | ||
Objective diameter (mm) | 24 | 44 | 50 |
Weight (g) | 320 | 530 | 613 |
Size (mm) | 140x81x61 | 180x80x50 | 200x80x50 |
Pupil diameter | 6 | 6 | 6 |
diopter | ±4 | ±4 | ±4 |
Pupillary distance | 15 | 15 | 15 |
Battery life (on IR) | Top 20 | Top 20 | Top20 |
Battery life (off IR) | Top 60 | Top60 | Top60 |
IR power | 25≤ | 25≤ | 25≤ |
IR wavelength | 850 | 850 | 850 |
Effective IR distance | 25 | 25 | 25 |
Waterproofing standard | IPX4 | IPX4 | IPX4 |
humidness | 93 | 93 | 93 |
Operating temperature | -30°to+45° | -30°to+45° | -30°to+45° |
Storage temperature | 0°to+60° | 0°to+60° | 0°to+60° |
