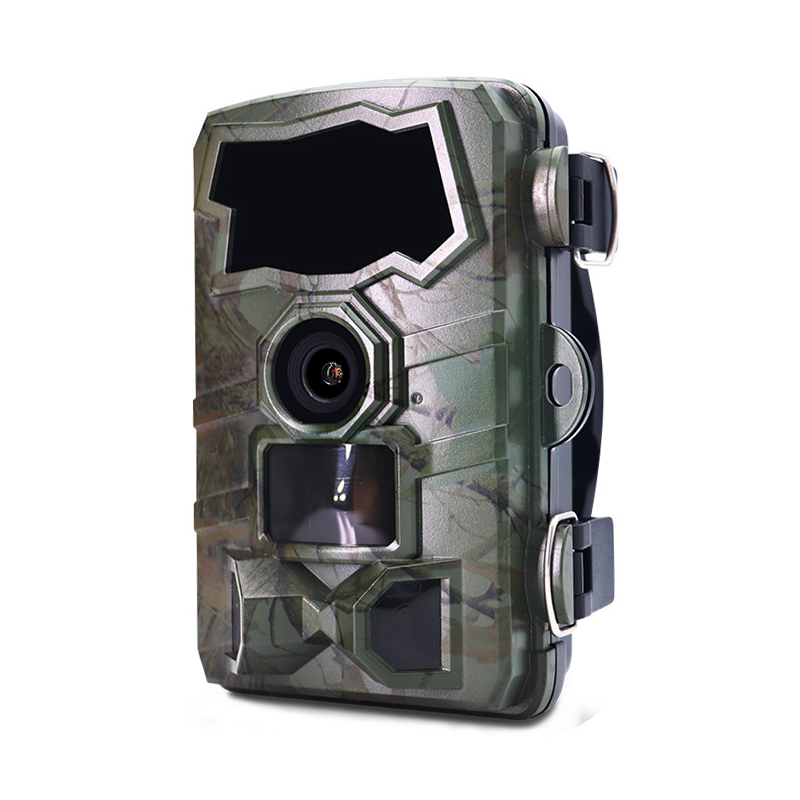

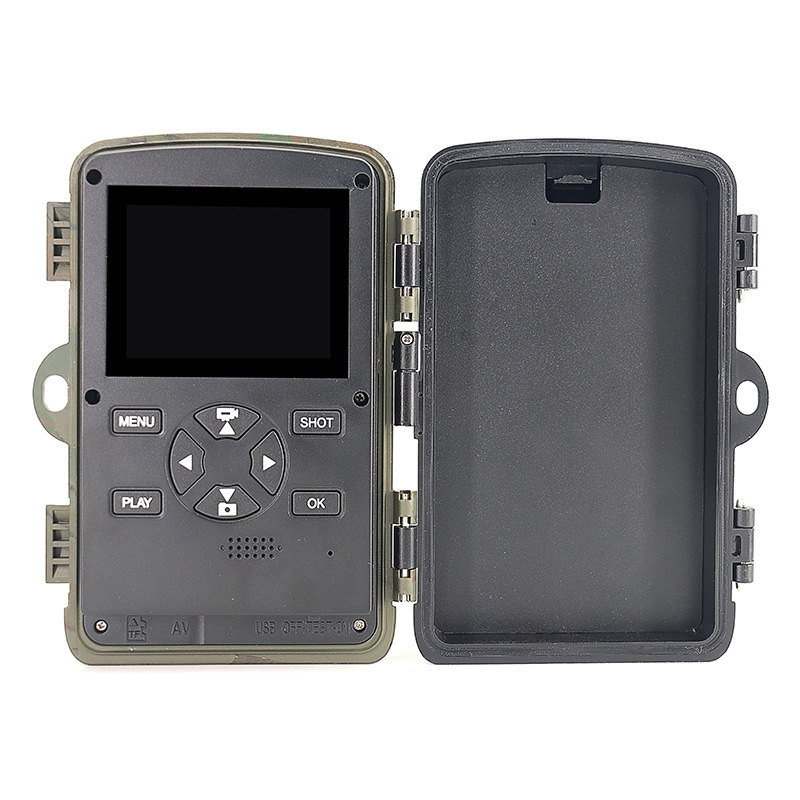

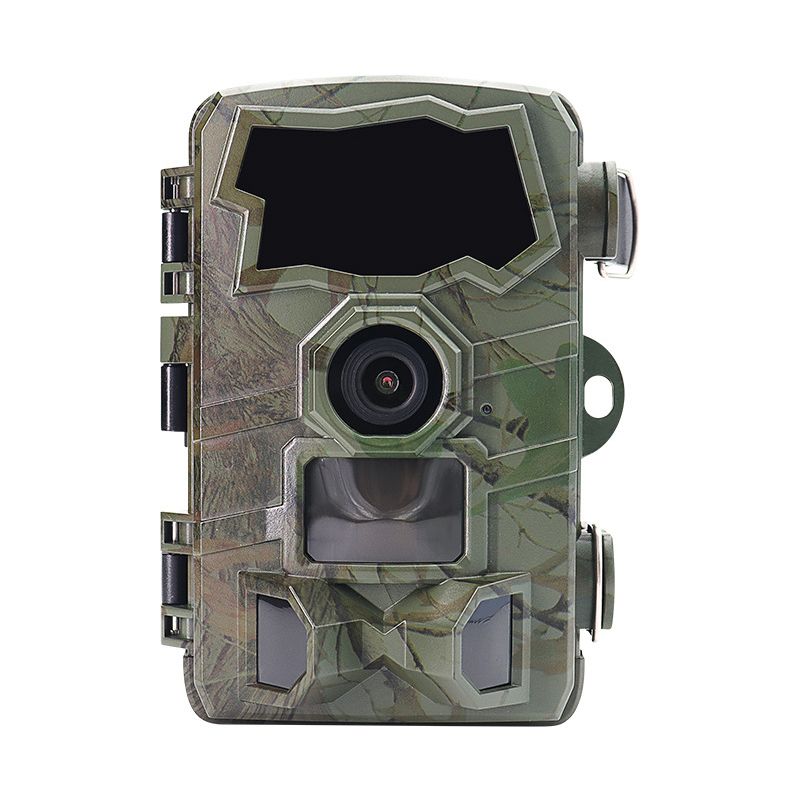

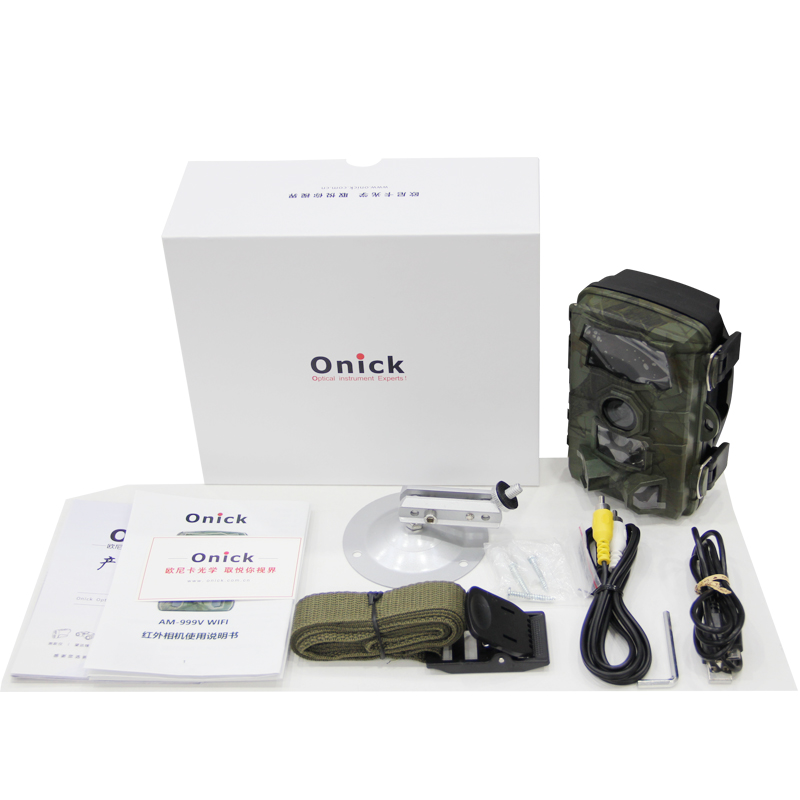

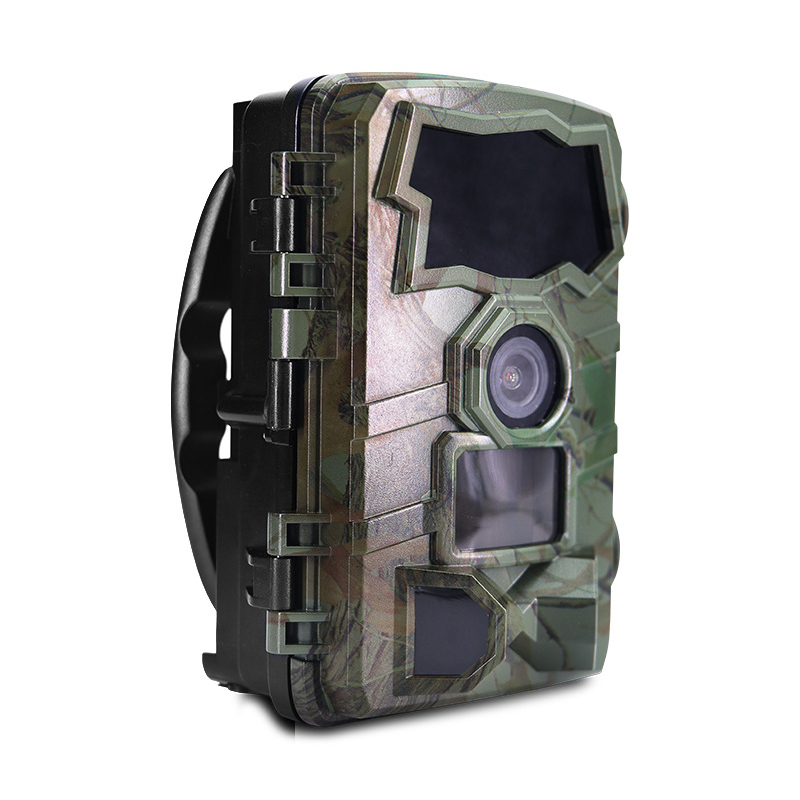

AM-999V wifi version wildlife infrared trigger camera

AM-999V wifi version wildlife infrared trigger camera

Onick AM-999V wifi version wildlife infrared monitoring camera supports 32 milli
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick AM-999V wifi version wildlife infrared monitoring camera supports 32 million pixel high-definition photography and 4K/10FPS ultra-clear video shooting. The instrument starts quickly, with a trigger speed of 0.2 seconds, clear imaging, and true colors. It is equipped with 40 infrared lights and a flash-free design, so it does not flash when shooting at night and is not easy to be exposed. It supports Wifi-BT module, Wifi connection operation within 30 meters, and downloads monitoring data; GPS can be manually added, and latitude, longitude and altitude can be entered.


Product features:

1. 8 million effective pixel photos, 4K/10FPS, 2.7K/20FPS, 1080P/30FPS, ultra-clear video

2. Trigger time 0.2 seconds, 25m trigger distance, 20m infrared night vision distance,

3. Support Wifi-BT module, WIFI connection operation within 30 meters to download monitoring data

4. Support manual addition of GPS (latitude and longitude and altitude)

5. 12 months long standby, waterproof grade IP66


Application areas: hunting, forest monitoring, orchard site monitoring, field detection automatic photography, animal and plant observation, infrared thermal tracking investigation, courtyard monitoring, home anti-theft evidence collection, office anti-theft evidence collection, small and medium-sized supermarket anti-theft evidence collection


Technical parameter
Photosensitive chip8 million effective pixels
Photo resolution32MP: 6480x4860; 20MP: 5200x3900; 16MP: 4608x3456; 12MP/8M, 5M/3M/1M
Video resolution3840x2160/10fps; 2688x1520/20fps; 1920x1080/30fps; 1280x720/60fps; 1280x720/30fps; 720x480/30fps; 640x480/30fps; 320x240/30fps
Photo/video formatJPG/AVI
Lens anglef=3.3mm; F/NO 2.0; FOV=105; Automatic infrared filter
Trigger time0.2 seconds
Trigger interval5 seconds to 60 minutes, editable
Infrared light40 infrared lights
Infrared distance25m
Trigger distancemaximum 25 meters
PIR sensitivityhigh/medium/low
PIR sensing anglemain PIR (60°) + auxiliary PIR=120°
GPSsupport manual addition of GPS (latitude, longitude and altitude)
Wifisupport
Continuous shooting1/2/3/6/10
Video length3 seconds to 2 minutes; editable
Shooting distance: daytimedaytime: 1m-infinity; night: 1.5m-20m
Photo + videoIn this mode, take a photo first and then start recording
Timestampon/off; time, serial number, real-time temperature, etc.
Time-lapse videotime-lapse video length 3 seconds~ 24 hours, editable
Loop shootingon/off, (when on, when the memory card is almost full, the oldest file will be deleted)
Timed monitoring1 second ~ 24 hours, editable
Timed monitoring 2delay 1 second ~ 24 hours
Device serial number4 digits or 26 letters
Display2.4-inch TFT screen 720*320
MemoryTF small card, high-speed card above level 6, up to 256GB
Operation buttons8 buttons
Built-in microphone/speakersupport
Automatic classification of filescolor files during the day/black and white files at night
Automatic screen offscreen off after two minutes without any operation
TV outputsupport
InterfaceMini USB2.0
Power supply8xAA dry batteries, external power supply 6V/at least 1.5A
Standby time12 months
Device locksupport
Password protection4-digit password
Waterproof levelIP66
Operating temperature-20℃ to +60℃
Storage temperature-30℃ to +70℃
Size136*90*76mm

AM-999V wifi version wildlife infrared trigger camera

AM-999V wifi version wildlife infrared trigger camera

AM-999V wifi version wildlife infrared trigger camera

AM-999V wifi version wildlife infrared trigger camera

AM-999V wifi version wildlife infrared trigger camera
