RE384 Binocular Fusion Thermal Imaging Telescope_Thermal Imager

Description

Parameter

Products Description

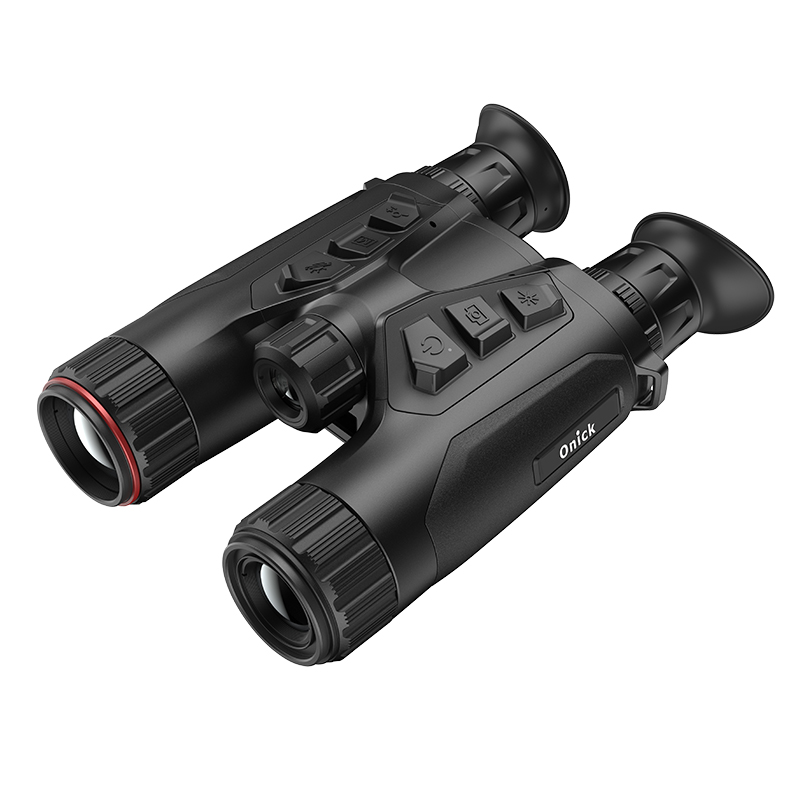

Onick RE384 binocular thermal imager telescope is equipped with 384 x 288@12um thermal detector and 2560 x 1440 optical detector. NETD＜20mK (high thermal sensitivity), it can ensure perfect image quality and detail recognition even in the worst weather conditions. 1000m laser rangefinder can accurately measure distance in low light conditions. Mainly used in bird watching, animal search and rescue scenes.

Product features:

1.384 x 288 resolution @12μm thermal detector

2.High sensitivity heat dissipation module NETD < 20 mK (@25°C, F# = 1.0)

3.35mm, F1.0 lens, detection distance up to 1800m

4.2560 x 1440 high resolution CMOS detector

5.1920 × 1080 resolution 0.49 inch OLED display

6.Built-in 850nm infrared illuminator and laser rangefinder with 1000m measurement distance

7.6h+ continuous operation

8.780g lightweight, compact, ergonomic design

Application areas:

Bird watching, animal search, and rescue scenarios.

Technical parameter

Thermal imaging
Image sensor	VOx uncooled focal plane array
Maximum resolution	384 x 288
Frame rate	50 Hertz
Pixel spacing	12 micron
Response band	8μm to 14μm
NETD	Less than 20 mK (@25°C), F#=1.0
Lens (focal length)	35mm, F1.0
Focusing mode	Manual focusing
Detection distance	1800 m
Minimum focusing distance	3.5 m
Blow up	4.0-32 (8x)
Field of view (H×V)	7.5° x 5.7°
Visible light
Image sensor	1.88-inch progressive scan CMOS
Maximum resolution	2560 x 1440
Focus Distance	31mm, F1.2
Minimum working distance	3m
Minimum illumination	0.001 lux
Focusing mode	Manual focusing
Blow up	2.9-23.2 (8x)
Field of view (H×V)	13.9° x7.8°
Intelligent infrared fill light	There are
Night range	400 m
Image display
reveal	0.49 inch, OLED, 1920×1080
Color palette	Black heat, white heat, red heat, fusion; Optics: Day, night, automatic
FFC (Flat Field Correction) mode	Automatic, manual, external correction
Diopter (range)	-5D~+3D
Brightness control	There are
Tone adjustment	Cold, warm
Contrast adjustment	There are
System
Record video	There are
Take a picture	There are
Recorded AT	There are
Standby mode	There are
store	Built-in EMMC (64 GB)
Hot spot tracking	There are
Electronic compass	There are
GPS	There are
Local album	There are
Power source
Battery type	Replaceable and rechargeable lithium-ion batteries
Battery operating time	≥6h (25°C, hot spot off)
Type-C power supply	5V DC, 2 A
	Support external power supply
routine
Class of protection	IP67 protection rating
dimension	138.2 mm x 68.4 mm x 212.4 mm
Operating temperature	-30°C ~ +55°C
weight	780g (without battery)
Range of pupil distance adjustment	60 mm to 74 mm
Install adapter	1/4“-20-UNC
Laser rangefinder
Laser safety class	Class 1
Wave length	905nm
Maximum measuring distance	1000m
Measurement accuracy	±1 m
Minimum measuring distance	10m
Infrared complement
Infrared wavelength	850 nm
Beam Angle	Adjustable 7.6-11.5°
