RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi

RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi

Onick RE680 binocular fusion infrared thermal imager is a binocular infrared thermal imager for day and night use, using a 50mm optical objective lens and F1.0 large aperture, combined with a professional 12μm thermal imaging sensor. 0.39" full HD AMOLED display, high height, high contrast, wide dynamic range, fast refresh, low energy consumption. Supports a variety of pseudo-color modes, low energy consumption can extend the battery life of the device, fast response time can ensure that no matter the observed object is stationary or in motion, it can display a clear and smooth picture. It adopts ergonomic design, classic appearance, comfortable feel, and easy operation.
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick RE680 binocular fusion infrared thermal imager is a binocular infrared thermal imager for day and night use, using a 50mm optical objective lens and F1.0 large aperture, combined with a professional 12μm thermal imaging sensor. 0.39" full HD AMOLED display, high height, high contrast, wide dynamic range, fast refresh, low energy consumption. Supports a variety of pseudo-color modes, low energy consumption can extend the battery life of the device, fast response time can ensure that no matter the observed object is stationary or in motion, it can display a clear and smooth picture. It adopts ergonomic design, classic appearance, comfortable feel, and easy operation. The outer shell is made of aluminum alloy, which is heat-resistant and wear-resistant. Lightweight and fast heat dissipation. Widely used in nature observation, search and rescue, outdoor adventure, marine operations, night patrols, personal security, etc.

Product features:

1. High-sensitivity movement, photo and video recording, electric focus, hot spot tracking, laser ranging.

2. High refresh rate, close to zero delay, smoother picture implementation, long-term observation without losing the target.

3. Multiple magnification, flexible search, faster target locking.

4. Support wireless WIFI, can set a variety of parameters and palettes.

5. Low energy consumption, long battery life, ergonomic design, comfortable feel, easy to operate.

Application areas:

widely used in nature observation, search and rescue, outdoor adventure, marine operations, night patrols, personal security, etc.


Technical parameter
Detector typeVox
Infrared resolution640*512
Pixel size12μm
Field of view8.8°x 7.0°
Range10m~2500m
Working band8μm-14μm
Focal length50mm
Noise equivalent temperature difference (NETD)≤50mk @25°C,@F/ 1.0
Frame rate≤ 50Hz
FocusElectric focus
Display0.39-inch OLED
Display resolution1024*768
Display modeInfrared/Low light/Dual light fusion/Picture in picture
Electronic zoom1x / 2x / 4x
False color moderainbow, iron red, cold color, white hot, black hot
WIFI2.4G image transmission
Battery18650 rechargeable lithium battery (3200mAh*2)
Battery life≥4h
Working temperature-20℃~+50℃
Storage temperature-30℃~+70℃
Protection levelIP54
Dimensions193*87*190mm
Weight1.65kg

Observation distance

Detection distance: Human (1.7*0.5*0.3m) 2300m Vehicle (4.5*2*1.5m) 6500m

Recognition distance: Human (1.7*0.5*0.3m) 600m Vehicle (4.5*2*1.5m) 1500m

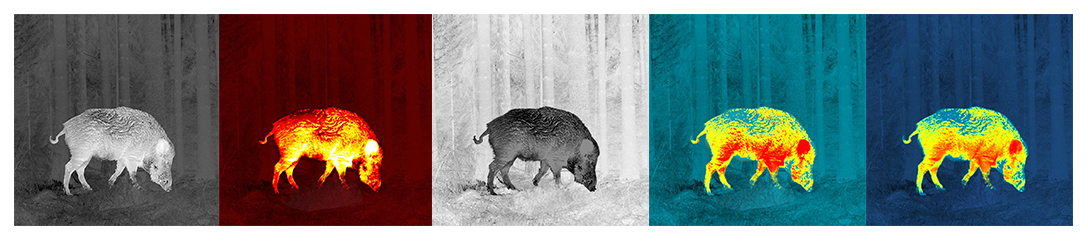

Fusion effect diagram

RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi

RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi

RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi

RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi

RE680 ranging version binocular fusion infrared thermal imager laser ranging hotspot tracking support wifi
