RM-50 thermal imaging riflescope, customizable with rangefinder function

RM-50 thermal imaging riflescope, customizable with rangefinder function

Onick RM-50 infrared thermal imaging sight supports continuous stepless zoom, multiple imaging modes, and 32G image and video storage. Built-in rechargeable battery, ultra-long standby time of 8 hours. Customizable laser ranging function, automatically coordinated with aiming reticle, to achieve fast and accurate shooting. Adopts joystick button design, flexible and easy to operate.
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick RM-50 infrared thermal imaging sight supports continuous stepless zoom, multiple imaging modes, and 32G image and video storage. Built-in rechargeable battery, ultra-long standby time of 8 hours. Customizable laser ranging function, automatically coordinated with aiming reticle, to achieve fast and accurate shooting. Adopts joystick button design, flexible and easy to operate.


Product Features:

1. High-resolution OLED display: 1024 x 768 high-resolution OLED display provides a clear, rich contrast, vivid color image.

2. Picture-in-picture function: Picture-in-picture displays 2x image at the top center of the entire field of view for precise zooming on objects of interest.

3. Optional reticle: A complete digital reticle solution ensures fast target acquisition, select the style, color and brightness settings of the crosshairs.

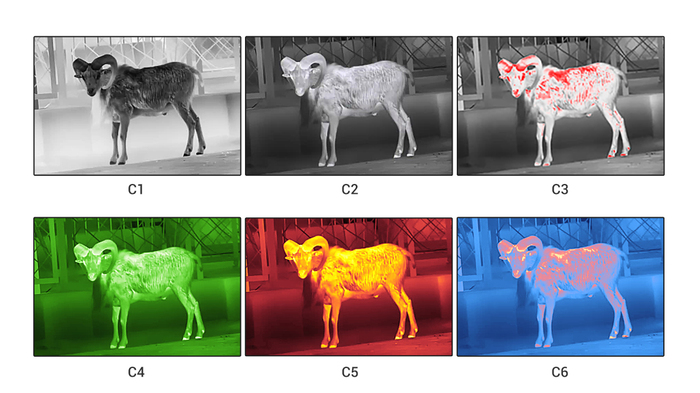

4. Multiple color palettes available

RM-50 thermal imaging riflescope, customizable with rangefinder function

Technical parameter
Detector
TypeUncooled VOX
Resolution384x288
Frame rate50Hz
Pixel size17μm
Band8-14μm
NETD30mk
Optical parameters
Objective focal length50mm/F1.1
Magnification of the whole machine3.8x
Field of view5.3°x 4°
Minimum imaging distance5m
Diopter-5D-4D
Function
Electronic zoom2x/4x/PIP
Color palette6 optional
Startup time≤5s
Menu and informationUser interface
Image enhancementDDE
Brightness and contrastAGC
Online updateCode and graphical
user interface resources
DisplayDisplay
Display typeOLED
Display resolution1024x768
External videowifi
Storage32G
Power supply
Battery type2x18650
External power supply5V Type-C
Working time with battery8h
Physical characteristicsPhysical characteristics
Weight (without battery)650g
Dimensions196x76x83mm
Environmental adaptability
Protection levelIP67
Working temperaturewith wifi-20℃-50℃ without wifi-40℃-60℃
Storage temperature-45℃-70℃
Shock1200g, 1ms
Observation distance
Rabbit (0.3m)detection distance 625m, identification distance 208m
Wild boar (0.7m)detection distance 1458m, identification distance 486m
Deer (1.7m)detection distance 3541m, identification distance 1180m
