RM-55 Monocular Thermal Imaging Riflescope

Onick RM-55 monocular day and night infrared night vision sight adopts advanced uncooled vanadium oxide or polysilicon and advanced imaging circuit to optimize the optical system. The product appearance and structure design is optimized based on ergonomics.
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick RM-55 monocular day and night infrared night vision sight adopts advanced uncooled vanadium oxide or polysilicon and advanced imaging circuit to optimize the optical system. The product appearance and structure design is optimized based on ergonomics. The product has enhanced waterproof design and reaches IP67 protection level. Low power consumption design, using a single built-in rechargeable battery, the continuous working time can reach more than 5 hours, meeting the requirement of using the battery all night without replacing it. In addition, it has advanced fast startup performance and can quickly image in 3 seconds after booting, which significantly improves the user's quick response ability. The product adopts a high refresh frequency design, allowing the operator to gain the ability to observe fast-moving targets. It is equipped with a high-quality objective lens, has high performance, is not afraid of strong light, is safe and reliable, and can be installed on a tripod for long-distance night observation. The night observation distance can reach 1000 meters, and can be connected to cameras, camcorders, and wireless image transmission equipment.



Product features:

1. Portability: small size, easy to carry, and good concealment.

2. High-definition display: The eyepiece is a high-definition 1024×768 resolution OLED display, which can work normally at minus -45°.

3. Strong adaptability: can be monitored in all environments around the clock.

4. Equipped with expansion slot: large space for expansion and upgrade, and can be connected to external mobile devices to achieve wireless device control and wireless video transmission.

5. Stable power supply: high-performance lithium battery, strong power to meet outdoor needs. There is also a super-capacity external mobile power supply to meet long-term uninterrupted outdoor use.

6. High structural strength: The appearance is made of hard material as the main material of the structural design. It has good craftsmanship and reliability, and its appearance after processing is good.


Application fields:

 It can be used in military personnel, special police, public security law enforcement, drug detection and anti-smuggling, armed police counter-control, border patrols, coastal patrols and individual night reconnaissance.


Technical parameter

Detector typeUncooled vanadium oxide or polysilicon
Detector specifications384×288 (640×480 optional)
Response band8~14μmm
Pixel size17μmm
Frame rate25Hz/50Hz
Graduation lineseight types
Polaritywhite hot/black hot
False color modenine types
Hotspot trackingsupported
Boundary detectionsupported
Picture-in-picture enhanced zoomsupported
Electronic amplification1~8 times continuous amplification
Lens focal length19mm/35mm/f=1.0/50mm f=1.2
Field of view7.15° × 5.35°
Focusing methodmanual
Horizontal viewing angle4.63°×3.64°
ApertureF0.8
image storageimage storage
Video formatMP4
Image resolution1024×576 (D1)
Image storageJPG
Storage capacity8G standard (maximum optional 64G)
Eyepiece parameters
DisplayOLED 0.5 inches
Contrast ratio10000:1
Exit pupil distance26mm
Magnification12x
Eyepiece resolution1024×768
Observation distance
Personnel (1.8m×0.5m) Detection: 1.5km Identification: 0.38km
Vehicle (2.3m×2.3m) detection: 3km identification: 0.875km
Interface features
Video outputPAL/NTSC
External power supplyDC 5V, maximum current 1A
Wireless datawireless image transmission RTSP
Power supply reverse connection
positive and negative adaptive
Data exportUSB 2.0
data sensordata sensor
Satellite positioningBeidou/GPS/GLNSS
Height sensorsupported
Electronic compass(geomagnetic sensor) support
AzimuthSupport
Attitude detectionsupport
physical propertiesphysical properties
Working temperature-45℃~+60℃
Storage temperature-45℃~+60℃
Working humidity95% RH MAX (no condensation)
Protection levelIP66
Input voltageDC2.5V~5V
Power consumptionaverage power consumption 4W
Impact resistancemilitary grade
Battery capacity25500 rechargeable lithium batteries 3.7V@3500mAH;
Working hoursContinuous working time >5 hours
Dimensions (mm)220 (L) × 85 (W) × 80 (H)
Net weight<1.1kg (including battery, hand strap)

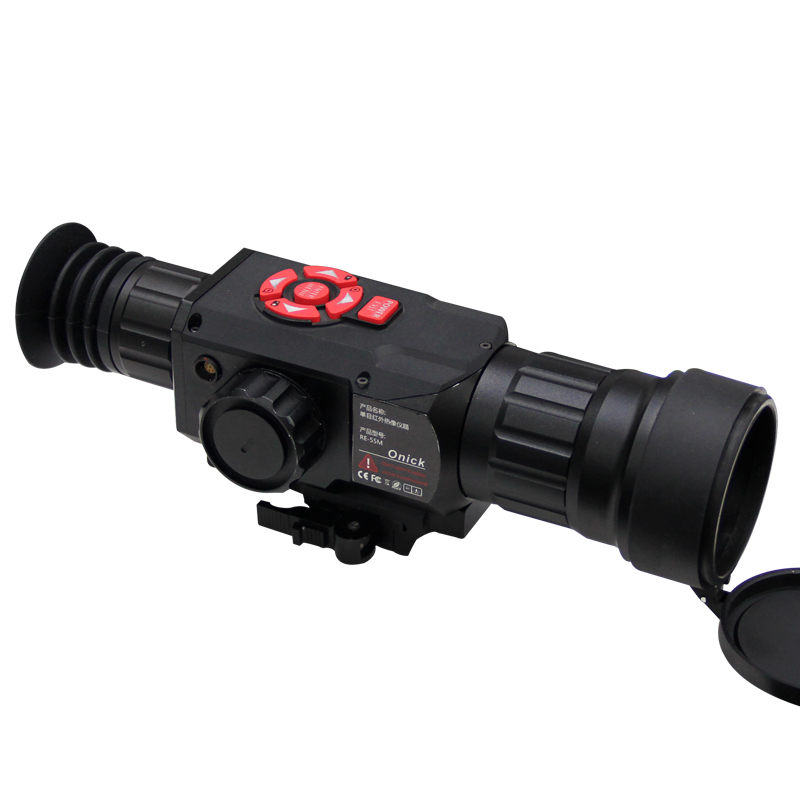

RM-55 Monocular Thermal Imaging Riflescope

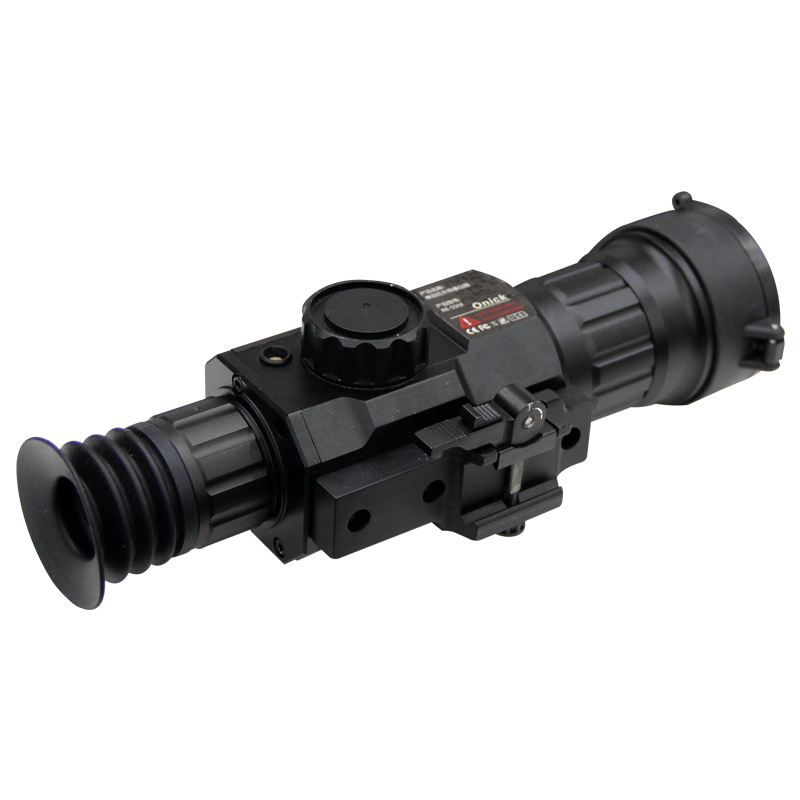

RM-55 Monocular Thermal Imaging Riflescope

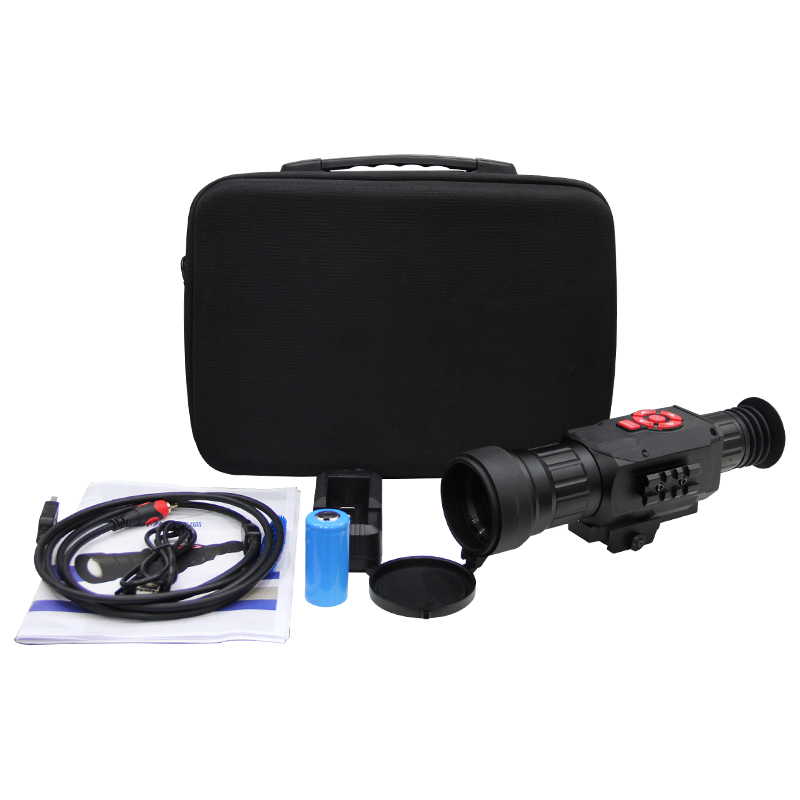

RM-55 Monocular Thermal Imaging Riflescope

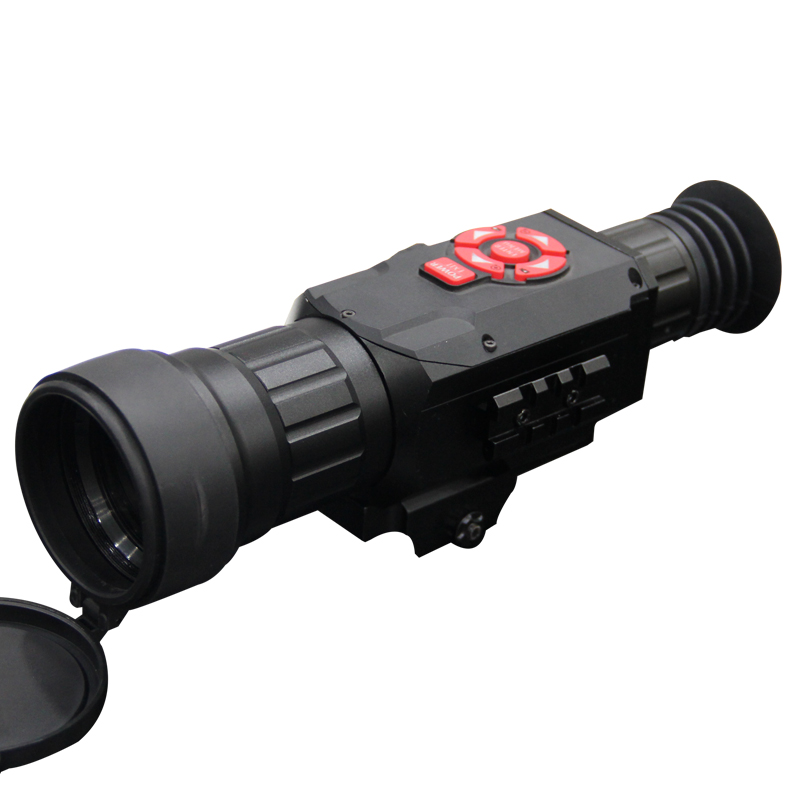

RM-55 Monocular Thermal Imaging Riflescope

RM-55 Monocular Thermal Imaging Riflescope
