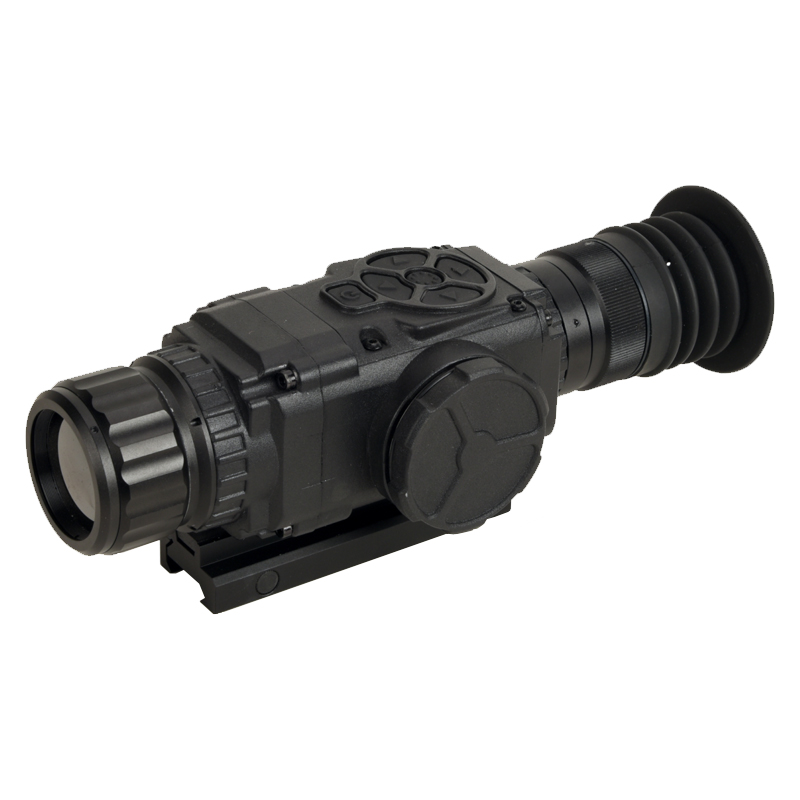

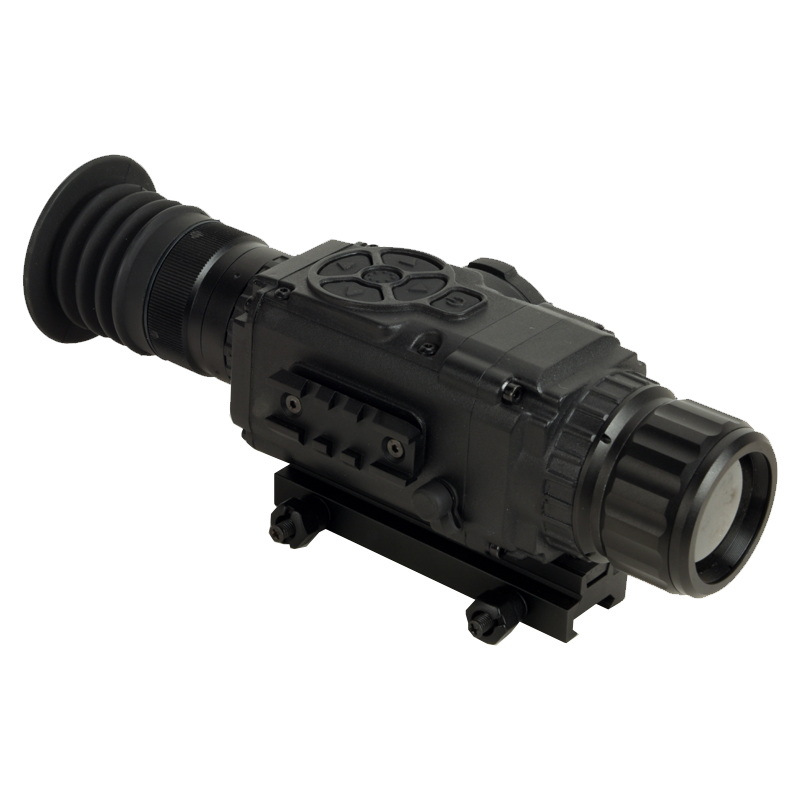

RM-35 Thermal Imaging Riflescope

RM-35 Thermal Imaging Riflescope

Onick RM-35 thermal imaging scope uses ultra-high-definition OLED monocular screen (800x600), 384X288 detection element; white heat/black heat/brown/iron red/rainbow multiple colors are optional, easy-to-operate buttons and digital menus, low power consumption, and can work continuously for a long time. It can produce clear images in total darkness,
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick RM-35 thermal imaging scope uses ultra-high-definition OLED monocular screen (800x600), 384X288 detection element; white heat/black heat/brown/iron red/rainbow multiple colors are optional, easy-to-operate buttons and digital menus, low power consumption, and can work continuously for a long time. It can produce clear images in total darkness, rain, snow, smoke, fog and other conditions, especially suitable for total darkness, border patrol, jungle search and rescue and other fields. The design is ingenious and can be used with firearms to complete tasks. The Onick RM-35 thermal imaging scope can work continuously during the day and night, and has the ability to penetrate fog, smoke, dust and other particles, and can complete search and reconnaissance tasks at night.


Product Features:

1. 384x288

2. 50Hz real-time imaging, fast movement without smear;

3. Advanced non-blocking design, unique digital enhancement algorithm;

4. Professional telephoto germanium lens, 2x, 4x digital zoom;

5. White hot/black hot/brown/iron red/rainbow multiple colors optional;

6. Standardized interface, easy battery replacement, low power consumption, long continuous working time;

7. 6-level brightness control, 4-level image enhancement (can detect targets in extremely harsh environments)

8. High system reliability, strong anti-fall and anti-vibration capabilities


Technical parameter

Model Onick RM-35 thermal imaging riflescope
Image sensor polysilicon uncooled focal plane array
Lens 35mm hard-coated germanium l
ens, germanium metal manual focus lens, coated with hard carbon and anti-reflective coating
Magnification 2.6x
Digital zoom 5.2-10.4x
Diopter -4~+2
Viewing angle (HXV) 10.4x8.0
Exit pupil distance 52mm
Exit pupil diameter 6mm
Wavelength range 7~14um
Detection element 384*288
OLED OLED, 800X600
Thermal sensitivity ≦50mk (@25℃)
Detection distance >1000m, people (1.8m*0.5m) >1500 m objects (2.3 m *2.3 m)
Recognition distance >250m, people (1.8m*0.5m) >400 m (2.3 m * 2.3 m)
Battery specifications 4 3V rechargeable lithium batteries
Working time 8 hours
Frame rate 50HZ
Non-uniform correction using non-blocking technology
Image polarity black hot/white hot/brown/iron red/green
Operating temperature -40℃~+50℃
Storage temperature -45℃~+85℃
Size 205mm*74mm*66mm
Color black
Weight 0.66kg
Protection level IP65
Video output yes
External power supply yes

Thermal imaging scope

Thermal imaging scope


Tags: Thermal Imaging Riflescope Thermal imaging camera Thermal Imaging Monocular Thermal Imaging Solutions
