Products Description

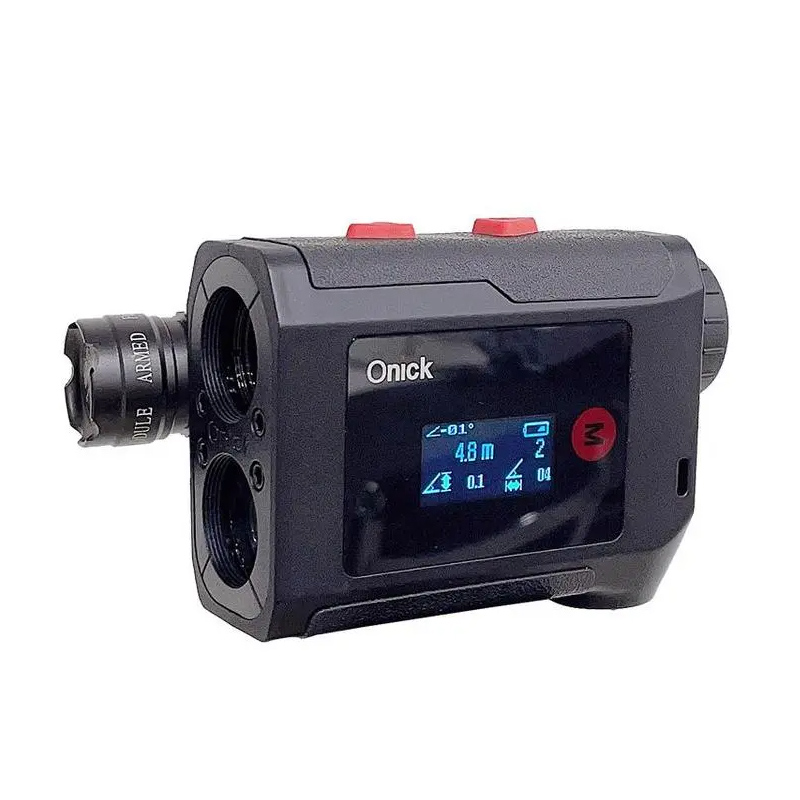

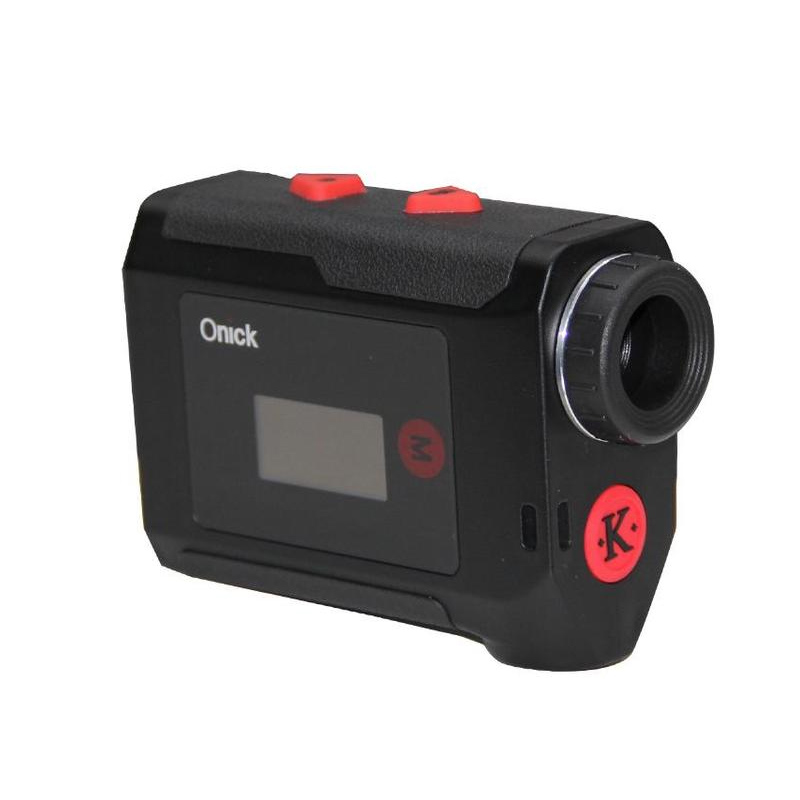

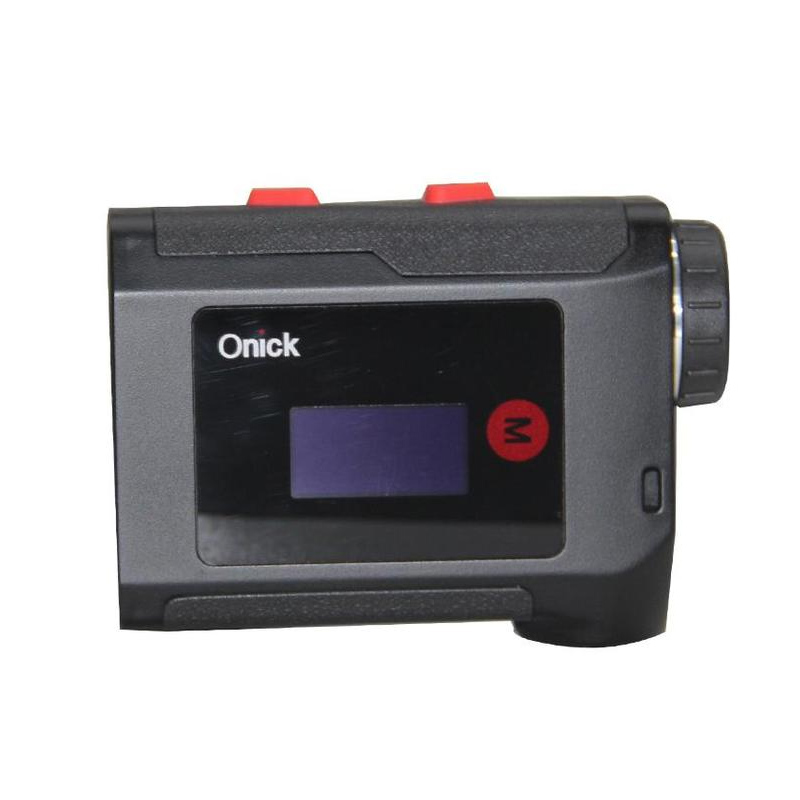

The Onick AS series has been newly upgraded, integrating telescopes, laser rangefinders, and functions such as height measurement, angle measurement, speed measurement, and golf, making up for the single function defect of people in selecting products. The AS series laser rangefinder can measure the distance, height, angle, and speed of objects within a certain range while clearly observing the object. The instrument has dual display in the eyepiece and on the external OLED LCD screen of the body, and has the advantages of high ranging accuracy, short ranging time, intuitive distance display, low power consumption, and automatic power off. New rectangular area measurement mode and volume measurement mode have been added. The back clip infrared rail can be used with a flashlight for night ranging, and the application range is wider.
1. Integrates distance measurement, height measurement, angle measurement, area measurement, and volume measurement
2. With dual reading data display, external color LCD touch screen, and multiple operation methods
3. Accuracy of 0.3 meters, high distance measurement accuracy, short distance measurement time, and intuitive distance display
4. Back clip infrared rail, can be used with a flashlight for night distance measurement, with a wider range of applications
5. Clear blue screen display, suitable for use in dark light environments
6. Sensitive measurement, clear target, simple and stable operation
7. Low laser emission power, safe for human eyes
Technical parameter
Model name | 800AS |
Measuring range | 4-800m |
Distance error | ±0.3m |
Resolution | 0.1m |
Angle measurement function | Yes |
Angle measurement range | ±60/±90° optional |
Angle measurement accuracy | ±1° |
Magnification | 8X |
Objective lens diameter | 24mm |
Eyepiece aperture | 17mm |
Exit pupil diameter | 3.9mm |
Field of view | 7° |
Diopter adjustment range | ±4 diopters |
Display mode | built-in LCD, external OLED LCD display |
Focus mode | eyepiece hand Dynamic focus |
Single-point height measurement | Yes |
Speed measurement function | Yes |
Speed measurement range | 0-300km/H |
Speed measurement accuracy | ±5km/H |
Two-point height measurement | Yes |
Golf mode | Yes |
Horizontal measurement | Yes |
Area measurement | Yes |
Volume measurement | Yes |
Scanning function | Yes |
Data storage | 50 groups |
Undervoltage prompt | Yes |
Tripod interface | Standard |
Battery model | CR2/3V |
Working temperature | -10℃ to 50℃ |
Product weight | about 200 grams |
Dimensions | 110x50x85mm |
