Products Description
Military-grade quality, solid and durable, adaptable to multiple environments

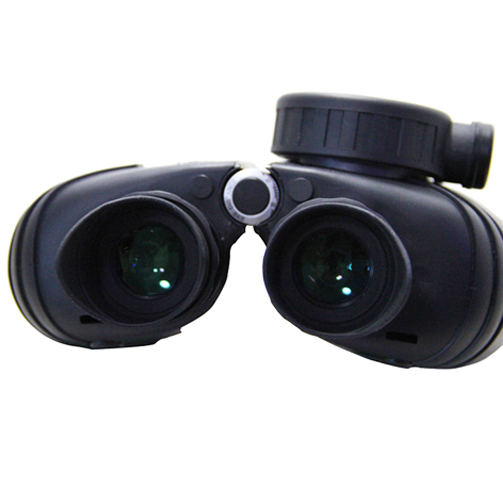

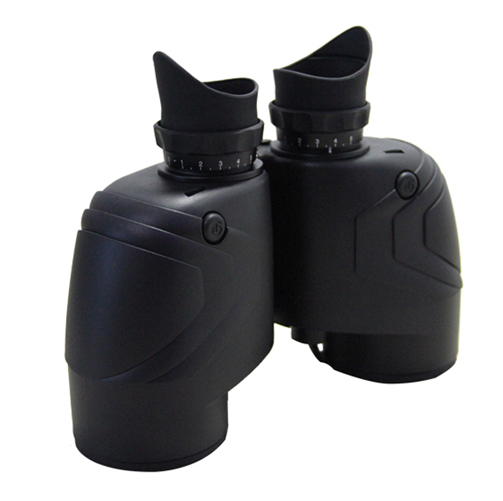

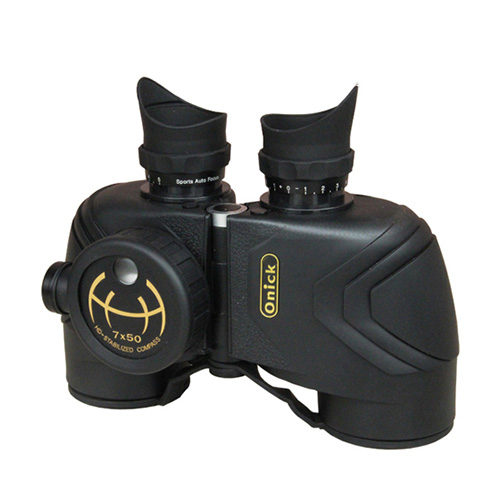

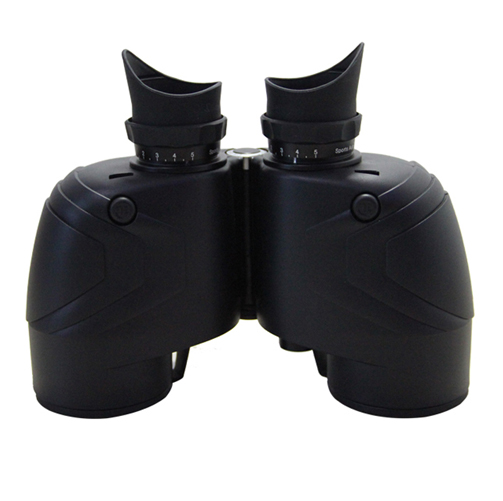

The Onick Scout series telescope 8510 and 7515 with compass both use a dynamic automatic focusing system, eliminating the need for center axis adjustment focus, binocular vision compensation, full multi-layer coating, BAK-4 porro prism, and high-transmittance and high-contrast lenses to allow you to enjoy the visual feast more comfortably.
Built-in rangefinder graticule and integrated compass
The Onick Scout 7515 has a military standard rangefinder graticule, which can calculate the distance and size of the target using mils; at the same time, the Onick Scout 7515 has more powerful built-in functions, with an integrated compass with fluorescent lighting and a rangefinder graticule in mils, which can clearly identify the direction or measure the target azimuth, elevation and distance even in dim outdoor environments.
Product features:
1. Automatic dynamic focus system, eliminating the need for manual focus adjustment
2. Fully multi-layer coated BAK-4 porro prism, stable imaging, clear colors
3. Long exit pupil, large eyepiece
4. Military standard compass reticle, close-range calculation of observation targets
5. Ergonomic design, anti-slip grooves added to the lens body, stable operation
Application areas:
military operations, security and police use, maritime inspections, outdoor tourism, outdoor adventures, sports events, power safety inspections, concerts, forestry surveys, industrial inspections, archaeological research, railway line selection, land and resources surveys, etc.
Technical parameter
Model | 7515 |
Magnification | 7x |
Objective lens diameter | 50mm |
Field of view | 7.5° |
Field of view at 1000 meters | 132m |
Exit pupil diameter | 7.1mm |
Exit pupil distance | 23mm |
Focusing system | focus-free system |
Mask structure | Folding rubber |
Vision compensation/diopter | Binoculars ±5D |
Prism category | BAK-4 Porro prism |
Lens coating | fully multi-layer coating |
Protection | dustproof, waterproof, fogproof |
Product performance | built-in ranging reticle, mechanical compass for orientation measurement |
Product size | 200x123x150mm |
Product weight | 1360g |
Tripod | supported (optional) |
Standard accessories | telescope, eyepiece cover, objective lens cover, carrying case, strap, instruction manual, warranty card, lens cleaning cloth, color box |
Tags: 7X50binoculars telescope telescopic binoculars monocular telescope Military telescope
