Products Description
Product description

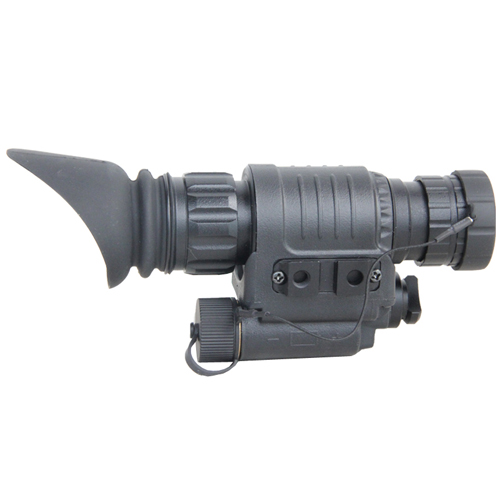

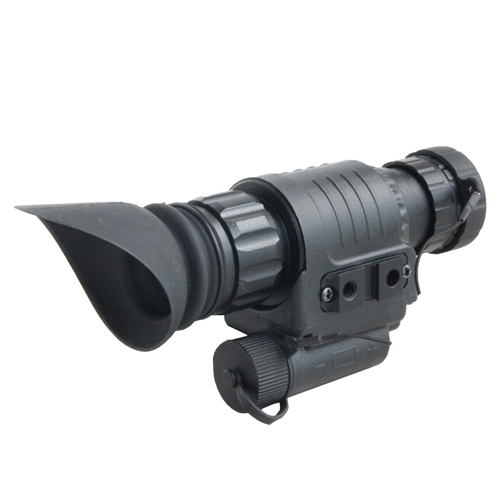

Onick NVG-S is portable and multifunctional night vision monocular with high resolution,small in size,light in weight .Magnification can be changed by replacing different objective lens, 1x and 3x are available.It can be equipped with digital camera, video recorder,CCD video camera and use super Gen 2+ and 3 Russian sophisticated Image Intensifier Tube with Anti-glare,function and built-in IR Illuminator,It can be widely used for military observation,sea defence,frontier reconnaissance,surveillance, suppress smuggling,drugs and traffickers seizure,security check ect,and also can be used in other low light condition.
KEY FEATURES
1.High magnification
2.Long range viewing
3.Fully multi-coated optics
4.Superior resolution
5.Durable rubber armor
6.Built-in infrared illuminator
7.Reliable and easy to use
Technical parameter
IIT | 2+ |
Observation distance, m | 175~200 |
Magnification | 1 |
Angular field of view, degree | 40±2 |
Focus range, m | 0.25-∞ |
Diopter Adjustment | ±5 |
Resolution, lp/mm min- max | 57-72 |
Supply voltage, V (2 universal “AA” batteries) | 3 |
Active performance period without IR illumination, min, hours | 80 |
Active performance period with IR illumination, min, hours | 40 |
Output pupil diameter, mm | 20 |
Output pupil relief, mm | 25 |
Monocular weight (with 1 battery), no more, g | 320 |
Mask weight, no more, g | 180 |
Bag weight, g | 250 |
Ambient conditions | |
♦Operating Temperature Range, °С | ±40 |
♦Relative Humidity | at °С 98% |
♦Shock resistance | 5g |
♦Water resistance | 2.0 м (2 hours) |
♦Dimensions | 118x48x69 mm |
♦Operating mode switch and batteries compartment cover are easy to use even when operating in gloves.
♦Angle of IR illumination totally assures a field of view (controlled under assembling).
♦Monoculars are performed as corrosion-proof.
♦Low battery indicator.
♦«IR-on» indicator.
♦Possible mounting on a right/left side.

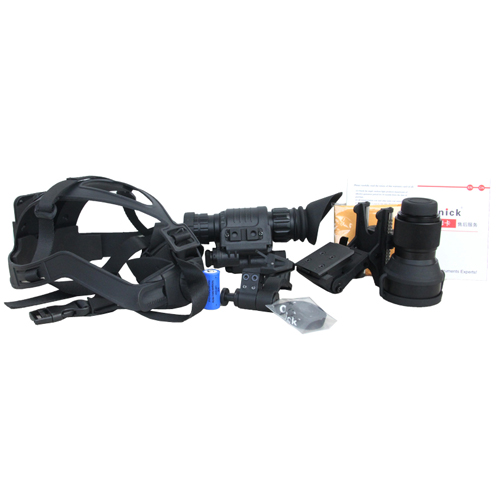

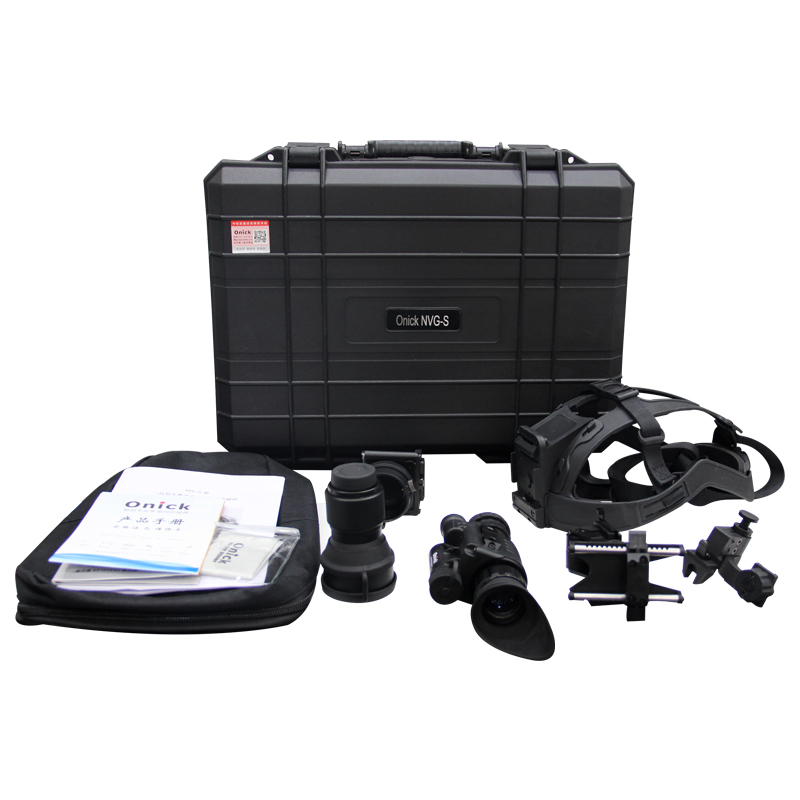

Standard set
1.Night Vision Monocular
2.Head strap mount
3.Allows hands-free operation. High safety of mounting blocks and adjusting mechanisms.
4.Carrying Case
5.Shoulder strap
