RE830 binocular multi-function handheld observation instrument

Onick RE830 binocular multi-function handheld observation instrument is a small intelligent observation device integrating infrared, low light, visible light and laser. It has built-in positioning module, electronic compass, laser ranging and image storage functions, and image fusion function. It can be used for day and night observation and target search, and timely take photos and videos and upload information. It is comfortable to use and easy to carry. It can be used for reconnaissance, surveillance, outdoor hunting and security protection.
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick RE830 binocular multi-function handheld observation instrument is a small intelligent observation device integrating infrared, low light, visible light and laser. It has built-in positioning module, electronic compass, laser ranging and image storage functions, and image fusion function. It can be used for day and night observation and target search, and timely take photos and videos and upload information. It is comfortable to use and easy to carry. It can be used for reconnaissance, surveillance, outdoor hunting and security protection.

Product Features:

1. 5 optical channels, support image fusion, infrared, low light, visible light and other observation modes;

2. Multi-function, intelligent, with electronic compass; with laser ranging, accurate measurement of target position;

3. Built-in positioning module BD+GPS dual-mode positioning;

4. Light weight, long battery life, simple operation;

Application areas:

It can record and take photos, record and restore the scene, and can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit and other scenes. It is suitable for special forces such as public security, armed police, and the army to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify and track targets of concern; it is also suitable for fire protection, electricity, petroleum and other industries to achieve day and night monitoring of specific areas or equipment.


Technical parameter
RE830 binocular multi-function handheld observation instrument positioning module, electronic compass, laser distance measurement
Image zoom
Electronic zoom:
1.0-4.0 times (infrared, low light, fusion change synchronously, single step adjustment step 0.1 times. Visible light image is
electronically zoomed separately, zoom step 0.1 times)
Infrared thermal imaging performance
Resolution
640×512, 12μm
Working band
8~14μm
Field of view
6.1°×4.8°
Low light imaging performance
Resolution
750×600
Low illumination capability
0.001lux
Field of view
6.8°×5.5°
Visible light imaging performance
Resolution
4.6 million pixels
Field of view
4.6°×3.7°
Laser ranging performance
Wavelength
1535nm
Maximum range
≥6km
Minimum range
≤50m
Ranging accuracy
2m
Positioning module performance
Positioning mode
Beidou navigation, GPS
Horizontal positioning accuracy (CEP)
5m
Elevation positioning accuracy (PE)
10m
Electronic compass performance
Magnetic azimuth measurement range
0~360°
Magnetic azimuth measurement accuracy
0.5°
Pitch angle measurement range
-90°~+90°
Pitch angle measurement accurac
0.4°
Tilt angle measurement range
-180°~+180°
Tilt angle measurement accuracy
0.5°
Laser indication performance
Wavelength
830nm
Safety level
5mW, Class IIIA
Display performance
Resolution
1280×1024
External interface
Aviation plug
DC/USB/PAL/RS232
Display
HDMI
Wireless transmission
WIFI
Complete machine performance
Storage
64G
Eyepiece diopter
-4~+4
Weight
2.1kg
Working time
≥8h
Dimensions
198*210*105mm
Working temperature
-40℃~+55℃
Storage temperature
 -55℃~+70℃
Waterproof level
IP67

Working distance

Infrared mode
Visible light mode
Visible light mode
people(1.7x0.5m)
Discrimination
850m
3000m
Recognition
1700m
4500m
Detection
5000m
10070m
car(2.3x2.3m)
Discrimination
1200m
4000m
Recognition
2400m
6000m
Detection
6000m
12200m

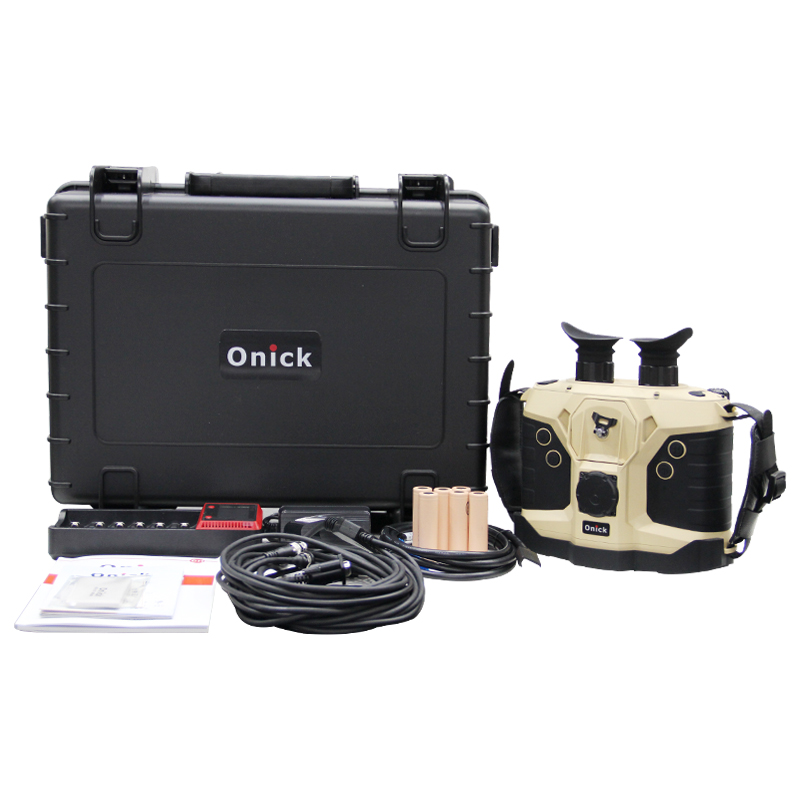

RE830 binocular multi-function handheld observation instrument

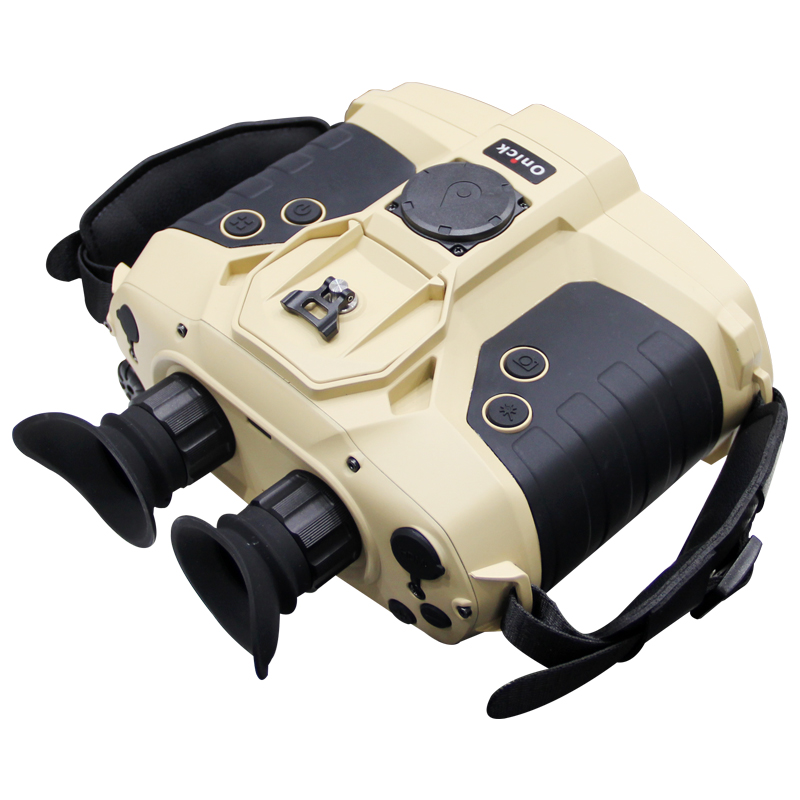

RE830 binocular multi-function handheld observation instrument

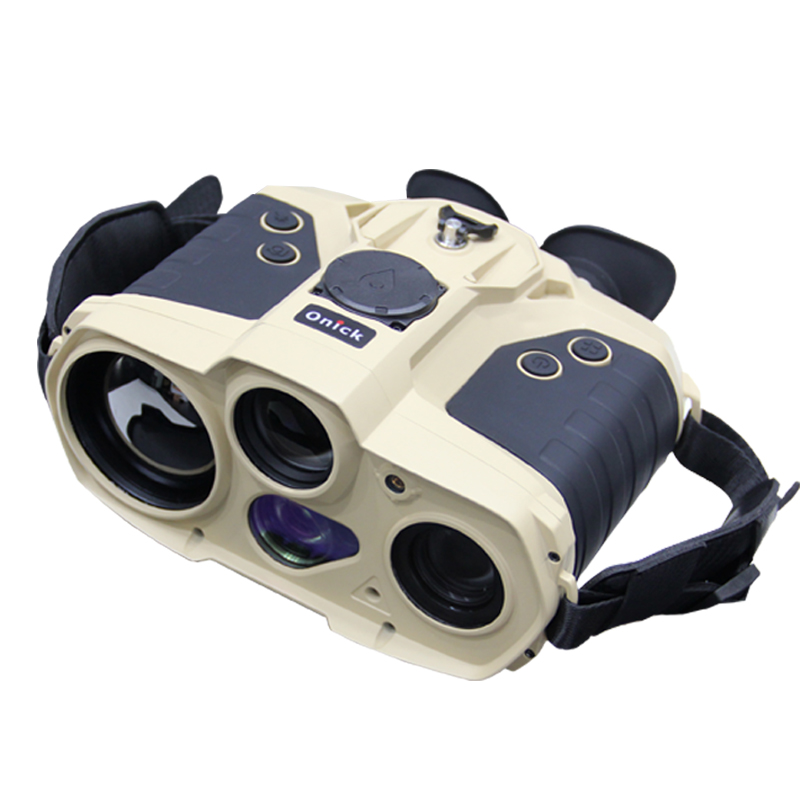

RE830 binocular multi-function handheld observation instrument

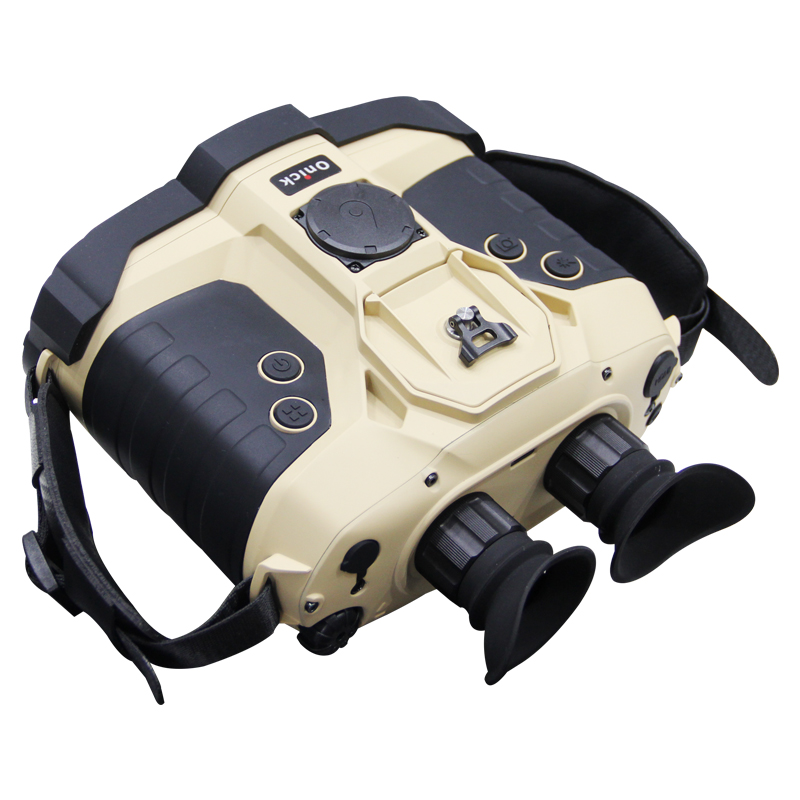

RE830 binocular multi-function handheld observation instrument

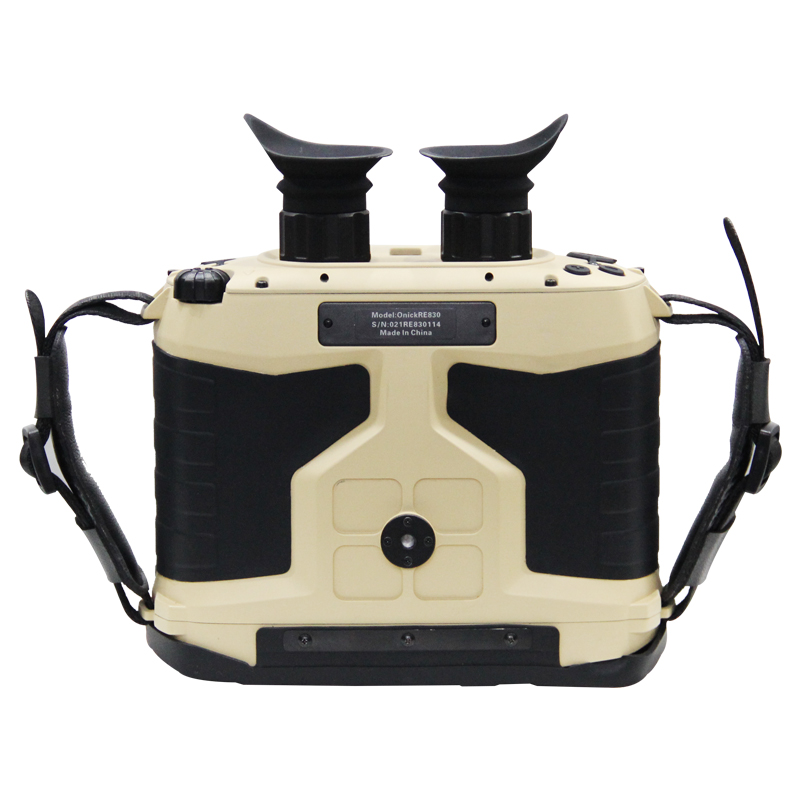

RE830 binocular multi-function handheld observation instrument
