RM-1 Monocular thermal imaging riflescope

RM-1 Monocular thermal imaging riflescope

Onick RM-1 multi-function thermal imager is a high-performance infrared observation device equipped with a high-sensitivity vanadium oxide uncooled infrared detector and a full-color OLED1024x768 high-definition display. It adopts non-blocking technology, and the image is continuous without freezing. It is used for long-distance observation in various scenes.
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Onick RM-1 multi-function thermal imager is a high-performance infrared observation device equipped with a high-sensitivity vanadium oxide uncooled infrared detector and a full-color OLED1024x768 high-definition display. It adopts non-blocking technology, and the image is continuous without freezing. It is used for long-distance observation in various scenes.

Product features:

1. Supports photo and video evidence collection functions, and can record video images for a long time;

2. Built-in laser ranging module, supports 2000m laser ranging, with high ranging accuracy;

3. With GPS Beidou positioning, electronic compass function, WIFI transmission function;

4. Long standby time, built-in rechargeable battery, continuous working time can reach 8 hours;

5. Small and light, low power consumption, simple operation, light and portable appearance structure, ergonomic structure;

6. Fast start-up, simple operation, compact and stable structure, protection level IP67;

Approved for China's recognition and international mutual recognition inspection report: Inspection report of the Quality Inspection Center of Security and Police Electronic Products of the Ministry of Public Security, Gongjingjian No. 2306110045.

Application areas:

Can record and take pictures, can record and restore the scene, can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit and other scenes. It is suitable for special forces such as public security, armed police, and the military to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify, and track targets of concern; it is also suitable for industries such as fire protection, electricity, and petroleum to achieve day and night monitoring of specific areas or equipment.


Technical parameter
Model number
RM-1
probe
Uncooled vanadium oxide microbolometer
Resolution
384×288/12µm
Lens focal length
35mm
Field Angle
7.5 ° x 5.7 °
Visual magnification
3.37 to 13.48
Operating band
8 to 14 µm
Frame frequency
50Hz
NETD
≤50mk@300K
reveal
0.39" OLED 1024x7 68
Eyepiece visibility
-5 ~ +5
Exit pupil distance
45mm
Power source
2 CR123A lithium batteries
weight
500g
Battery life |
Acuity 2.5 h.
dimension
208×57×58mm (including eye/objective cover)
port
External power supply/Type-C
Operating temperature
-30ºC ~ +50ºC
Class of protection
IP67
reliability
Impact 8009
altitude
≥5000m
adaptability
all-weather
Detection range (person)
35mm/3310m
Detection range
35mm/4480m

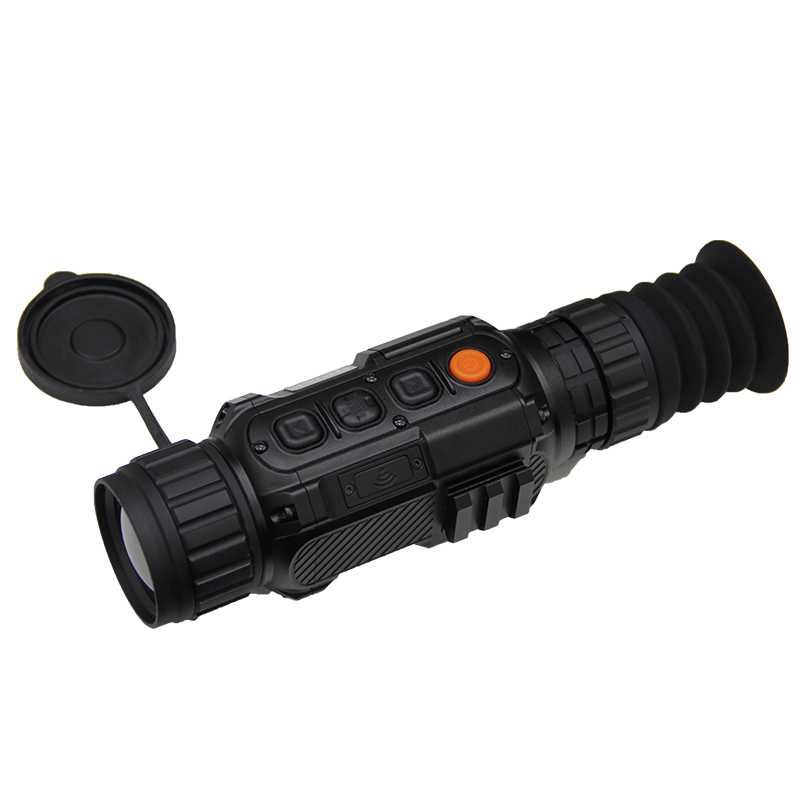

RM-1 Monocular thermal imaging riflescope

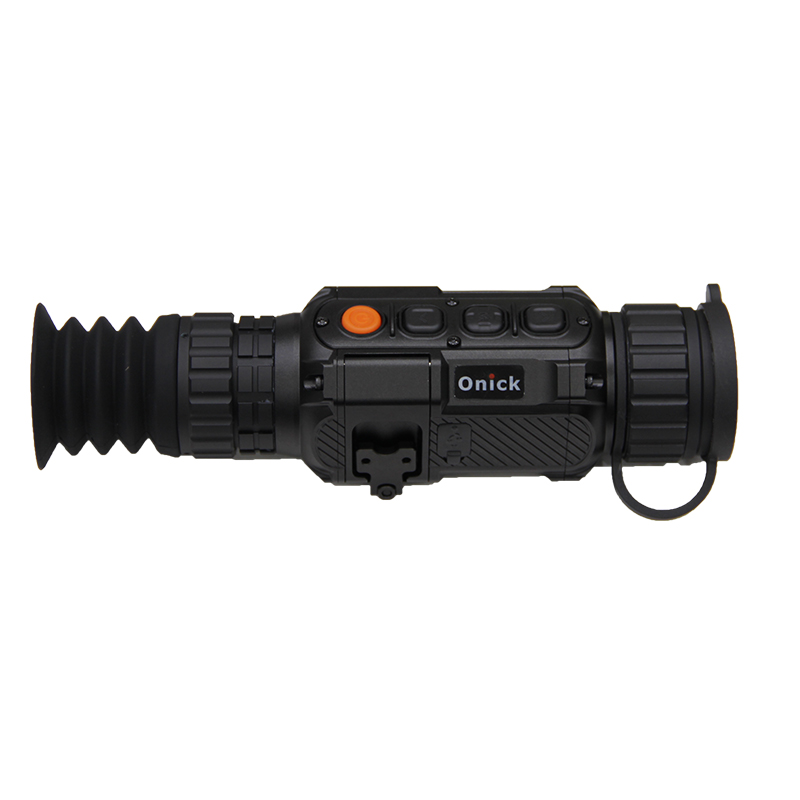

RM-1 Monocular thermal imaging riflescope

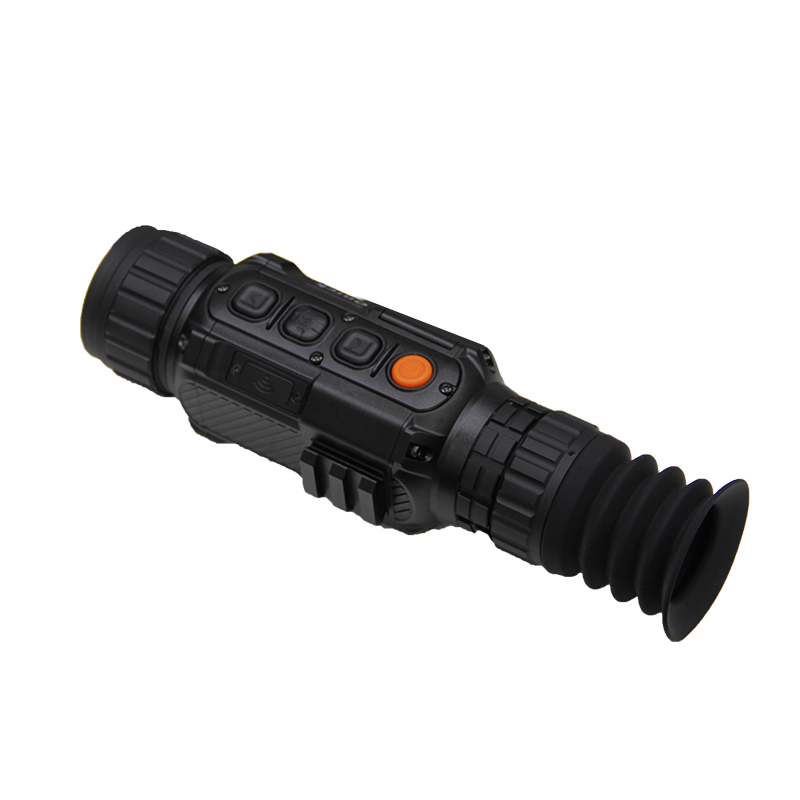

RM-1 Monocular thermal imaging riflescope

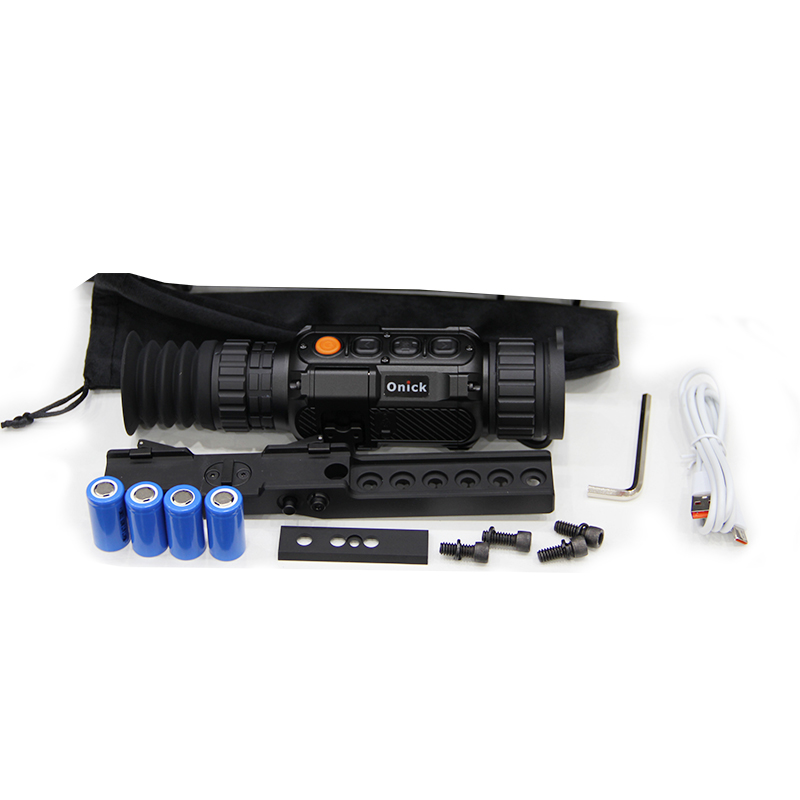

RM-1 Monocular thermal imaging riflescope

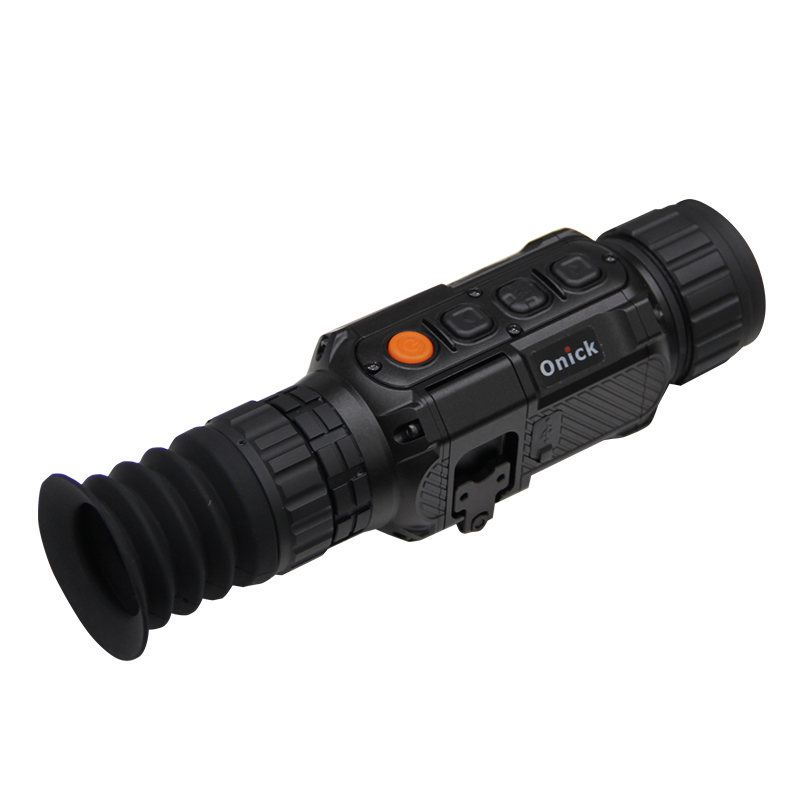

RM-1 Monocular thermal imaging riflescope
