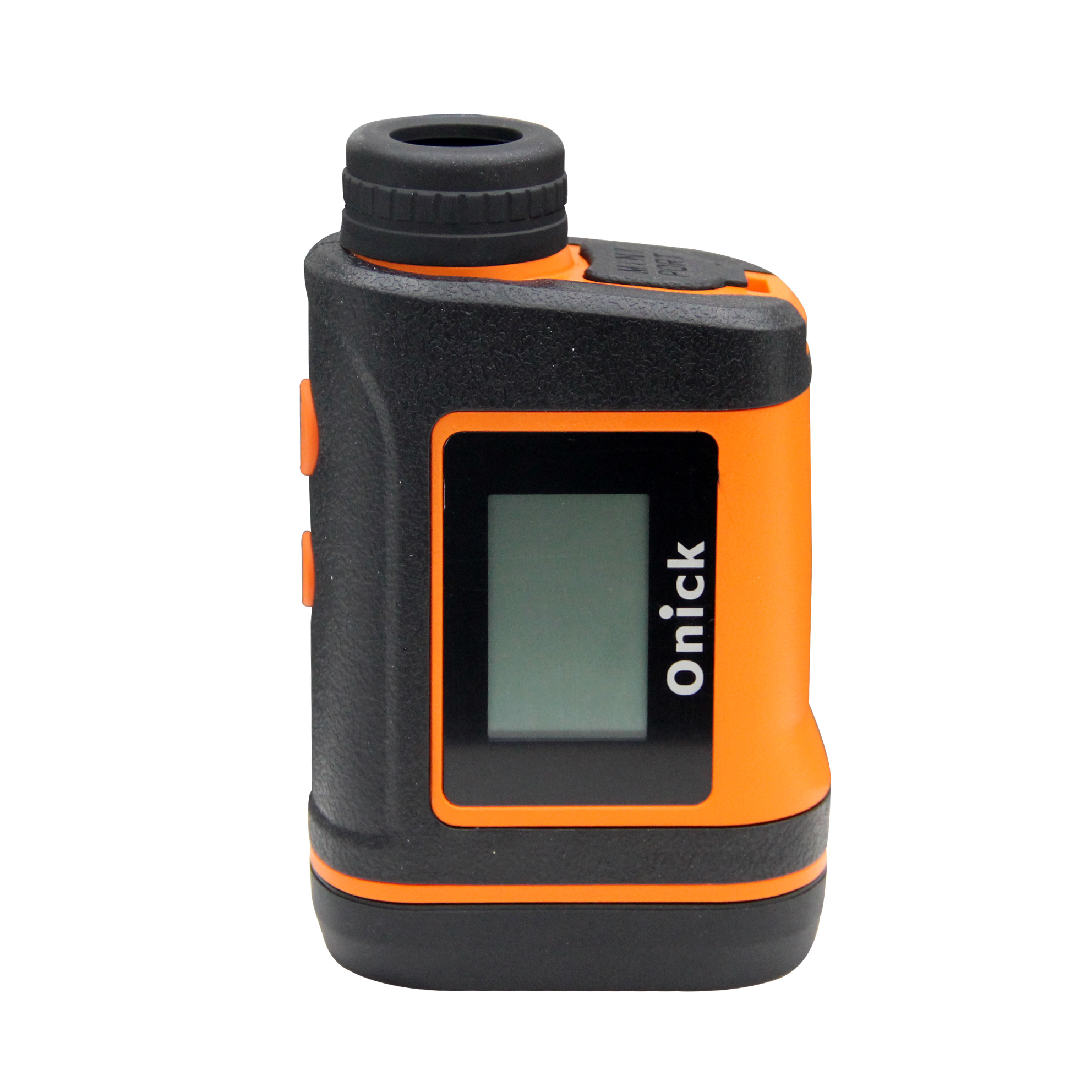

2200B Multi-function Laser Distance Meter with Bluetooth

2200B Multi-function Laser Distance Meter with Bluetooth

Heavy upgrade! Accuracy up to 0.2 m without blind area added measurement vibrati
Send Inquiry
Send Inquiry
Description
Parameter
Products Description

Heavy upgrade! Accuracy up to 0.2 m without blind area added measurement vibration reminder
The introduction of Onick 2200B represents a new revolutionary professional level of measurement accuracy, within the range of 200 meters, accurate measurement of 0.2 meters, no measurement blind area, 0 meters starting measurement, new measurement vibration reminder function, the farthest distance mode! With Bluetooth and RS232 serial port, it fully covers Tupas 200B, which is widely used in the field of power line survey application. Solid appearance material, comfortable non-slip rubber, eyepiece diopter adjustment and smooth rotation, further improve the use experience, built-in 1200 mah lithium battery charging system, can measure about 10,000 times. The Onick 2200B rangefinder's intuitive, convenient and fast functions make your outdoor work more efficient!

Product features:

1. Small size, easy to carry;
2. Directly read the measurement results through the 7X observation telescope;
3. The telescope can be adjusted for visibility, can be more accurate observation;
4. The maximum measuring distance can reach 2200 meters;
5. The measurement accuracy can reach 0.3 meters within 300 meters;
6. Can measure the height, height difference, horizontal distance, tilt Angle;
7. A variety of measurement modes: nearest, furthest and continuous measurement functions;

Application areas:

Power line selection survey and design, power safety inspection, forestry investigation, security police, geological exploration, field hunting, railway construction survey, installation survey, high-rise building monitoring, high-speed railway passenger dedicated line track construction, water conservancy and hydropower survey, water conservancy and river survey, oil pipeline, archaeological research, mine survey, railway line selection, land resources survey, etc.


Technical parameter
Product Model2200B
Measurement Range0-2200m
Measurement Accuracy±0.2m(<200m) ±1m(>200m)
Ranging DisplayBuilt-in and external LCD display
Magnification7x
Objective Diameter26mm
Field of ViewThe range is 104m at 6°/1000m
Operating Temperature-10-50ºC
Service Temperature≤80%
Inclination Accuracy±1°
Exit pupil Diameter3.7mm
Exit Pupil Distance18.8mm
Laser TypeFDAClass1CFR21
Focusing ModeEyepiece focusing
Vibration ReminderYes
Contour Size126x79.5x44mm
Weight246g
Ranging ModeCommon ranging,horizontal distance,vertical distance,height difference
Power1200MA/H rechargeable lithium battery
Tripod1/4 inch threaded hole (optional)
Data TransmissionWith Bluetooth and RS232 serial port
Packing ListRange finder, portable bag, USB charging cable, lanyard, mirror cloth, Manual, product manual warranty card, color box
