Products Description
Heavy upgrade! Accuracy up to 0.2 m without blind area added measurement vibration reminder

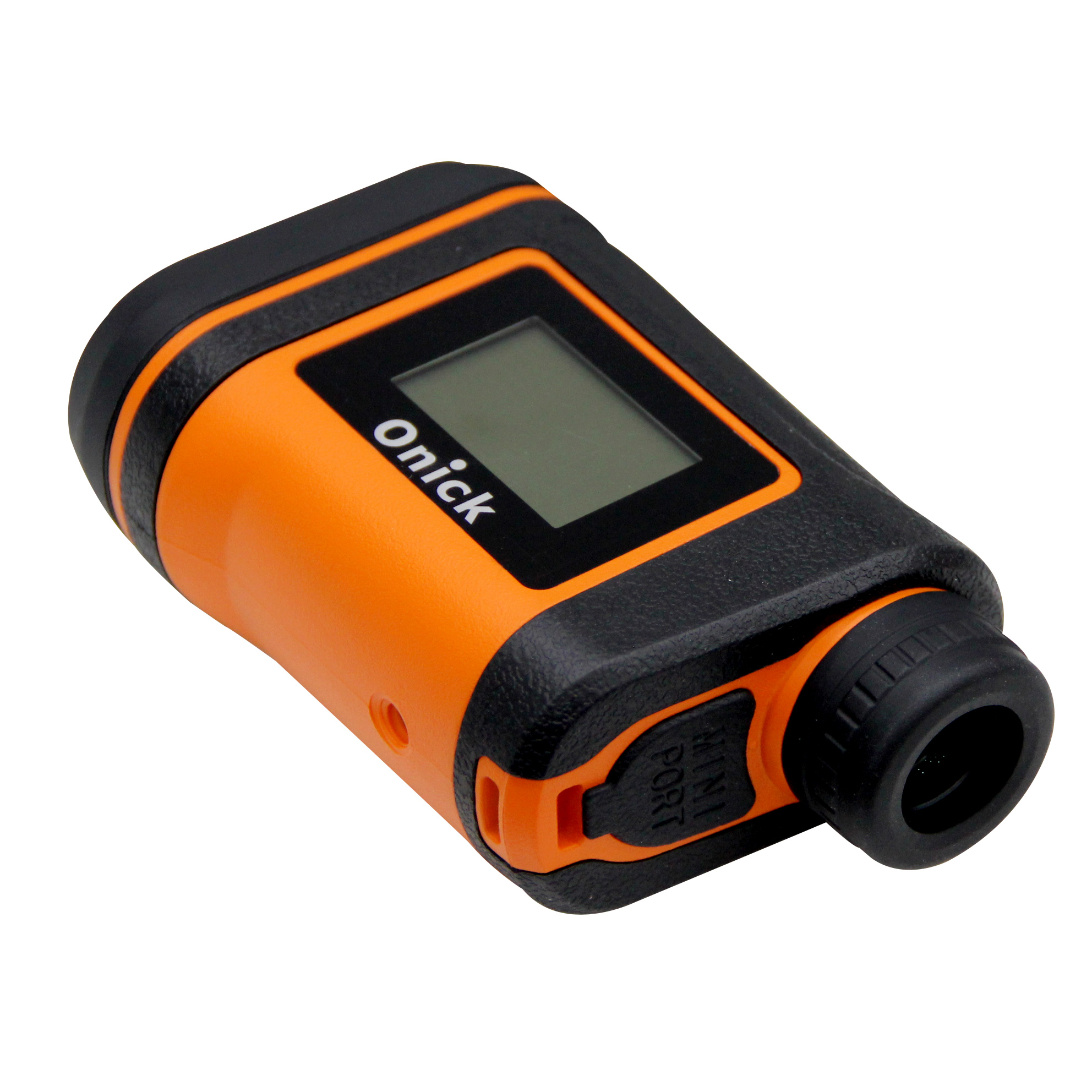

The introduction of Onick 1800B represents a new revolutionary professional level of measurement accuracy, within the range of 200 meters, accurate measurement of 0.2 meters, no measurement blind area, 0 meters starting measurement, new measurement vibration reminder function, the farthest distance mode! With Bluetooth and RS232 serial port, it fully covers Tupas 200B, which is widely used in the field of power line survey application. Solid appearance material, comfortable non-slip rubber, eyepiece diopter adjustment and smooth rotation, further improve the use experience, built-in 1200 mah lithium battery charging system, can measure about 10,000 times. The Onick 1800B rangefinder's intuitive, convenient and fast functions make your outdoor work more efficient!
Product features:
1. Small size, easy to carry;
2. Directly read the measurement results through the 7X observation telescope;
3. The telescope can be adjusted for visibility, can be more accurate observation;
4. The maximum measuring distance can reach 2200 meters;
5. The measurement accuracy can reach 0.3 meters within 300 meters;
6. Can measure the height, height difference, horizontal distance, tilt Angle;
7. A variety of measurement modes: nearest, furthest and continuous measurement functions;
Application areas:
Power line selection survey and design, power safety inspection, forestry investigation, security police, geological exploration, field hunting, railway construction survey, installation survey, high-rise building monitoring, high-speed railway passenger dedicated line track construction, water conservancy and hydropower survey, water conservancy and river survey, oil pipeline, archaeological research, mine survey, railway line selection, land resources survey, etc.
Technical parameter
Product Model | 1800B |
Measurement Range | 0-1800m |
Measurement Accuracy | ±0.2m(<200m) ±1m(>200m) |
Ranging Display | Built-in and external LCD display |
Magnification | 7x |
Objective Diameter | 26mm |
Field of View | The range is 104m at 6°/1000m |
Operating Temperature | -10-50ºC |
Service Temperature | ≤80% |
Inclination Accuracy | ±1° |
Exit pupil Diameter | 3.7mm |
Exit Pupil Distance | 18.8mm |
Laser Type | FDAClass1CFR21 |
Focusing Mode | Eyepiece focusing |
Vibration Reminder | Yes |
Contour Size | 126x79.5x44mm |
Weight | 246g |
Ranging Mode | Common ranging,horizontal distance,vertical distance,height difference |
Power | 1200MA/H rechargeable lithium battery |
Tripod | 1/4 inch threaded hole (optional) |
Data Transmission | With Bluetooth and RS232 serial port |
Packing List | Range finder, portable bag, USB charging cable, lanyard, mirror cloth, Manual, product manual warranty card, color box |
