Products Description

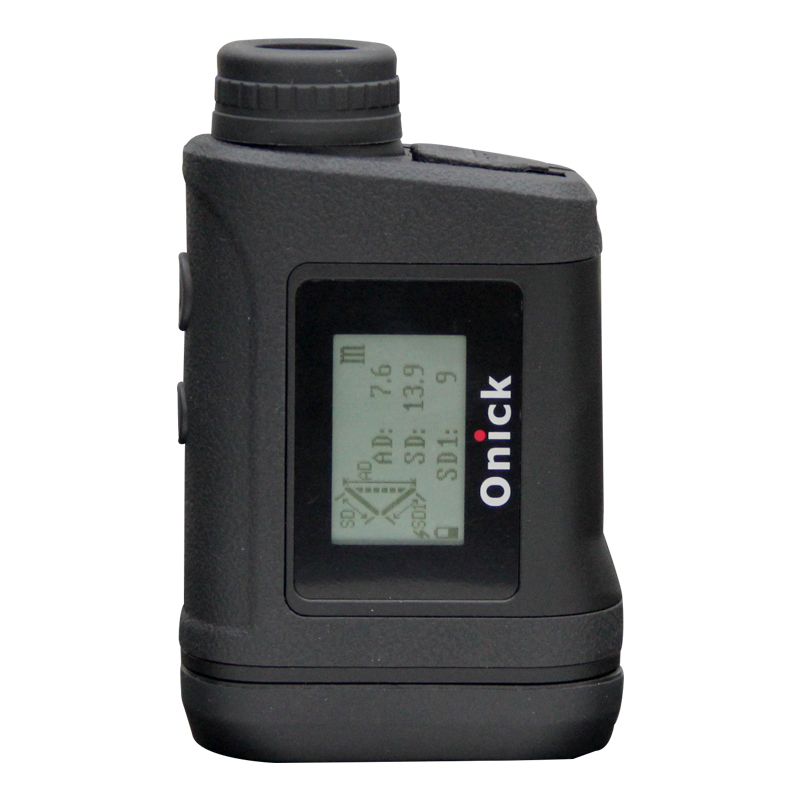

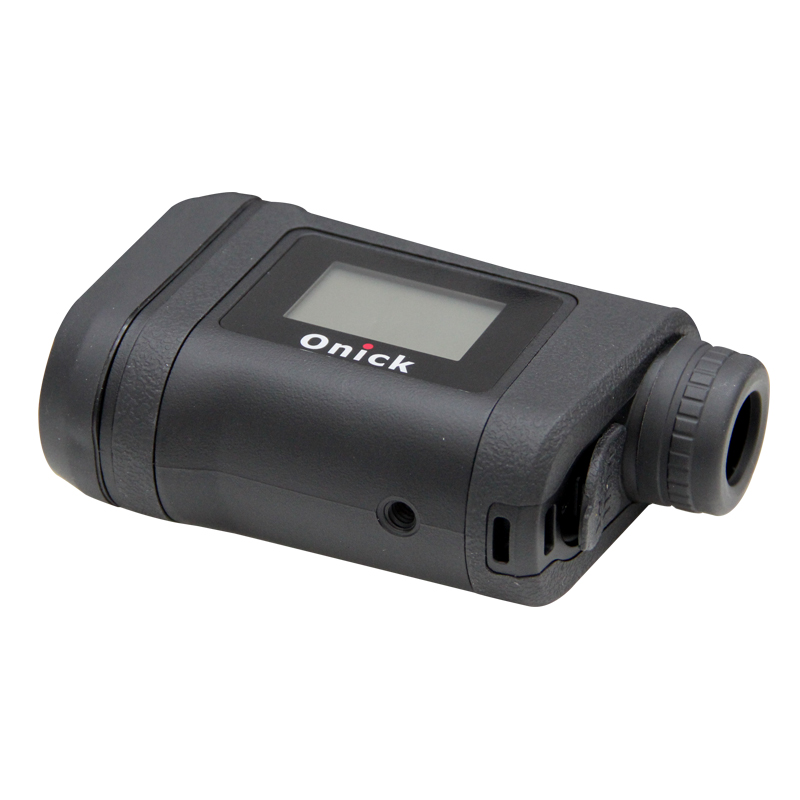

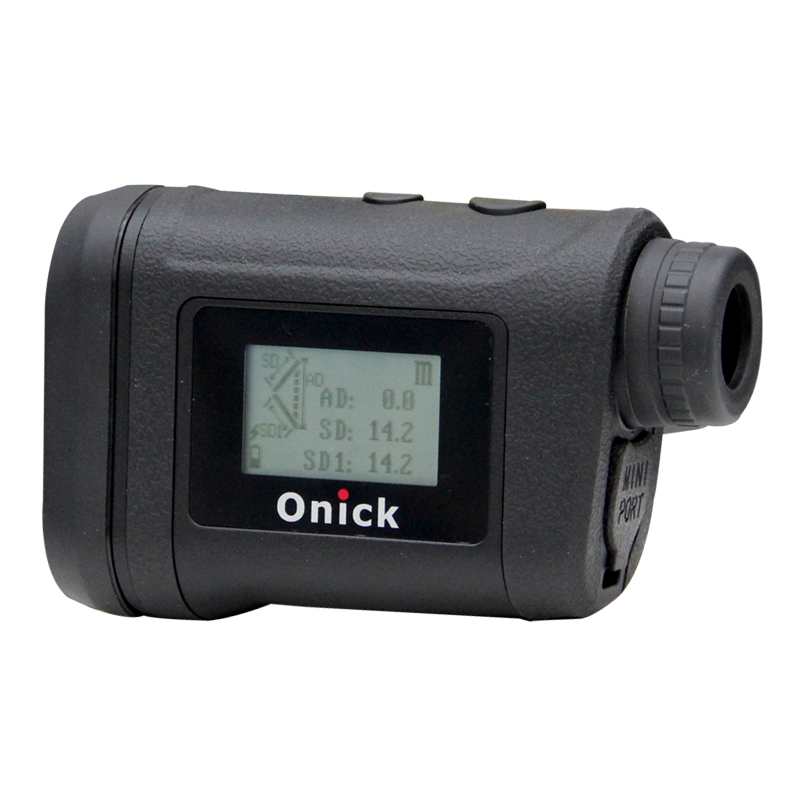

For perfectionists who have high requirements for the appearance of laser rangefinders, Onick Optics has injected a fashionable ergonomic design while ensuring the excellent use of the product. It is compact, lightweight, innovative lens coating, and high transmittance, making the observation effect clearer. Onick has launched a more comprehensive full-function laser rangefinder 3000X, which has no blind area and starts at 0 meters. The measurement accuracy is ±0.2m, and it can measure circular and rectangular areas, and the distance between any two points in space. It has azimuth, and can obtain GPS information to display the longitude and latitude of the coordinate point in azimuth mode. The performance and accuracy can meet your needs in different working environments!

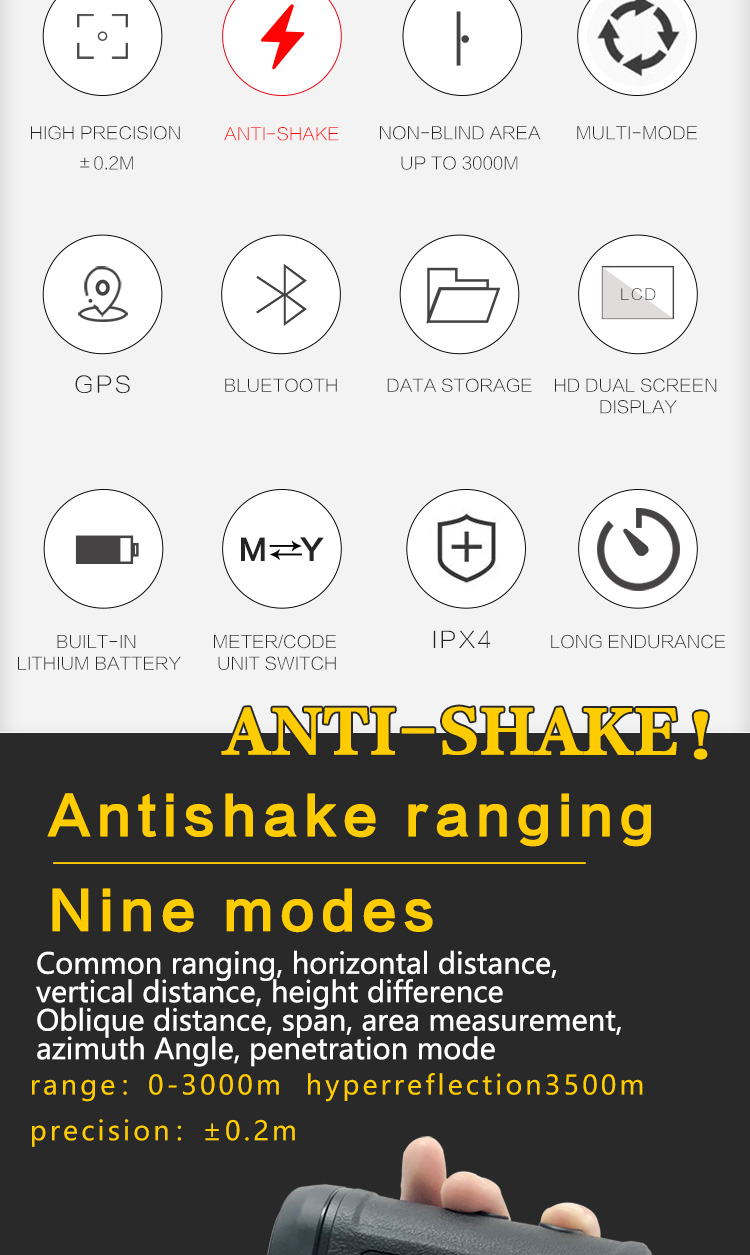

Product features:
1. Measuring distance 3000m (3500m for high reflective objects), no blind area, starting from 0m, accuracy 0.2m

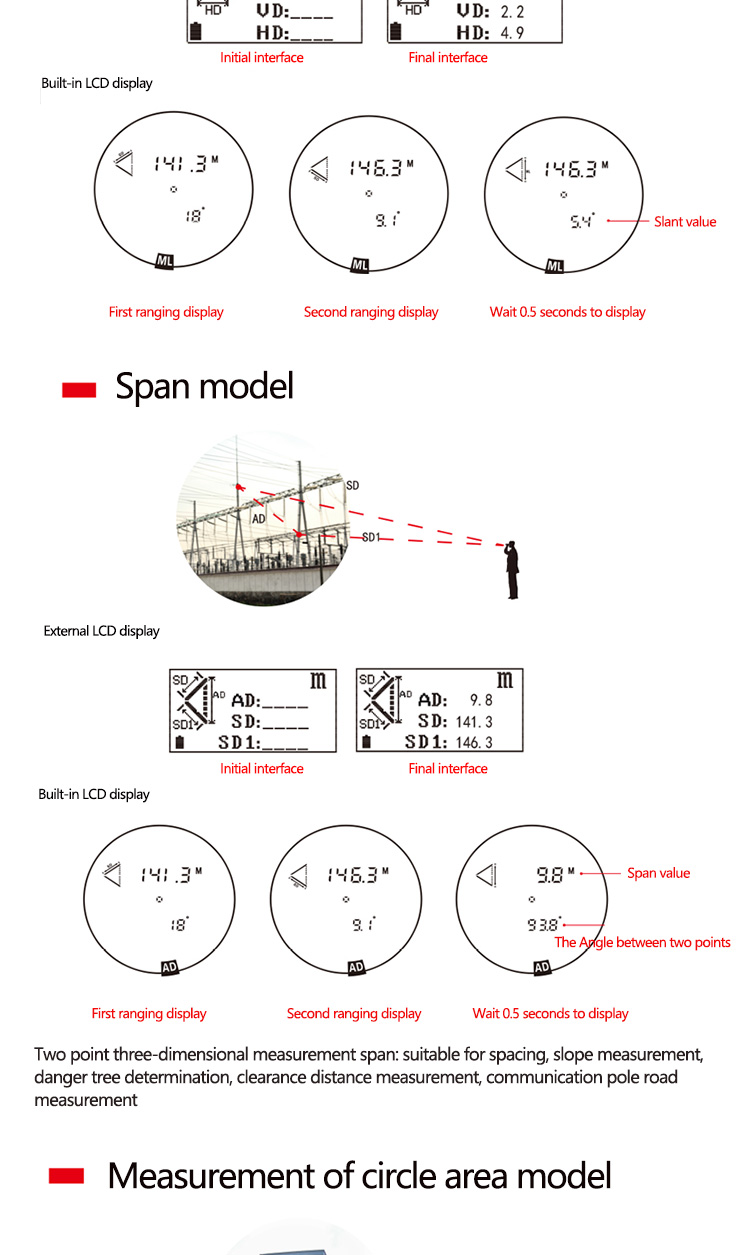

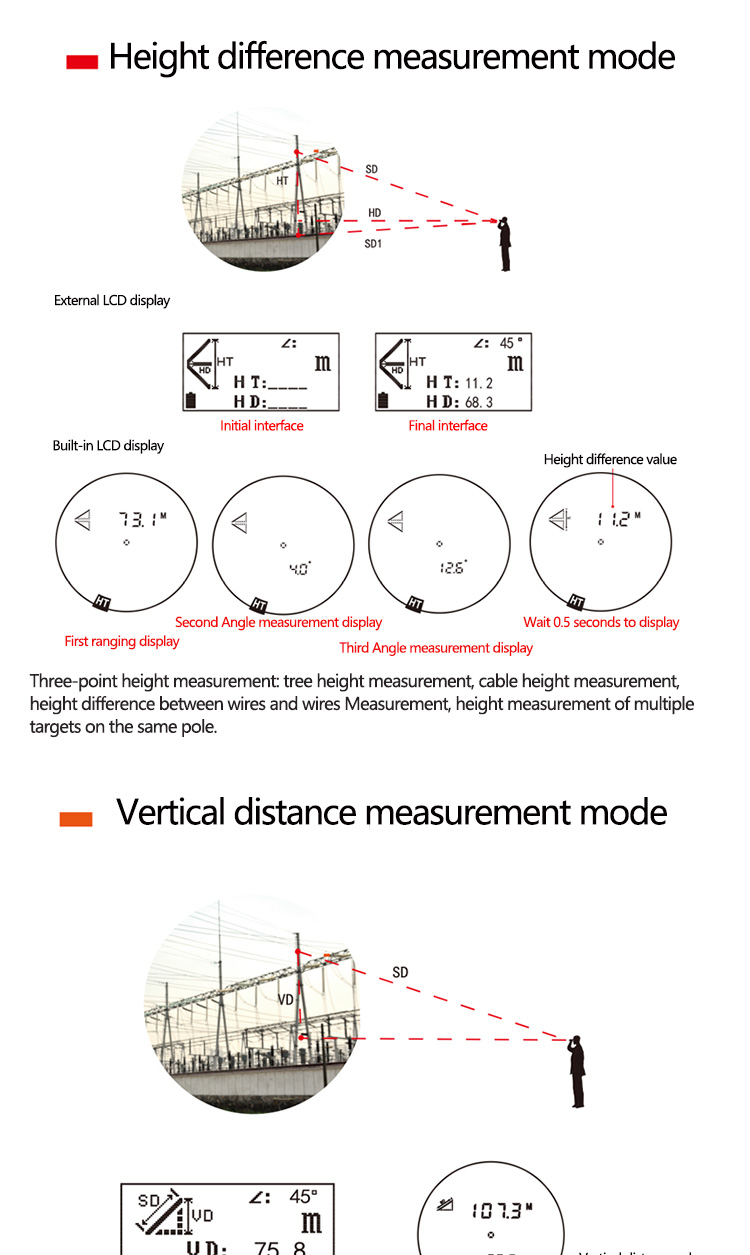

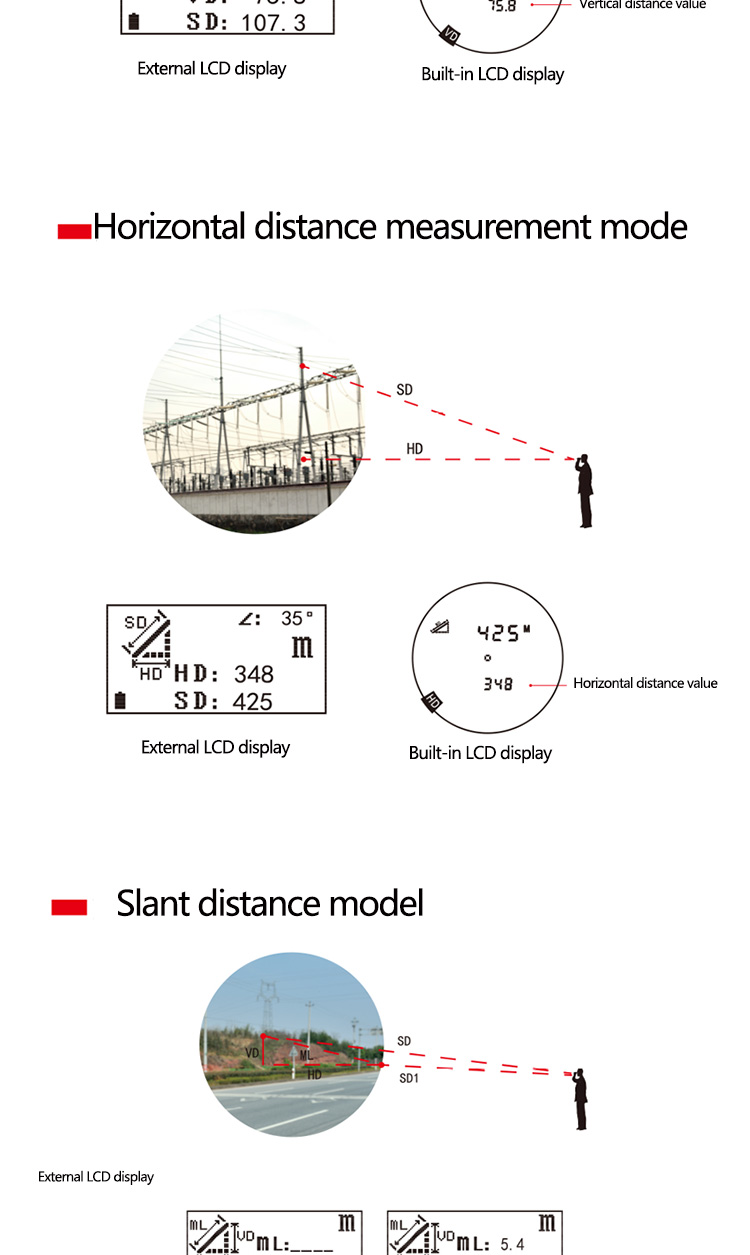

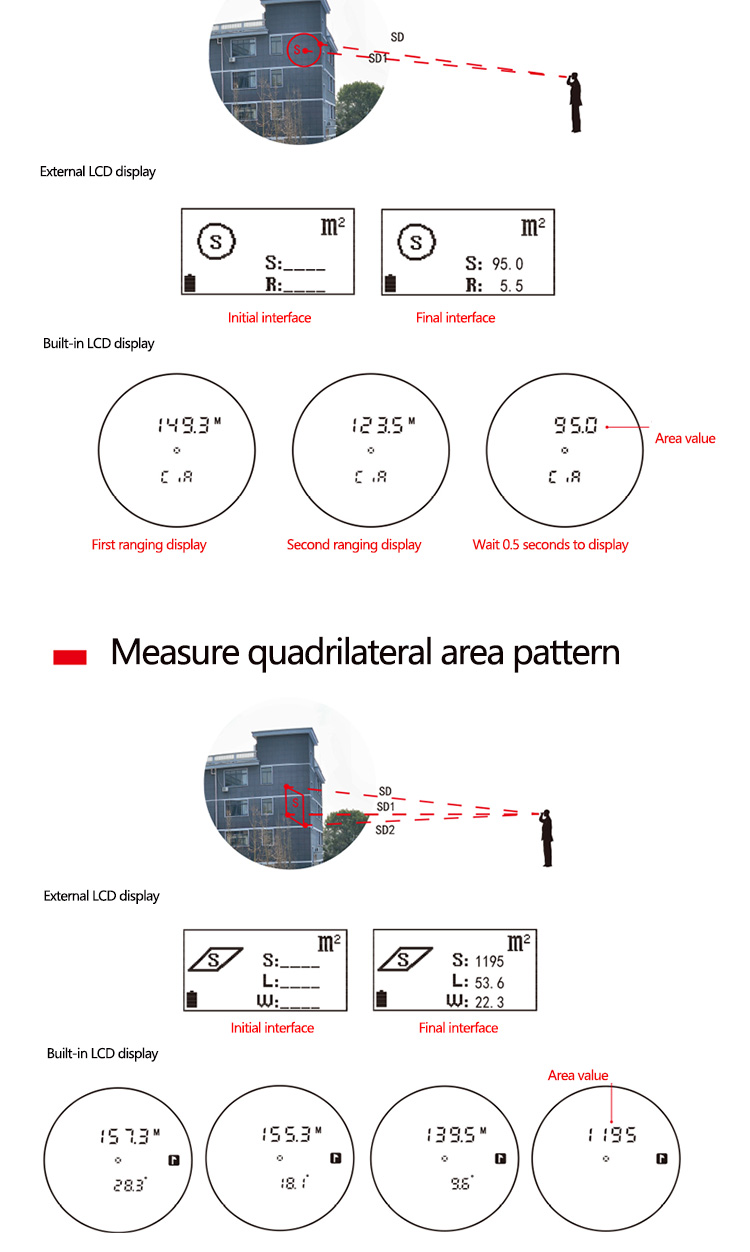

2. Powerful functions, ranging, height difference, inclination, circular and rectangular areas, and distance between any two points in space

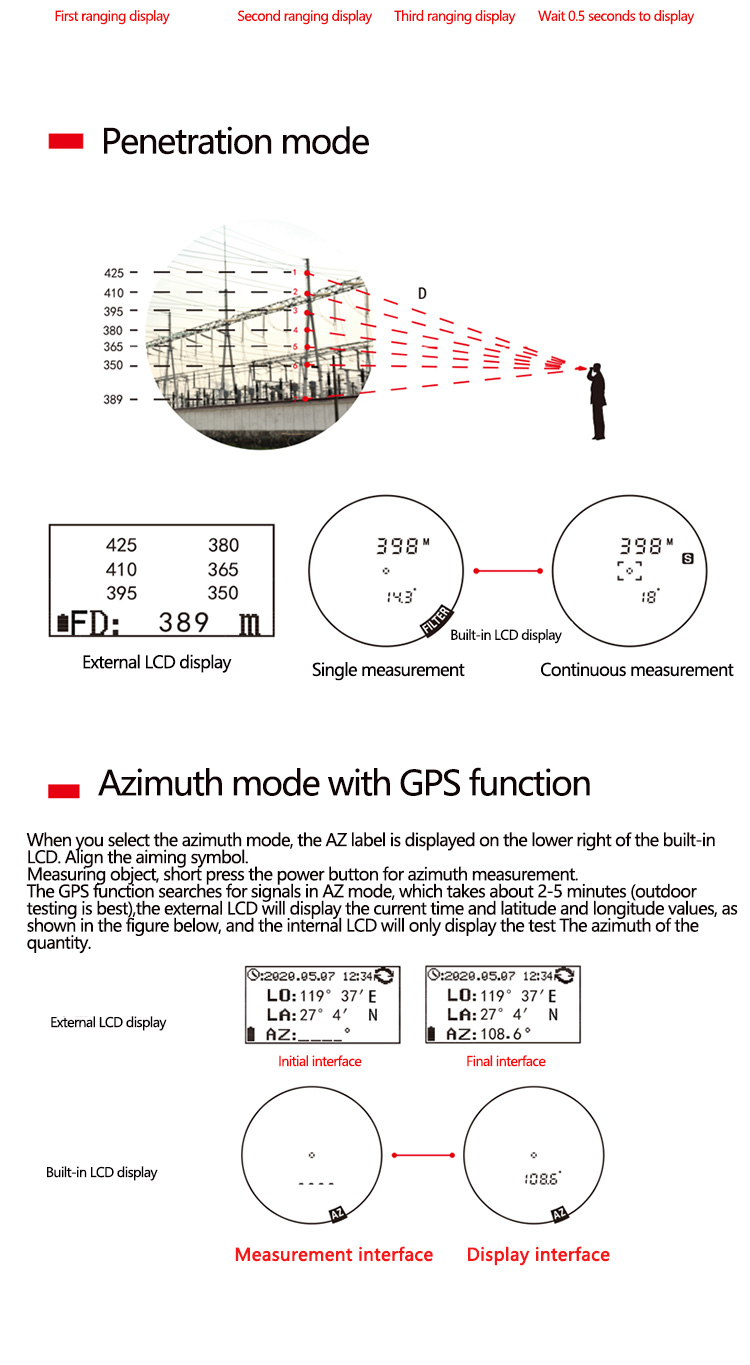

3. With azimuth, GPS information is obtained simultaneously in azimuth mode to display the longitude and latitude of the coordinate point

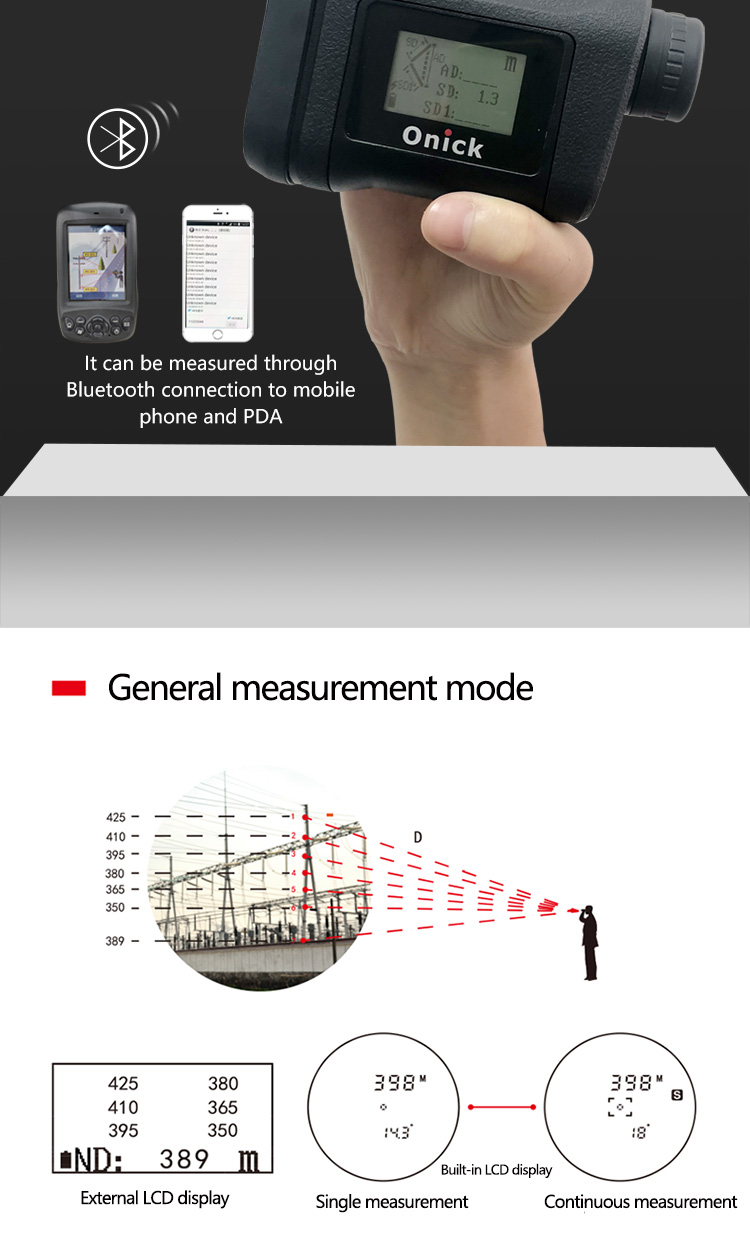

4. With vibration reminder and storage function, with Bluetooth serial port, can be connected to APP
5. Ergonomic design, compact and lightweight
Application Field:
Power construction and maintenance, power supply site inspection, line inspection (cable height), power line selection survey and design, forestry investigation, security police, geological exploration, field hunting, railway construction survey, installation survey, high-rise building monitoring, high-speed railway passenger dedicated line track construction, water conservancy and hydropower survey, water conservancy and river survey, oil pipeline, archaeological research, mine survey, railway line selection, land resources Source investigation, etc.
Technical parameter
Product Model | Onick 3000X |
Measurement Range | 0m-3000m(general target)0-3500m(high reverse target) |
Measurement Accuracy | ±0.2m(<200m) ±0.2-1m(>200m) |
Ranging Display | Built-in and external LCD display |
Magnification | 8.0X |
Objective Aperture | 26mm |
Receiving Diameter | 32x26mm |
Exit Pupil Diameter | φ3.7mm |
Field of View | 6° |
Exit Pupil Distance | 18.8mm |
Diopter Range | ±4dpt |
Operating Temperature | -10~+50ºC |
Laser Eye Safety | YES |
Focusing Mode | Eyepiece focusing |
Anti-shake Success | Vibration reminder |
Class of Protection | IPX4 |
Bluetooth Serial Port | √By connecting to the APP |
Area Survey | √Circle and rectangle |
GPS | √Display coordinates latitude and longitude |
Azimuth Angle | √ |
Measure the span at any two points | √ |
External Display | √ |
Data Storage | Seven groups |
Rechargeable | Yes,charging tips |
Product Size | 126*79.5*44mm |
Net Weight | 246g |
Tripod | Support |
Electric Source | Built-in 1200MA/H rechargeable lithium battery |
Packing List | Range finder,portable bag,USB charging cable,lanyard, Mirror cloth,manual,product manual warranty card,color box |
