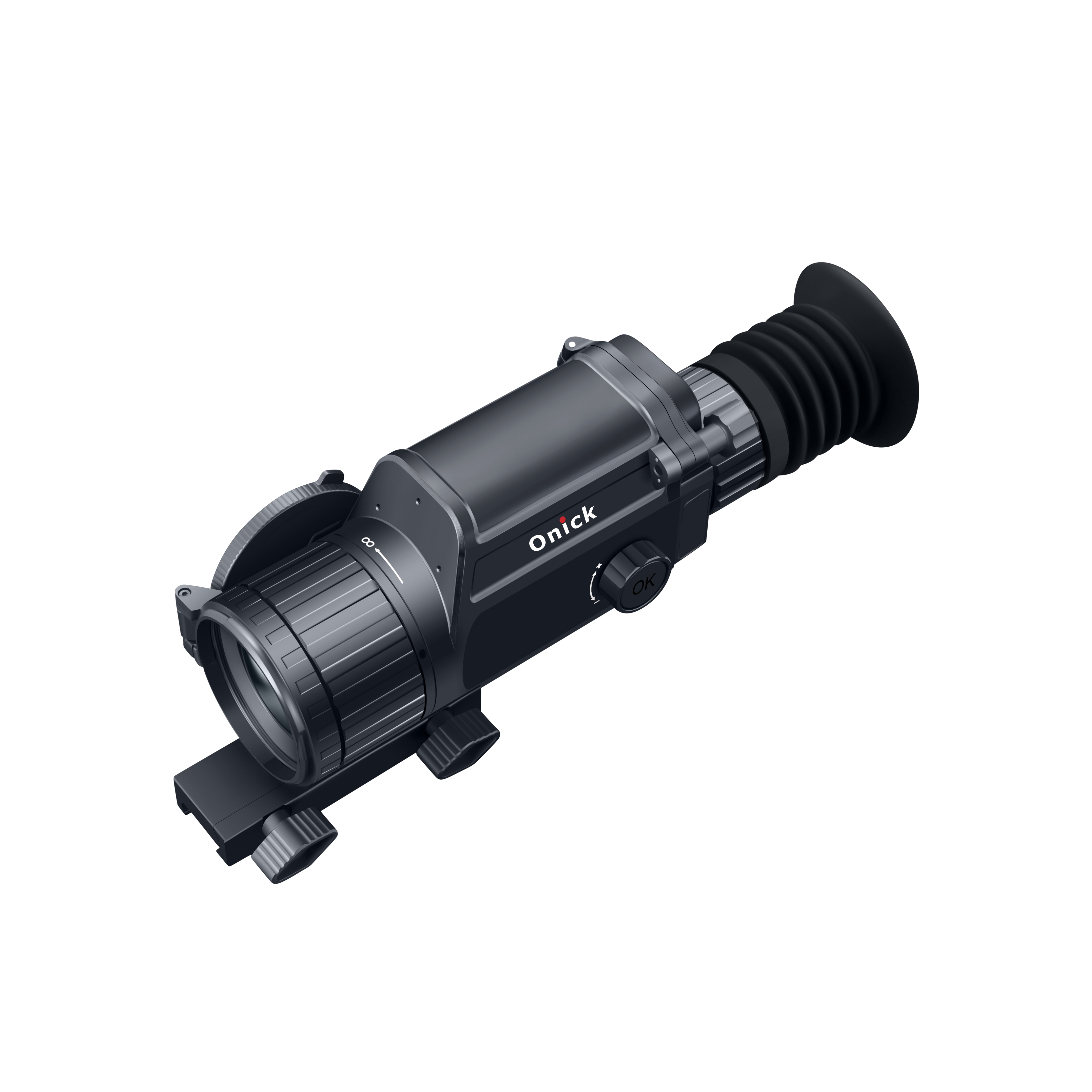

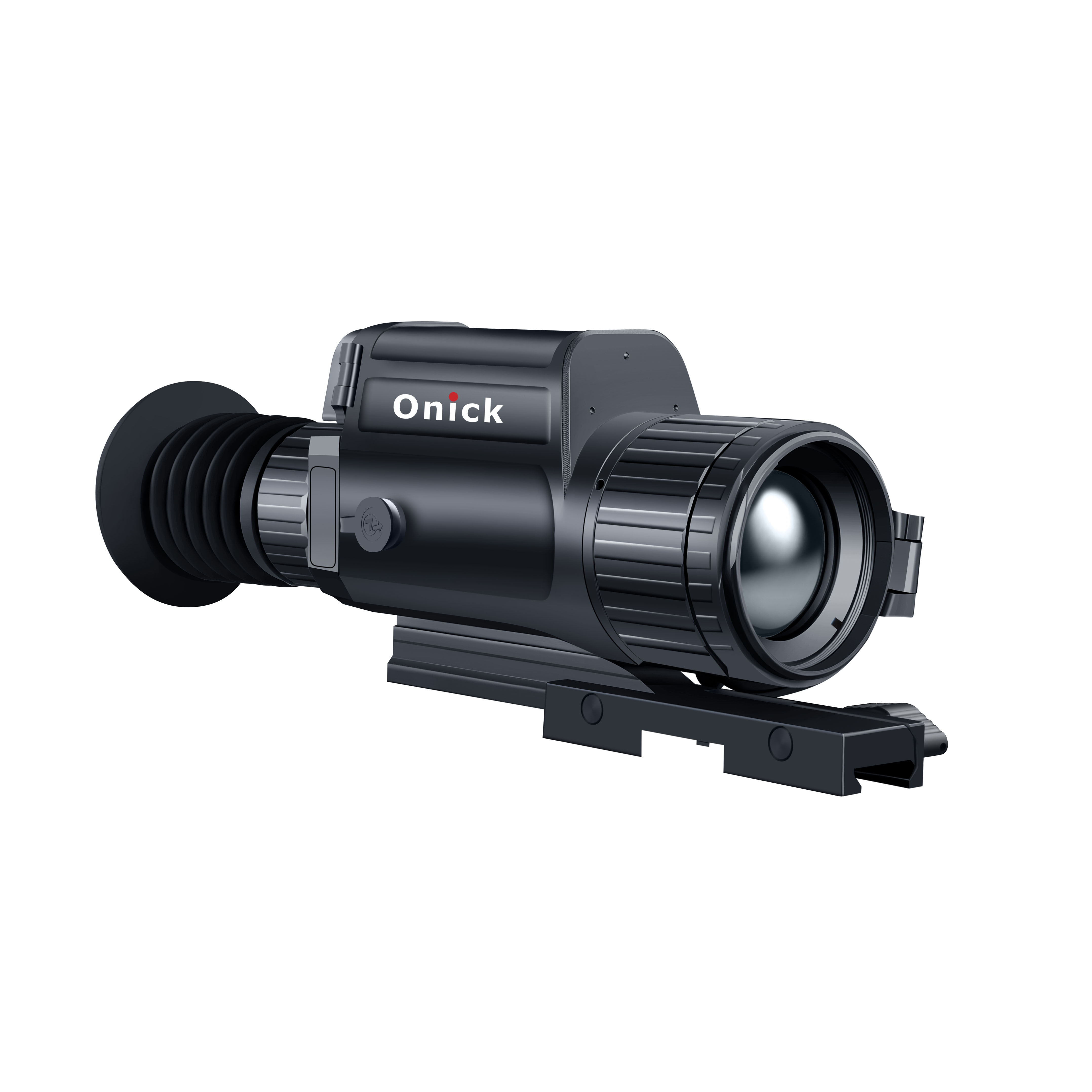

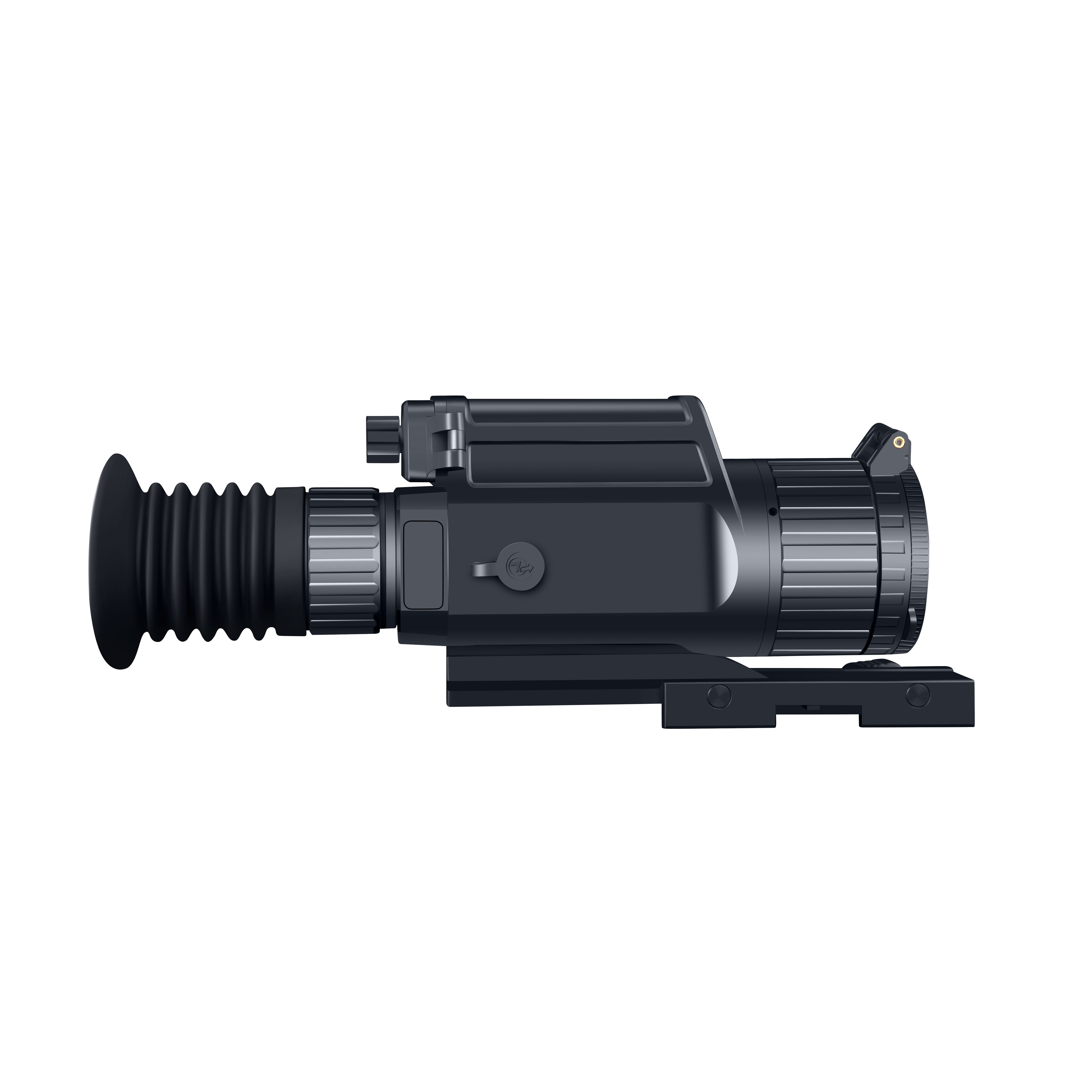

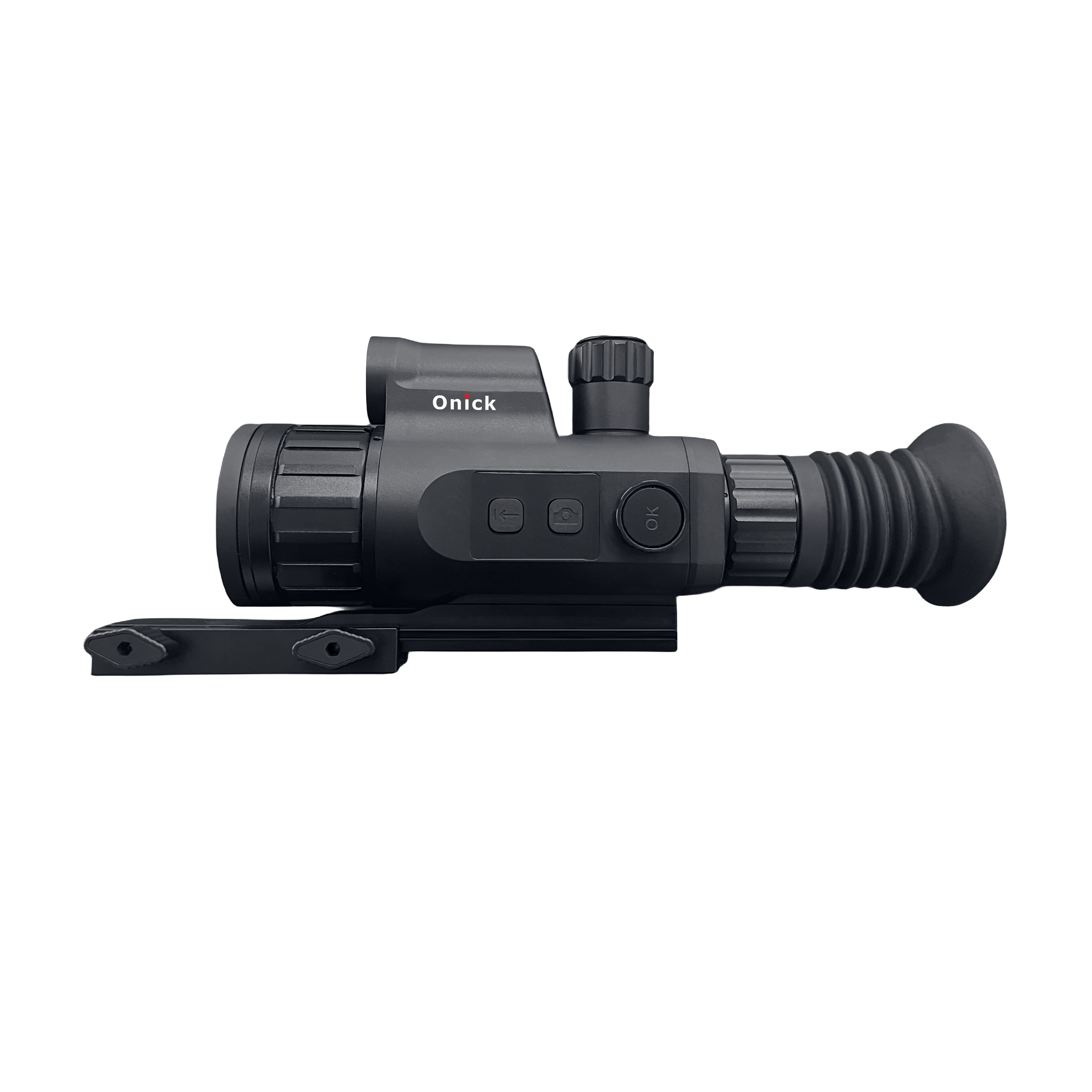

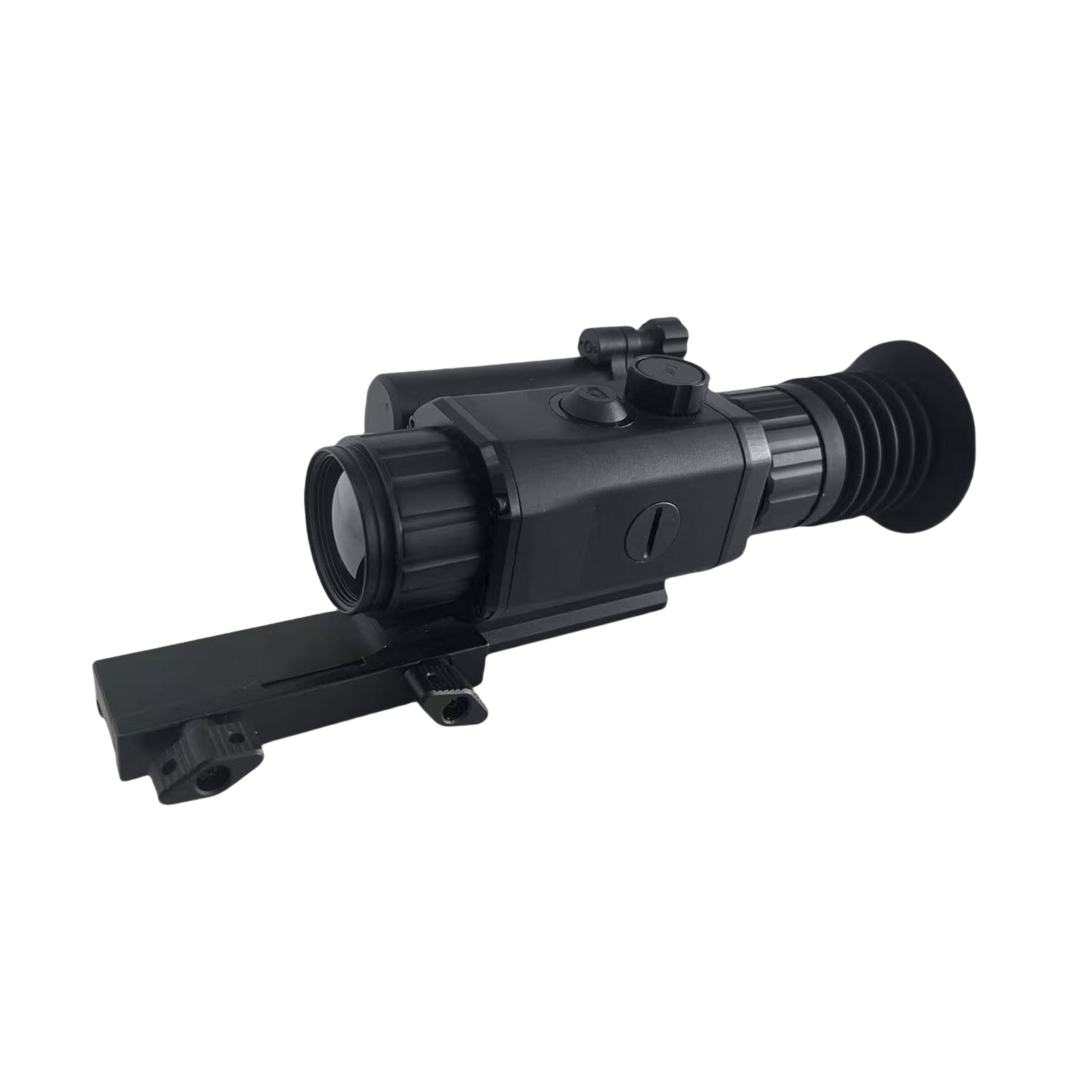

OniCK RM-612L infrared rangefinder thermal imaging riflescope is a device that adds infrared rangefinder function on the basis of thermal imaging riflescope; laser rangefinder technology is usually used. The riflescope emits a beam of infrared laser. When the laser hits the target object, part of the laser will be reflected back and received by the receiver of the riflescope. By measuring the time difference between laser emission and reception and combining it with the speed of light, the distance between the target and the riflescope is calculated. It uses infrared and low-light fusion, combining the advantages of infrared and low-light, making the imaging resolution higher, the single body easier to be identified, and solving the defect that single infrared cannot pass through glass. At the same time, it has a new fusion focus (picture-in-picture) function, which can magnify a single point and maintain high clarity.

Features

1. Equipped with a 384×288 detector, the imaging effect is clearer with a 35mm/50mm germanium lens. 0.39-inch OLED display, 1024×768 resolution, giving a comfortable use experience. The laser ranging range is up to 800m, BC automatic trajectory calculation, fast target locking, support for photo taking, video recording, WIFI connection to mobile devices and other functions.

2. High thermal sensitivity, stable performance, clear image details

When determining the target, every detail is important. NETD less than 30mK helps to easily and clearly identify small details of objects in the background under adverse weather and slight temperature differences.

3. Vivid, detailed and layered imaging effects

For reliable target identification, the success rate is greatly improved. Even when hunting with thermal imaging, the RM-612L thermal imager still provides you with vivid and layered images.

4. Built-in high-precision laser rangefinder

Getting more accurate distance data is essential to ensure safe shooting. The built-in laser rangefinder provides accurate distance measurement so that you can get the distance of the target in front faster.

5. The all-metal body is sturdy and reliable and can adapt to harsh environments

Sytong AM-03LRF thermal imaging scope works well even in extreme temperature environments from -20°C to +50°C. The IP66 waterproof rating holds up well under conditions of high humidity/dust and heavy rain.

6. High impact-resistant body

The metal shell and sturdy and durable components give the RM-612L a high impact resistance of up to 6000J.

Application areas:

Public security, special police, armed police, security, technical investigation, protection, drug control, electricity, procuratorate, forestry, firefighting, maritime, industry, electronics, medical treatment, scientific research, security and anti-smuggling, border defense, reconnaissance, culvert detection, wildlife protection and border and coastal defense and other fields.
