Products Description

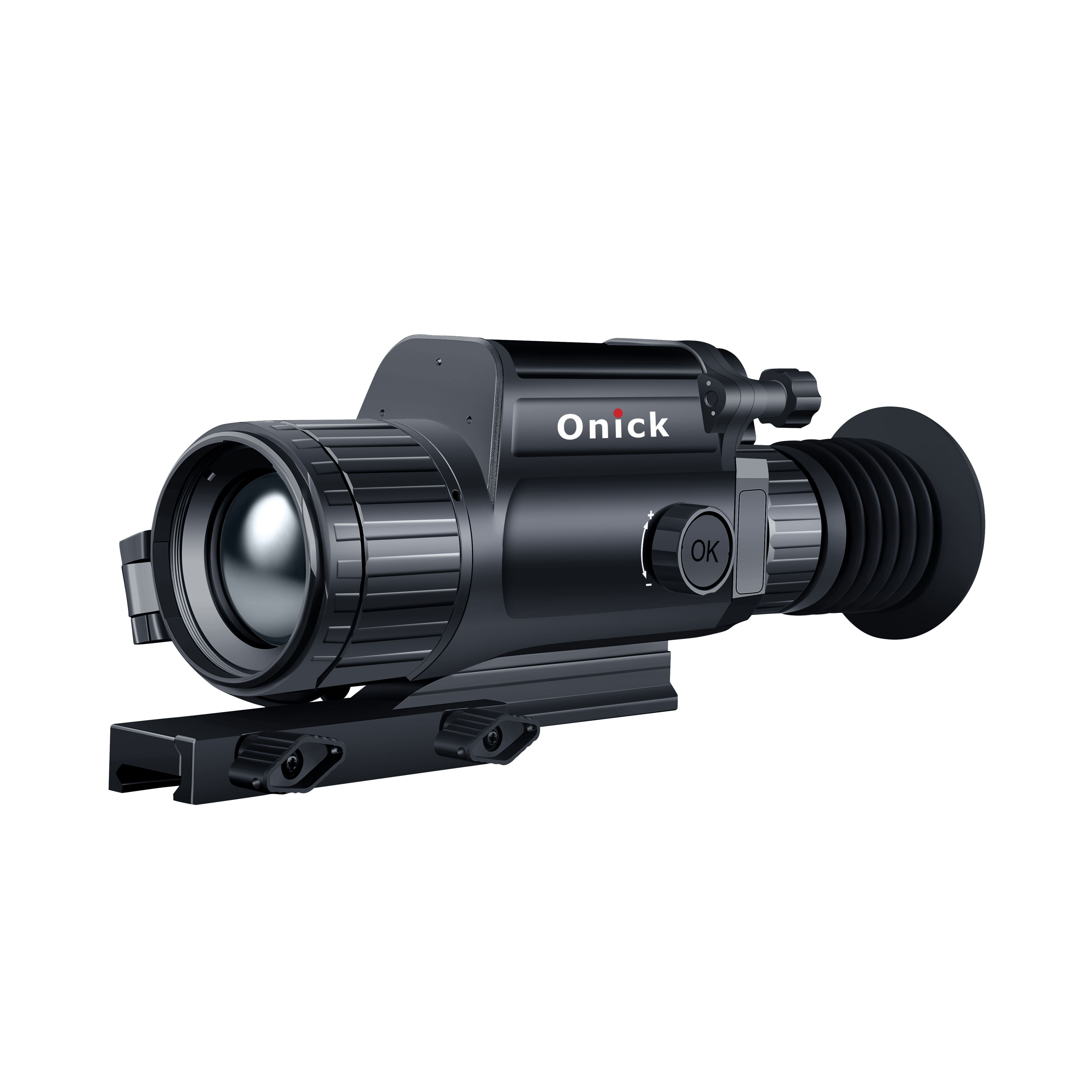

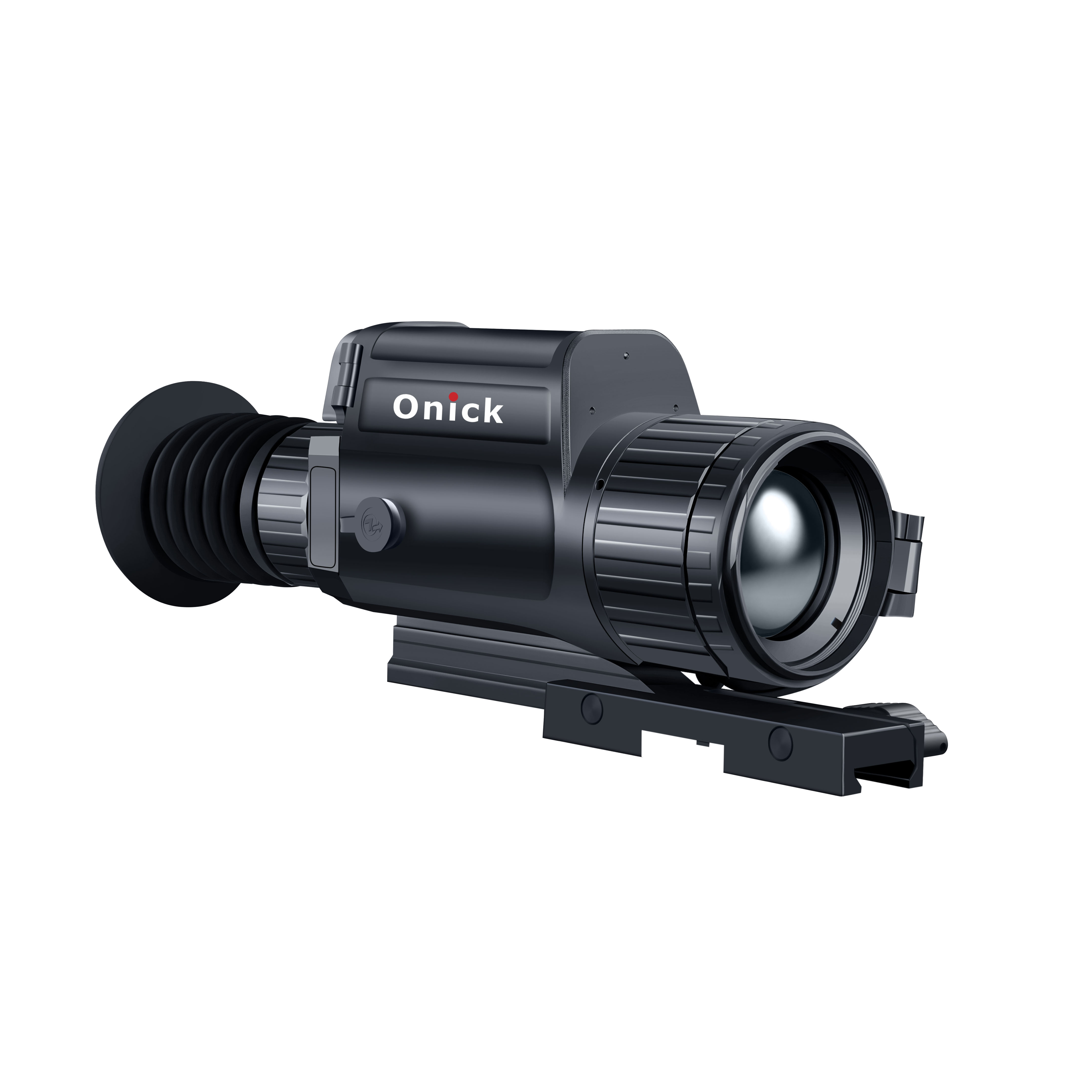

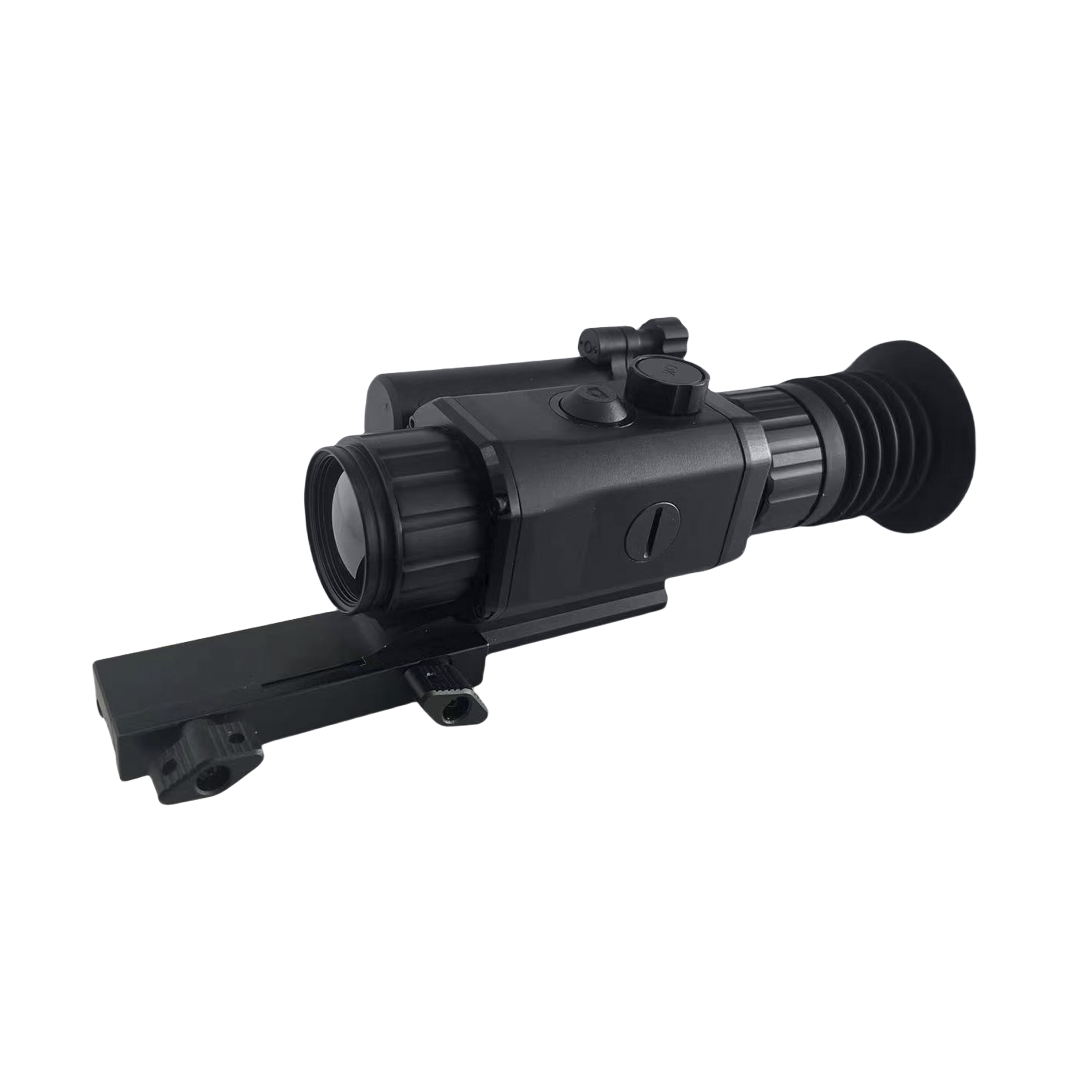

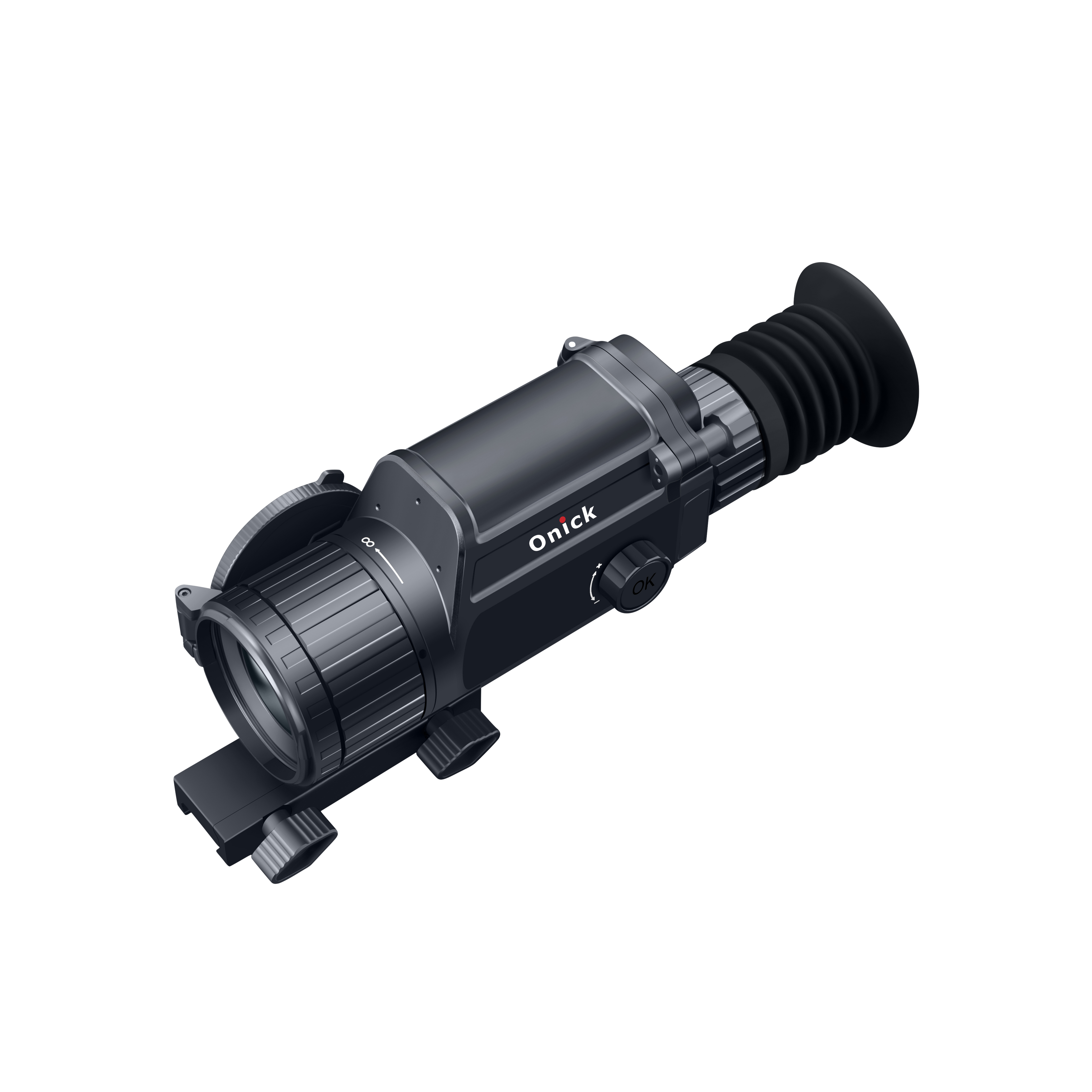

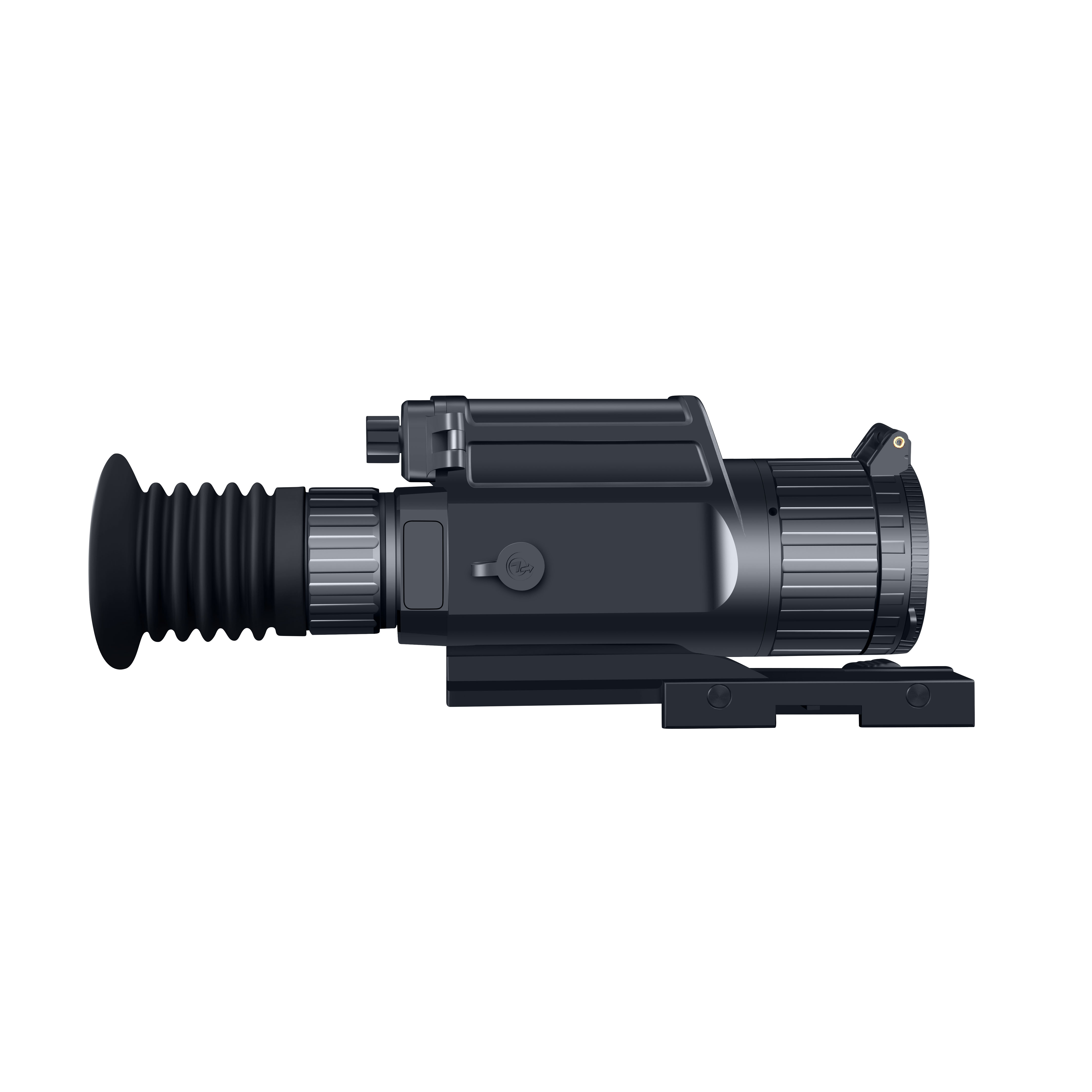

Onick RM-317 infrared sight has its own infrared light source. It emits infrared light to illuminate the target, then receives the infrared light reflected by the target, and converts it into a visible light image through a photoelectric conversion device, so that the user can clearly see the target at night or in low light conditions. However, because it actively emits infrared light, it is easy to be discovered by the enemy's infrared detection equipment, exposing its own position.
Product Features:
1. Good concealment: Especially thermal imaging sights, which do not need to emit light, only rely on receiving the target's thermal radiation imaging, are not easy to be detected by the enemy, which is conducive to snipers or users hiding their own positions and improving the safety and success rate of operations.
2. All-weather working ability: Whether in the dark night or in bad weather conditions such as rain, fog, and snow, infrared sights can work normally, providing users with clear target images and ensuring the accuracy of aiming, while traditional optical sights are often greatly restricted in these situations.
3. Strong recognition capability: Thermal imaging sights can see the real thermal radiation of the target through some camouflage and cover. For example, even if the target is hidden in the grass, woods or simple bunkers, it can be identified according to the heat it emits, which greatly improves the detection and tracking capabilities of targets in complex environments.
Application areas:
Can record and take pictures, can record and restore the scene, can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit and other scenes. It is suitable for special forces such as public security, armed police, and the military to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify, and track targets of concern; it is also suitable for industries such as fire protection, electricity, and petroleum to achieve day and night monitoring of specific areas or equipment.
Technical parameter
Model Number | onick RM-317 | ||||
Sensor Type | VOx Uncooled | ||||
Sensor Resolution | 384×288 | ||||
Pixel Pitch | 17μm | ||||
NETD | ≤50mk | ||||
Frame Frequency | 50Hz | ||||
Objective Lens | 40mm | ||||
Angle of View | 9.3°×7.0° | ||||
Continuous Digital Zoom | 2.7X~10.8X | ||||
Eye Relief | 48mm | ||||
Diopter of Eyepiece | ±4 | ||||
Display type | OLED | ||||
Color Palette | White Hot/Black Hot/Ironbow/Glowbow/Sepia/Red Hot/Green Hot | ||||
Detection Distance | 1200m | ||||
(Human, 1.8m) | |||||
Adjust Accuracy | 0.15mil | ||||
Adjust Range | 77.5×58.37mil | ||||
Reticle Type | 10 types | ||||
Video Resolution | 1024×768 | ||||
Video Format | avi | ||||
Built-in Memory | 32GB | ||||
Wireless Protocol | Wi-Fi | ||||
Wireless Standard | 802.11b/g/n | ||||
Frequency | 2.4GHz | ||||
Connection range | 10m | ||||
Battery Type | 18650 Battery×2 | ||||
Capacity | 6400mAh | ||||
Operating time | ≥8hrs. | ||||
Max. Recoil power on rifles | 6000J | ||||
Shock resistance on the smooth-bore rifles | 12 | ||||
Mounting rail type | Picatinny | ||||
Body Material | Aluminum alloy | ||||
Weight | 760g | ||||
(Mount & Eyeshade excluded) | |||||
Length | 182mm | ||||
(Mount & Eyeshade excluded) | |||||
Degree of Protection, IP code | IP67 | ||||
Operating Temperature | -25℃~+50℃ | ||||
Storage Temperature | -40℃~+60℃ |
