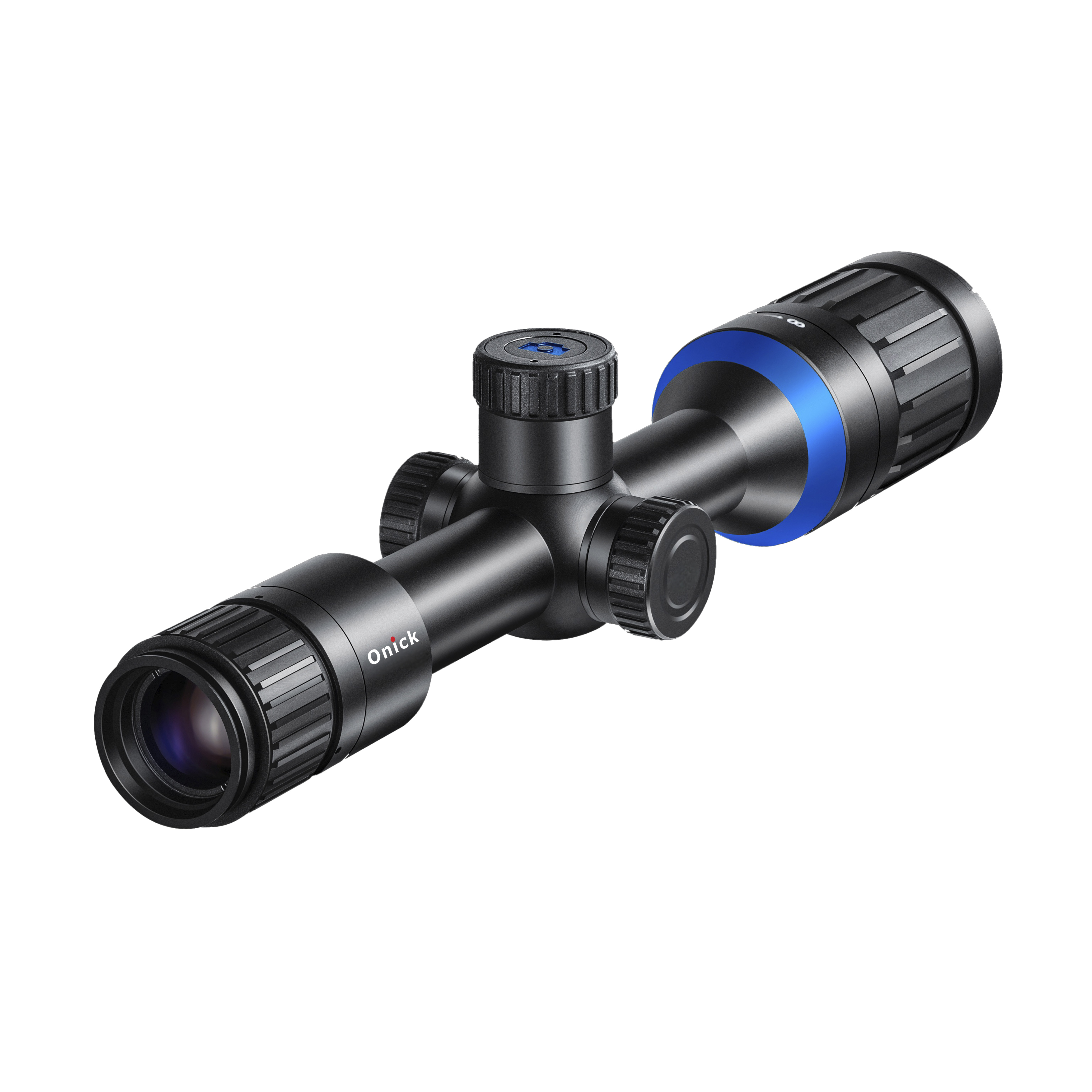

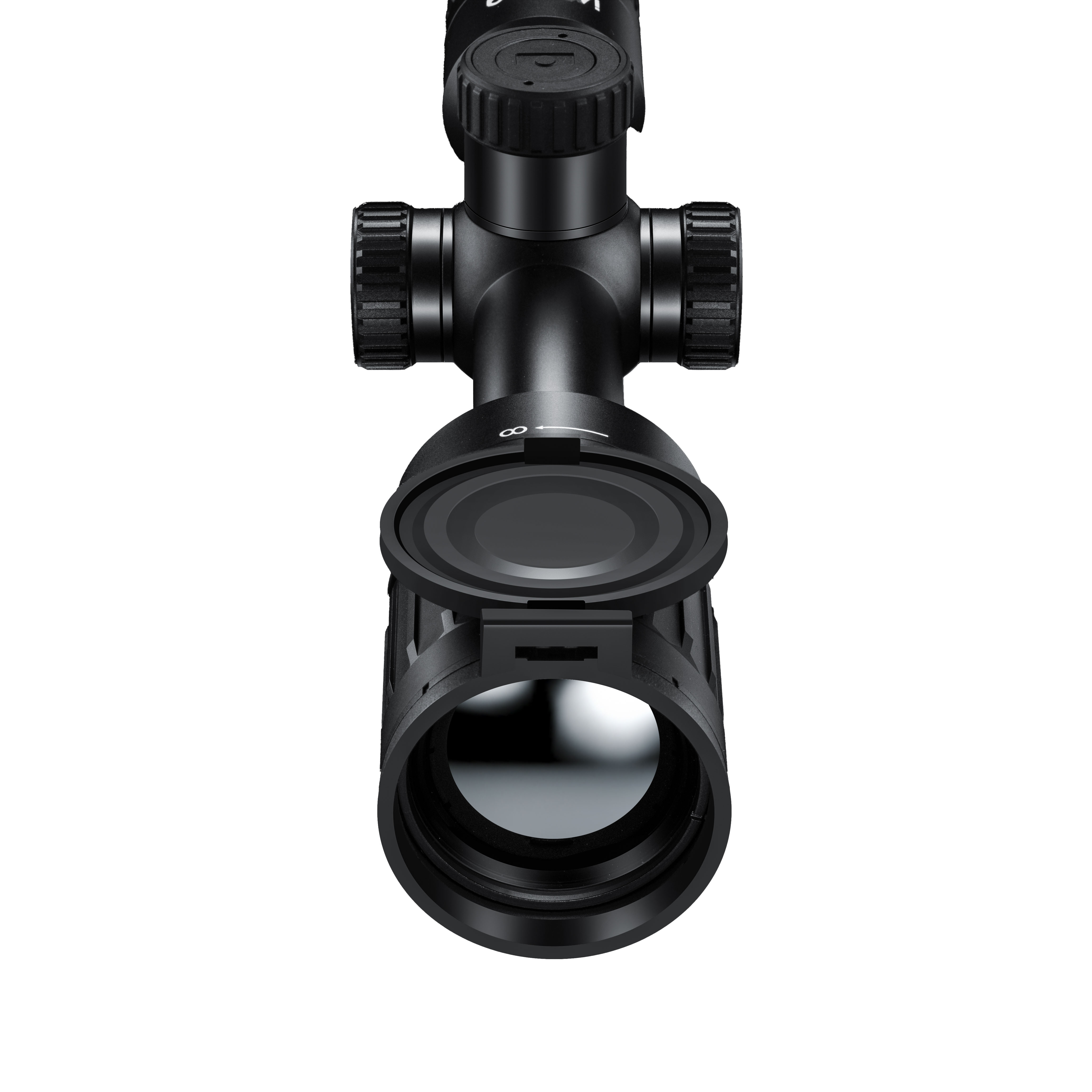

RM-612 PRO Intelligent infrared sight

RM-612 PRO Intelligent infrared sight

Designed for outdoor and ecological applications, the Onick RM-625 thermal imaging monocular provides excellent thermal details at long distances.
Send Inquiry
Description
Parameter
Products Description

Onick RM-612 PRO intelligent infrared sight has a variety of resolutions to choose from, such as 384 resolution, 640 resolution, etc. It has dual-light thermal imaging function, can perform infrared high-definition point calculation, can help shooters quickly and accurately calculate shooting parameters, and improve shooting hit rate. It integrates infrared thermal imager, visible light camera, laser rangefinder, meteorological sensor, satellite positioning, electronic compass, recording storage, wifi transmission, can provide comprehensive reconnaissance and aiming assistance functions for individual soldiers, can measure environmental parameters, perform ballistic calculation, and has target positioning and guidance functions.


Product Features:

1. Available during the day and night: It can distinguish the slight difference between the target and the background thermal radiation, and is not restricted by day or night light conditions, and can detect and aim at the target.

2. Strong penetration ability: It can detect targets through clouds, fog, smoke and certain camouflage, and has advantages in bad weather and complex environments.

3. Accurate target recognition: It can highlight the target from the environment based on its temperature characteristics, and it can be easily identified even if the target is hidden or camouflaged.


Application areas:

1. Military field: used for weapon aiming, reconnaissance, patrolling and other tasks, helping soldiers to find enemies and determine target locations at night or in harsh environments, and improve combat effectiveness.

2. Law enforcement field: law enforcement personnel can use it for night patrols, tracking suspects, searching for missing persons and other tasks to enhance the safety and effectiveness of law enforcement operations.

3. Hunting field: hunting enthusiasts use thermal imaging scopes to track prey at night or in low visibility conditions to increase the success rate of hunting.

4. Security monitoring field: can be installed in important areas such as buildings and public places to achieve real-time monitoring of the surrounding environment and timely detect abnormal situations and potential threats.


Technical parameter



Model NumberOnick GM-612 PRO
Sensor
Sensor TypeVOx Uncooled
Sensor Resolution640×512
Pixel Pitch12μm
NETD≤30mk
Frame Frequency50Hz
Optics
Objective Lens50mm
Angle of View8.8°×7.0°
Continuous Digital Zoom2.8X~22.4X
Eye Relief48mm
Diopter of Eyepiece±4
Display
Display typeAMOLED
Resolution1024*768
PalleteWhite Hot/Black Hot/Ironbow/Glowbow/Sepia/
Red Hot/Green Hot
Detection Range
Detection Distance2600m
(Human, 1.7m)
Reticle
Adjust Accuracy0.15mil
Adjust Range73.2ⅹ58.6mil
Reticle Type10 types
Video Recorder
Video Resolution1024*768
Video Formatmp4/jpg
Built-in Memory32GB
WIFI
Wireless ProtocolWi-Fi
Wireless Standard802.11b/g/n
Frequency2.4GHz
Connection range10m
Laser Rangefinder
Laser Wavelength-
Measuring Accuracy-
Measuring Distance-
Laser Pointer
Power-
Power Supply
Output Voltage3~4.2V
Battery TypeBuilt-in 18650 Batteryⅹ2, External 18500 Batteryⅹ1,
Capacity6400mAh (Built-in) + 2000mAh (External)
Operating time≥13hrs.
External power voltage5V
Charging hoursApprox. 5hrs
Build-in Battery charging temperature0~45℃
Connections and Compatibilities
Max. Recoil power on rifles6000J
Shock resistance on the smooth-bore rifles12
Mounting type30mm scope ring
Physical Characteristics
Body MaterialAluminum alloy
Weight1030g
(Mount & Eyeshade excluded)
Length362mm
(Mount & Eyeshade excluded)
Environmental Characteristics
Degree of Protection, IP codeIP67
Operating Temperature-25℃~+50℃
Storage Temperature-40℃~+60℃
