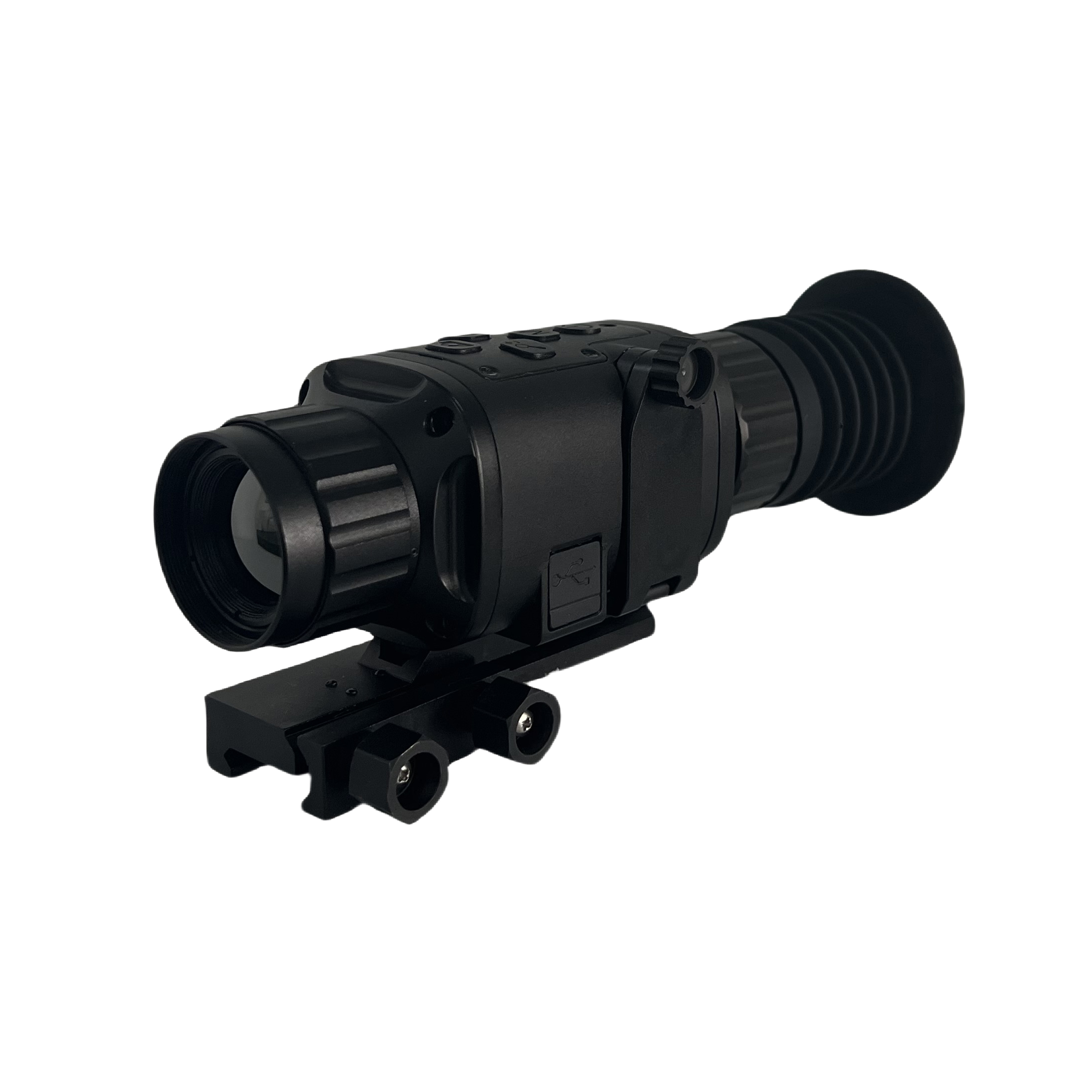

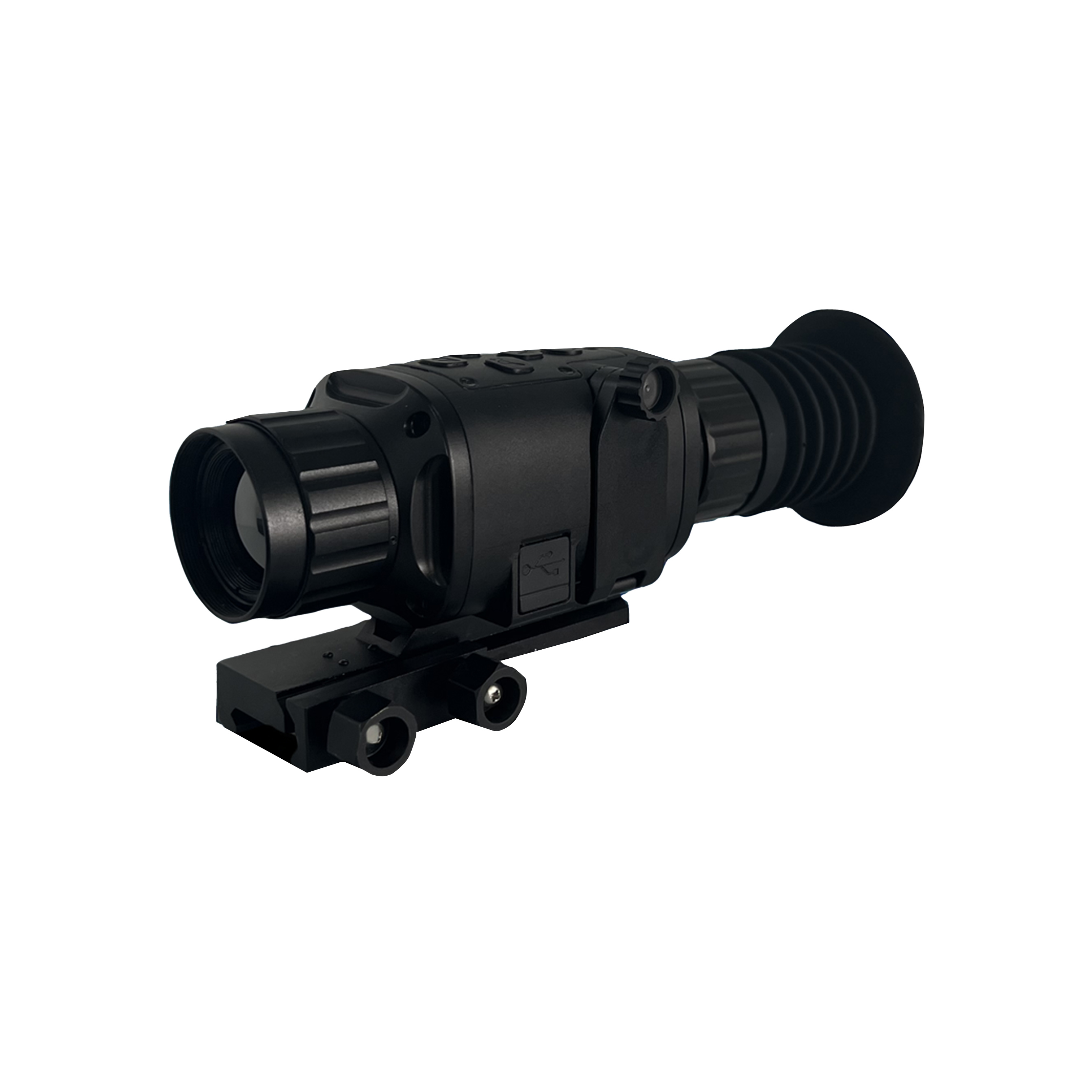

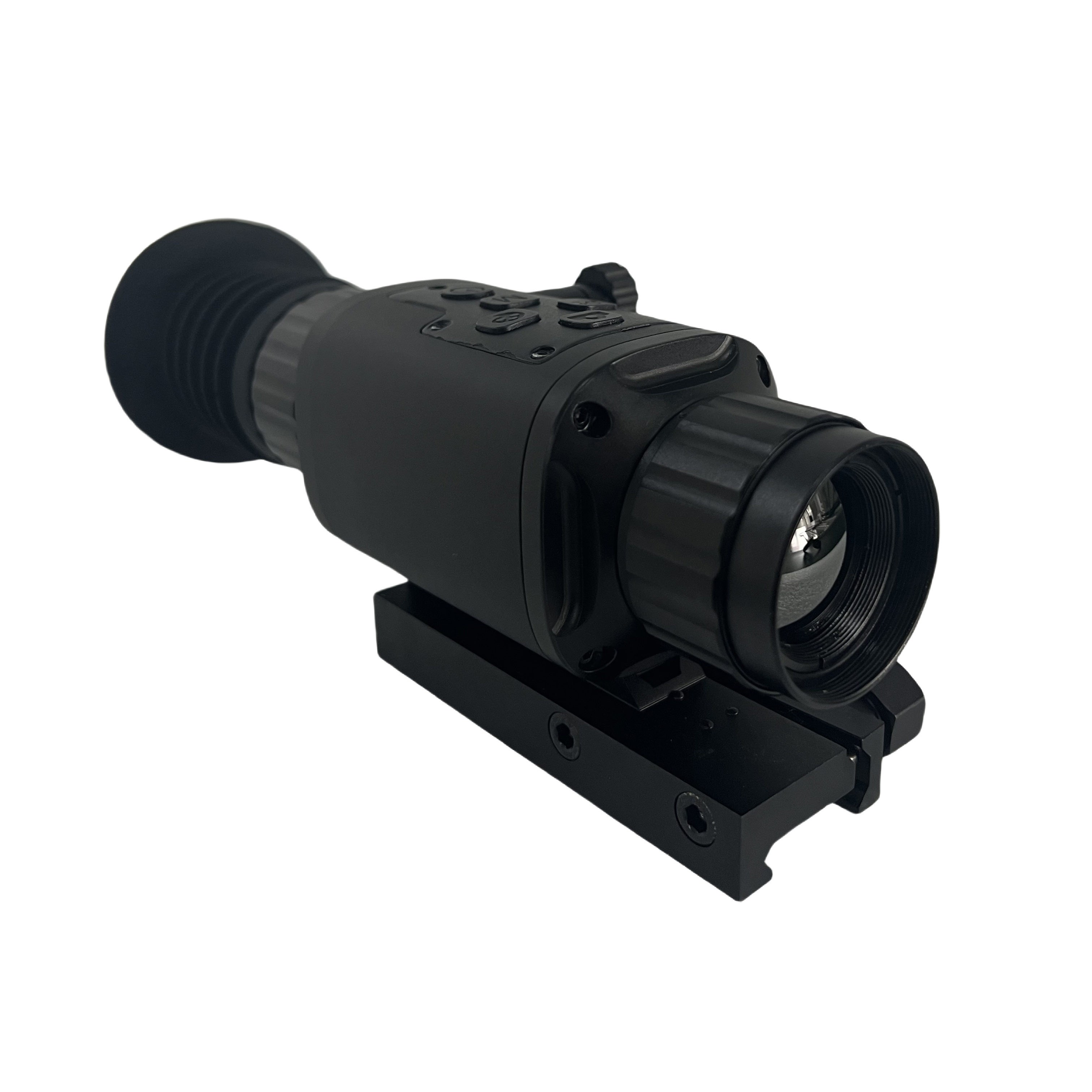

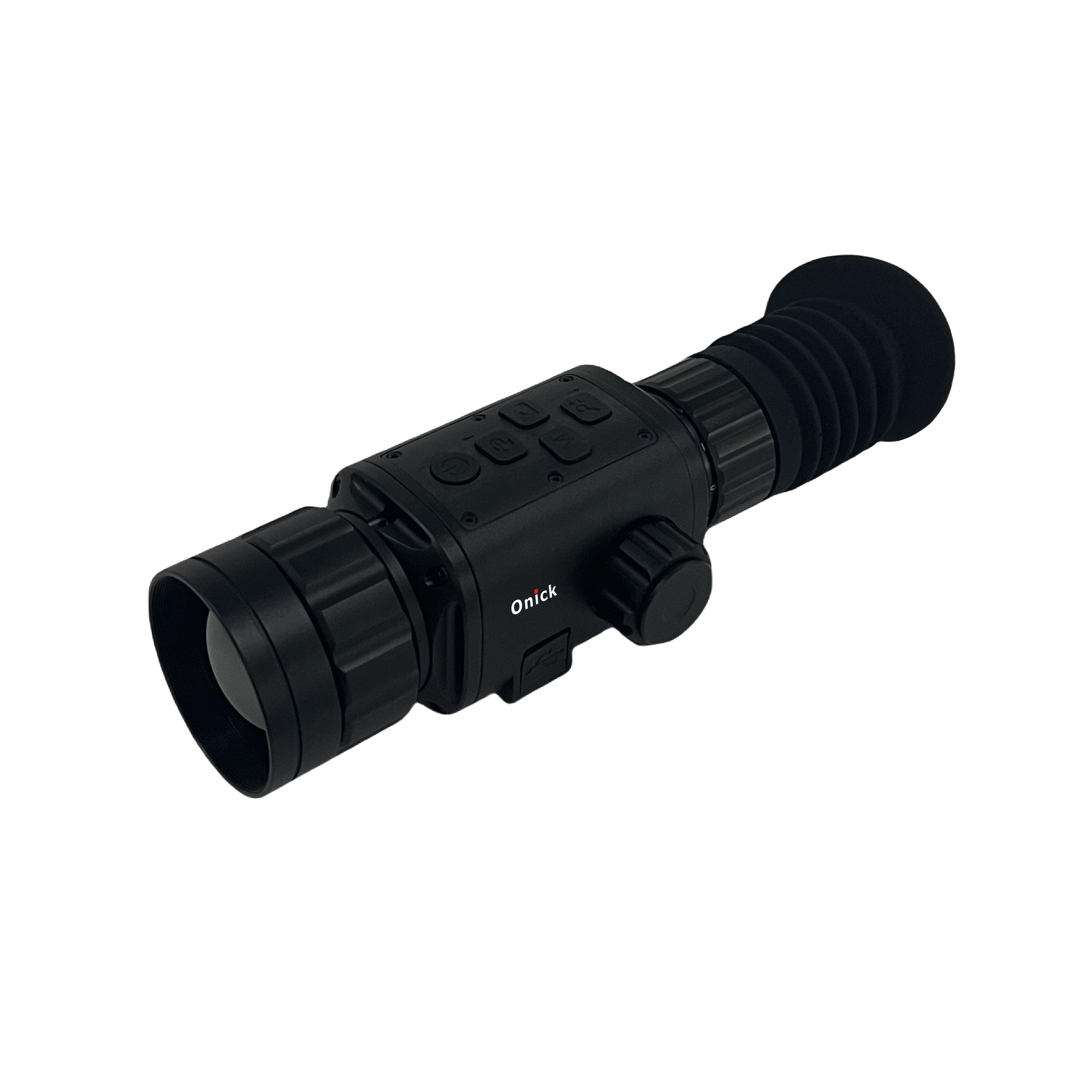

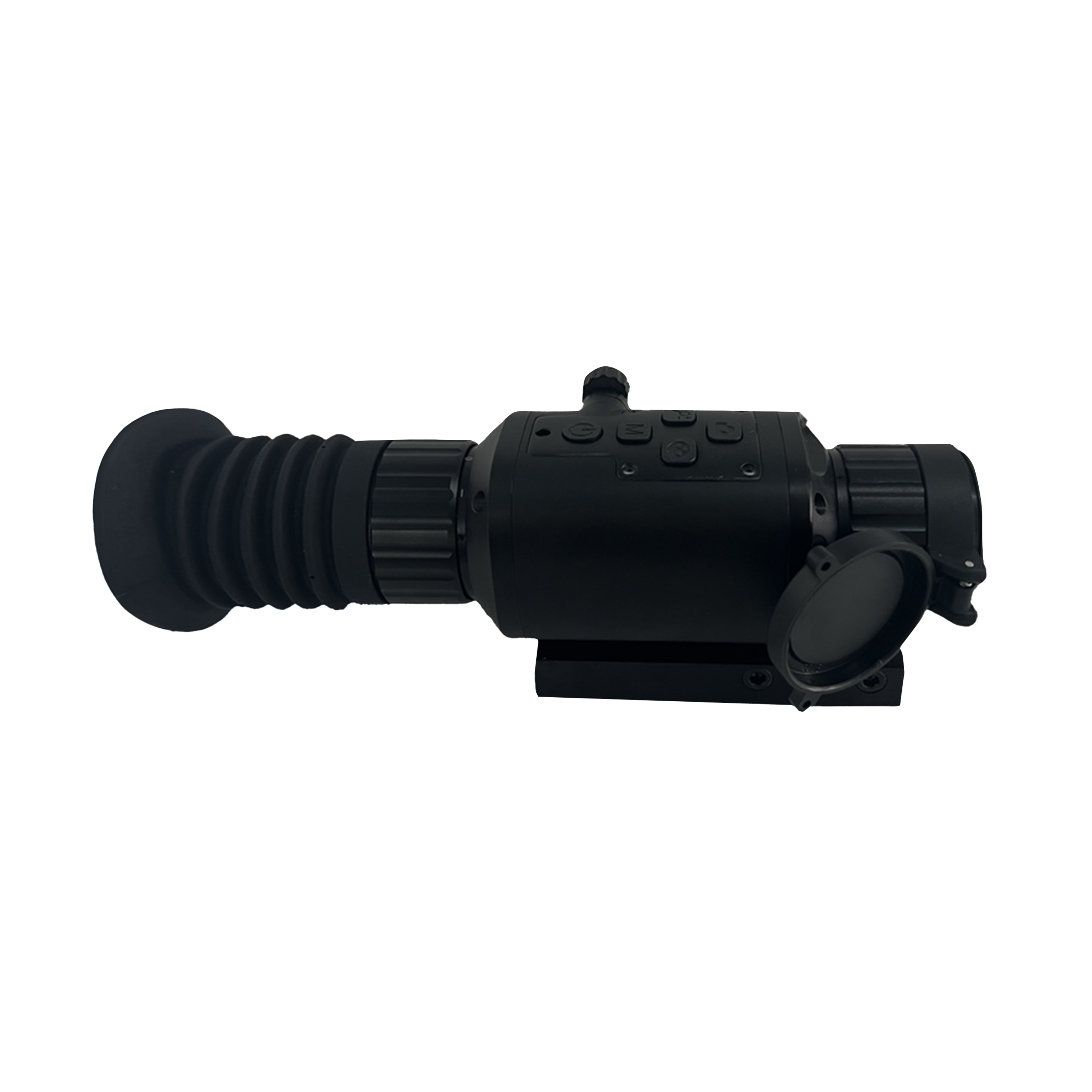

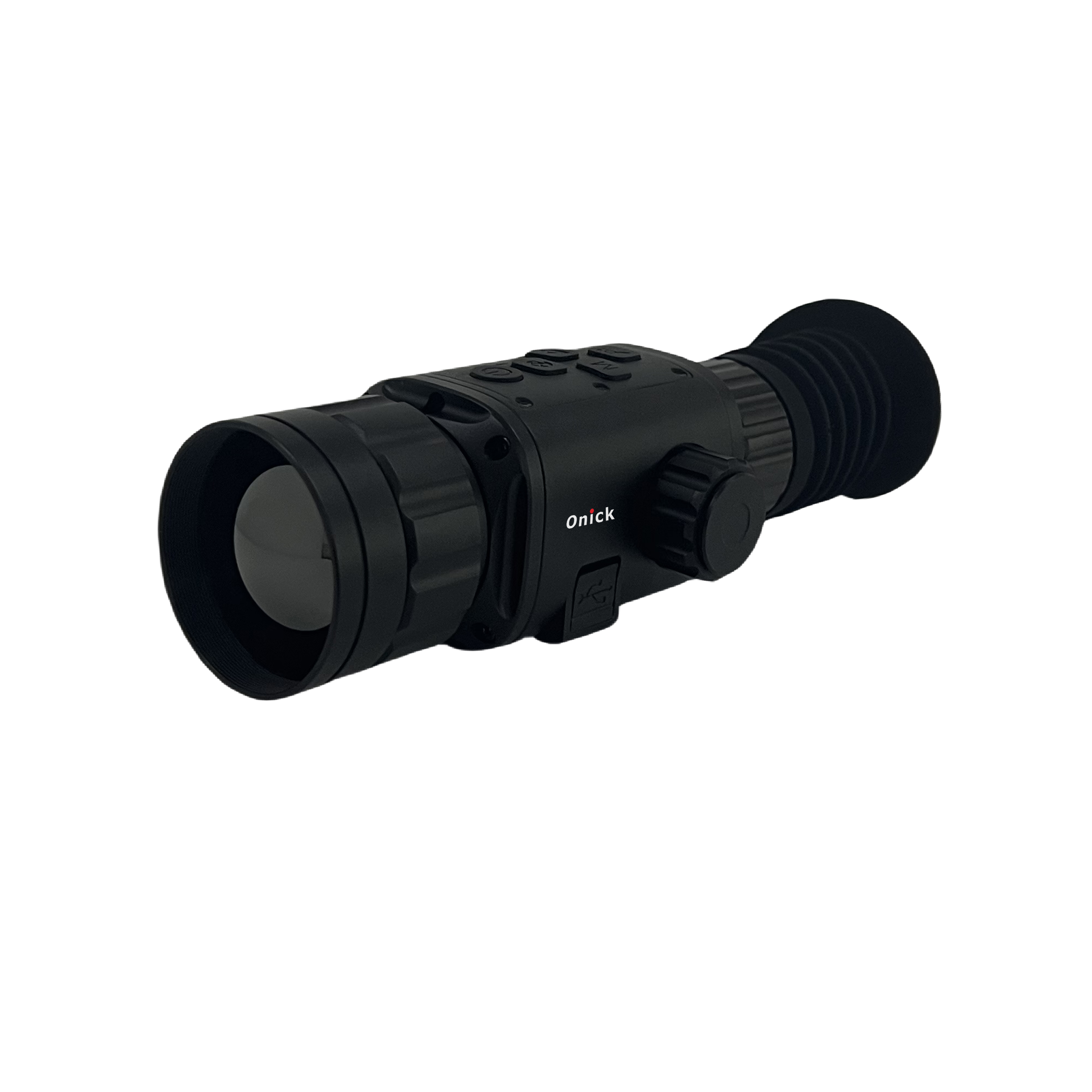

RM-650 Thermal aiming monocular infrared sight

RM-650 Thermal aiming monocular infrared sight

Onick RM-650 thermal sight uses the distribution of infrared radiation energy of the object to construct the image of the target object, and makes the image clearer through enhanced processing, which is convenient for observation and identification. Compact design, can operate all-weather in all complex weather and environmental conditions. The thermal imaging sight has a resolution of 640x512/384x288 and a 12um thermal sensor, which can provide clear images. Adopting non-blocking technology, the image is continuous and not stuck, and it is applied to long-distance observation in various scenes.
Send Inquiry
Description
Parameter
Products Description

Onick RM-650 thermal sight uses the distribution of infrared radiation energy of the object to construct the image of the target object, and makes the image clearer through enhanced processing, which is convenient for observation and identification. Compact design, can operate all-weather in all complex weather and environmental conditions. The thermal imaging sight has a resolution of 640x512/384x288 and a 12um thermal sensor, which can provide clear images. Adopting non-blocking technology, the image is continuous and not stuck, and it is applied to long-distance observation in various scenes.


Features:

1、Digital Zoom 1X to 8X

2、Color palettes: 10 types

3、Image modes: Forest/Desert/City

4、Brightness and contrast setting

5、Reverse/Overload protection

6、Battery low warnings

7、Trigger Footage to record video automatically

8、Photo/Video recording

9、32GB built-in Memory

10、Type-C port charging and data transmission

11、WIFI connection

12、Reticle types and colors are optional


Application scope:
outdoor hunting, public security, armed police, army, law enforcement, search and rescue, reconnaissance of enemy situation, terrain, target determination, observation of shooting effect, etc.


Technical parameter


Model NumberRM-650
Sensor
Sensor TypeVOx Uncooled
Sensor Resolution640×512
Pixel Pitch12μm
Frame Frequency50Hz
Optics
Objective Lens50mm
Angle of View8.8°×7.0°
Digital Zoom1x ~ 8x
Eye Relief48mm
Diopter of Eyepiece±4
Display
Display TypeOLED, 1024*768
Detection Range
Detection Distance (Human, 1.8m)2600m
Video recorder
Video/photo Pixels1024*768
Video/photo Formatavi/jpg
Built-in Memory32GB
Wi-Fi connection
Frequency2.4GHz
Connection Range≤10m
Power
Output Voltage3~4.2V
Battery Type18500X1
Operating Time≥5hrs.
External Power Voltage5V
Interface
Interface TypeTYPE-C
FunctionsVideo and photo management,5V power charging
Connections and Compatibility
Shock Resistance900G
Mounting Rail TypePicatinny
Physical Characteristics
Weight (Trail and Batteries excluded)600g
Dimensions (Eyeshade excluded)170×63×63mm
Environmental Characteristics
Degree of Protection, IP codeIP67
Working Temperature-25℃~+50℃
Storage Temperature-40℃~+60℃
