RM-225 Smart Thermal Imaging Rifle Scope

RM-335 Infrared night vision thermal imaging scope

Onick RM-335 infrared sight, compact design, can operate all-weather in all complex weather and environmental conditions. The thermal imaging sight has a 640x512/384x288 resolution, 12um thermal sensor, and can provide clear images. Efficient and high-quality products, lifelong friends.
Send Inquiry
Description
Parameter
Products Description

Onick RM-335 infrared sight, compact design, can operate all-weather in all complex weather and environmental conditions. The thermal imaging sight has a 640x512/384x288 resolution, 12um thermal sensor, and can provide clear images. Efficient and high-quality products, lifelong friends.


Product features:

Built-in laser rangefinder (optional): provides additional measurement functions to meet different needs.

Built-in WIFI and 32G image/video storage: convenient data transmission and storage, meeting various application scenarios.

Ultra-long standby of 8 hours: ensure long-term use without frequent charging.

A variety of gun interfaces are optional: flexible to adapt to different guns to meet personalized needs.

1200g, 1ms super impact resistance: ensure stable operation even in harsh environments.

Silent one-button operation: simple and intuitive, achieving efficient human-computer interaction.

Graphical human-computer interaction without memory burden: user-friendly interface, easy to use.


Application scope:
outdoor hunting, public security, armed police, army, law enforcement, search and rescue, reconnaissance of enemy situation, terrain, target determination, observation of shooting effect, etc.


Technical parameter
Model NumberRM-335
Sensor
Sensor TypeVOx Uncooled
Sensor Resolution384×288
Pixel Pitch12μm
Frame Frequency50Hz
Optics
Objective Lens35mm
Angle of View7.4°×5.6°
Digital Zoom1X ~ 4X
Eye Relief48mm
Diopter of Eyepiece±4
Display
Display TypeOLED, 1024*768
Detection Range
Detection Distance (Human, 1.8m)1800m
Video recorder
Video/photo Pixels1024*768
Video/photo Formatavi/jpg
Built-in Memory32GB
Wi-Fi connection
Frequency2.4GHz
Connection Range≤10m
Power
Output Voltage3~4.2V
Battery Type18500*1
Operating Time≥5hrs.
External Power Voltage5V
Interface
Interface TypeTYPE-C
FunctionsVideo and photo management,5V power charging
Connections and Compatibility
Shock Resistance900G
Mounting Rail TypePicatinny
Physical Characteristics
Weight (Trail and Batteries excluded)540g
Dimensions (Eyeshade excluded)165×63×63mm
Environmental Characteristics
Degree of Protection, IP codeIP67
Working Temperature-25℃~+50℃
Storage Temperature-40℃~+60℃

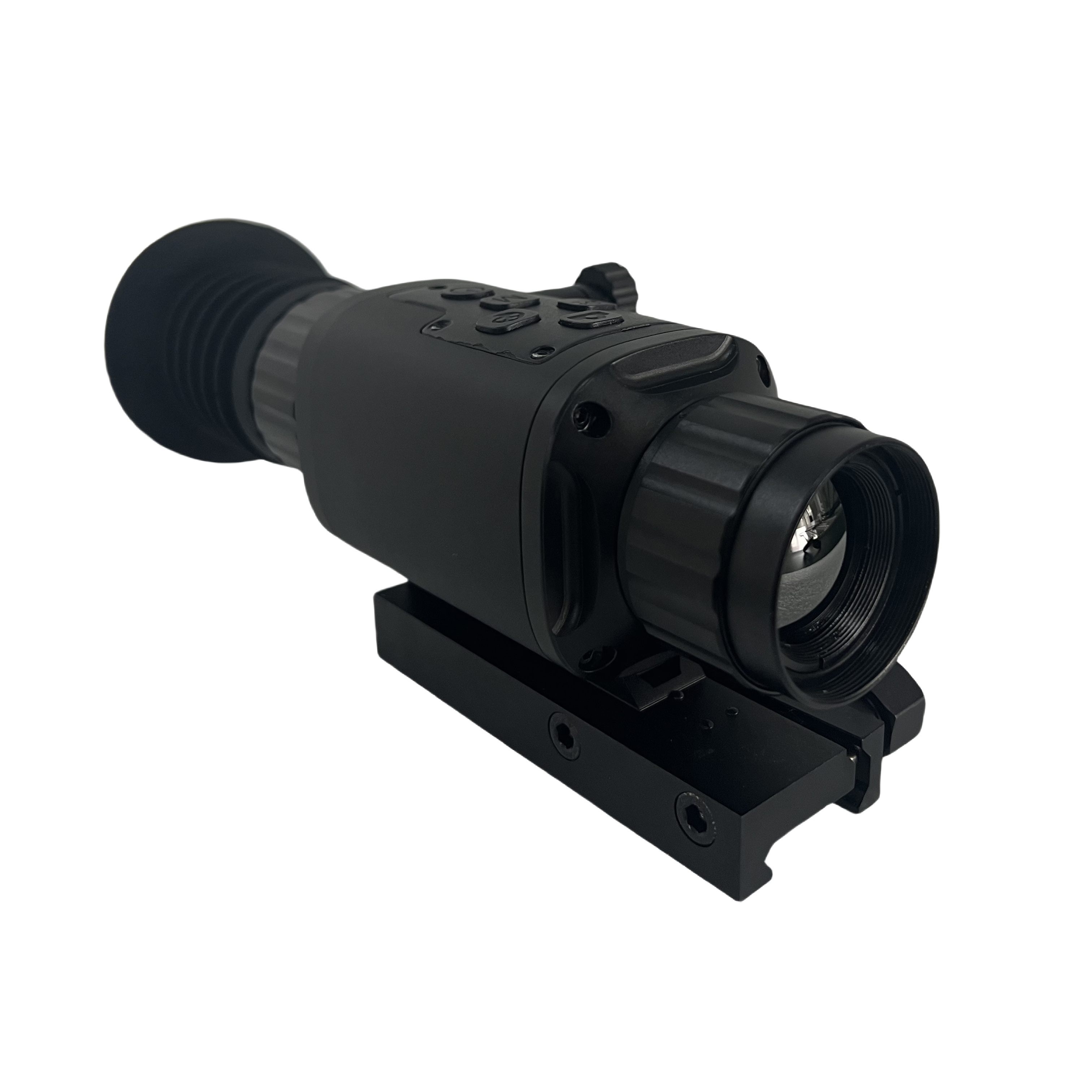

RM-335 Infrared night vision thermal imaging scope

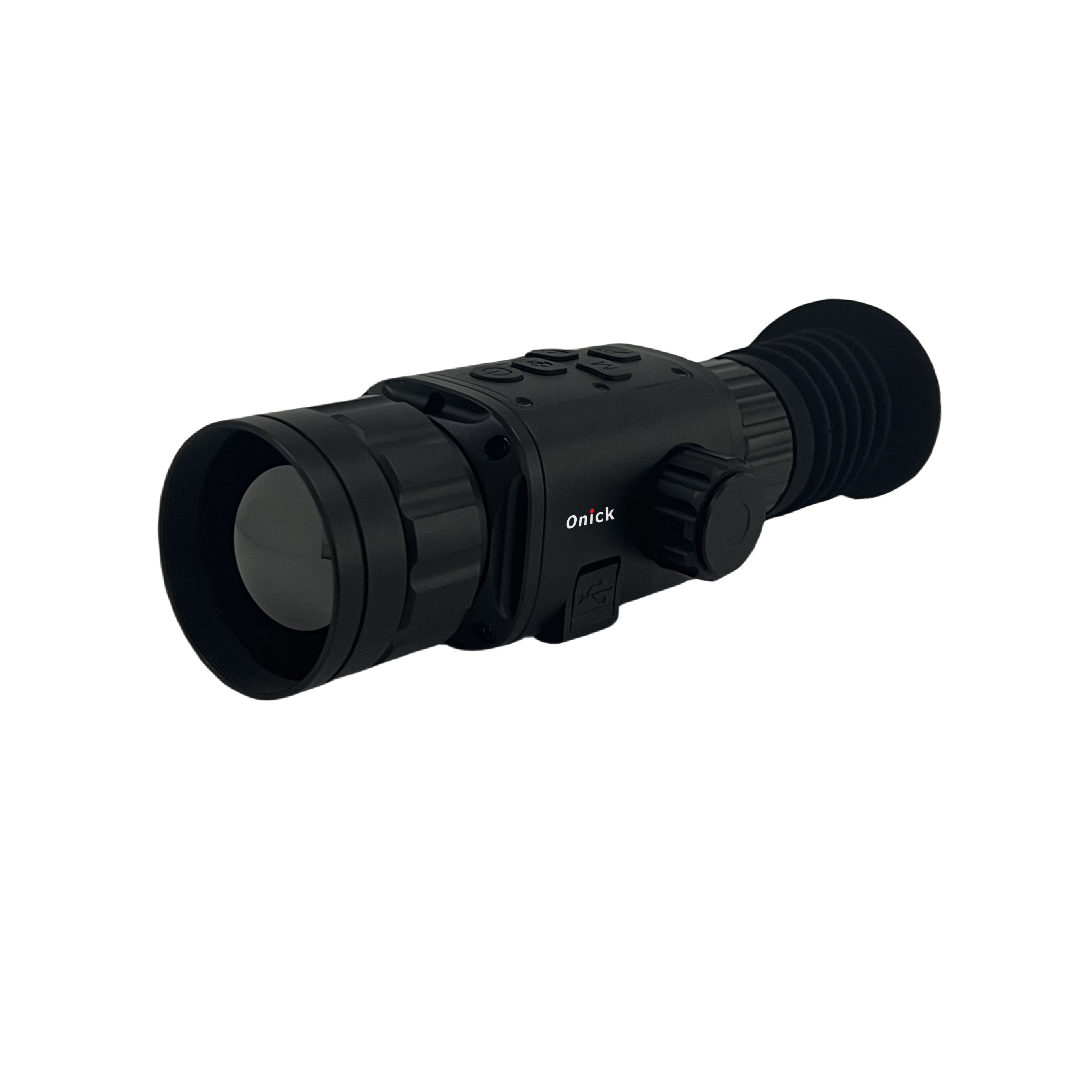

RM-335 Infrared night vision thermal imaging scope

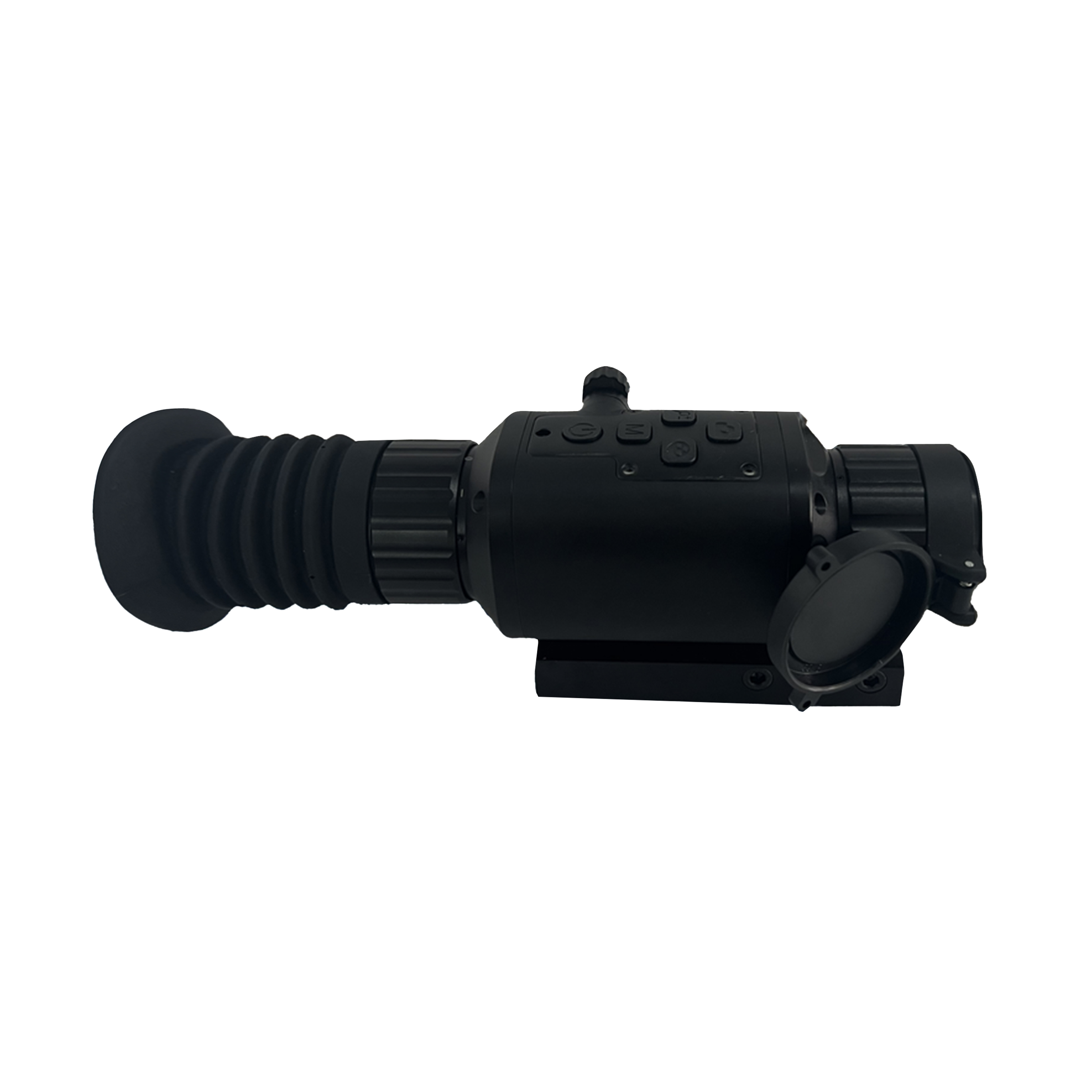

RM-335 Infrared night vision thermal imaging scope

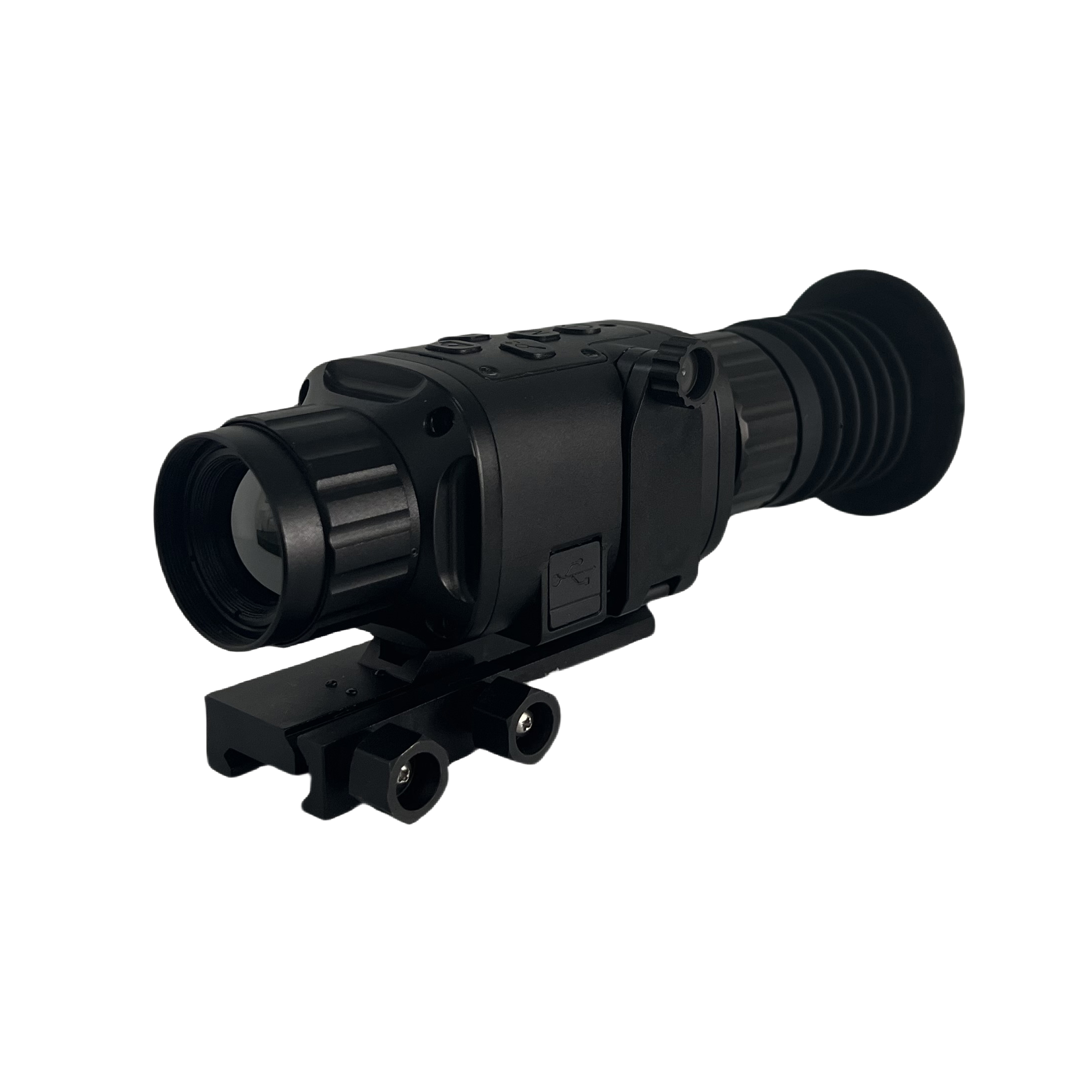

RM-335 Infrared night vision thermal imaging scope

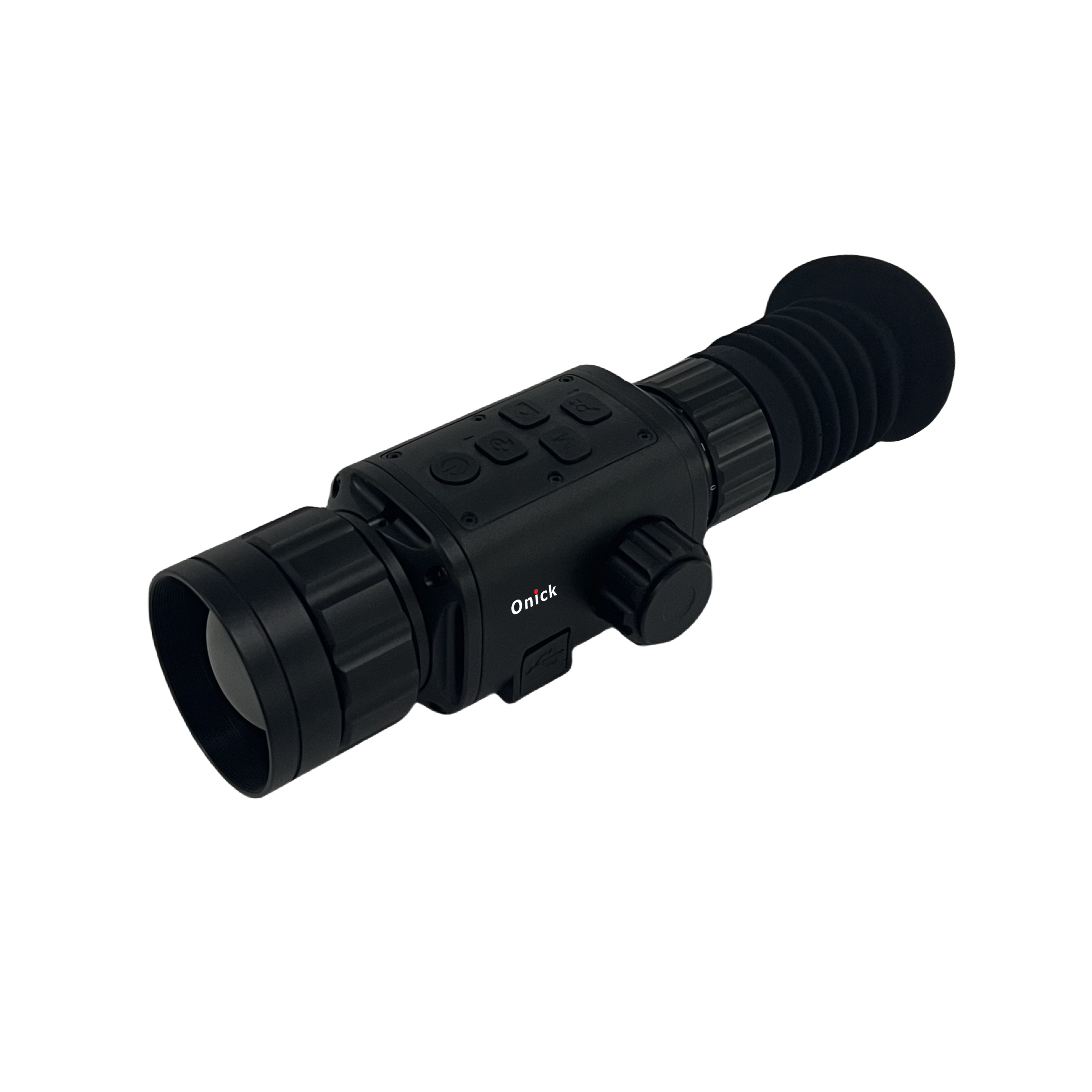

RM-335 Infrared night vision thermal imaging scope

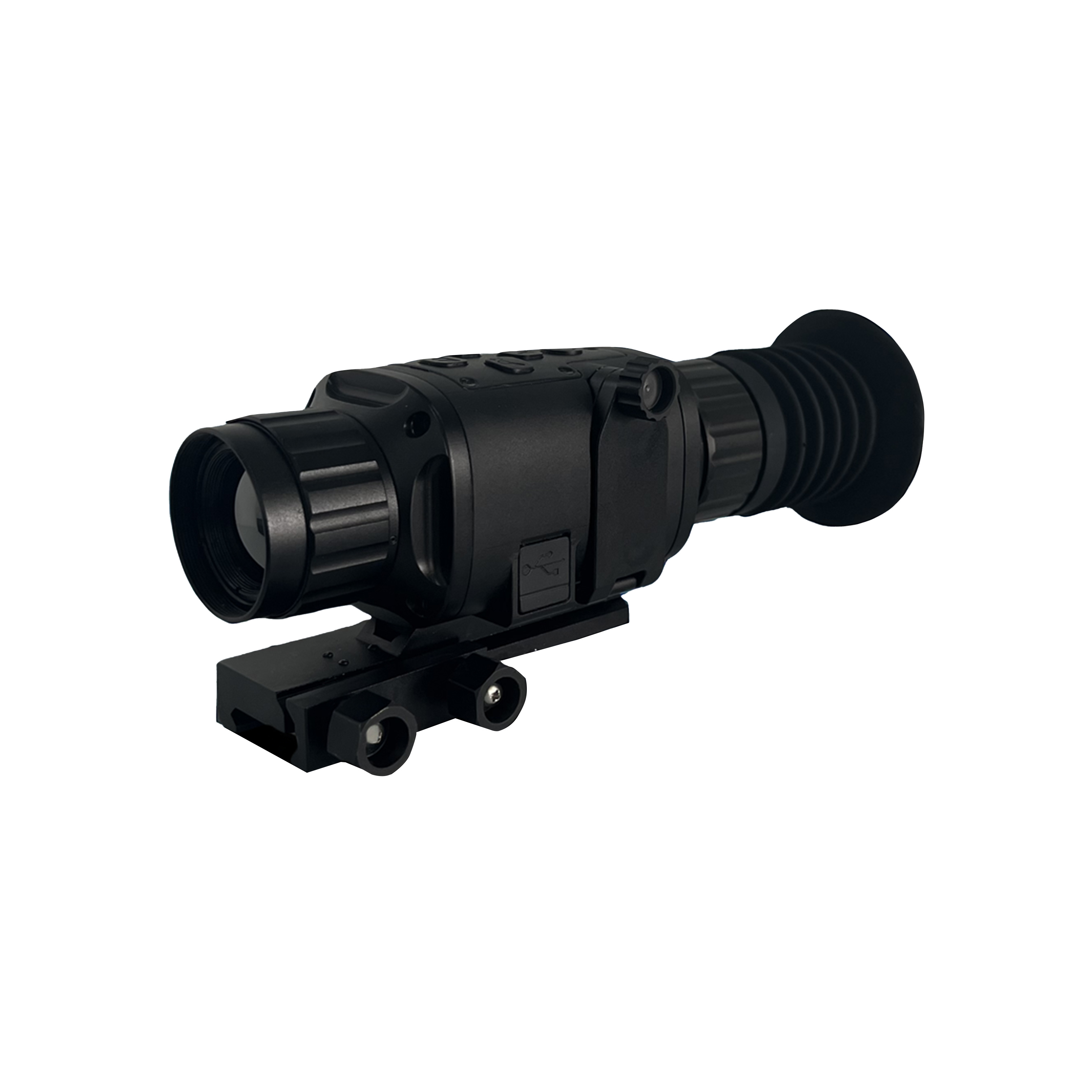

RM-335 Infrared night vision thermal imaging scope
