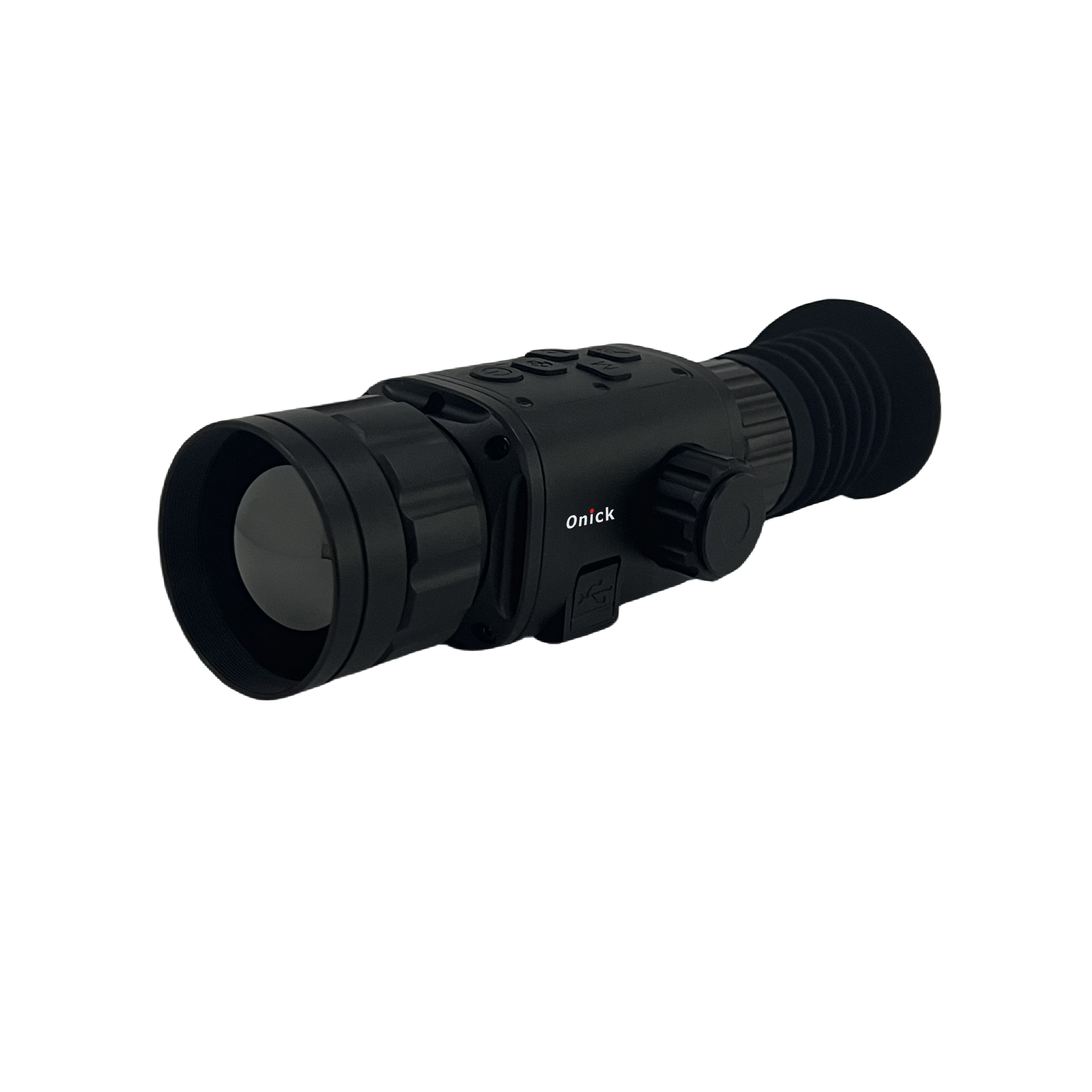

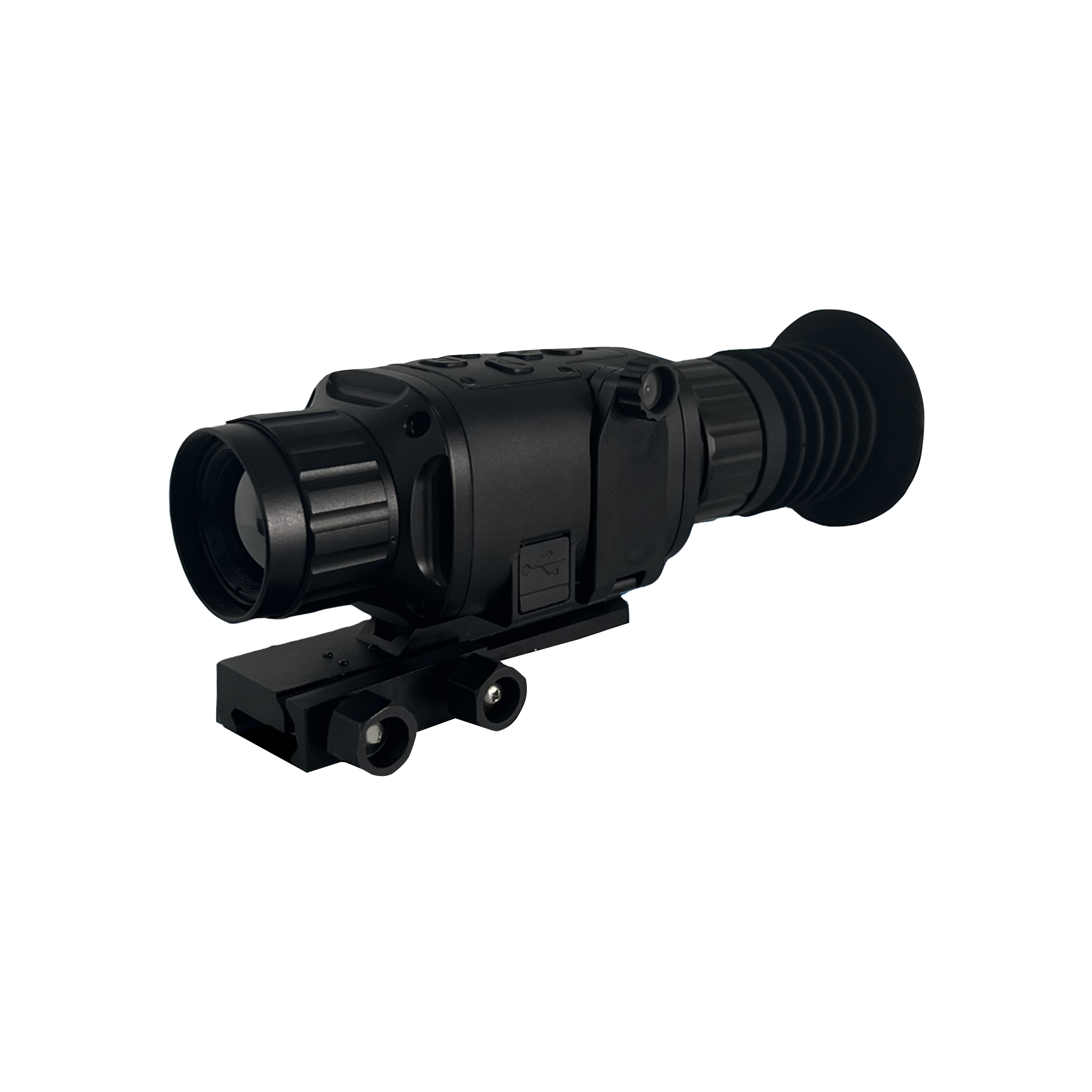

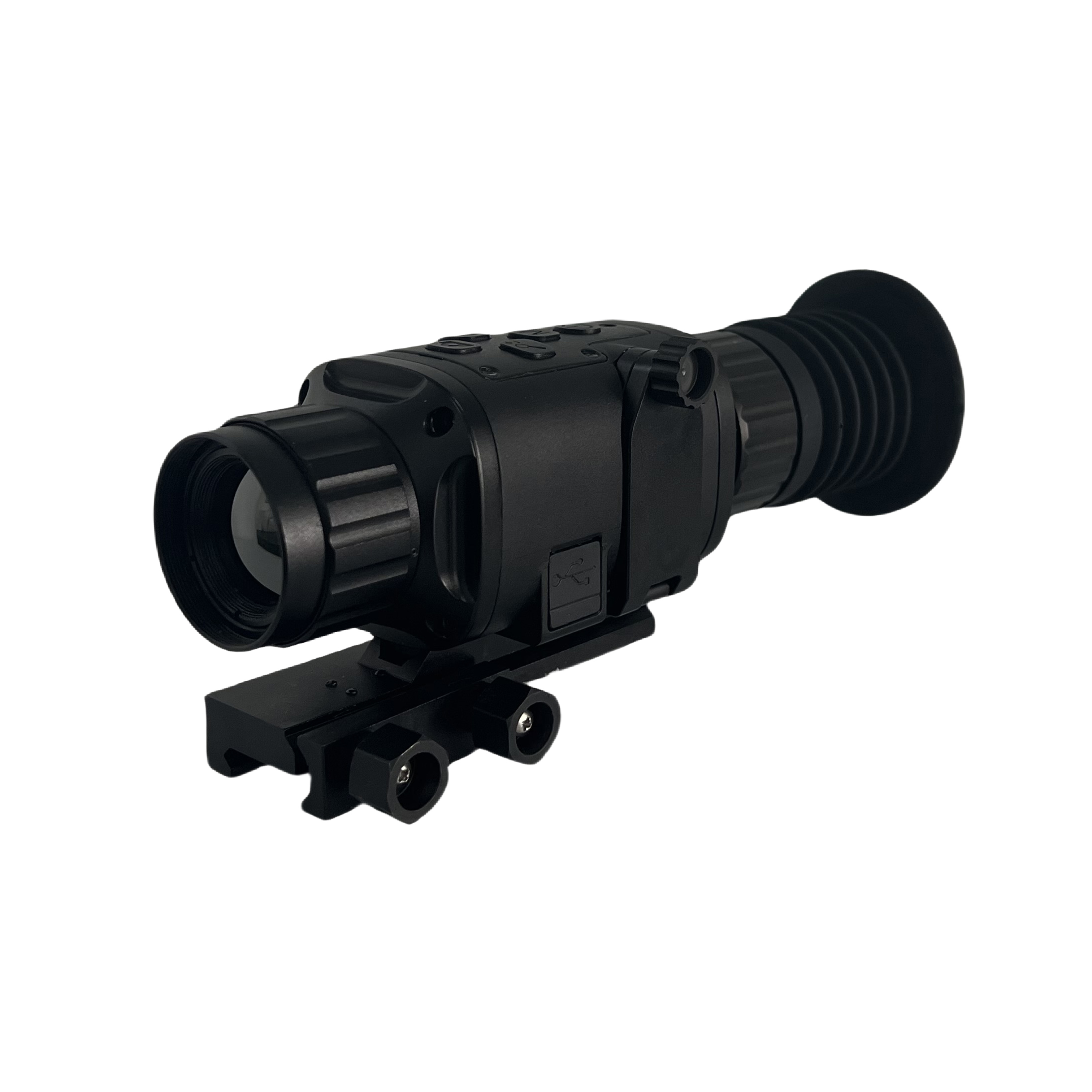

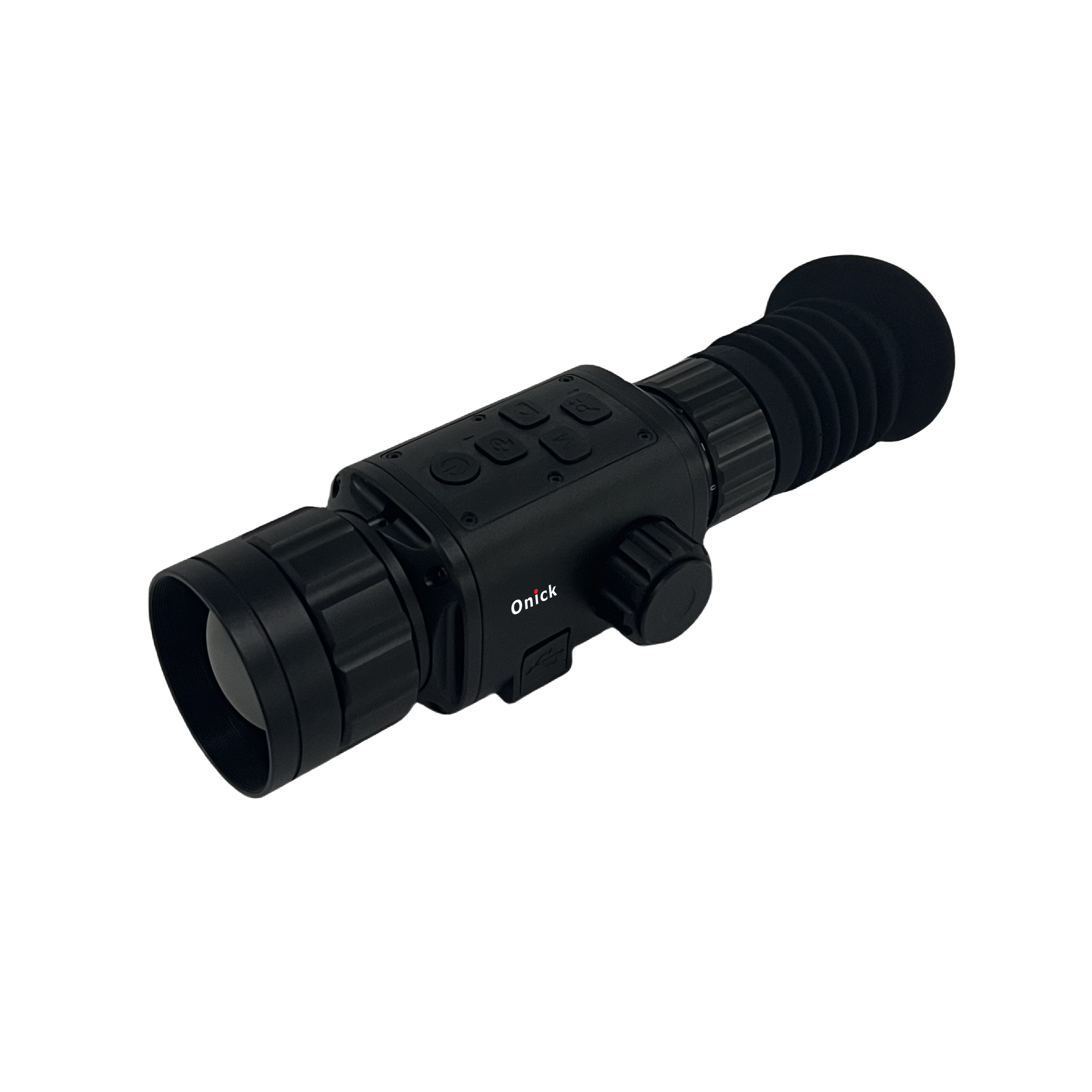

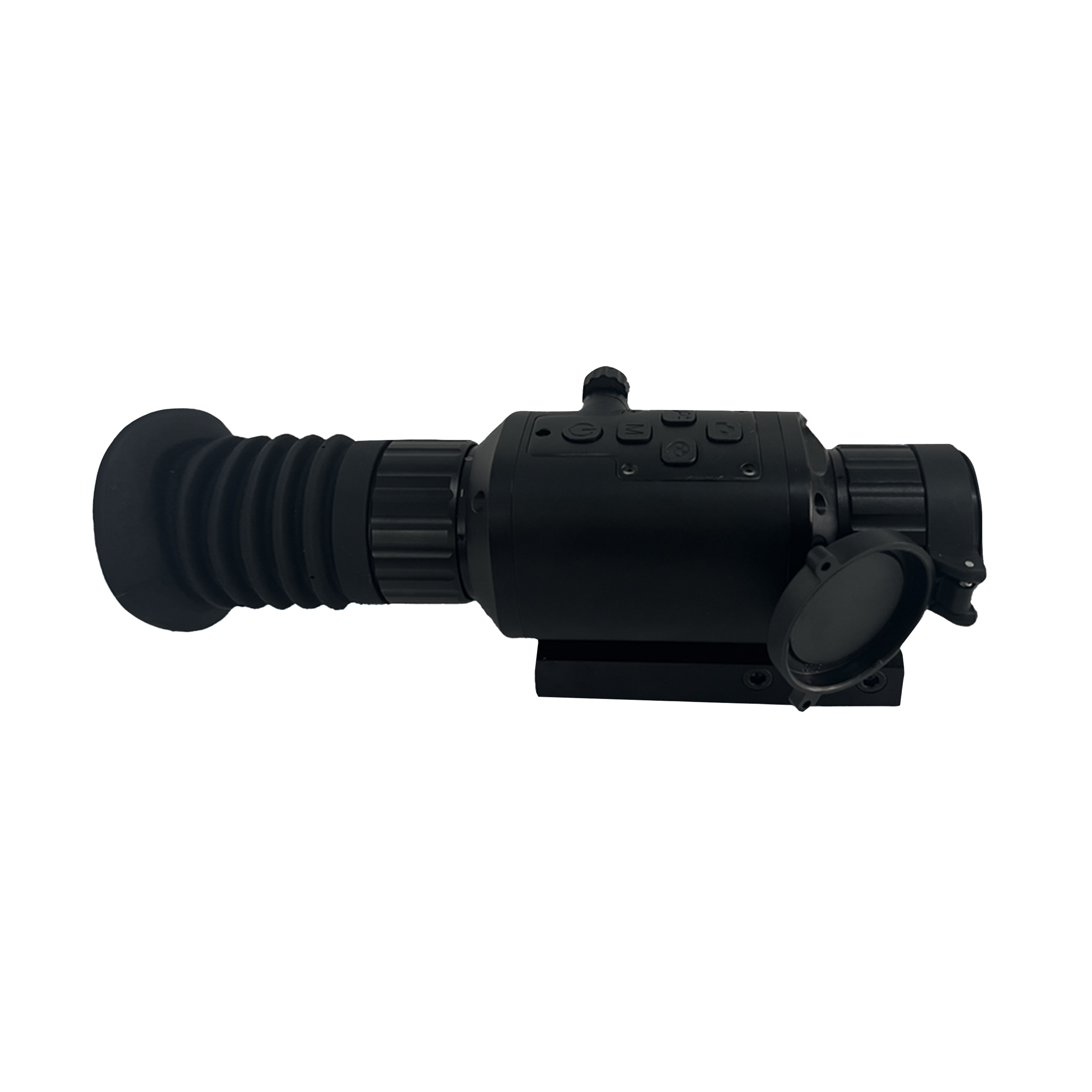

RM-225 Smart Thermal Imaging Rifle Scope

RM-225 Smart Thermal Imaging Rifle Scope

Onick RM-225 infrared thermal imaging scope supports continuous infinite zoom, multiple imaging modes and 32GB image and video storage. Built-in rechargeable battery, ultra-long standby time of 8 hours. Customizable laser ranging function, automatically coordinated with the aiming reticle, to achieve fast and accurate shooting.
Send Inquiry
Description
Parameter
Products Description

Onick RM-225 infrared thermal imaging scope supports continuous infinite zoom, multiple imaging modes and 32GB image and video storage. Built-in rechargeable battery, ultra-long standby time of 8 hours. Customizable laser ranging function, automatically coordinated with the aiming reticle, to achieve fast and accurate shooting. Compact design, can operate all-weather in all complex weather and environmental conditions, the thermal imaging scope has 256ⅹ192 resolution, 12um thermal sensor, can provide clear images, and adopts joystick button design, flexible and easy to operate, efficient and high-quality products, lifelong friends.


Features:

1、Digital Zoom 1X to 4X

2、Color palettes: 10 types

3、Image modes: Forest/Desert/City

4、Brightness and contrast setting

5、Reverse/Overload protection

6、Battery low warnings

7、Trigger Footage to record video automatically

8、Photo/Video recording

9、32GB built-in Memory

10、USB-C port charging and data transmission

11、WIFI connection

12、Reticle types and colors are optional.


Application scope:
outdoor hunting, public security, armed police, army, law enforcement, search and rescue, reconnaissance of enemy situation, terrain, target determination, observation of shooting effect, etc.


Technical parameter


Model NumberOnick RM-225
Sensor
Sensor TypeVOx Uncooled
Sensor Resolution256×192
Pixel Pitch12μm
Frame Frequency25Hz
Optics
Objective Lens25mm
Angle of View7.0°×5.3°
Digital Zoom1X ~ 4X
Eye Relief48mm
Diopter of Eyepiece±4
Display
Display TypeOLED, 1024*768
Detection Range
Detection Distance (Human, 1.8m)1200m
Video recorder
Video/photo Pixels768*576
Video/photo Formatavi/jpg
Built-in Memory32GB
Wi-Fi connection
Frequency2.4GHz
Connection Range≤10m
Power
Output Voltage6~8.4V
Battery TypeCR123A(16340)◊2
Operating Time≥4hrs.
External Power Voltage5V
Interface
Interface TypeTYPE-C
FunctionsVideo and photo management,5V power charging
Connections and Compatibilities
Shock Resistance800G
Mounting Rail TypePicatinny
Physical Characteristics
Weight (Batteries excluded)492g
Dimensions (Eyeshade excluded)153×63×78mm
Environmental Characteristics
Degree of Protection, IP codeIP67
Working Temperature-25℃~+50℃
Storage Temperature-40℃~+60℃


RM-225 Smart Thermal Imaging Rifle Scope

RM-225 Smart Thermal Imaging Rifle Scope

RM-225 Smart Thermal Imaging Rifle Scope

RM-225 Smart Thermal Imaging Rifle Scope

RM-225 Smart Thermal Imaging Rifle Scope

RM-225 Smart Thermal Imaging Rifle Scope
