Products Description

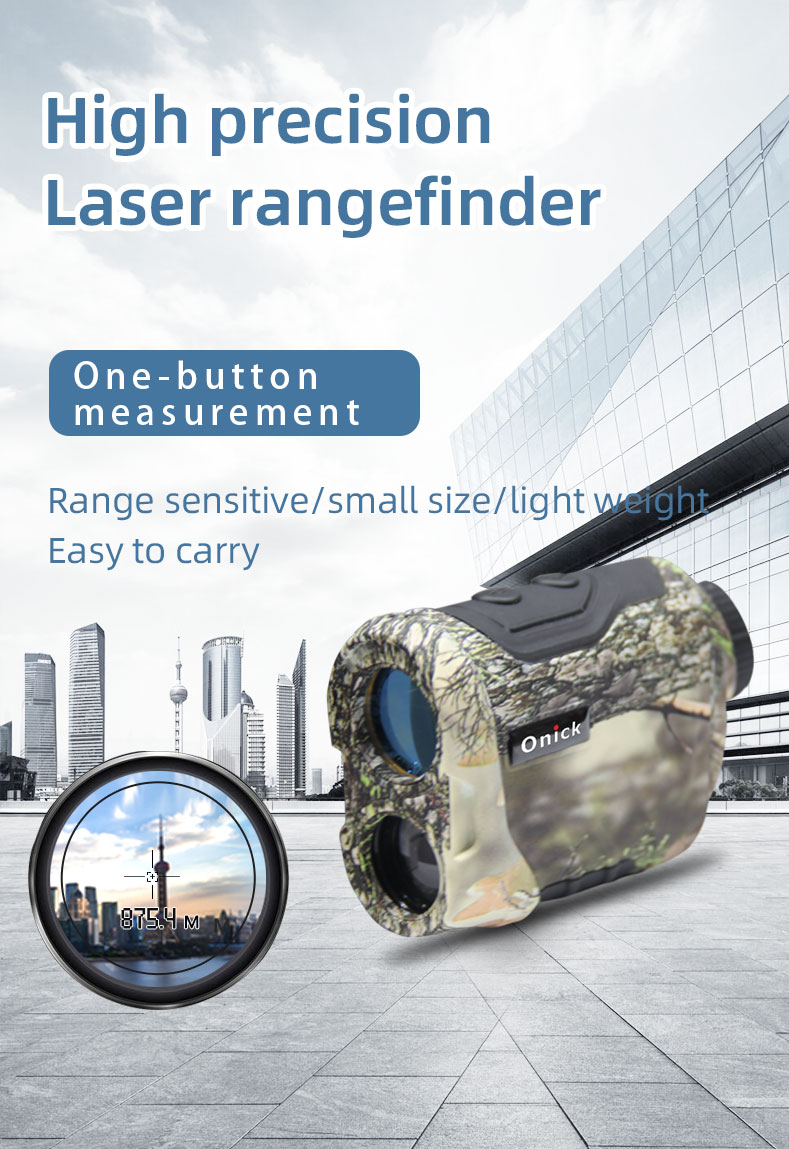

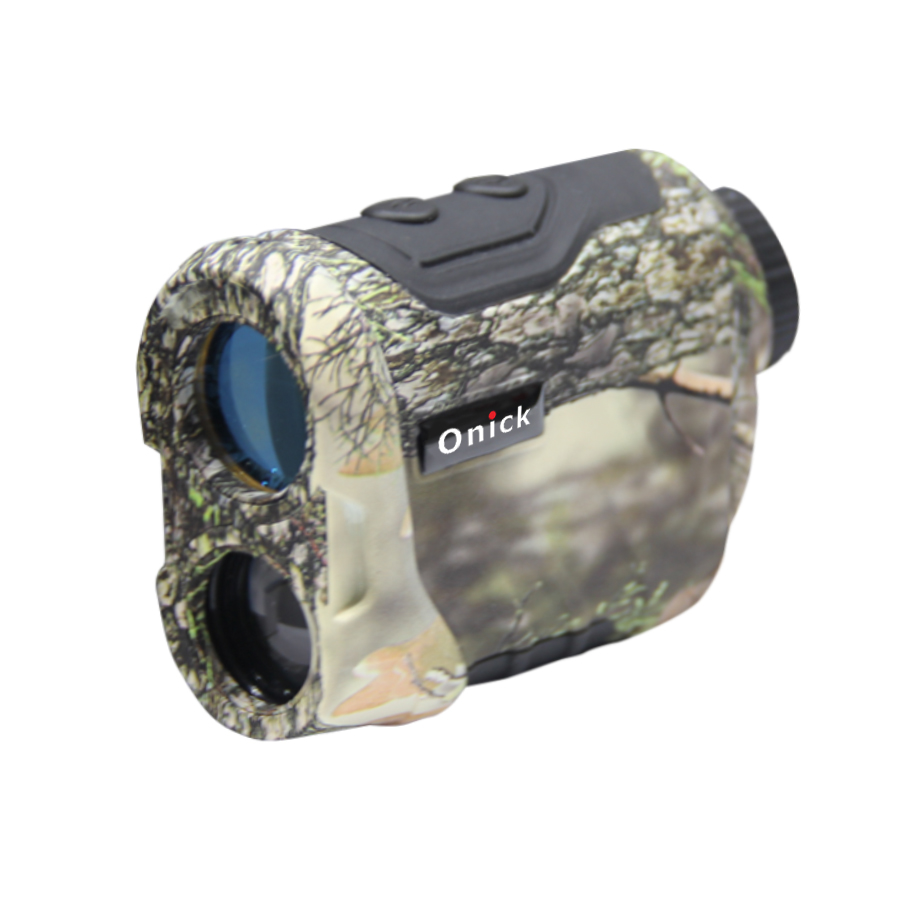

Onick's new short-range ML series rangefinder measures both distance and speed, with an accuracy of up to 0.3 meters! It is exquisite and compact, comfortable to operate, allowing the operator to continuously measure the target aimed at through the telescope observation tube, and the distance value changes continuously on the LCD display. Powerful functions, ranging, height measurement, angle measurement, speed measurement, span (any two points in space), sag measurement; temperature and humidity detection, air pressure and altitude detection, area and volume measurement; such intuitive, convenient and fast functions help you work more efficiently outdoors!
Product features:
1. High precision: Using the high directivity and high monochromaticity of laser, the measurement accuracy can usually reach millimeter level or even higher, such as accurate distance measurement in construction and industrial measurement.
2. Wide measurement range: It can measure distances from a few centimeters to several kilometers, such as in outdoor mapping, remote monitoring and other scenes, it can easily measure long-distance targets.
3. Fast measurement: The measurement speed is fast, generally only a few seconds or even shorter to complete a measurement, which improves work efficiency and is suitable for occasions where distance data needs to be obtained quickly.
4. The accuracy is up to 0.3 meters, combining the functions of ordinary telescopes and laser rangefinders.
5. The laser emission power is low and safe for human eyes.
6. No cooperative target is required, and any target can be measured.
7. Sensitive ranging, small size, light weight, easy to carry.
Application areas:
Golf, power construction maintenance, power supply site inspection, line inspection (cable height), power line selection survey and design, forestry survey, security and police, geological exploration, field hunting, railway construction measurement, installation measurement, high-rise building monitoring, high-speed rail passenger dedicated line track construction, water conservancy and hydropower measurement, water conservancy river survey, oil pipeline, archaeological research, mine measurement, railway line selection, land and resources survey, etc.
Technical parameter
Magnification | 6X |
Field of view | 7* |
Objective | 25mm |
Eyepiece | 16mm |
Diameter of exit pupi | 3.9mm |
Laser Type | 905nm |
Lens Coating | Fully Mult-Coated(FMC) |
Battery | Lithium battery(3.7V) |
Measuring time | 0.5-1sec |
Measuring accuracy | ±0.5m |
Measuring distance | 5-600/800/1000/1200/1500m |
Net weight | 102g |

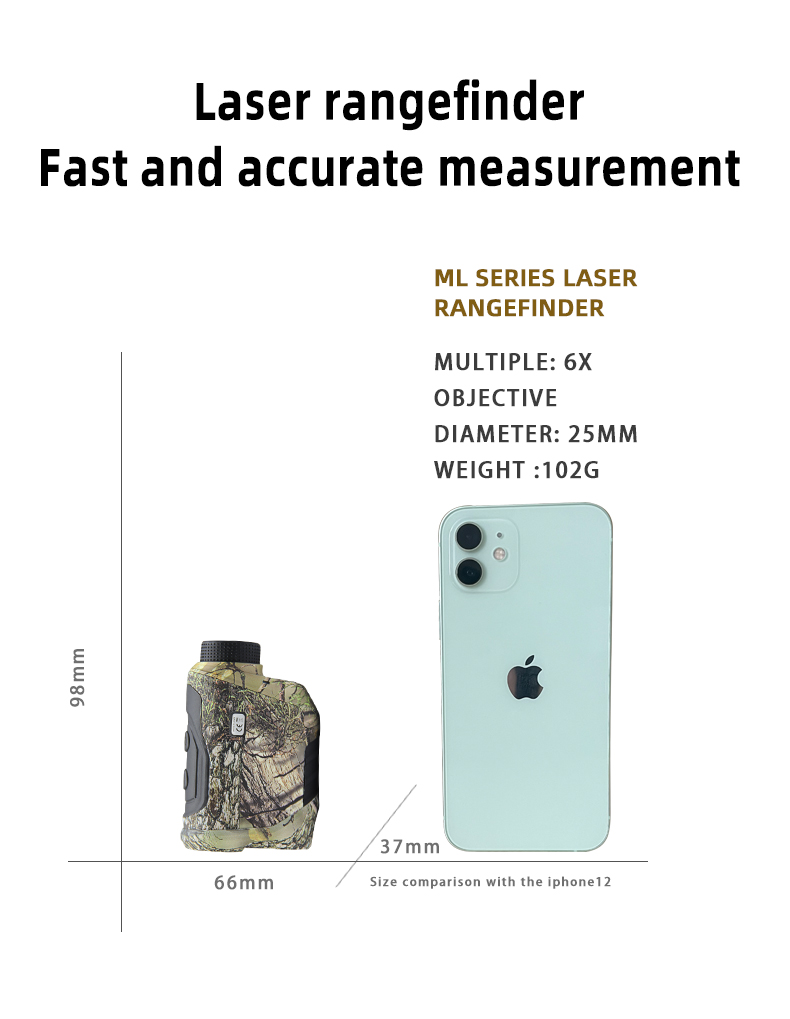

Dimension | 98*66*37mm |
Product Resolution | ±0.1m |
Working Temperature | -20C-50ºC |
Operating Humidity | S80% |
Low Battery Indication | Yes |
Flagpole Lock | Yes |
Scanning Mode | Yes |

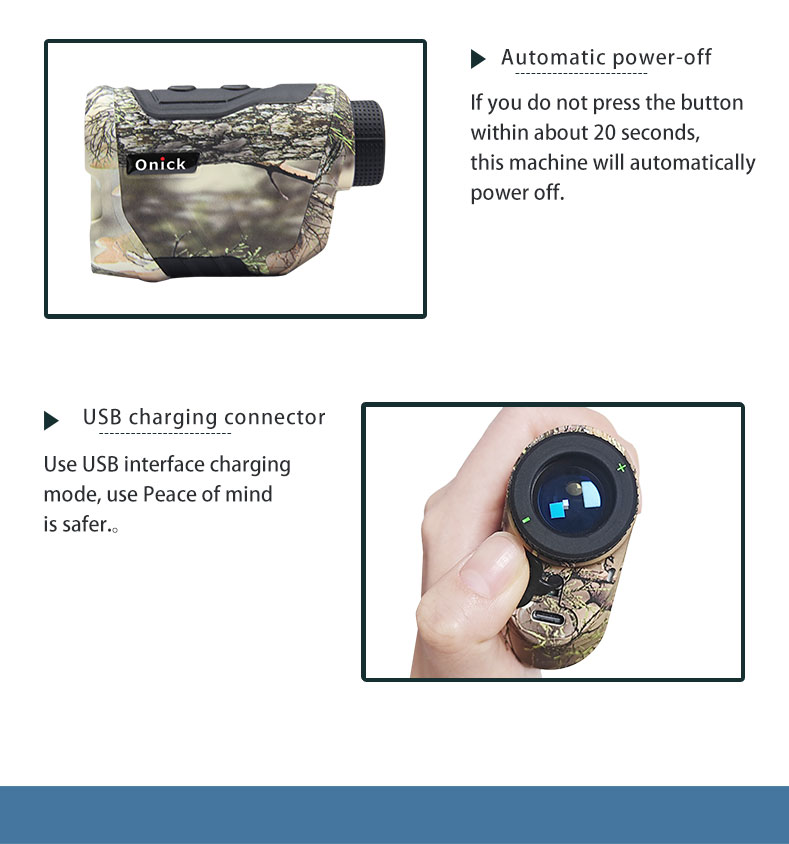

USB charging port | Yes |
Outside dimensions of color box | 137×108×67mm |
Outer Dimension of Color Box | 455×290×355mm |
Total weight of a box of 40 | 11.67kg |
