Binocular low-light night vision device

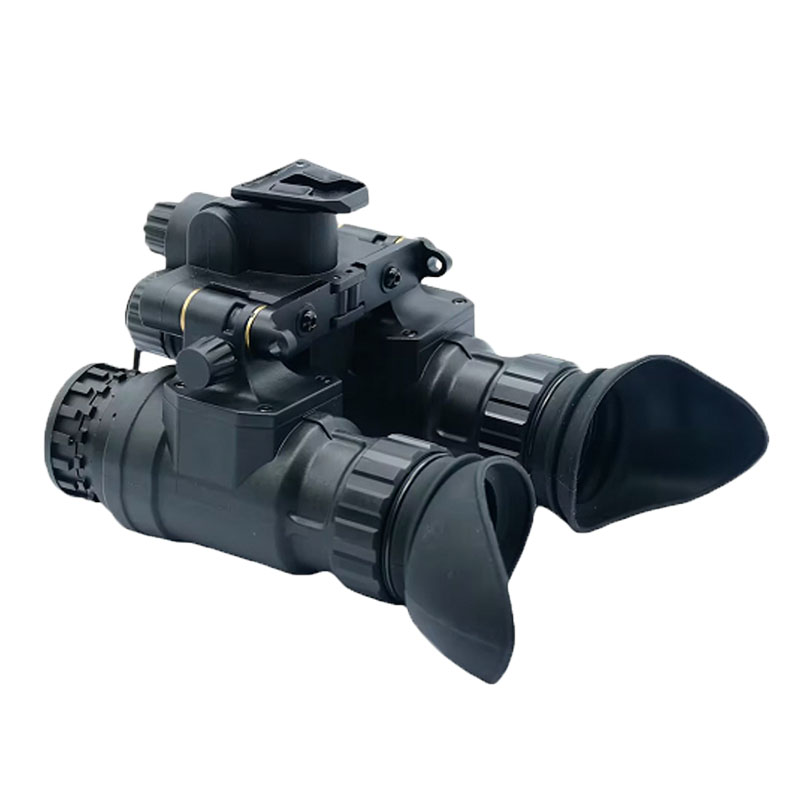

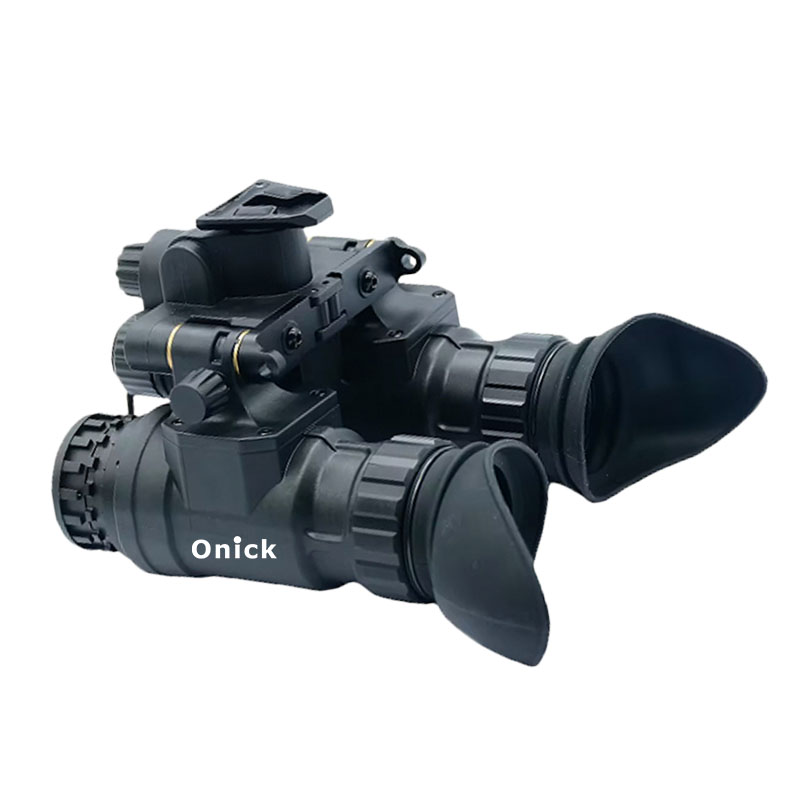

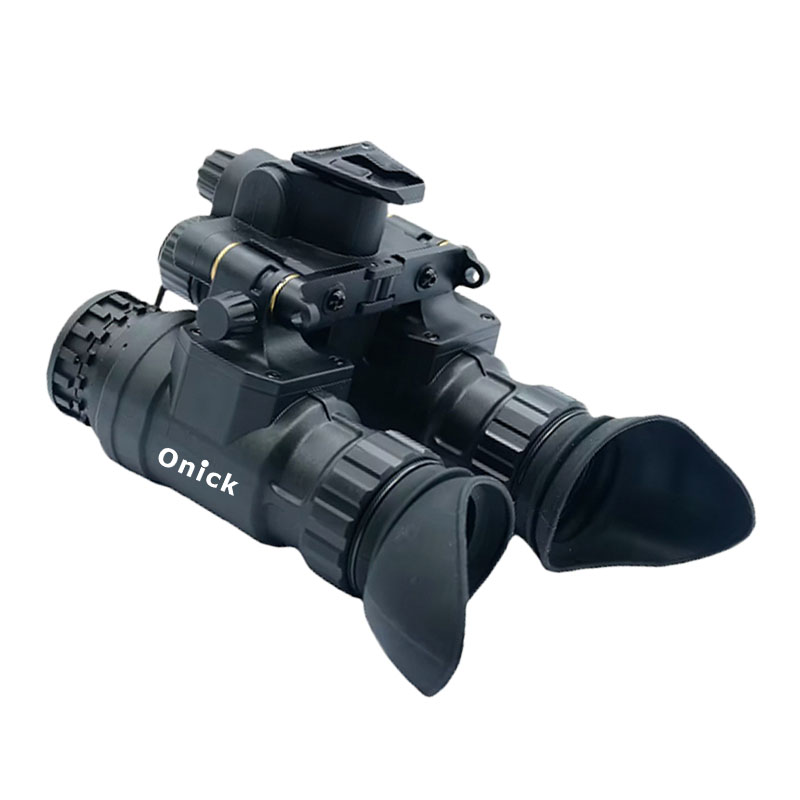

NVG-F2 Binocular low-light night vision device

Binocular low-light night vision device F2 multifunctional low-light night vision device adopts the third generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation and flexible use. The magnification can be changed by replacing the objective lens (or connecting the multiplier). The night vision device has built-in infrared auxiliary light source and automatic anti-glare protection system. It is highly practical and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting environment. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.
Send Inquiry
Description
Parameter
Products Description

Binocular low-light night vision device F2 multifunctional low-light night vision device adopts the third generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation and flexible use. The magnification can be changed by replacing the objective lens (or connecting the multiplier). The night vision device has built-in infrared auxiliary light source and automatic anti-glare protection system. It is highly practical and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting environment. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.

Product Features

1、2nd generation + image intensifier, greatly improved observation clarity;

2、Automatic anti-glare protection function;

3、Infrared assistance;

Application areas:
border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc., are public security departments, armed police forces, special police forces, and guard patrols.

Technical parameter
ModelNVG-F2
Appearance structurebinocular
Image intensifier level2nd generation +
Resolution (line pair, lp/mm)Resolution (line pair, lp/mm): 64-72
Quality factor (FOM value)1600-2300
Sensitivity (microampere/lumen, µ A/lm)850-1200
Signal-to-noise ratio28-32
Brightness gain (cd/㎡/lx)10000-20000
Cathode surface typeS25+
Magnification (X)1
Field of view (degrees)42
Diopter adjustment range (diopter, °)-1
Eye distance adjustment range (mm)55-80
Focal length (mm)22.5
Focus range (m)0.25 - ∞
Switch positionOFF / ON / IR / AUTO
Power type1 CR123A battery
Standby time (hours)40h (infrared on) 80h (infrared off)
Auto power-off protection function for strong lightYes
Direction sensing automatic switch functionYes
Single-side lens barrel flip-up shutdown functionYes
Infrared auxiliary lightYes
Infrared light wavelength (nm)850
Eye distance range locking functionYes
Operating temperature range (°C )-51 to +49
Storage temperature range (°C )-55 to +70
Relative humidity5%-98%
Trouble-free time10,000 hours
Dust and water resistance levelIP68

Binocular low-light night vision device

Binocular low-light night vision device

Binocular low-light night vision device



Tags: NVG-F2 Binocular low-light night vision device
