LF5000 laser rangefinder telescope features:

1、Precise distance measurement, ranging from 10-5000 meters, error ±0.5 meters;

2、Adopt 8x magnification, 24mm objective lens diameter, clear observation of targets;

3、With single fast measurement and continuous measurement, it can measure horizontal distance, height and angle;

4、The lens adopts ED low-dispersion glass, with realistic color reproduction and accurate measurement;

5、8x objective lens optical system with high-definition imaging, clear and stable imaging;

6、With scanning mode measurement, it can quickly determine the distance of different targets or track moving targets;

7、The knob-type eyepiece refraction adjustment structure is also suitable for people wearing glasses to observe;

8、The close focusing distance is as low as 10m;

9、The appearance is sturdy and durable, with a protection level of IP66;

10、Support USB data interface;

11、Adopt advanced reflective OLED display;

12、Ultra-low weight, easy to carry, weighing only 223g;

LF5000 laser rangefinder telescope function introduction:

1. Single measurement: When the power is on, short press the power button to perform a single measurement.

2. Continuous measurement: In the power-on state, long press the power button for more than 2s to perform continuous measurement. The measured distance will appear alternately on the screen. When measuring, "●" will appear in the center of the display target. After releasing the power button, the continuous measurement will stop.

3. Measurement failure: If the measurement fails, the data on the screen will be displayed as: short press the power button to re-measure.

4. Horizontal distance mode: In M1 mode, aim at the target, short press the measurement button, and the screen will display the distance to the target, horizontal distance and angle after the measurement is completed. 1) This mode supports continuous measurement; the horizontal distance does not contain a decimal point, and there is no vibration in this mode; 2) The "-" sign is displayed in front of the tilt angle, indicating that the angle value is the depression angle. 3) A decimal point is displayed for a straight-line distance less than 1000 meters, and an integer is displayed for a straight-line distance greater than 1000 meters (inclusive).

5. Vertical height mode: In M1 mode, aim at the target, short press the measurement button, and the screen will display the distance to the target, vertical height and angle after the measurement is completed.

6. Two-point height measurement mode: One: The measurement target-A icon continues to flash, prompting the measurement target-A. Short press the measurement key to measure the distance of target-A. Second: The measurement target-B icon continues to flash, prompting the measurement of target-B. Short press the measurement key to measure the distance of target-B. Third: The height of point A and point B on the screen is displayed.

LF5000 laser rangefinder telescope product parameters:

Range: 10-5000m

Measurement accuracy: ±0.5m

Angle range: ±90°

Angle accuracy: ±1°

Laser type: 905nm (Class 1 laser)

Magnification: 8X

Objective diameter: 24 mm

Effective eyepiece: 16 mm

Exit pupil diameter: 3.4 mm

Exit pupil distance: 15.5 mm

Field of view: 6.6°

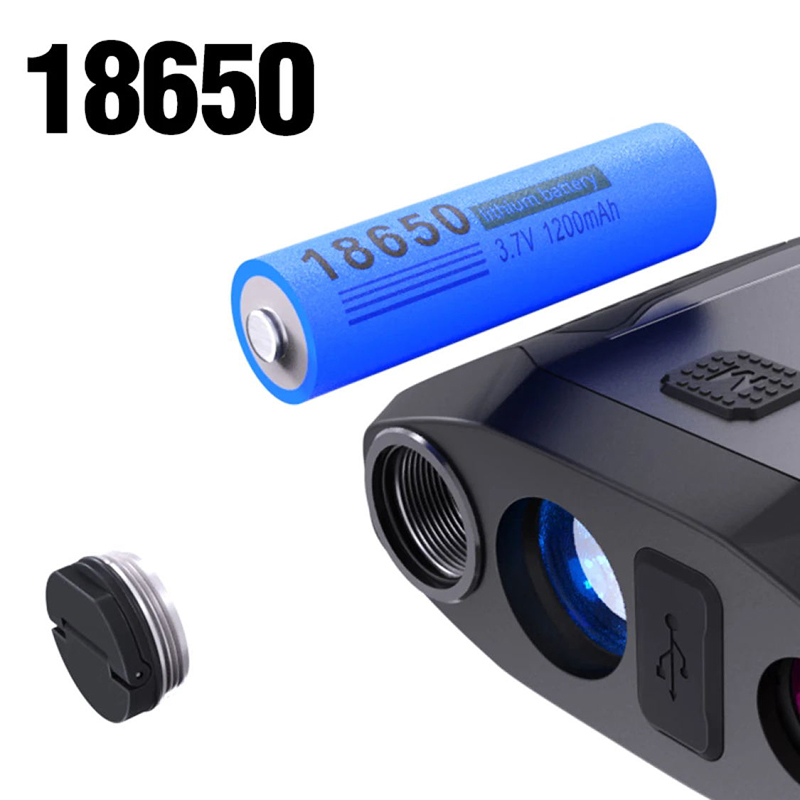

Battery: 18650 battery (3.7V2000mAh)

Protection grade shell: IP66

Product weight: 223g (without battery)

Dimensions: 101*99*46 (mm)

Product standard: host, lanyard, lens cloth, certificate, warranty card, 1 18650 battery, instrument bag, shockproof box
