Thermal imaging principle: Thermal imaging night vision devices mainly rely on the characteristics of infrared radiation emitted by objects to detect their infrared radiation emission, and then set a search temperature range, so that the things to be detected can stand out from other backgrounds, and then present them in light and dark or different color image modes, so that the temperature difference between the target object and the background object can be used for observation. Generally, objects with temperatures ranging from -20 degrees Celsius to 3600 degrees Celsius can be identified.

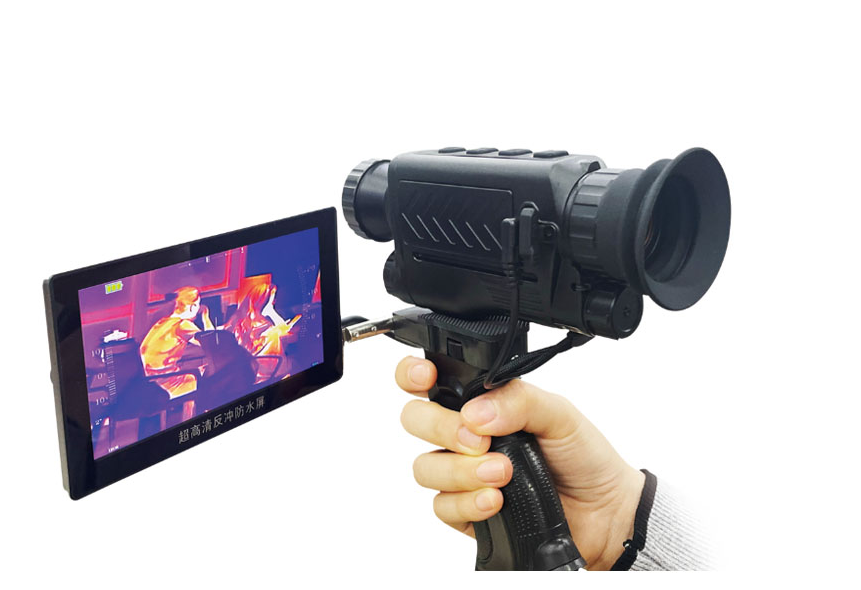

The handheld observation thermal imager is equipped with a 384 × 288 infrared detector and a 720 × 540 LCOS display. It has basic observation, Wi-Fi hotspot and other special functions, and can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit, hiking, tourism and other scenes.
Thermal imaging movement function:
● Passive infrared thermal imaging technology
● Resolution 384 × 288, high sensitivity detector, support contrast adjustment
● Support 3D noise reduction function, image detail enhancement function
● Lens 15 mm
Display function:
● 0.2-inch LCOS display
● Resolution 720 × 540
Power system:
● 18650 lithium battery
● Continuous operation for more than 8 hours
● Support external charging
System function:
● Support hotspot tracking
● Support Wi-Fi hotspot
● Built-in EMMC v5.1 interface high-speed storage (maximum 8 GB), support video/photography
● Support digital zoom
● Support laser indication
● Support mode switching
● Support TYPE-C interface
