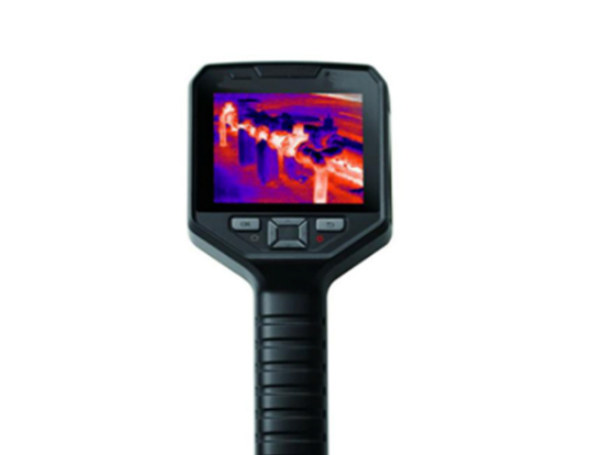

The onick IT450 handheld infrared thermal imager is a high-precision thermal imaging handheld device that uses infrared thermal imaging plus visible light display. It can capture the temperature of each pixel of the target object, and by combining visible light, it can capture the state of the object more clearly. Nidu IT450 handheld infrared thermal imager can measure temperature flexibly, support temperature alarm, and support WIFI to save and analyze the handheld instrument image;
Product features
1. 320x240 high-resolution HD image, clearer observation of the measured object, 8 color palettes, suitable for temperature measurement in more scenes;
2. Support accurate temperature measurement from -10°C to 450°C (±2°C or ±2%);
3. Support multiple image display modes, such as single infrared thermal imaging, edge fusion visible light image, overlay fusion, picture-in-picture mode, etc.;
4. Support image enhancement mode, choose to highlight the measured object itself or background details;
5. Flexible temperature measurement, support center point temperature measurement and high temperature, regional temperature measurement, low temperature continuous tracking, etc.;
6. Support temperature alarm, support WIFI to save and analyze the handheld instrument image;
Packing list: infrared thermal imaging handheld instrument, USB Type-C data cable, lanyard, product manual, warranty card。
Parameter | Index | |||
Infrared thermal imaging | Resolution | 320x240 | ||
Operating band | 8~14um | |||
Frame frequency | 9Hz | |||
NETD | 70mK@25℃ | |||
Field Angle | Horizontal 56°, vertical 34° | |||
Lens | 4mm | |||
Temperature range | -10°C~450℃ | |||
Temperature measurement accuracy | ±2°C or ±2%(25 °C room temperature) | |||
Temperature measurement | Support the highest point, lowest point, central point temperature measurement area temperature measurement | |||
swatches | Enhance iron red, white heat, black heat, iron red, rainbow, red heat, cold blue, etc | |||
Visible light | Resolution | 640x480 | ||
Frame frequency | 25Hz | |||
LED fill light | support | |||
Image display | Screen size | 3.5 inches | ||
Image mode | Edge fusion, superposition fusion, picture in picture, single infrared, single visible light | |||
Language | Support simplified Chinese, traditional Chinese, English, French, Spanish, Russian, Arabic, Japanese and Korean. | |||
Be common | Working hours | 5000mAH large capacity battery, 25°C environment can be used for about 4 hours | ||
charging | Built-in battery, recommended to use 2A or above universal USB charger | |||
WiFi | Support PC software data transmission | |||
Operating temperature | Working range -20°C~+60°C, the best temperature measurement environment 5 °C~+60°C | |||
Storage temperature | -40°C~+85°C | |||
Waterproof and dustproof | IP54 | |||
Product size | 230mm x 100mm x 90mm | |||
Net weight | 420g | |||
Package size | 270mm x 150mm x 120mm | |||
Gross weight (including color box packaging) | 970g | |||
store | capacity | 8G built-in memory, can store more than 20,000 pictures | ||
Picture storage mode | Three photo storage (infrared thermal imaging, visible light, working state photo) | |||
File format | TIFF format, support background full width temperature analysis | |||
port | Data and charging interface | The USB Type - C (support charging and data transmission) | ||
Analysis system | Analysis software | A computer analysis system can analyze the pictures taken | ||
Human body temperature measurement | Temperature measuring distance | It is recommended to measure the temperature at 0.75m | ||
Temperature measurement accuracy @25°C | + / - 0.5 ° C | |||
