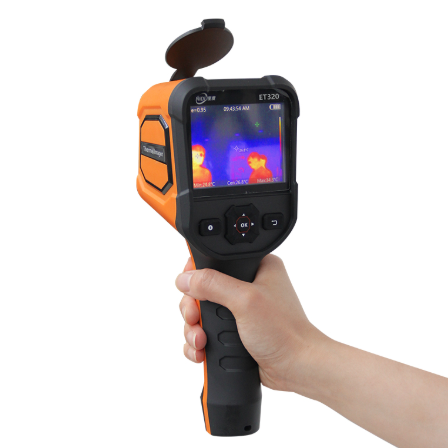

The onick ET320 handheld infrared thermal imager can automatically or manually control the color scale temperature range, switch between 2 measurement units ℃ and ℉, support hottest point measurement, 2 movable point measurement, and 4 color scales to choose from. Image/photo format JPG, built-in storage (2-8G); CMOS visible light image and storage, built-in common material emissivity selection table.
Product features:
1. High-definition display, long-distance measurement, support -20℃~450℃ accurate temperature measurement;
2. Sensitive infrared sensor, fast temperature compensation imaging high-definition display;
3. Support multiple image display modes, single infrared thermal imaging, edge fusion visible light image, superposition fusion, etc.;
4. Automatically track hot and cold spots, timely identify the lowest and highest temperatures within the measurement range, flexible temperature measurement;
5. Support temperature alarm;
Application fields: widely used in electronic device detection, mechanical maintenance, building defect research, distribution box detection, floor heating equipment detection, body temperature detection, medical, fire protection, archaeology, transportation, agriculture, geology, energy, smelting, electronic manufacturing and other fields. It is an ideal choice for electricians and maintenance technicians and can be used to quickly find problematic areas.
Product parameters:
Infrared resolution: 320*240
Infrared spectrum band: 8um to 14um
Image frame rate: 9Hz
Power-on time: 10 seconds
Temperature measurement range: -20℃~450℃
Spatial resolution: 2.9mrad
Menu interface: Android operation interface
WIFI: Supported
Temperature measurement alarm function: High and low temperature buzzer alarm can be set
Color palette: Rainbow/iron red/cold color/white hot/black hot, professional algorithm image is bright and vivid
Drop: Can withstand 2 meters (6.5 feet) drop impact
Focus mode: fixed focus Distance/minimum focal length 0.5m
Image fusion mode: fusion (0%, 25%, 50%, 75%, 100%)
Display type: 3.5 feet, 320*240TFT/640*480TFT
Field of view: 27°*35°
Thermal sensitivity: 0.07℃
Visible light pixels: 300,000
Image format: photo JPG
Storage medium: built-in 6G
Charging method: charger
Power supply type: lithium battery (replaceable)
Battery life: 4-6 hours
Vibration and shock: 2G, IEC68-2-6
