How to install night vision goggles on the newly upgraded dump truck

2024-12-13 Visits:

Night Vision Helmet Mount Operation

Night vision helmet mounts are designed to provide a secure and adjustable platform for  attaching night vision  devices to helmets. The process  involves the  following steps:


1. Attaching the Mount to the Helmet:

Identify  attachment  points:  Locate  the  designated  attachment  placement  on  the helmet.

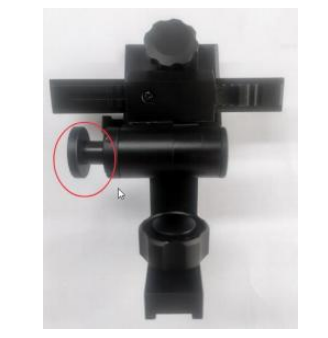

Secure  the  mount:  Press  the  button  to  lock  the  carabiner  with  the  helmet  in  its designated placement. Ensure that the mount is firmly fixed and does not move easily.

2. Attaching the Night Vision Device:

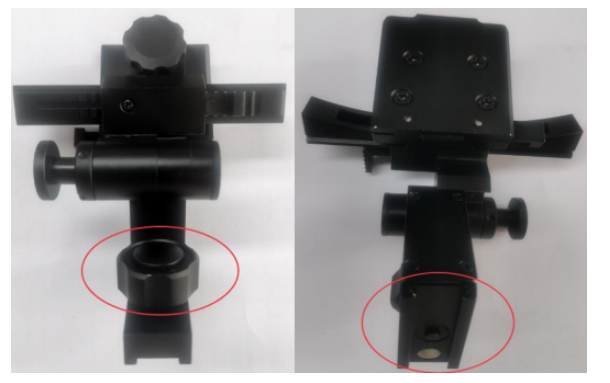

Align the device: Carefully align the night vision device with the mount's interface. Ensure that the device is properly seated and securely connected.

Secure the device: Use screws to secure the device to the mount.



Onick-12 night vision helmet mout specification


3. Adjusting the Mount:

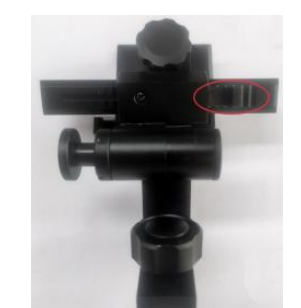

 Vertical adjustment: Adjust the vertical position of the night vision device. This is done  by  using  a  screw.  Adjust  the  height  to   ensure  the  device  is  positioned comfortably and provides optimal viewing.

Onick-12 night vision helmet mout specification

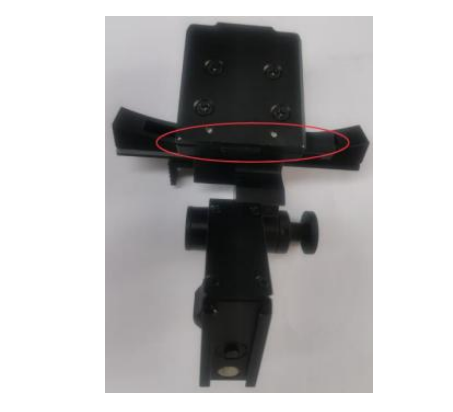

Horizontal adjustment: Move the rail horizontally to align the eyepiece with the eye.

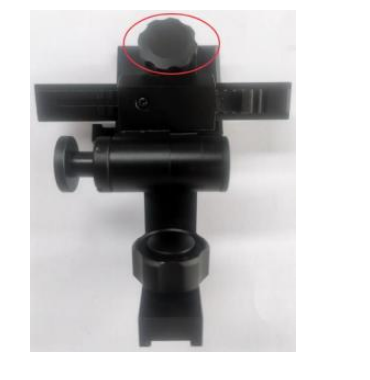

Flip Adjustment: Adjust

the distance between


the night vision device and your eye. This can affect the field of view and overall comfort.
