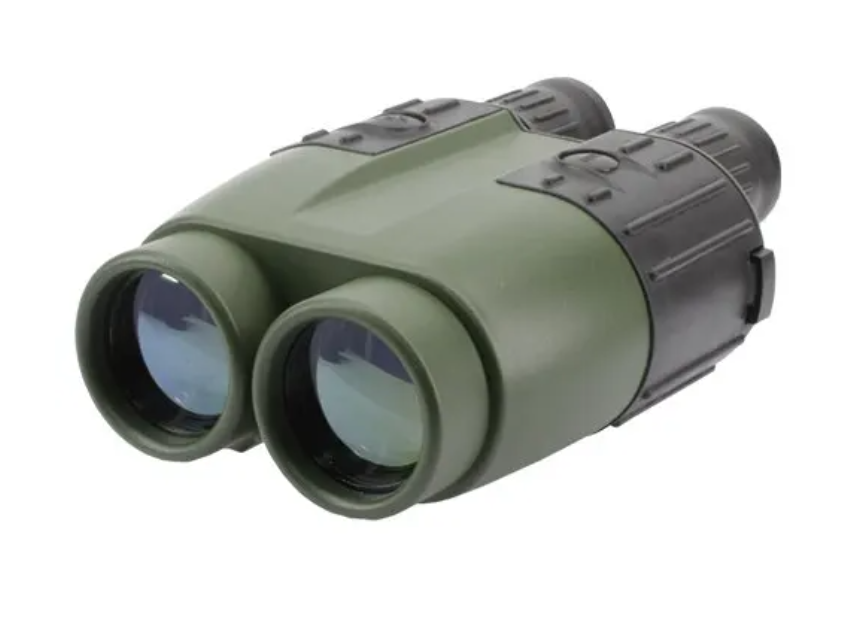

The LRB6000CI combines excellent optics with the latest advanced technology. A revised approach in optical and electronic engineering combined with years of development in laser rangefinder technology allows acquisition of targets at longer distances with better reliability
A wider range under weather conditions.
This model allows you to see distant objects with great image quality as well as it measures the distance to the object (up to 6 km²), its elevation, azimuth and velocity - all in one. Computer output allows instant data acquisition by any system with standard RS-232 interface including various GPS models. The device has gating capability and variable logic for target selection.
Features:
Angle measurement: mils, degrees
GPS compatible: protocol level or built-in gating capability with 100m steps first, last and automatic target detection
Distance measurement: meters, yards
Speed measurement: KMH, MPH, Digital output: RS-232 or Bluetooth
Other features include: Rubber finish, aluminum frame, shockproof, waterproof, wide operating range for climate and atmospheric conditions.
Technical specifications:
Optical
Magnification (x): 7
Objective diameter (mm): 50
Field of view (°): 5
Eye distance (mm): 18
Diopter adjustment range: ±4
Pupillary distance (mm): 58 – 72
Distance meter
Eye safety: Class 1, eye safe
Wavelength (nm): 905
Measuring distance range (m) 1 – 6,000
Azimuth measurement accuracy (°/mils): ±1 / 17
Inclination measurement accuracy (°/mils): ±1 / 17
Speed detection: ✓
First/last target logic: ✓
Scan mode: ✓
Display
Meters/yards display: ✓
Computer output, type
Bidirectional: RS-232
Last 10 readings recall: ✓
Reticle pattern selection: ✓
Low battery indication: ✓
Mechanical, electronic and environmental
Dimensions (mm): 210x150x80
Weight without battery (g): 1,300
Power supply: 9V Non-magnetic
Battery life (number of measurements): 5,000
Operating temperature range (°C): -25 to +50
Storage temperature range (°C): -30 to +55
Waterproof: MIL-STD-810G
*2.3×2.3m NATO standard target
