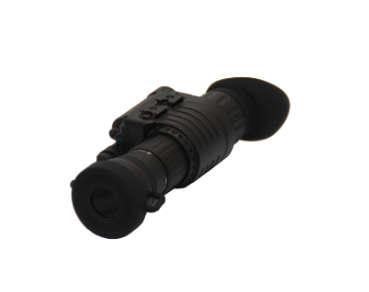

DT-NH83X multi-function low-light night vision device is a new product developed based on the latest optoelectronic technology. The device uses a high-performance second-generation/third-generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation, high cost performance, and can change the magnification by replacing the objective lens (or connecting the multiplier). This product can be connected to a digital camera, a still camera, or a camcorder. It can be used with a gun aiming fixture or alone.
Product features:
1. The product has a small and exquisite appearance, the body is made of all metal, the size is small, the weight is the lightest in the industry, and the strength is high.
2. The design is ingenious, and the high-quality image tube is used to maximize the cost performance of the product.
3. Good optical quality, clear imaging, high brightness, and uniform brightness and clarity throughout the observation range.

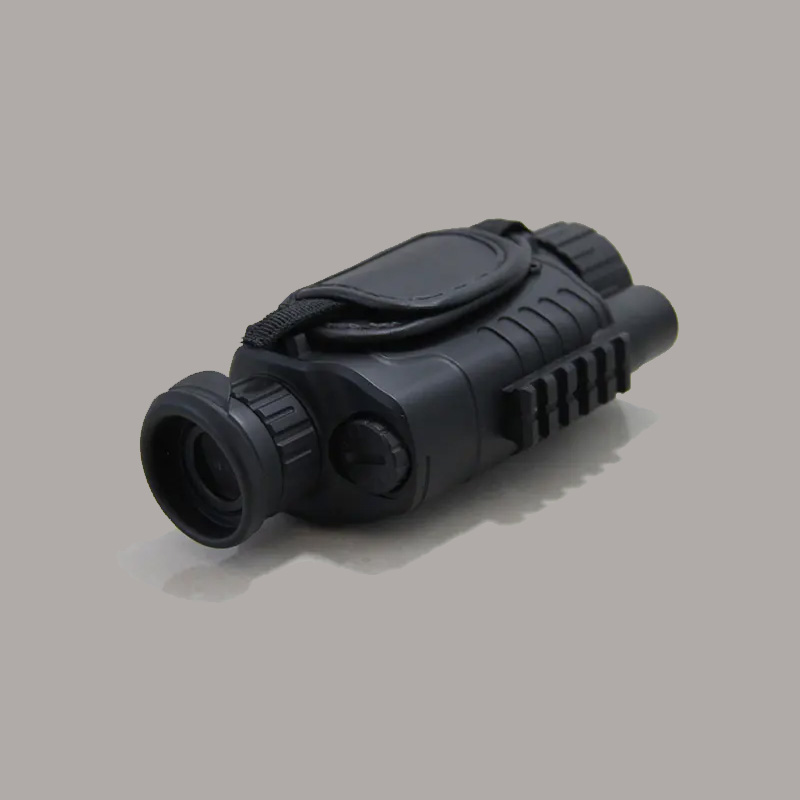

Digital camera infrared night vision monitor specifications | |
Magnification | 5× 40 mm (optical magnification: 5x, objective lens diameter: φ40mm) |
Viewing angle range | 5°x3.75° |
Eyepiece adjustment range | ±0.6 diopter |
Lens coating | double-layer coated lens |
Minimum focusing distance | 2M |
Weak light observation distance | 2M-infinity |
Lightless black observation distance | best within 200M |
Image sensor | 5 million pixel CMOS sensor |
Zoom | optical 5x, digital 8x |
Display | 1.5” TFT LCD display |
Image resolution | 2560*1920, built-in 4G SD memory card |
Movie resolution | 640x480 (VGA) @15 fps |
Image format | JPEG, AVI |
Shootin: Video shooting | Video shooting |
Movie recording time | about 4 hours (1G SD) |
Exposure | Automatic control |
White balance | Automatic control |
Language | English, with Chinese manual, super easy to use |
Real-time time setting | Real-time time setting |
The battery is automatically charged when the USB cable is connected to the computer | |
Interface type | USB 1.1. |
Working voltage | 3.7V DC |
External power adapter | 5.0V/1A |
Weight | 400g |
Waterproof value | IP54 |
Product accessories | |
USB cable | 1 strip |
AV video cable | 1 strip |
Instruction manual | 1 copy |
Portable soft leather case, lens cleaning cloth, hand strap | 1 each |
External power adapter | 1 indivual |
Battery | 1 CR123A rechargeable lithium battery |
Memory card | 1 4G SD card |
Product size | 200X86X56mm |
