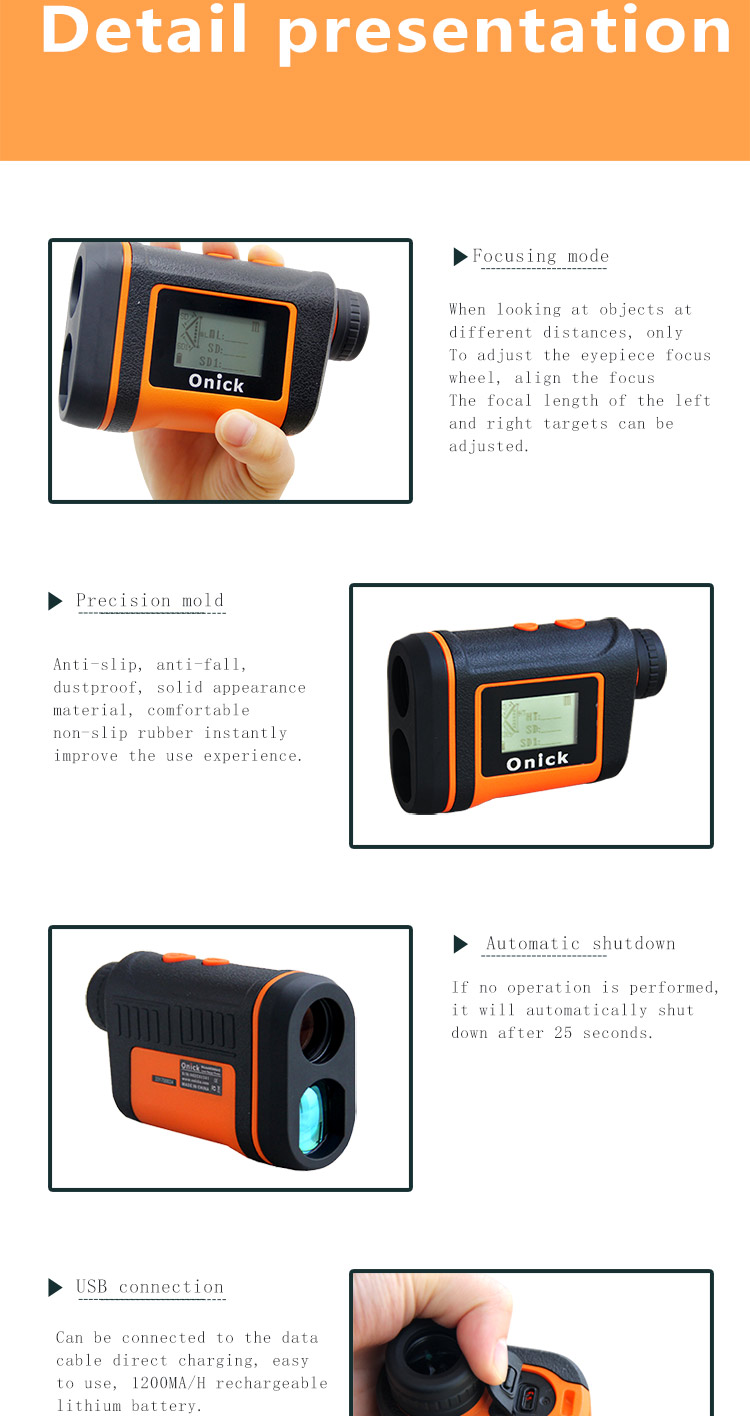

The B series long-distance, high-precision, multifunctional laser rangefinder telescope has a transparent and clear LCD display screen with red and black fonts. The red font is used in darker environments, and you can read accurate measurement data while aiming at the target. The product is simple and fast to operate, has a fast ranging speed, stable measurement data, and the instrument has multiple measurement modes at the same time.
Features:
1. Measuring distance: 0-1800 meters 0-2200 meters
2. Measuring accuracy: 10-20 cm
3. Azimuth measurement
4. Bluetooth data transmission
5. Tilt angle measurement
6. Altitude measurement function
7. GPS coordinate measurement
8. "Point to point" slant distance measurement
9. Span measurement of any two points in space

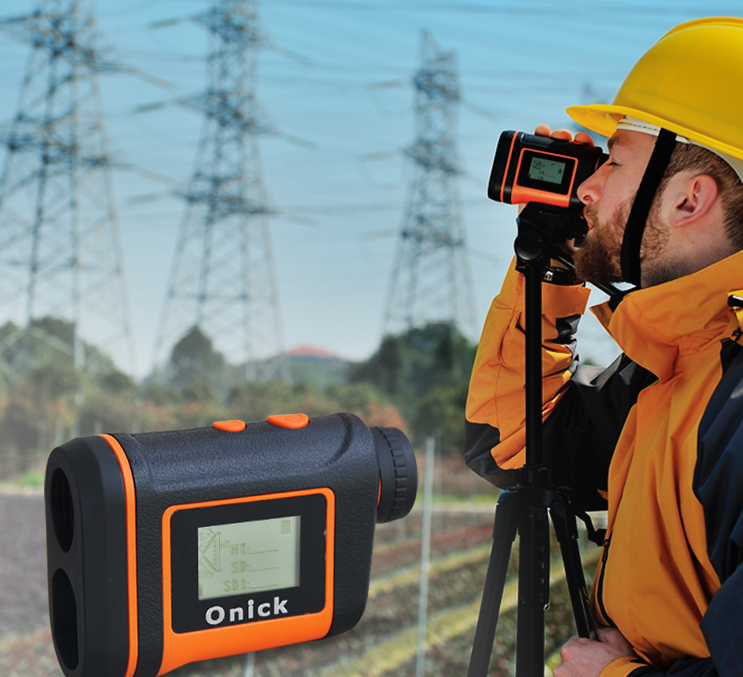

10. Power line height and vertical measurement
11. Optical infrared enhanced adjustment function

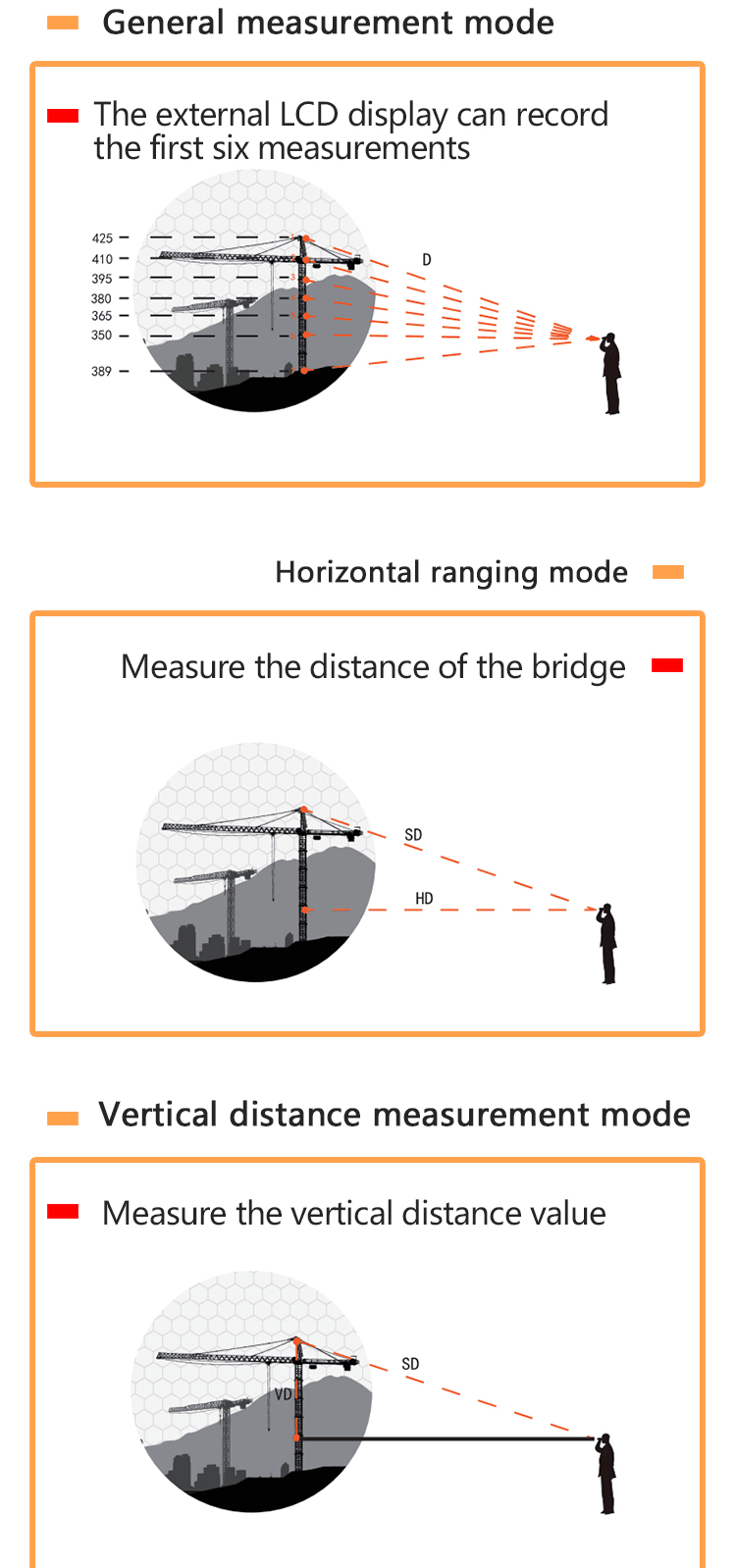

12. Horizontal distance measurement and vertical distance measurement
Technical parameters
Serial port transmission: RS232 Bluetooth transmission

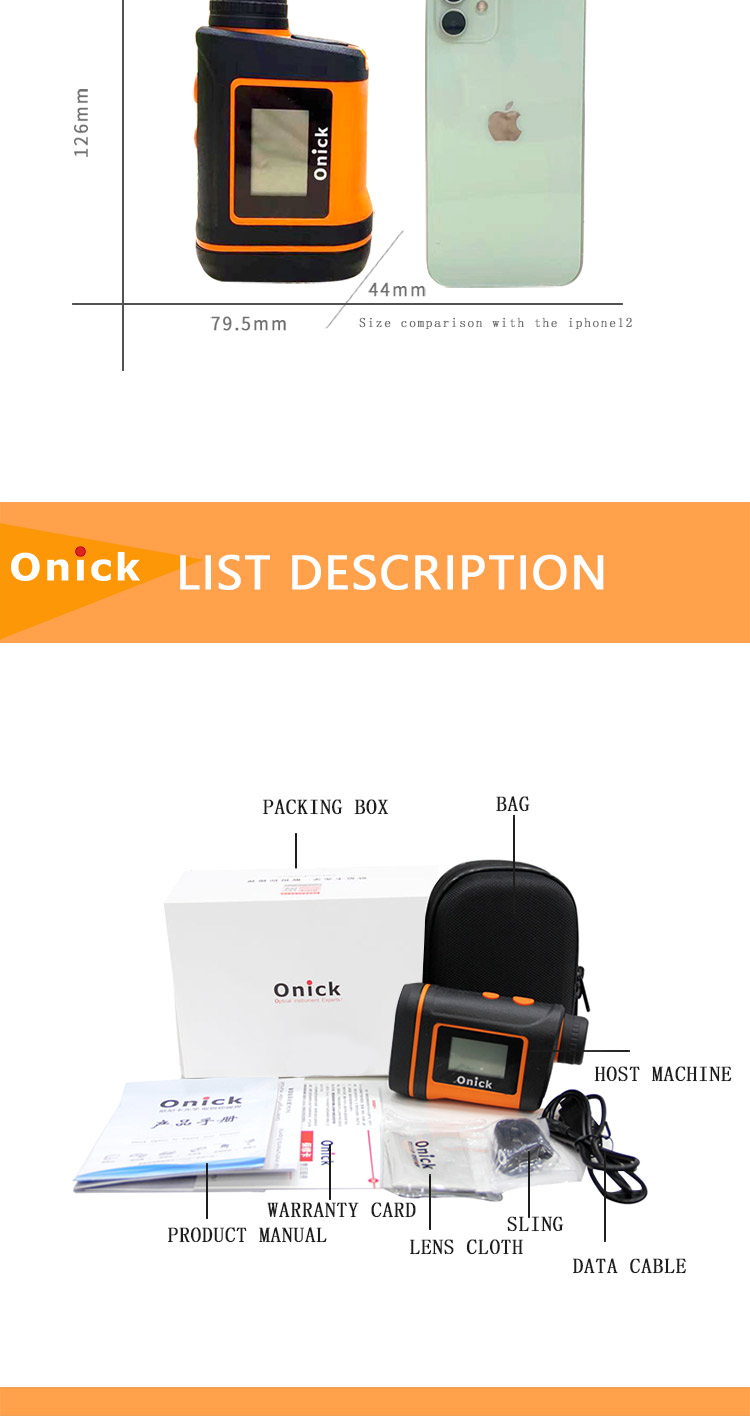

Dimensions cm: 14.7x12.2x4.8
Environment: waterproof IP 67 & NEMA 6
Laser: Class I (human eye protection)
Optical magnification: 8 times
Objective lens diameter: 31mm
Eyepiece diameter: 23mm
Field of view: 6°
Kilometer field of view: 350 feet 1000 yards
Exit pupil distance ：21.5mm
Exit pupil diameter: 3.8mm
Maximum distance measurement: 2200m
Measurement accuracy: 0-200 meters, accuracy 0.1; 200-2200 meters, accuracy 0.2
Low reflection measurement range: 0-2300m
High reflection target: 0-2700m
Azimuth measurement: Yes
Accuracy: ±0.5°
Tilt measurement: ±90°
Accuracy: ≤±0.25° (0.1° in high reflection)
Gyroscope angle accuracy: ±1°
Diopter adjustment: ±8

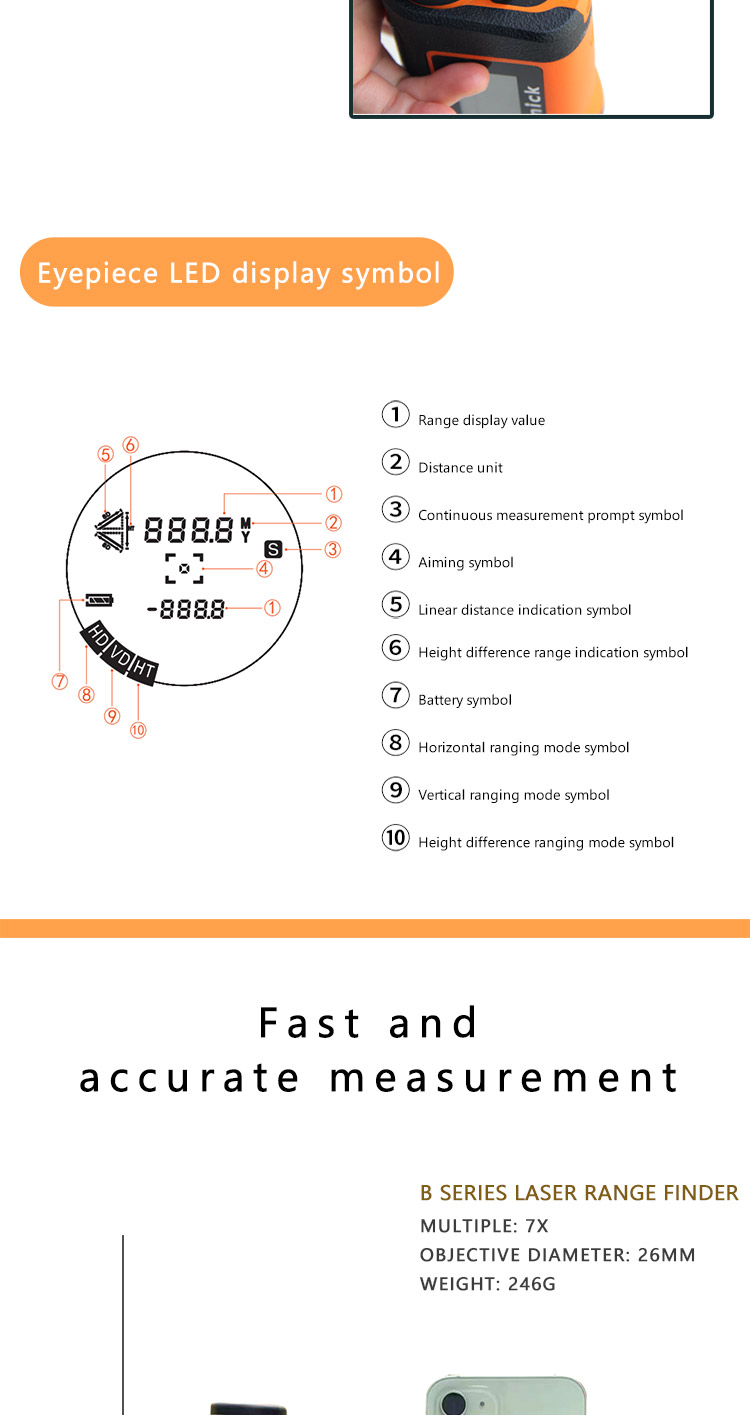

Optical display: Built-in high-definition LCD display

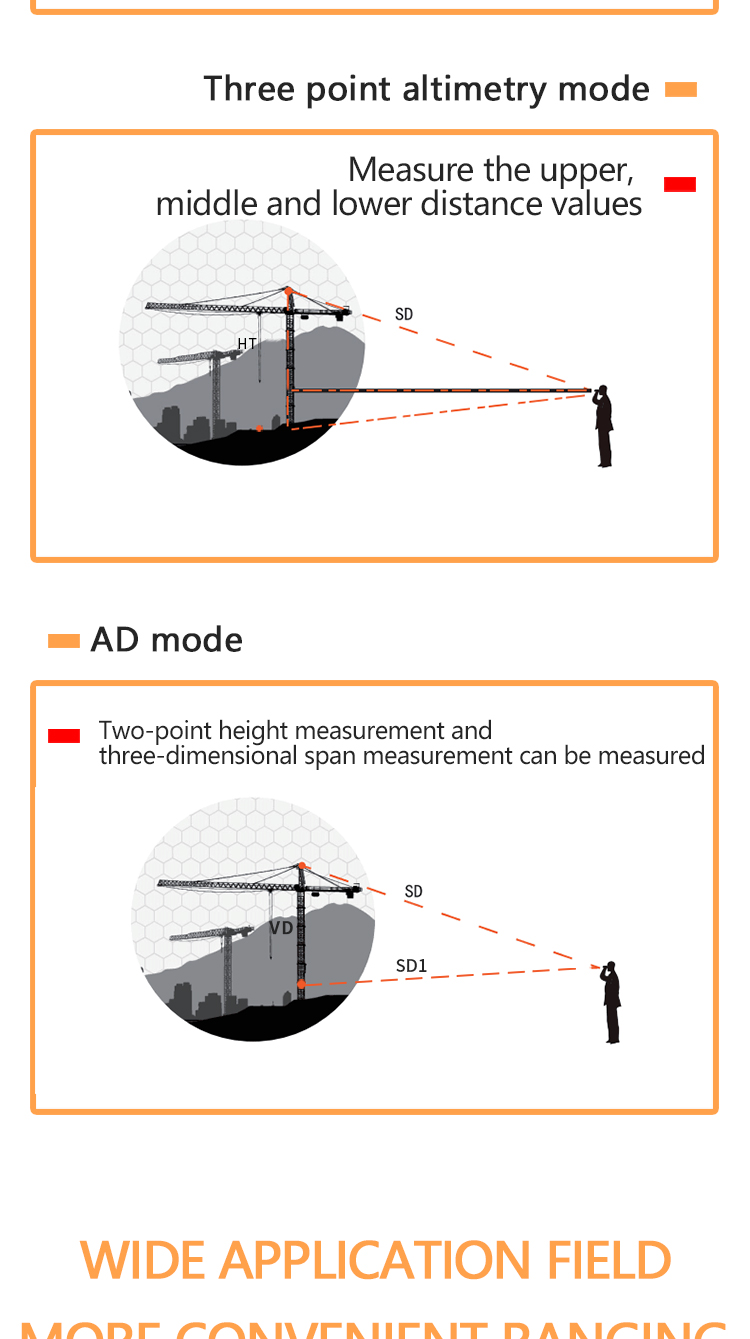

Height measurement function: 2-point height measurement
Three-dimensional measurement: Span measurement of any two points in space
GPS: Yes
Coordinate data acquisition: Yes
App Yes
Tripod interface: Yes
Body: The body comes with a charging interface
Battery; 3.7VDC dedicated rechargeable lithium battery
Battery working time Continuous working 18 hours (normal function)
Continuous working 15 hours (Bluetooth or red screen on)
Continuous working 12 hours (Bluetooth + red screen fully on)
