The 10,000-meter laser rangefinder is generally suitable for some special industries, such as police security, military, emergency and other industries.

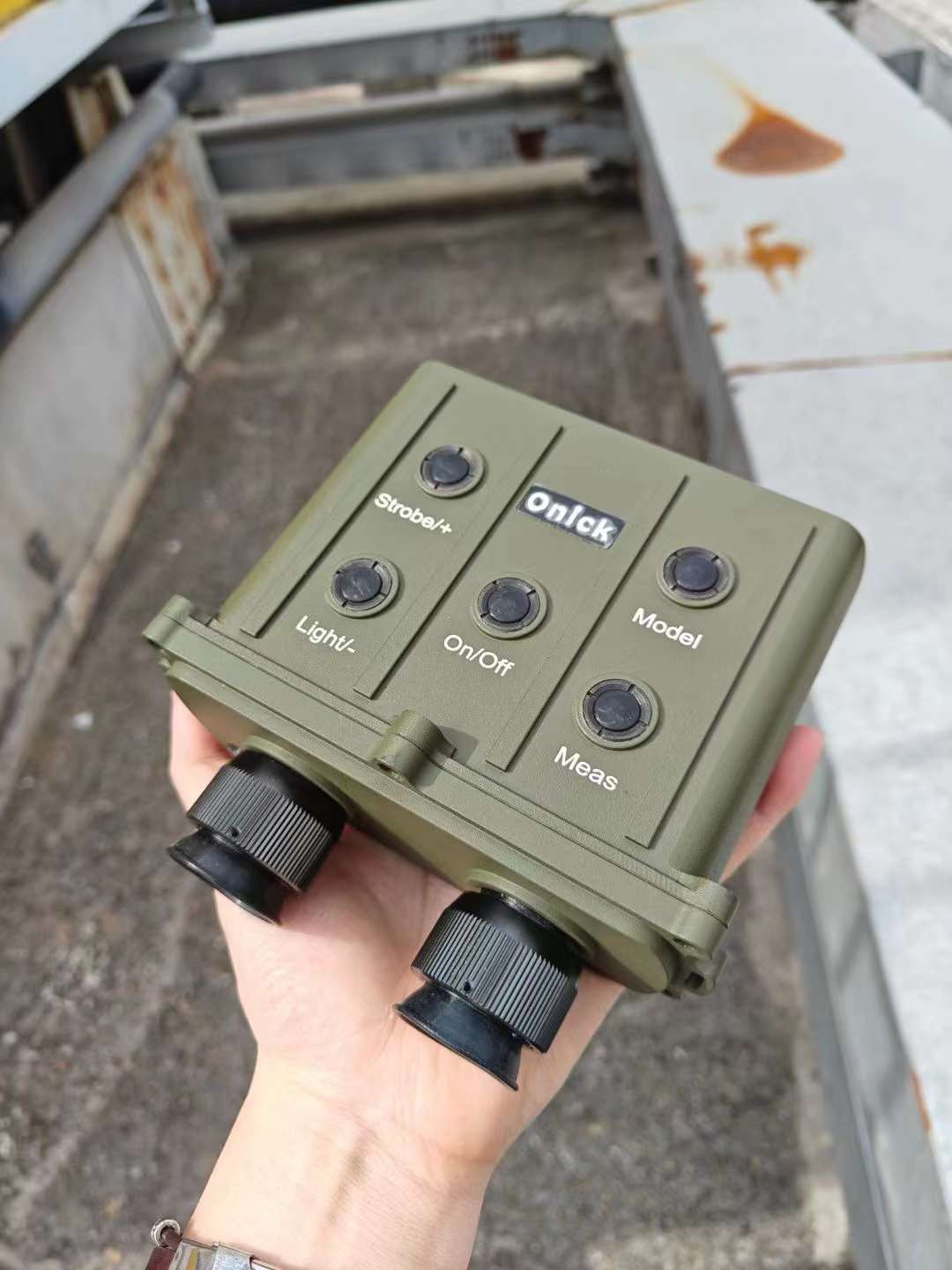

Onick CI series binocular laser rangefinder has been newly upgraded, with patent application number 202030826525.7. CI series binocular long-distance laser rangefinder can quickly measure, autofocus, measure distance, accurately calculate average value, and has powerful data storage function. Optional azimuth and pitch angle functions, wide range of functions, small size, easy to carry and easy to operate. It is widely used in industries such as rivers, waterways, benchmarks, telecommunications, cables, geological surveys, meteorology, airports, forests, etc.
1. Product features:
High-precision long-distance measurement up to 10,000 meters without reflectors, with an accuracy of up to 0.5 meters;
With gating function, the minimum range channel can be set; with average distance measurement function (AGV);
With standard RS232 serial port, it can also be equipped with Bluetooth and PDA, and the computer can be connected to transmit data;
It can store and view measurement data, with data sending, data retrieval, data deletion and lighting functions;
Optional with azimuth and pitch angle functions, displaying the horizontal distance and vertical distance of the target, and the pitch angle display range is ±45°; azimuth, azimuth is displayed for 360°, N000.0° is displayed in the north, and gradually increases to the east, with a maximum of N359.9°;
Application areas: power, industry, forestry, security, geological exploration, construction, outdoor hunting, camping and mountaineering, etc.
2. Technical parameters:
Model: 10000CI
Place of origin: Made in China
Date of listing: September 2019
Patent application number: 202030826525.7
Chinese brand: Onick English brand: Onick
1. Distance measurement parameters
Distance measurement range: 30~10000m
Distance measurement error: ±0.5m
Distance selection: 20~5100m (step length is 10m)
Accuracy: 98%
Repetition frequency: 1/6~1/3 Hz (10~20 times/min)
Compass accuracy: ±1 degree (optional)
Inclination accuracy: ±0.1 degree (within ±25 degrees) (optional)
⒉ Distance measurement function
Calculate the average value of measurement data
Measurement data storage (1000 data)
Measurement data transmission (output interface: RS232, 9600, 8, N, 1)
Display brightness and reticle illumination adjustment
Instrument working life statistics
Query the most recent ten distance measurement values
Query the serial number
Query the storage area data
⒊ Optical parameters
Receiving aperture: Φ30mm
Field of view of sight: 6.5°
Magnification of sight: 7X
⒋ Laser parameters
Wavelength: 1.064μm
Light source: Nd:YAG
Output energy: ≥5 mj
Working life: ≥20000 times
⒌ Working temperature: -20℃ ~ +50℃
⒍ Environmental adaptability: dustproof, waterproof, shockproof
⒎ Mechanical parameters:
Dimensions: 151mm*154mm*74mm
Weight: 1 Kg
⒏ Power supply
① This instrument uses two 3.7V, 3400mAh lithium batteries 18650. At room temperature, two fully charged batteries can measure distances for more than 3000 times.
Note: Each time the battery is reinstalled, it must be plugged in and charged and activated before it can be used normally! !
② For charging, insert the output plug of the power supply into the socket of the instrument, and then insert the plug of the power supply into the AC 100~240V power supply.
Electricity usually has the following two states:
State 1: Insert the charger in the off state, the instrument turns on, displays the LOGO, and then only displays the flashing battery symbol. When the battery is full, the battery symbol stops flashing. After unplugging the charger, the instrument automatically shuts down.
State 2: Insert the charger when turning on, the battery symbol flashes, the battery is full, and the battery symbol stops flashing, indicating that it is full. After unplugging the charger, the instrument operation is not affected.
9. Installation
It can be fixed on the camera stand through the 1/4 screw hole of the connecting plate at the bottom of the instrument, or connected to various theodolites through the dovetail groove of the connecting plate through a special adapter mechanism, and remote control distance measurement operation is performed through an external trigger cable.
Packing list: instrument box, rangefinder, 12V2A power supply, 18650 battery*2, external trigger cable, data cable, manual, warranty card, lens cleaning cloth
