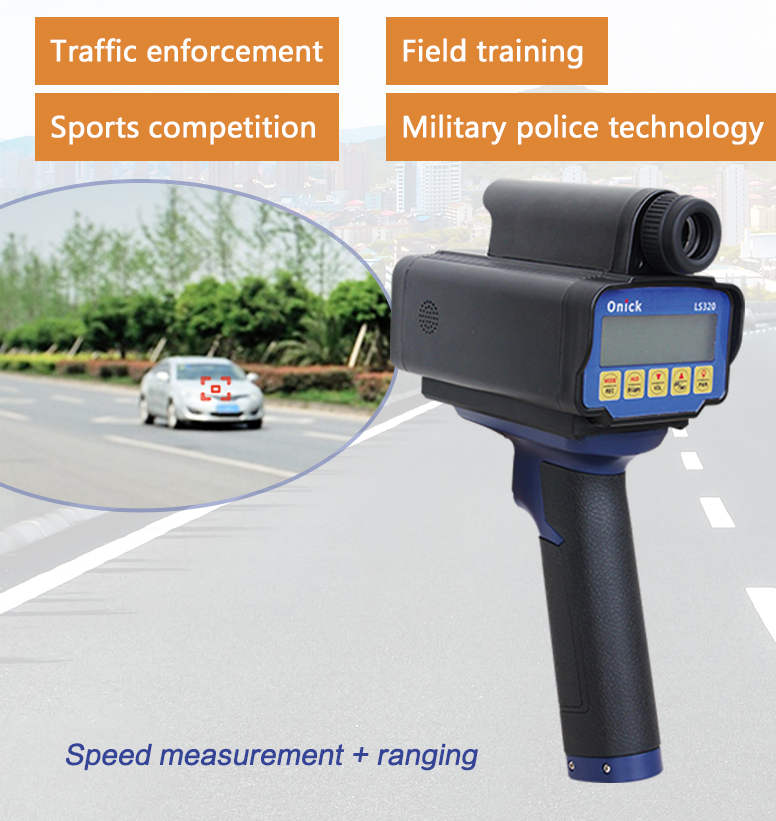

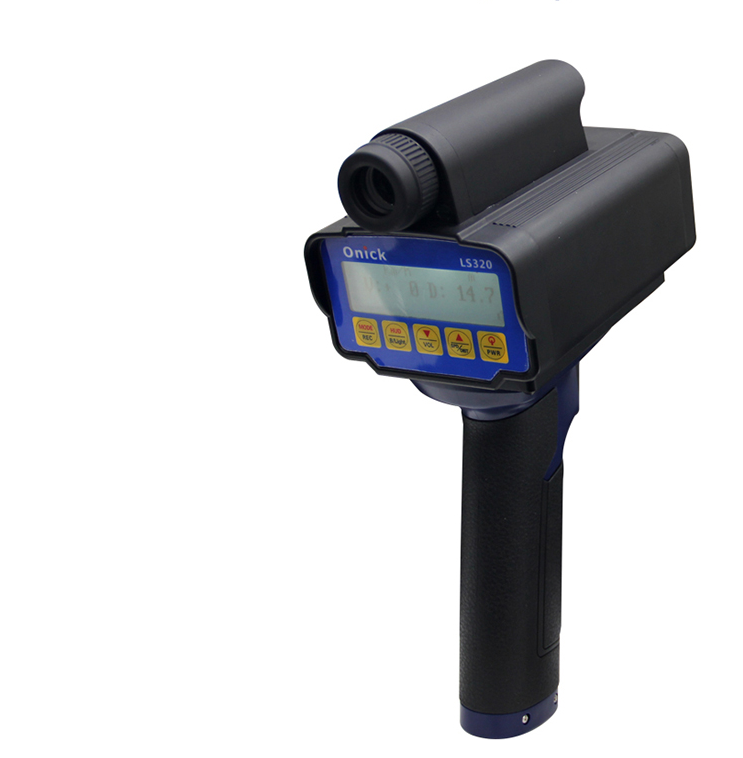

Onick Outdoor Optics integrates the most advanced laser speed measurement technology and video imaging technology to launch an ultra-portable laser speed measurement and recording system - Onick LSP320 handheld camera laser speedometer. It is also an integrated handheld laser speed measurement evidence instrument that can accurately measure the real-time speed of the car and the corresponding distance at the same time. It can capture static pictures of speeding vehicles and record videos. It can fully record the dynamic images of speeding vehicles, and it is light and easy to carry. This is the most advanced police speed measurement law enforcement equipment!
1. Product features:
4.3-inch color touch screen display, clear and convenient reading
Class 1 human eye safety laser
Speed measurement range 320 km/h, speed measurement accuracy 2 km/h, distance measurement accuracy 300 meters
With GPS function, voice prompts, humanized design
Support 16GB SD card, record dynamic images for law enforcement evidence
RS232 serial communication port; USB2.0 image data transmission
Novel design, compact style, light to use, high sensitivity, long-term work
Application areas: traffic law enforcement, field training, sports competition, military and police technology, etc.
2. Product parameters:
Performance
Best focus distance: 70 meters (230 feet)
Best operating range: handheld mode 15-90 meters (50-295 feet)
Tripod mode 15-100 meters (50-328 feet)
Speed measurement accuracy: ±2 km/h, ±1 mph
Speed measurement range: 0 km/h~320 km/h; 0 mph~200 mph
Distance measurement accuracy: ±30 cm, ±12 inches
Speed display resolution: 1 km/h, 1 mph
Distance display resolution: 1 meter, 1 foot
Minimum speed measurement distance: ≤10 meters in measurement mode, 60 meters in weather mode (automatic software recognition)
Maximum distance measurement distance: 600-700 meters in speed measurement mode; 1200 meters in distance mode
Speed measurement time: 0.33-0.67 seconds
Speed measurement unit: kilometers per hour/miles per hour/meters per second
Distance measurement unit: meters/feet/yards
Laser wavelength: 905 nanometers
Laser beam divergence: 2.5 milliradians
Eye safety: FDA Class1 (CFR21)
Mechanical structure
Body weight: 1.55 kg
Dimensions: 197X124X316 mm
Environment: IP65 waterproof/dustproof
Operating temperature: -10~+60℃ (14~140℉)
Charging temperature: 0~+45℃ (32~113℉)
Storage temperature: -20~+60℃ (-4~140℉)
Hardware
Processor: ARM DM368
Snapshot data storage: pluggable SD card, 16GB
SD file system format: MS-DOS (FAT16, FAT32)
Linux (EXT2, EXT3)
Display: 4.3 inches (10.9 cm), 480X272 pixels, color, touch screen
Camera: 2 million high-definition industrial CCD camera (1600X1200)
Camera lens: 75 mm, fixed focus
GPS
Receiving channels: 20
Maximum update rate: 1Hz
Maximum altitude: 18,000 meters (59,000 feet)
Maximum speed: 515 meters/second ( 1689ft/sec)
Sensitivity: Acquisition -142dBm, Tracking -159dBm
Acquisition Time: Hot Start 1 second
Cold Start: Less than 60 seconds
Reacquisition: <1.5 seconds
Accuracy: Horizontal Position
Average: 5 meters (7.2 feet)
Maximum: 10 meters (32.8 feet), spontaneous; 5 meters (16.4 feet), SBAS correction
Vertical Position: Average 0 meters (0 feet); Maximum 15 meters (49.2 feet); Horizontal Velocity 0.1 meters/second (0.3 feet/second); Time Accuracy: Synchronized with GPS; 1 microsecond
Real Time Clock: CR3032 Battery Backup 20PPM, 3 years without battery pack
I/O: RS232 serial communication port; USB2.0 image data transmission; resistive touch screen input; 6-button input (including trigger)
Power
Battery pack: 7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, providing 5-7 hours of operation
Battery charger: 110vac~240vac 50/60Hz input
Power consumption: 5 watts
Software
Operating system: Linux operating system, customized device driver
Anti-interference: automatic anti-interference
Video size: standard format, 640X240 pixels
Still picture size: 1600X1200 pixels
Maximum record size: unlimited, related to memory
Data encryption: AES-128
Others
Measurement mode: continuous, locked, automatic, video tracking mode, ranging mode, video mode
Voice prompt: speed and sound synchronization
Language: English, Chinese
