The short circuit problem between the plates of the electrolytic cell has always been a common fault in the electrolytic smelting industry, which seriously affects the electrolytic efficiency and the grade rate of the smelted metal, and brings great troubles to the production process. In order to solve this problem, onick Optoelectronics launched an infrared thermal imaging electrolytic cell online monitoring system to help enterprises produce.
Application background

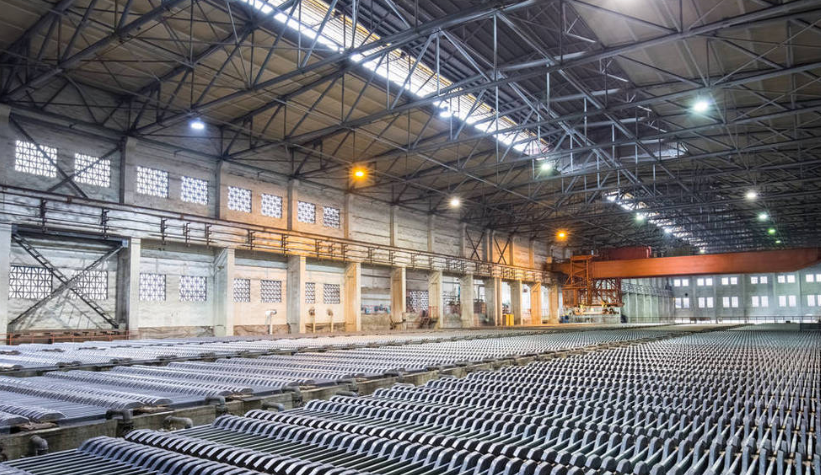

In the electrolytic smelting industry, factories generally have hundreds of electrolytic cells, each of which consists of dozens of pairs of positive and negative plates. However, in the actual working process, the positive and negative plates may short-circuit and cannot produce normally, which will not only cause waste of electricity, but also often be accompanied by dangerous situations. The traditional electrolytic cell fault detection method has low accuracy and efficiency for fault detection, and cannot provide enterprises with accurate fault information and the best time for equipment maintenance, which can easily cause large-scale fault shutdown accidents in production enterprises. Using infrared thermal imaging, comprehensive, accurate, real-time, and automatic early warning online monitoring of electrolytic cells can be achieved, which can timely detect equipment failures and repair them, extend the service life of equipment, and ensure the continuous and stable production of enterprises.
Application of infrared thermal imaging in electrolytic cell monitoring

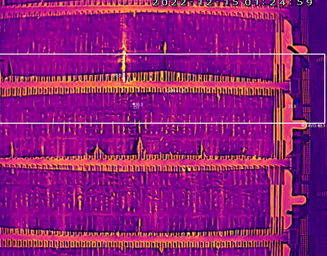

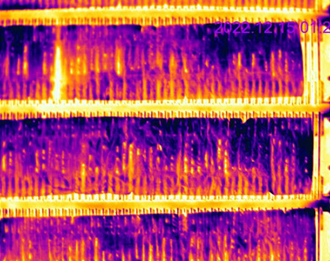

onick photoelectric electrolytic cell infrared thermal imaging online monitoring system determines the specific location of the short circuit between the plates by detecting the plate temperature. The infrared thermal imager is used to collect the infrared thermal image of the electrolytic cell, and the computer processes the infrared thermal image to obtain the pixel points with abnormal temperature. The background analysis software is used to analyze and process the actual fault electrode, that is, the position of the temperature point that is too high, so as to find the position of the plate short circuit fault in the actual detection area for fault resolution. The software setting and connection alarm can also be used to realize real-time alarm of over-temperature.
Composition of infrared thermal imaging electrolytic cell monitoring system
The infrared thermal imaging electrolytic cell monitoring system consists of a central monitoring management system, a transmission system, an infrared thermal imaging system, a power supply system, and an audio-visual alarm system.
Central monitoring management system
Mainly realizes the image display, video control, remote control, network transmission, system control management, fire warning and database management of video signals, and provides real-time images of the scene to the command room personnel.
Transmission system
Provides networking capabilities for system interconnection and information exchange. Combined with the actual situation on site and the characteristics of the product, the system adopts network cable transmission to complete the transmission requirements in real time and quickly.
Infrared thermal imaging system
Real-time monitoring of temperature changes in the area, automatically captures the highest temperature of objects in the field of view; provides early warning signals, and automatically alarms when the set alarm temperature rise is exceeded.
Power supply system
Provides basic power guarantee for system operation to meet normal power supply needs.
Sound and light alarm system
Through the output interface behind the thermal imager, an external relay is connected. There is 1 relay output and 1 input. The output can be connected to an external sound and light alarm. The input supports level detection and can be linked to the alarm.
Function of infrared thermal imaging electrolytic cell monitoring system
Real-time monitoring function
(1) Real-time display of full radiation thermal map. The on-duty personnel can view the temperature at any location, record, take pictures, analyze abnormal conditions, and issue professional inspection reports
(2) The software can observe the real-time temperature curve of the global temperature and the specified temperature measurement object, so as to make trend judgments. High temperature warning function
(1) The system can define different temperature alarm thresholds and temperature rise alarm thresholds, and quickly alarm when the temperature in the monitored area exceeds the threshold.
(2) When an alarm occurs, the data of the alarm period will be automatically stored, and query conditions can be set for quick query, which is convenient to operate.
Offline analysis function
Record alarm temperature data and real-time image data, and the stored data can be retrieved and analyzed offline.
