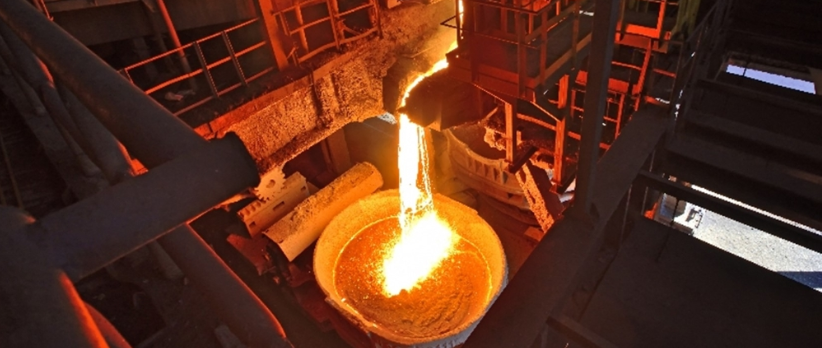

Casting is one of the common process flows in steel smelting. The temperature of the molten iron directly affects the quality of the finished steel products and the cost of production. Infrared thermal imaging can monitor the temperature of the molten iron in real time and accurately, which is of great significance for improving production efficiency, optimizing production processes and saving energy.
Pain points of traditional temperature measurement methods
Compared with infrared thermal imaging, traditional contact temperature measurement methods such as thermocouples and thermal resistors have many disadvantages:
1. During the measurement process, the characteristics and heat transfer methods of the measured object will affect the measurement results. Since the heat transfer process takes time, the temperature sensing element needs to wait for thermal equilibrium with the measured target to accurately measure the temperature, which may lead to insufficient dynamic response capabilities.
2. The contact temperature measuring element directly inserted into the measured target will affect the temperature field of the target, resulting in inaccurate measurement.
3. Temperature sensing elements are easily affected by the measurement environment, especially in high temperature or corrosive media, which will shorten the service life of the temperature sensing element, reduce the measurement accuracy, and may even make it impossible to measure.
ONick Photoelectric Infrared Thermal Imaging
Advantages in Temperature Monitoring of Casting Molten Iron
☑Non-contact temperature measurement: does not affect the temperature distribution of the measured target and the normal production process;
☑High sensitivity: can sense subtle temperature changes, high temperature measurement accuracy, and intuitive and visual temperature measurement results;
☑Fast response speed: real-time acquisition of on-site conditions, stable operation under complex conditions such as high temperature and dust;
☑Wide temperature measurement range: can detect high-temperature targets up to 1500℃; with AItemp professional temperature measurement algorithm, clear imaging.
ONick Photoelectric Infrared Thermal Imaging
Application in Temperature Monitoring of Casting Molten Iron

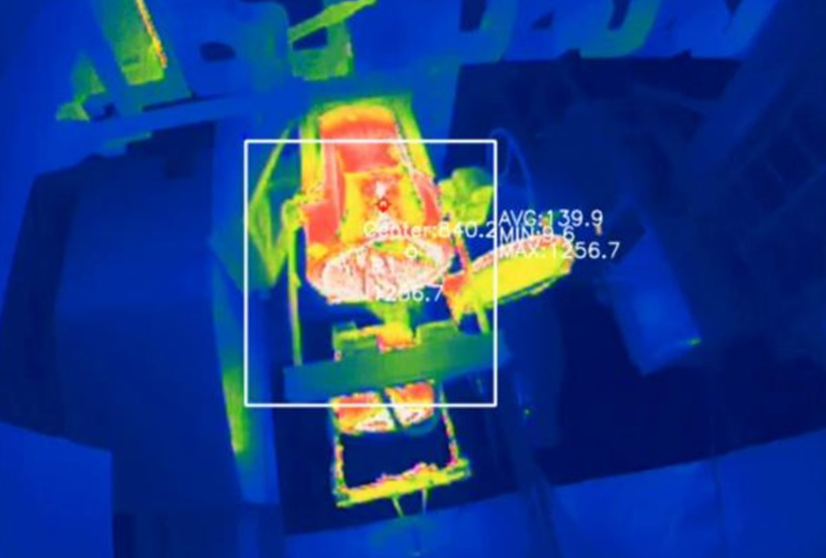

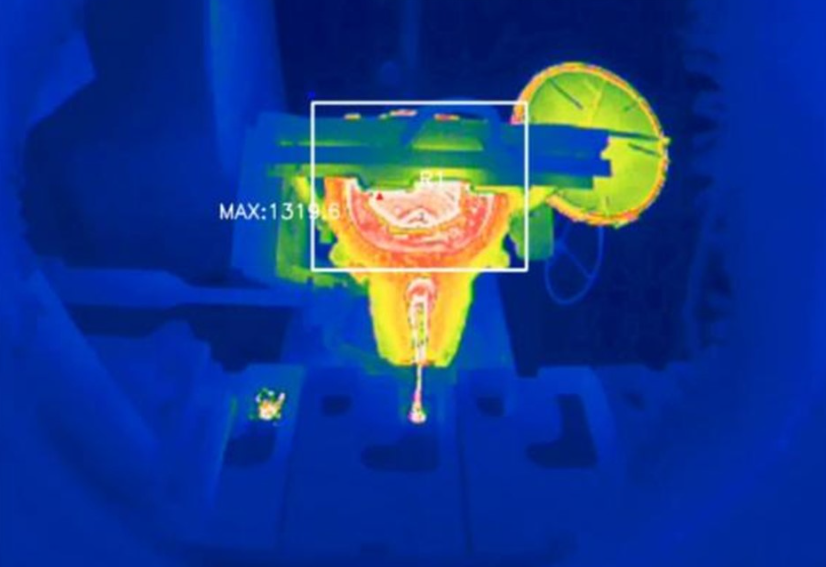

Install the ONick infrared thermal imager on the casting platform, aim at the molten iron between the pouring port of the casting machine and the sandbox, and monitor the molten iron temperature in real time. The data will be transmitted back to the monitoring room through a dedicated monitoring computer, and the operator can remotely view the real-time temperature of the cast iron through the display. Once an abnormal temperature is detected, an alarm will be issued immediately so that the staff can adjust the pouring temperature in time to minimize the phenomenon of unqualified castings.
(1) Ultra-wide temperature measurement range:
ONick photoelectric infrared thermal imaging has an ultra-wide temperature measurement range of 0~1500℃, ensuring that the molten iron temperature is within the temperature measurement range and improving the temperature measurement accuracy.
(2) Unified management:
Supports networking of multiple infrared thermal imaging devices, unified management through industrial temperature measurement monitoring system software, and simultaneous viewing of multiple monitoring screens to improve monitoring efficiency.
(3) Real-time monitoring:
Infrared thermal imaging equipment can monitor temperature changes in the target area in real time, realize real-time reading of temperature data, and effectively prevent potential temperature abnormalities.
(4) Safe and economical:

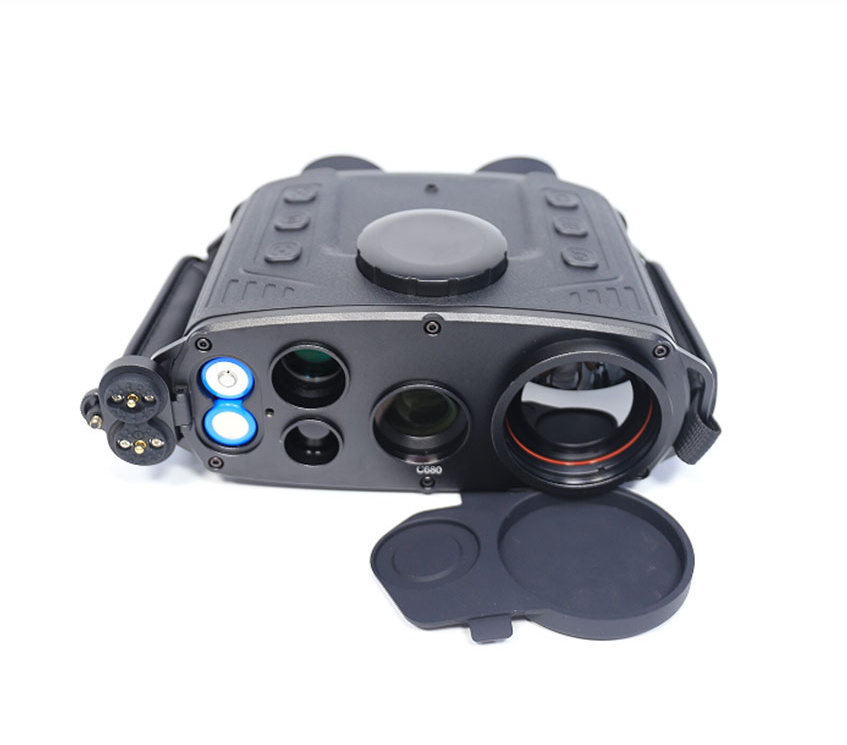

Infrared thermal imaging uses non-contact temperature measurement to ensure that the measured object and normal production process are not affected. At the same time, remote monitoring of on-site conditions ensures the safety of monitoring personnel, and the cost of manual inspection is low. In addition, ONick photoelectric infrared thermal imaging equipment is small in size, easy to install and deploy, and reduces construction costs.
(5) Scientific and efficient: The temperature measurement tools are flexible and diverse, quickly obtaining the temperature distribution in the target area, automatically locating the highest temperature point and data, intuitively displaying the precise location of the problem point, and improving work efficiency.
