Onick AM-950 Wildlife Infrared Monitoring Camera without MMS uses imported Magnesium sensor 5100 5MP sensor, the instrument responds quickly, the image is clear, and the color is true. It is equipped with 52 950nm high-power LEDs, which are invisible to the naked eye and have an effective night vision distance of 20 meters at night. Users can number and name the camera. This information will be displayed in the watermark information below the photo, which is convenient for users to distinguish the camera.
Infrared sensor, PIR sensor, photoreceptor
The working principle of hunting hunting camera is mainly based on infrared sensor and PIR sensor.
Infrared sensor
Infrared sensor is an important part of passive infrared monitoring camera. It can detect sudden changes in heat and infrared energy in the front. When a warm-blooded animal passes through the device, the temperature difference between the animal's body temperature and the ambient temperature causes the heat around the camera to change. This temperature (heat) change is received by the infrared sensor, generating a pulse signal, triggering the camera to take pictures1.
PIR sensor
PIR sensor is a human activity sensor based on infrared technology, which can sense infrared radiation of 8~14 microns. When human or other warm-blooded animal activity is detected, the PIR sensor triggers the camera to take photos or record videos.
Product parameters:
Image sensor: 12MP
Trigger speed: 0.2 seconds
Sensing distance: 25 meters
Sensing angle: 120°
Photo size: 5MP/8MP/12MP =2592x1944/3264x2448/4032x3024
Video resolution: 1080P (1920x1080): 30FPS, 720P (1280x720):30FPS, 640x480
Video compression: H.264
Infrared light distance: 20 meters
LED lights: 52 950nm
Supported storage card capacity: up to 32GB
Number of buttons: 7
Lens: F=1.8 6-layer glass lens
Display: 2-inch color HD screen
Start-up logo: Onick
Sensor sensitivity: high/medium/low
Video length: 5-30 seconds (optional)

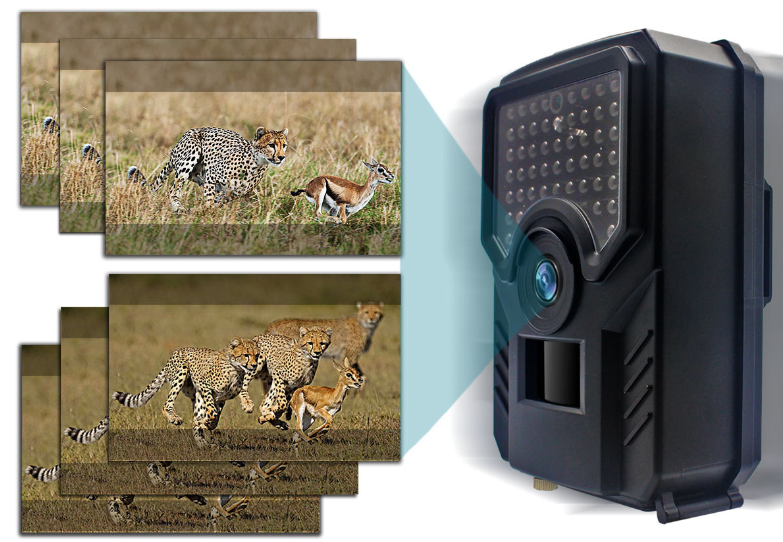

Continuous shooting: 1-3 photos
Sensor interval: 3 seconds-60 minutes (optional)
Static shooting interval: up to 24 hours (optional)
Camera number: supported
Camera working time period: 2 can be set
Built-in speaker: can play sound
SD card: recyclable
Support AA batteries: 12
Standby time: 12 months
Working temperature: -40℃ to +60℃
Waterproof and dustproof: IP66
Size: 13*9.5*16cm (length, width and height)
Weight: 0.8KG (excluding battery)
Language: Chinese
Day mode: color photos and videos
Night mode: black and white photos and videos
Accessories: camera, product manual, warranty card, paper manual, strap, USB cable
Packing parameters:
Weight per box: 0.3KG
Packing size: 16*11.8*8.9CM
Quantity per box: 40pcs
Weight: 12.5 KG
Size: 45*33*48CM
