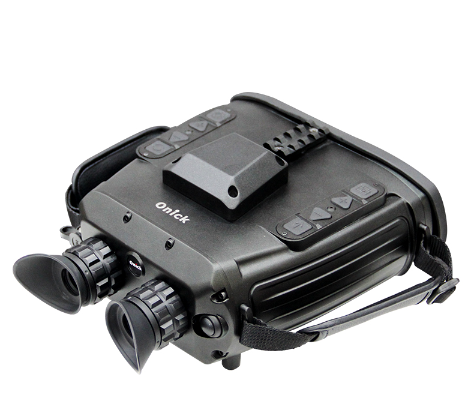

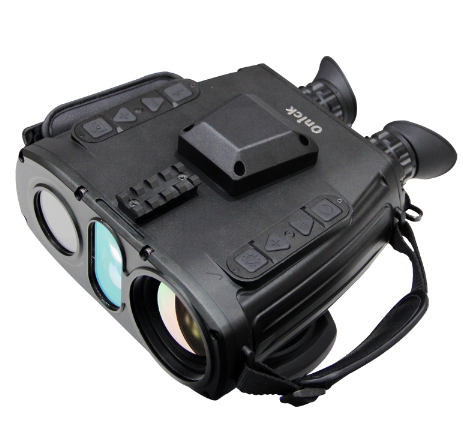

Onick RE512 multi-function handheld infrared night vision observation device is composed of infrared thermal imaging, high-magnification low-light visible light camera, laser rangefinder, Beidou positioning module, electronic compass, WIFI, dual OLED eyepieces and other devices. It is a day and night instrument. The product appearance and structure design conforms to the ergonomic optimization design.
Application areas: special forces such as public security, armed police, and the army can achieve effective all-weather observation of specific areas or targets, and quickly discover, identify and track targets of concern; it is also suitable for water conservancy rivers, fire protection, electricity, and petroleum industries to achieve day and night monitoring of specific areas or equipment.
Product parameters
1. Infrared thermal imaging display resolution: 640*512
2. Infrared working band: 8~14um (micrometer)
3. Infrared lens focal length: 65m±2mm
4. Field of view: ≥5.75°X4.30°
5. Noise equivalent temperature difference NETD: ≤35mk
6. Thermal imaging detector pixel spacing: ≤12 microns
7. Image frame rate: ≥50HZ
8. Display: binocular OLED 0.49-inch display
9. Electronic magnification: Thermal imaging video has electronic magnification 1-8 times configurable options
10. Thermal imaging focus mode: electric focus and automatic focus
11. Infrared thermal image: has 7 display modes including brown, black heat, white heat, ice heat, iron red, rainbow, mixed, etc.
12. Equipment function control buttons: ≥8
13. Main functions of the device: zoom, focus, image switching, screen brightness adjustment, laser ranging, photo taking, and video recording can all be controlled directly by buttons without entering the secondary menu selection
14. Positioning function: Through the Beidou positioning module, electronic compass, and laser rangefinder, the target and the self can be positioned. Two coordinates can be displayed on the screen
15. Low illumination visible light resolution: 1920x1080
16. Low illumination visible light camera image resolution: up to 1080P/60fps
17. Low illumination visible light camera minimum working illumination: 0.0001Lux
18. Low illumination visible light camera lens focal length: f=6. 0mm to 216m (±5mm)
19. Low illumination visible light camera optical magnification: 1-36 times zoom
20. Low illumination visible light camera electronic magnification: 8-32 times zoom
21. Low illumination visible light camera focus mode: electric, manual, automatic
22. The device is equipped with a Picatinny rail for multi-functional expansion
23. It has image detail enhancement setting function, and digital image detail enhancement has 0-64 level setting options
24. Built-in laser rangefinder, with laser ranging function: ranging distance ≥ 2000 meters
25. Observation distance: Under the condition of atmospheric visibility of 30 kilometers, the detection distance for people can reach ≥3 kilometers during the day and ≥1.5 kilometers at night
26. External interface: The device is equipped with an aviation plug interface, which can output real-time video, external power supply, and external control
27. It can output digital network video signals and support standard RTSP streaming
28. It has a fog penetration setting option, with 4 adjustable fog penetration levels, and an image stabilization setting option, with 3 adjustable stability levels
29. In the hot state, the device takes no more than 2 seconds to self-position and no more than 1.0 second to locate the target
29. Host weight: ≤2.7kg (including battery)
30. Powered by lithium battery, and the continuous working time is ≥8 hours
31. Wireless transmission function: It can be connected to the self-organizing network radio station for wireless transmission without public network for long-distance image transmission
32. System text color setting function, the system menu color can be set to 7 colors such as white, blue, red, purple, green, cyan, and yellow
33. Switch button: The switch button can be pressed continuously for ≥500 times and can work normally
34. Charging plug connection reliability: The charging plug can be pulled out by finger for ≥500 times without deformation and can charge normally
35. Low temperature performance: -40℃+2℃, lasting for 2h, can work normally
36. High temperature performance: 55℃±2℃, lasting for 2h, can work normally
37. Shell protection level: ≥IP65
