Binocular laser rangefinder is a binocular that combines observation, measurement, and high-definition distance.
The Onick ARC series allows you to know exactly how far away you are from the target while using binoculars, no longer just a rough estimate of the distance. The advanced optical system ensures clear and sharp images. Onick ARC 8x42 is the ideal companion for the most commonly used distances. You can easily obtain stable and excellent image performance.
1 Application
The binocular laser rangefinder (hereinafter referred to as the rangefinder) combines the functions of an ordinary telescope and a laser rangefinder. While observing an object, it can measure the distance of an object within a certain distance range. It has the characteristics of fast distance measurement time, intuitive distance display, low power consumption, and automatic power off when not in use.
The laser emission power of this rangefinder is small and safe for human eyes; it can measure the distance of any object without a cooperative target; it is small in size, beautiful in appearance, light in weight, and easy to carry; it uses a 3V battery in the machine, which is easy to replace. Using the "RAIN" mode, the distance measurement will not be affected even in rainy days; using the "＞150" mode, the influence of small targets such as close-range wires and branches can be eliminated.
This rangefinder is widely used for distance measurement in sports and outdoor activities such as golf and hunting; it is also widely used for distance measurement of electric poles, bridges and construction sites;

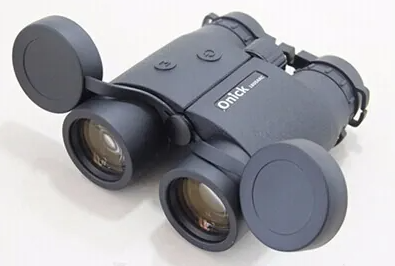

It can also be used for general topographic measurement, storage measurement, etc. See Figure 1 for the appearance diagram of the rangefinder.
1 — Telescope eyepiece (in-field distance display)
2 — Trigger button
3 — Mode button
4 — Battery cover (back)
5 — Laser receiving lens
6 — Laser emitting lens
7 — Center axis adjustment handle
8 — Left and right diopter adjustment handle
Onick ARC binocular laser rangefinder user manual
2 Main performance
2.1 Distance range: 5-1200 m, 5-1500, 5-1800;
2.2 Distance measurement method: semiconductor laser distance measurement (harmless to human eyes);
2.3 Distance measurement error: ±1m ±0.1%;
2.4 Distance measurement display method: LCD display in the field of view;
2.5 Effective lens aperture: 42 mm;
2.6 Film system: multi-layer film coating;
2.7 Exit pupil diameter: 7 mm;
2.8 Exit pupil distance: 16 mm;
2.9 Focusing mode: center axis focusing;
2.10 Telescope magnification: 8X;
2.11 Field of view at 1000 m is 122 m (field of view 7°);
2.12 Distance measurement mode: RAIN, RELF, >150, no display (standard mode);
2.13 Power supply: 3V (not included);
2.14 Dimensions: 173X135X64mm;
2.15 Weight: 1279g;
2.16 Waterproof: rainproof.
3 Symbols and functions
3.1 The distance measurement symbol in the rangefinder is shown in Figure 2.
Instruction manual for Onick ARC binocular laser rangefinder
Figure 2
3.2 Aiming mark: In the center of the field of view, indicated by "○", use the center circle to aim at the target when measuring distance.
3.3 Distance display: Four digits above the display field; when there is no distance, it displays: "- - - -".
3.4 Distance unit: In the upper right corner of the display field, it is indicated by "M" (meters) or "Y" (yards).
3.5 Distance measurement mode: In the upper left corner of the display field, there are four states:
(1) No letters displayed - standard state;
(2) "RAIN" - suitable for distance measurement on rainy days, and the target distance is >60m;
(3) "REFL" - suitable for misty days or weather with severe moisture;
(4) "＞150" - suitable for targets with interference within 150m (such as power lines, branches, etc.). In this case, the target to be measured must be greater than 150m.
3.6 Distance measurement quality: Indicated by "QUALITY" below the display field. The more " ", the stronger the echo. Generally, 6 are displayed, and the distance can be displayed. If there are less than 6, the echo is weak and the distance cannot be displayed.
3.7 Laser emission: In the lower left of the display field, "LASER" is used to indicate that the laser is emitted. "LASER" flashes.
3.8 Battery undervoltage: In the lower right of the display field, when " " is displayed, it indicates insufficient voltage. When the laser rangefinder automatically shuts down or cannot be turned on normally, the battery must be replaced.
Figure 2
3.2 Aiming mark: In the center of the field of view, "○" is used to indicate that the target is aimed at with the center circle when measuring distance.
3.3 Distance display: In the upper right of the display field, four digits; when there is no distance, "- - - -" is displayed.
3.4 Distance unit: In the upper right of the display field, "M" (meter) or "Y" (yard) is used to indicate.
3.5 Distance measurement mode: There are four states in the upper left corner of the display field:
(1) No letters displayed - standard state;
(2) "RAIN" - suitable for distance measurement on rainy days, and the target distance is >60m;
(3) "REFL" - suitable for misty days or severe moisture weather;
(4) "＞150" - suitable for targets with interference within 150m (such as power lines, branches, etc.). In this case, the target to be measured must be greater than 150m.
3.6 Distance measurement quality: It is indicated by "QUALITY" at the bottom of the display field. The more " ", the stronger the echo. Generally, 6 are displayed, which means that the distance can be displayed. If there are less than 6, it means that the echo is weak and the distance cannot be displayed.
3.7 Laser emission: It is indicated by "LASER" at the bottom left corner of the display field. When the laser is emitted, "LASER" flashes.
3.8 Battery undervoltage: When “ ” is displayed at the lower right of the display field, it means the voltage is insufficient. When the laser rangefinder automatically shuts down or cannot start up normally, the battery must be replaced.
5 Precautions for use
5.1 Do not disassemble the rangefinder to avoid damaging the internal circuit.
5.2 Do not wipe the glass surface with your hands, please use a special lens cleaning cloth. Wipe the outer surface with a soft cloth.
5.3 Do not install the battery upside down.
5.4 Remove the battery when not in use for a long time.
5.5 Store in a dry place when not in use.
5.6 Use at a temperature range of -20℃ to +40℃.
5.7 Do not use two buttons at the same time.
5.8 Only qualified personnel can repair this laser rangefinder. Please do not disassemble and repair it privately, otherwise the promised after-sales service terms will no longer be valid.
