The rare all-round "measurement star" in your pocket

You have been looking for it for thousands of times, and now it is in front of you

Everything is under control, Onick Measurement Star!

The birth of the Onick AS series makes up for the single defect of people in choosing product functions. This AS series laser rangefinder can not only help you measure distance, height, and angle, but also measure the regular target area. Its external color LCD screen allows you to easily read data even in a dark environment. Everything is under control, Onick Measurement Star.

1. Product features:

Accuracy can reach 0.5 meters

Integrates distance measurement, height measurement, angle measurement, and area measurement

With dual reading data display and external color LCD screen

Clear blue screen display, suitable for use in dark light environments

Sensitive measurement, clear target, simple and stable operation

The laser emission power is low and safe for human eyes

Application areas: power, industry, forestry, security, geological exploration, construction, outdoor hunting, camping and mountaineering, etc.

2. Product parameters:

Range: 5m-1200m

Distance error: ±0.5m (usually within 200)

Height measurement: yes

Tilt angle accuracy: ±1°

Magnification: 6x

Objective diameter: 21mm

Field of view: 7.2°

Exit pupil diameter: 3.8mm

Eye point distance: 16mm

Distance display mode: LCD/1.8-inch color LCD display in the field of view

Focus mode: eyepiece focus

Meter/yard display: yes

Operating temperature: -20~+60℃

Battery type: CR2-3V lithium battery

Product size: 97x35x73mm

Product weight: 166g

Product function: measure two-point slant distance, horizontal distance, tilt angle, height, rectangular area, circular area (diameter)

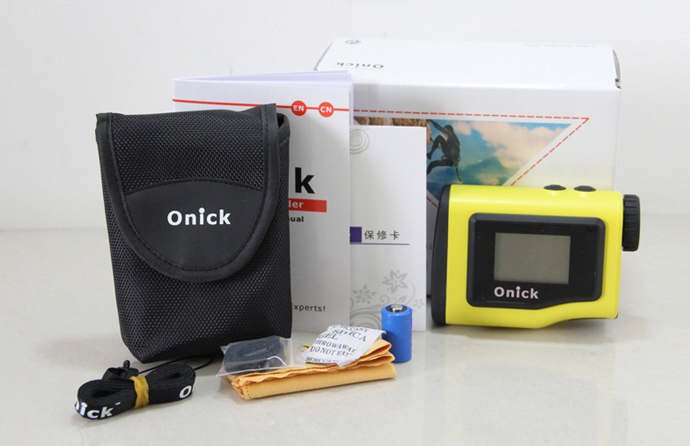

Standard accessories: host, portable bag, shoulder strap, manual, warranty card, lens cleaning cloth

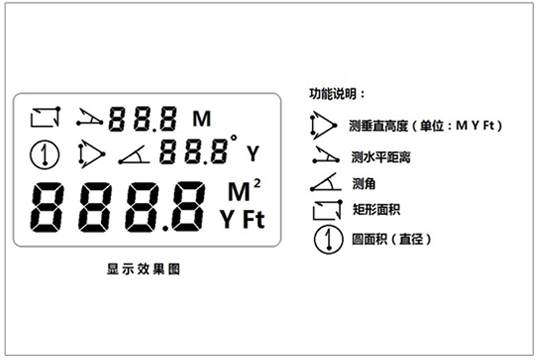

3. Main screen mode:
