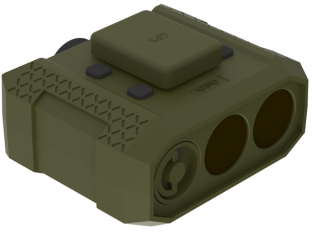

All-round multi-function long-distance high-precision laser rangefinder

Onick Optics has launched another new masterpiece! Onick 5000X is a full-range multi-function long-distance portable laser rangefinder with laser distance measurement, height measurement, angle measurement, speed measurement, span (any two points in space), GPS function (detachable GPS), current point, target point positioning, air pressure, temperature, area, volume measurement, Bluetooth, USB, Typec interface and other powerful functions. The performance and accuracy can meet your high demands in various working environments!

At the same time, Onick 5000X uses a military-grade metal shell while ensuring the excellent use of the product. It is durable, compact and lightweight. 5000X has a transparent and clear OLED LCD two-color display with black and red font switching. The red font is used in a darker environment, and you can read accurate measurement data while aiming at the target. The innovative lens coating and high light transmittance make the observation effect clearer.

1. Product features:

1. Measuring distance 5000m, accuracy 0.1m

2. Powerful functions, ranging, height measurement, angle measurement, speed measurement, span (any two points in space), sag measurement

3. With azimuth and GPS function (detachable GPS), display current point, target point positioning

4. Temperature, humidity detection, air pressure and altitude detection, area and volume measurement

5. With Bluetooth, support APP data transmission, APP control measurement, USB Typec interface, OLED black, red two-color display

6. Ergonomic design, compact and lightweight

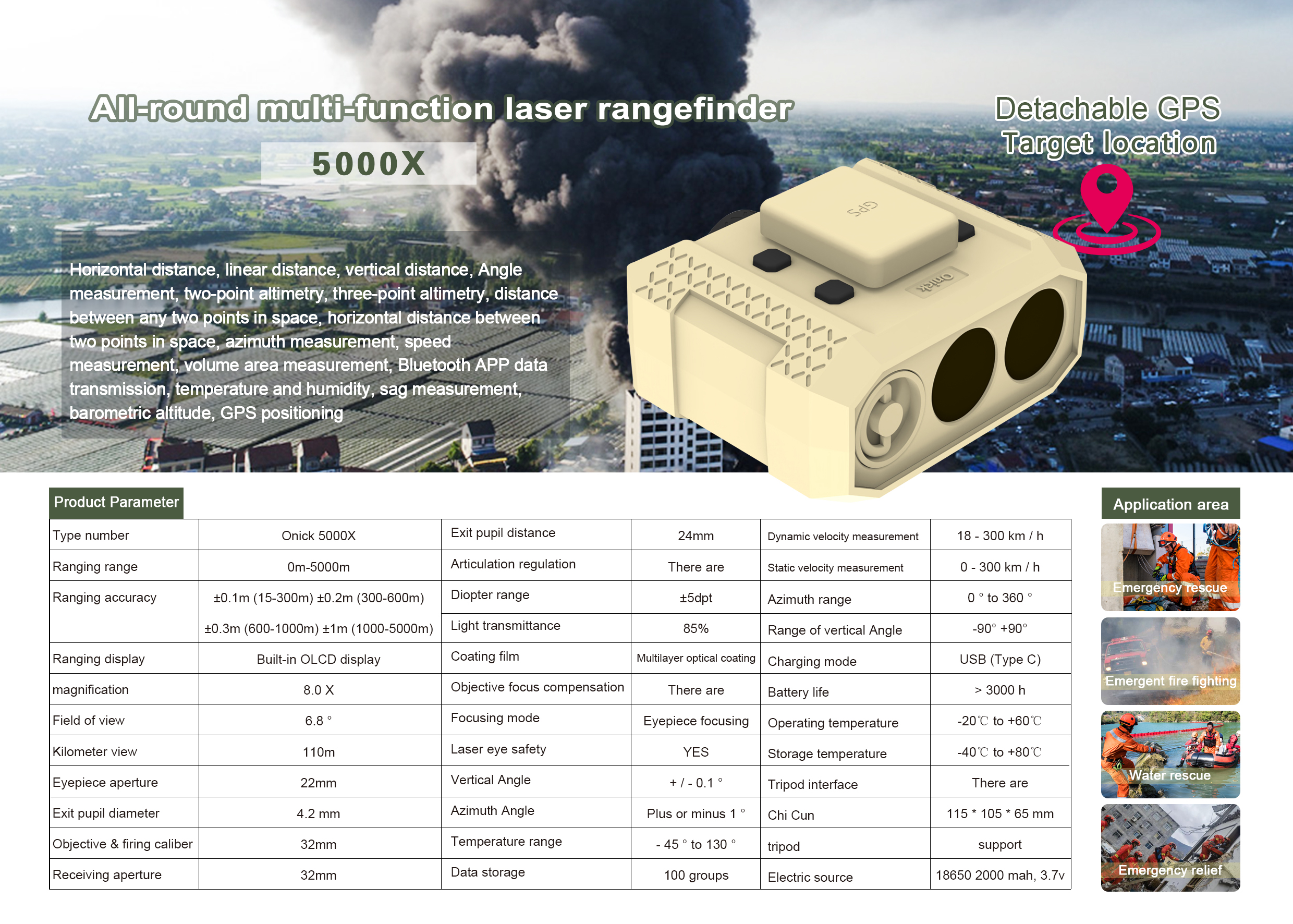

2. Technical parameters

Model: Onick 5000X

Range: 0m-5000m

Range accuracy: ±0.1m (15-300m) ±0.2m (300-600m) ±0.3m (600-1000m) ±1m (1000-5000m)

Distance display: built-in OLCD display

Magnification: 8.0X

Field of view: 6.8°

Kilometer field of view: 110m

Eyepiece aperture: 22mm

Exit pupil diameter: 4.2mm

Objective lens & transmitting aperture: 32mm

Receiving aperture: 32mm

Exit pupil distance: 24mm

Clarity adjustment: Yes

Diopter range (diopter): ±5 dpt

Transmittance: 85%

Coating: Multi-layer optical coating

Objective lens focus compensation: Yes

Focus method: Eyepiece focus

Laser eye safety: Yes

Vertical angle: ±0.1°

Azimuth: ±1°

Temperature measurement range: -45°-130°

Data storage: 100 groups

Dynamic speed measurement: 18-300km/h

Static speed measurement: 0-300km/h

Azimuth range: 0 degrees-360 degrees

Vertical angle range: -90 degrees +90 degrees

Charging method: USB Type interface

Battery life: >3000h

Working temperature: -20C to +60C

Storage temperature: -40C to +80

Tripod interface: Yes

Size: 115*105*65 mm

Measurement function: horizontal distance, straight distance, vertical distance, angle measurement, two-point height measurement, three-point height measurement, distance between any two points in space, horizontal distance between two points in space, azimuth measurement, speed measurement, volume area measurement, Bluetooth APP data transmission, temperature and humidity, sag measurement, air pressure altitude, GPS positioning

Tripod: Support

Power supply: 18650 2000mah, 3.7v
