Border defense work is vital to national security, as it is related to national sovereignty and territorial security. In border areas, complex terrain and weather conditions bring considerable difficulties to the patrol and vigilance work of border guards. Especially at night, low visibility and dim light seriously negate the combat capability of border defense forces. In order to solve this problem, various instruments are used. Infrared thermal imaging night vision devices are more suitable for the border defense industry. In this field, the demand for binocular infrared thermal night vision devices is also relatively large, mainly for water rescue, border monitoring, border patrol, etc.

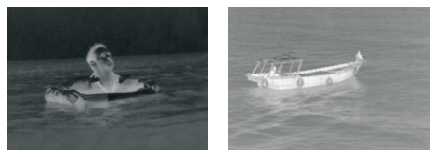

1. Water rescue
Infrared thermal imagers can detect overturned ships and people falling into the water in time, winning precious time for water rescue.

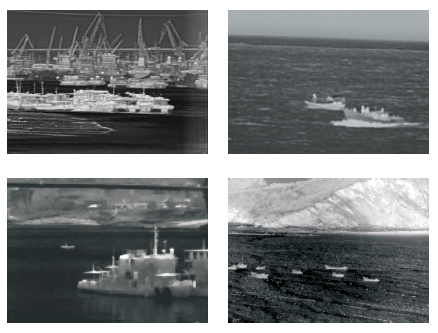

2. Border inspection station monitoring
Infrared thermal imagers can dynamically monitor offshore anchorages, ships, etc. through rain, fog, night and other harsh weather conditions, improving border monitoring and management efficiency.

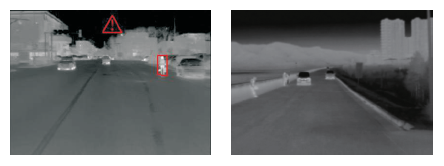

3. Border patrol
Infrared vehicle-mounted thermal imagers can monitor illegal activities such as drug trafficking and smuggling at land borders at a long distance under harsh weather conditions, and stop or arrest them in time to improve border security.
Border patrol

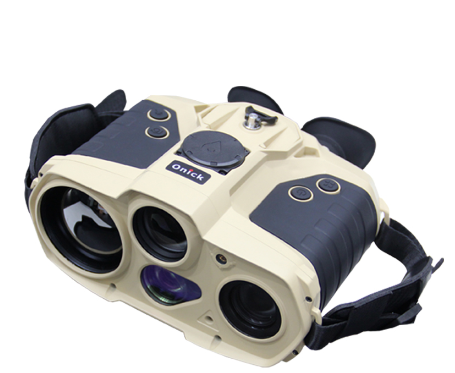

Onick RE830 binocular multifunctional handheld observation device is a small intelligent observation device integrating infrared, low light, visible light and laser. It has built-in positioning module, electronic compass, laser ranging and image storage functions, and image fusion function. It can be used for day and night observation and target search, and timely take photos and videos and upload information. It is comfortable to use and easy to carry. It can be used for reconnaissance, surveillance, outdoor hunting and security protection, etc.
Product features:
1. 5 optical channels, support image fusion, infrared, low light, visible light and multiple observation modes;
2. Multifunctional, intelligent, with electronic compass; with laser ranging, accurate measurement of target position;
3. Built-in positioning module BD+GPS dual-mode positioning;
4. Light weight, long battery life, simple operation;
Product parameters:
Image zoom:
Electronic zoom: 1.0-4.0 times (infrared, low light, fusion synchronous change, single step adjustment step 0.1 times. Visible light image is electronically zoomed separately, with a zoom step of 0.1 times)
Infrared thermal imaging performance
Resolution: 640×512, 12μm
Working band: 8~14μm
Field of view: 6.1°×4.8°
Low light imaging performance
Resolution: 750×600
Low illumination capability: 0.001lux
Field of view: 6.8°×5.5°
Visible light imaging performance
Resolution: 460 10,000 pixels
Field of view: 4.6°×3.7°
Laser ranging performance
Wavelength: 1535nm
Maximum range: ≥6km
Minimum range: ≤50m
Ranging accuracy: 2m
Positioning module performance
Positioning mode: Beidou navigation, GPS
Horizontal positioning accuracy (CEP): 5m
Elevation positioning accuracy (PE): 10m
Electronic compass performance
Magnetic azimuth measurement range: 0~360°
Magnetic azimuth measurement accuracy: 0.5°
Pitch angle measurement range: -90°~+90°
Pitch angle measurement accuracy: 0.4°
Tilt angle measurement range: -180°~+180°
Tilt angle measurement accuracy: 0.5°
Laser indication performance
Wavelength: 830nm
Safety level: 5mW, Class IIIA
Display performance
Resolution: 1280×1024
External interface
Aviation plug: DC/USB/PAL/RS232
Display : HDMI
Wireless transmission: WIFI
Overall performance
Storage: 64G
Eyepiece diopter: -4~+4
Weight: 2.1kg
Working time: ≥8h
Dimensions: 198*210*105mm
Working temperature: -40℃~+55℃
Storage temperature: -55℃~+70℃
Waterproof grade: IP67
