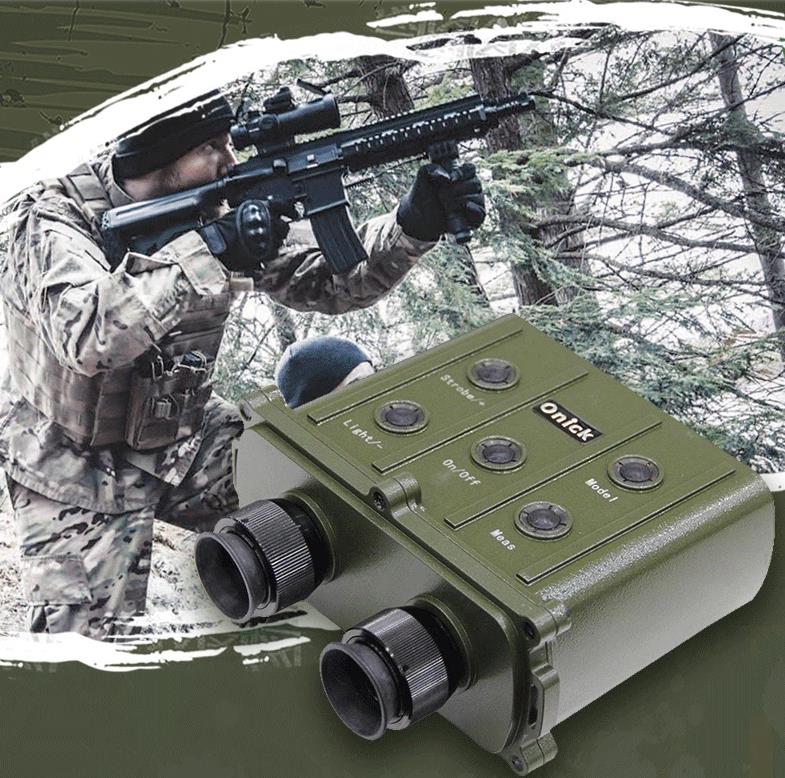

Hello everyone! Today I want to share with you a device that leads the new trend in the field of measurement - onick 5000CI laser distance meter. If you need to measure distances over 5 kilometers, this device will undoubtedly be your powerful assistant. It is not only technologically advanced, but also well-designed, bringing users unprecedented measurement experience and convenience.
Advanced technology, precise measurement
onick 5000CI uses advanced laser technology to achieve ultra-long distance measurement of up to 5 kilometers. Whether it is measuring the distance between buildings, the length of the pipeline, or measuring the height difference of the terrain in geological exploration, this distance meter can easily do it. Its high-precision measurement resolution can achieve millimeter-level accuracy, ensuring the accuracy and reliability of the data, allowing users to safely deal with various complex measurement tasks.
Simple and easy to use, easy to operate
Not only has it made breakthroughs in technical performance, onick 5000CI also focuses on the simplicity and convenience of user experience in design. The device operation interface is simple and intuitive, and even first-time users can quickly get started. The lightweight design and user-friendly function settings make this rangefinder very convenient in field operations and can effectively improve work efficiency.
Durable and reliable, adaptable to various environments
onick 5000CI has excellent durability and stability, and its design takes into account the use requirements in various complex environments. The device adopts a dustproof and waterproof design, which can maintain stable performance under adverse weather conditions. This design ensures the reliability of the equipment in long-term use, reduces the frequency of maintenance and replacement, and saves costs and time for users.
Technical parameters:
Model: 5000CI
Origin: Made in China
Launch date: 2019.9
Patent application number: 202030826525.7
Chinese brand: Onick English brand: Onick
1. Distance measurement parameters
Distance measurement range: 30~5000m
Distance measurement error: ±0.5m
Distance selection: 20 ~ 5100m (step length is 10m)
Accuracy: 98%
Repetition frequency: 1/6 ~ 1/3 Hz (10 ~ 20 times/min)
Compass accuracy: ±1 degree (optional)
Inclination accuracy: ±0.1 degree (within ±25 degrees) (optional)
⒉ Distance measurement function
Calculate the average value of measurement data
Measurement data storage (1000 data)
Measurement data transmission (output interface: RS232, 9600, 8, N, 1)
Display brightness and graticule illumination adjustment
Instrument working life statistics
Query the last ten distance measurement values
Serial number query
Storage area data query
⒊ Optical parameters
Receiving aperture: Φ30mm
Sight field of view: 6.5°
Sight magnification: 7X
⒋ Laser parameters
Wavelength: 1.064μm
Light source: Nd:YAG
Output energy: ≥5 mj
Working life: ≥20000 times
⒌ Working temperature: -20℃ ~ +50℃
⒍ Environmental adaptability: dustproof, waterproof, shockproof
⒎ Mechanical parameters:
Dimensions: 151mm*154mm*74mm
Weight: 1 Kg
⒏ Power supply
① This instrument uses two 3.7V, 3400mAh lithium batteries 18650. At room temperature, two fully charged batteries can measure distances for more than 3000 times.
Note: Each time the battery is reinstalled, it must be plugged in and charged and activated before it can be used normally! !
② For charging, insert the output plug of the power supply into the socket of the instrument, and then insert the plug of the power supply into the AC 100~240V power supply.
The power supply usually has the following two states:
State 1: Insert the charger in the off state, the instrument turns on, displays the LOGO, and then only displays the flashing battery symbol. When the battery is full, the battery symbol stops flashing. After unplugging the charger, the instrument automatically shuts down.
State 2: Insert the charger when turning on, the battery symbol flashes, the battery is full, and the battery symbol stops flashing, indicating that it is full. After unplugging the charger, the operation of the instrument is not affected.
9. Installation
It can be fixed on the camera stand through the 1/4 screw hole of the connecting plate at the bottom of the instrument, or connected to various theodolites through the dovetail groove of the connecting plate through a special adapter mechanism, and remote control distance measurement operation is performed through an external trigger cable.
Packing list: instrument box, rangefinder, 12V2A power supply, 18650 battery*2, external trigger cable, data cable, manual, warranty card, lens cleaning cloth
